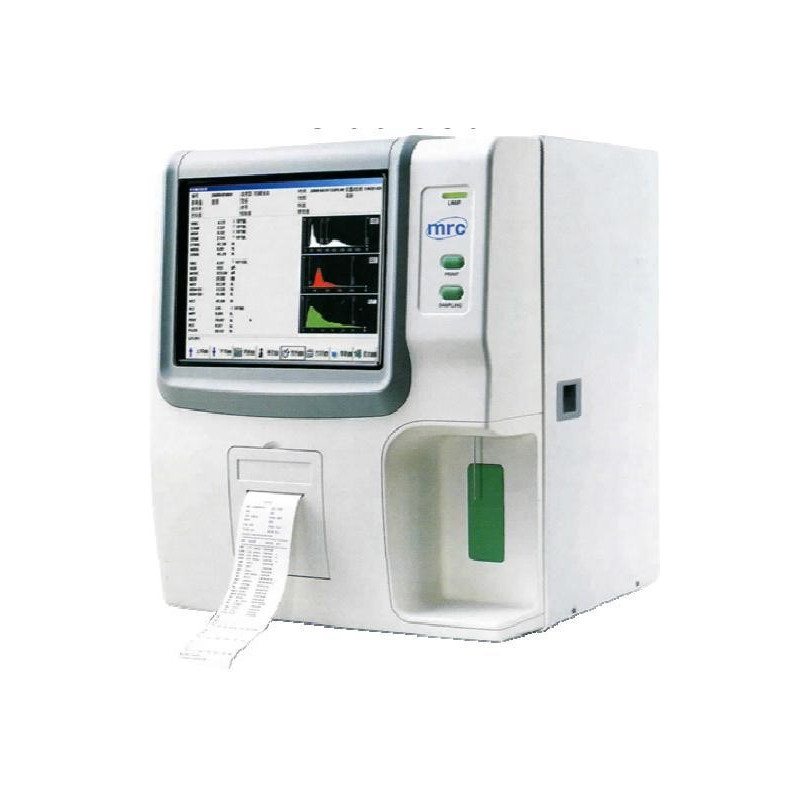

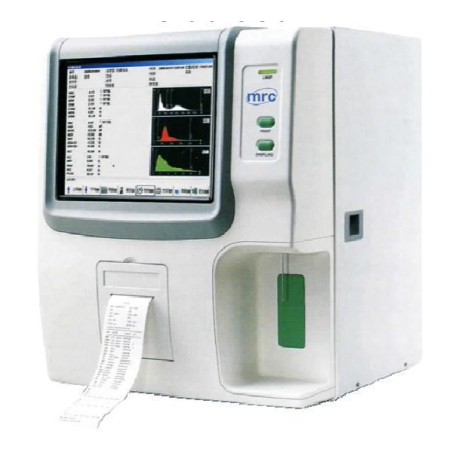

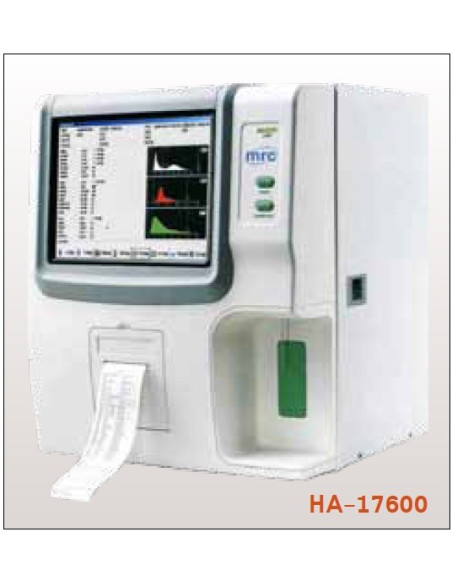

HA-17600 Medical Hematology Analyzer
MRC HA-17600: Medical Hematology Auto Analyzer with stable performance.
● 20 parameters+3 histograms
● Test Parameters:
WBC,LYM,MUD,GRA,LYM,MID%,GRA%,RBC,HGB,,MCHC,MCH,MCV,RDW-CV,RDW-SD,HCT,PLT,MPV,PDW,PCT,P-LCR
HISTOGRAMS: WBC , RBC ,PLT
● with touch screen
● Sample Volume Prediluted: 20µL, Whole Blood: 9.8µL
● 60 samples per hour.
● Up to 50000 sample results (including histograms) can be stored
● Built-in thermal printer, optional external printer
● Multi-language software available on request.
Throughput 60 samples per hour
● Input/Output RS-232, USB, LAN, keyboard and mouse interface
● Dimension(mm) L436×W363×H367
● Weight 18Kg
Up to 50000 sample results (including histograms) can be stored
|
Model |
HA-17600 |
|---|---|
|
Parameters |
WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%, RBC, HGB, MCHC, MCH, MCV, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR and Histograms for WBC, RBC and PLT |
|
Principles |
Electrical resistance for counting WBC, RBC and PLT |
|
Performance |
Parameter Precision (CV %): WBC (109/L) 2.0(7.0- 15.0) RBC (1012/L) 1.5(3.50-6.00), HGB (g/L) 1.5(110 – 180) MCV (fL) 0.4(80.0 – 110.0), PLT (109/L) 4(100 – 500) |
|
Sample Volume |
Prediluted: 20µL, Whole Blood: 9.8µL |
|
Aperture Diameter |
WBC 80µm; RBC 50µm |
|
Throughput |
60 samples per hour |
|
Display |
10.4'' TFT Color LCD with touch screen, Resolution: 800 600 |
|
Alarms |
Error messages |
|
Carryover |
WBC/RBC/HGB<0.5%, PLT<1.0% |
|
Input/Output |
RS-232, USB, LAN, keyboard and mouse interface |
|
Printout |
Thermal printer, 55mm width paper, various printout formats, external printer optional |
|
Operating Environment |
Temperature: 15°C~35°C; Humidity: 10%~90% |
|
Power Requirement |
AC 110-220V, 50/60Hz |
|
Dimension(mm) |
L436 W363 H367 |
|
Weight |
18Kg |
- Instrument for:
- Hospitals, Lab's, Clinics
- Function:
- Hematology analyzer for medicine
