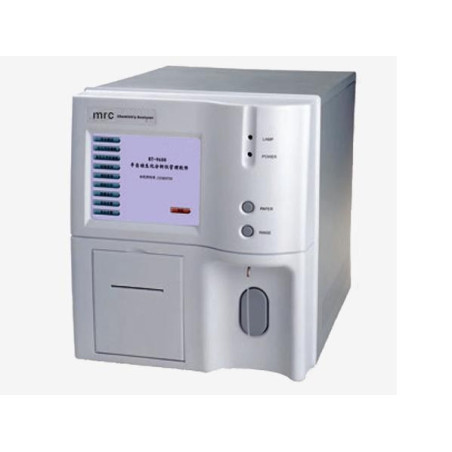

SACA-19600 Semi-Automatic Chemistry Medical Analyzer, Grating inside, Touch Screen and USB

Reference: SACA-19600 - Manufacturer: MRC
Following test methods can be provided:
  • endpoint method                  （End Point）
  • Kinetics method                  （Kinetics）
  • Two points method                    (Two Points)
  • Double wavelength determination     （Dichromatic）
  • Absorbance determination          （Absorbance）
  • Multi-calibration curve method         （Multi- Calibration）
  • Reagent open or close selectable, according to the user’s requests.
  • It can print synthetic report, test parameter, reaction curve, calibration curve and quality control data figure, etc.


● Easy Windows operation system with arge touch screen.
● Reagent-open system supports flow cell and cuvette mode, close system on request
● wavelength range is 330 - 800nm.
● Analytical modes include kinetic, fixed time, bichromatic end point with or without reagent blank, linear or non-linear calibration.
● Powerful QC program: Westguard multi-rule, Levey-Jennings plots, 2 controls per test
● Multiform result output including patient comprehensive report
● Multi-interface support RS-232,VGA,USB,SD and Ethernet
● Multi-language software available on request.
● up to 200 test protocols and 10000 results, SD card optional.

Model

SACA-19600

Principle

Absorbance

Absorbance Range

-0.500 ~ 3.500Abs

Resolution

0.001 Abs (displayed), 0.0001Abs (calculated)

Light Source

Halogen lamp

Wavelengths

Continuously adjusted grating, wavelength range is 330 - 800nm, 1nm by step adjustment

Wavelength Accuracy

± 1nm

Band Width

< 6nm

Flow cell

Metal - quartz flow cell

Temperature Control

25°C,30°C,37°C,±0.1°C and ambient temperature

Carryover

< 1%

Memory

200 test protocols, up to 10000 test results, support SD to expand memory

Display

6.4' color/mono LCD

Interface

RS-232,support VGA,2 USB, SD, Ethernet

Output

Built-in printer, or external printer (optional)

Input

Touch screen, USB mouse and keyboard optional

Power Supply

AC 100V - 240V ± 10%,50-60Hz

Net Weight

11KG

Dimensions (mm)

L370xW284xH318
Instrument for:
Medicine/Veterinary Analyzer
Parameters Measured
Blood & Biochemical Indexes
