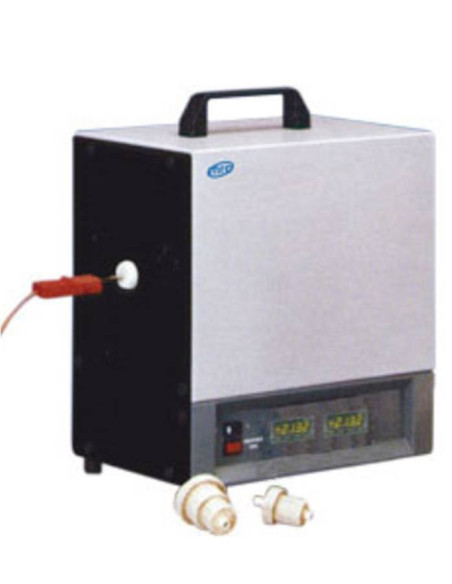

CALI-1200 Thermocouple Calibration Furnace 400 - 1200°C

CALI-1200 Thermocouple Calibration Furnace 400 - 1200°C

CALI-1200 Thermocouple Calibration Furnace 400 - 1200°C

Reference: CALI-1200 - Manufacturer: MRC

The Portable Thermocouple calibrator is a high stability heat source designed for
the calibration of thermocouples up to 7.5mm, with a maximum operating temperature of 1200°C. Thermocouples.

Calibration oven for thermocouples
Temperature range: 400 to 1200 degrees C
Diameter of thermocouples up to 7.5mm
Temperature stability better than 1 degree C
External: w310xd225xh399
Weight 8.8kg
1100 Watt power

Model	CALI-1200
Max. temperature (°C)	1200
Continuous temperature (°C)	1150
Temperature range (°C)	400-1200
Stability	Better than +1°C
Overall dimensions (mm)	W310xD225xH399
Heated length (mm)	150
Controller	eurotherm 2132
Indicator	eurotherm 2132
Heating rate	20 mins (to 1150°C)
Cavity diameter (mm)	20
Weight (kg)	8.8
Furnace voltage	120/240 externally selectable
Max. power (W)	1100
Thermocouple type	N

MEASUREMENT AND CALIBRATION INSTRUMENTS: Dry Well Calibrators

Download (787.47KB)
