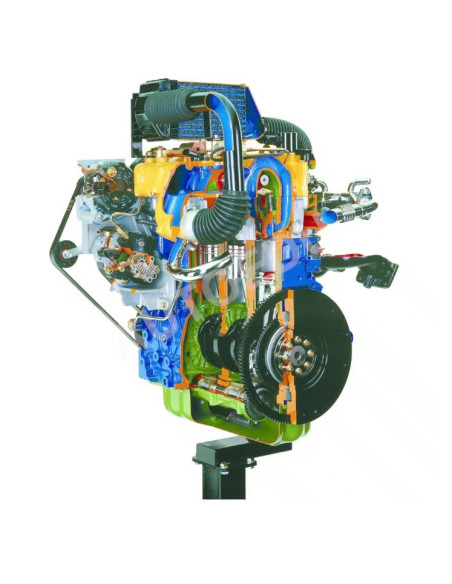

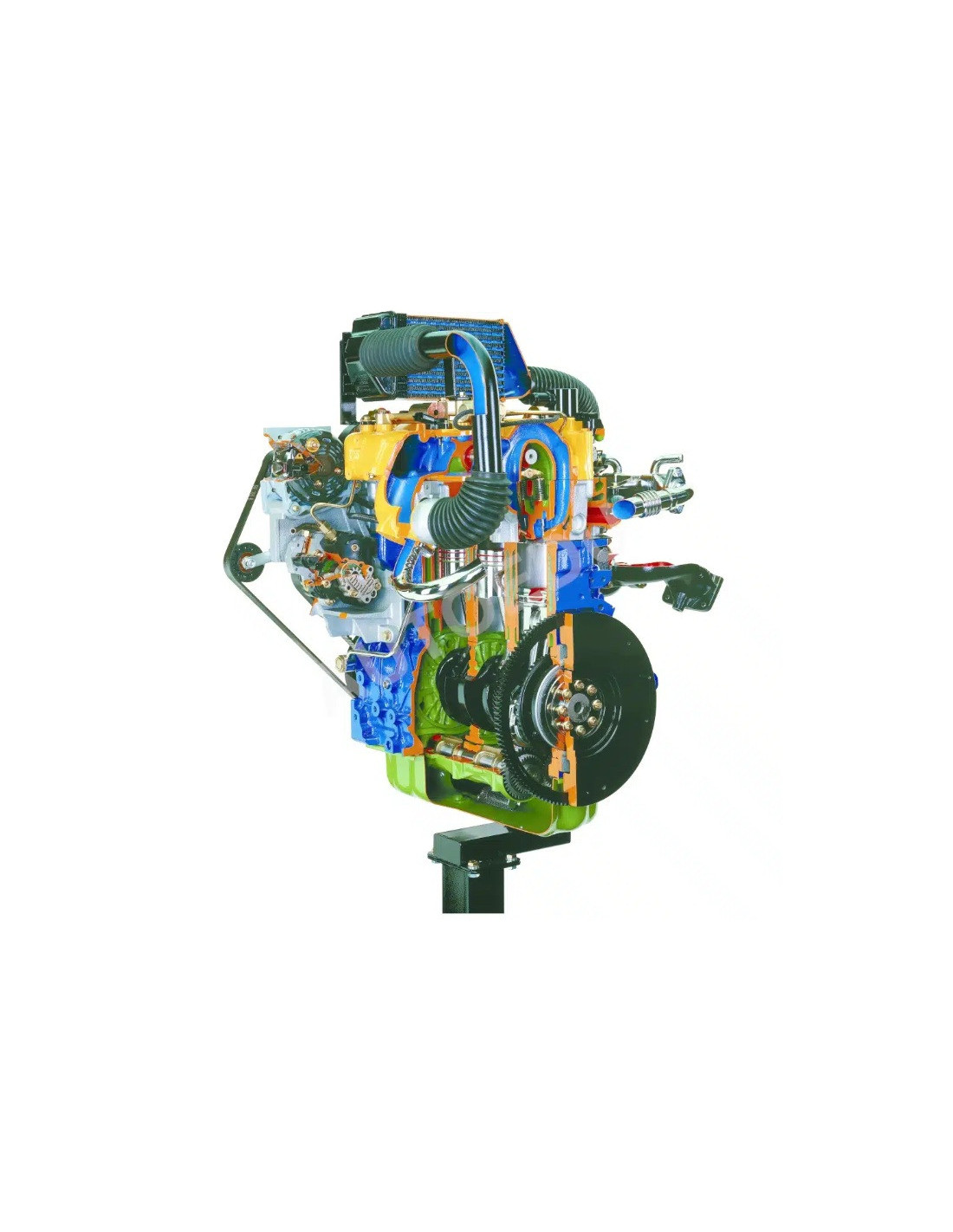

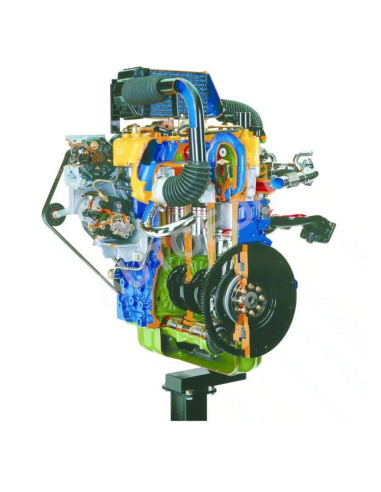

AE36010E 16 valve Chrysler turbo diesel CR engine with intercooler cutaway

Overview

16-valve turbo diesel engine with a 4-stroke, 4-cylinder configuration, delivering 150 to 170 hp at 4000 RPM. It incorporates a Common Rail direct injection system with electro-injectors controlled by an ECU, and a turbo-supercharger with an air-air intercooler for enhanced performance.

This model operates electrically at 220V, with 110V US optional, and reduced speed, allowing detailed observation of components such as the twin overhead camshaft with timing belt, vibration-damping balancing shafts, alternator, oil filter, and oil pump.

Value for Students

• Study the Common Rail direct injection system, including ECU and associated sensors.
• Observe high-pressure fuel injection, atomization, and timing behavior.
• Explore turbo-supercharging with air-air intercooler and its effect on engine efficiency and power output.
• Examine internal mechanics such as DOHC, timing belt, balancing shafts, and electro-injectors.
• Safely observe dynamic operation of moving parts at reduced speed.

Value for Instructors

• Demonstrates OEM diesel engine technology, Common Rail injection, turbo-supercharging, and electronic fuel management.
• Color-coded and chromed components help explain operational principles clearly.
• Mounted on a sturdy stand with wheels for easy movement and classroom integration.
• Electrical operation and manual crank handle simplify lesson reset and improve efficiency.
