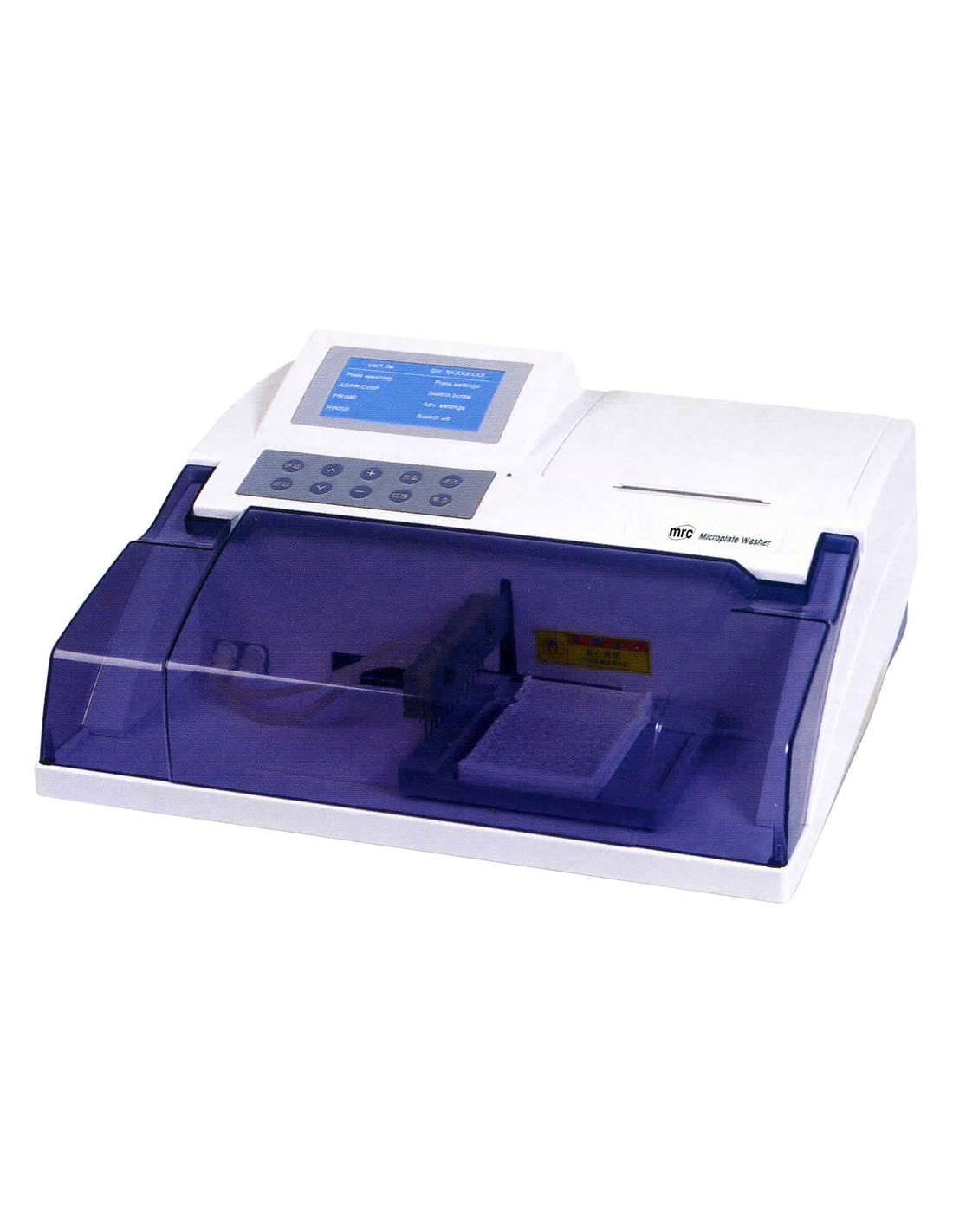

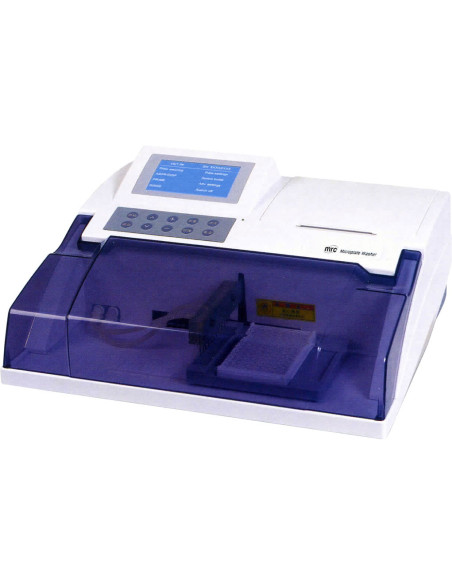

UT-3100-5 Microplate Washer with 8-pin or 12-pin manifold, 5 channels and built-in incubator
UT-3100-5 microplate washer for 96/48 well plates or strips, residual volume <1 µl, up to 99 cycles, 5 channels and RS-232.
GENERAL
UT-3100-5 is a microplate washer with 8-pin or 12-pin manifold, 5 channels and built-in incubator.
It is designed for 96-/48-well plates or strips and provides residual volume below 1 µl. Washing volume ranges from 10 to 3000 µl per well with 1 µl step resolution.
The unit allows up to 99 washing cycles, programmable strip washing from 1 to 12 strips, soaking time from 0 to 24 hours and shaking time from 0 to 24 hours.
It includes a large LCD display, memory for 100 washing protocols, RS-232 interface and AC 110/220V±10%, 50~60Hz power supply.
The channel configuration includes 5 channel bottles, with 1 or 3 optional for wash, 1 for water rinse and 1 for waste. The manufacturer also specifies automatic and manual manifold positioning and high protocol memory capacity.
SPECIFICATIONS
- Reference: UT-3100-5
- Type: Microplate Washer
- Manifold: 8-pin or 12-pin
- Channels: 5 channels
- Incubator: built-in
- Plate mode: 96-/48-well plate or strip
- Residual volume: <1 µl
- Washing volume: 10~3000 µl/well, 1 µl by step
- Washing cycle: maximum 99 cycles
- Strip washing: 1 to 12 strips programmable
- Soaking time: 0~24 hours
- Shaking time: 0~24 hours
- Display: large LCD

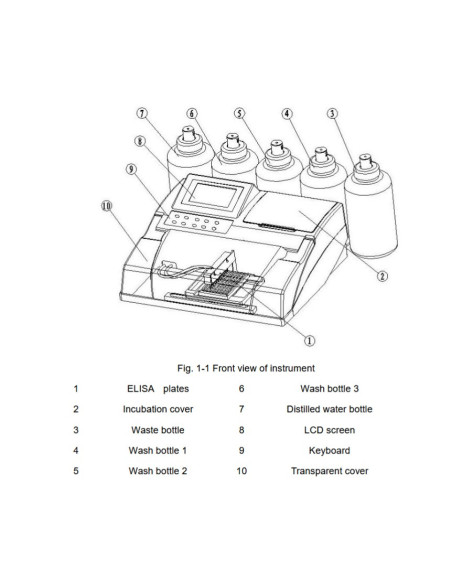

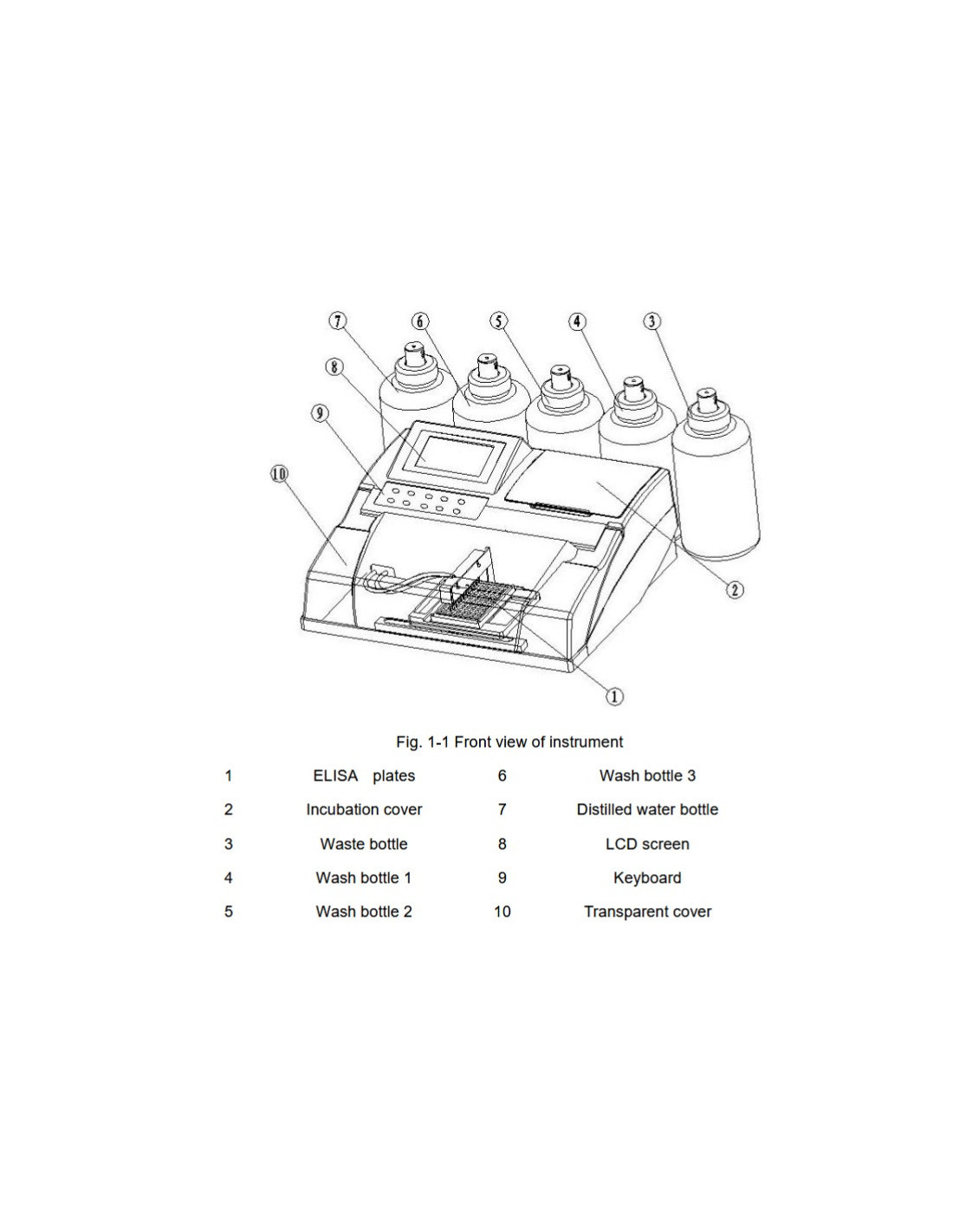

- Wash channels/bottles: 5 channel bottles, 1 or 3 (optional) for wash, 1 for water rinse and 1 for waste
- Bottle capacity: 2 liters each bottle
- Memory: 100 washing protocols
- Interface: RS-232
- Power supply: AC 110/220V±10%, 50~60Hz
- Net weight: 13 kg
- Dimensions: L450 x W390 x H190 mm
- Highlighted functions: automatic and manual manifold positioning; large programmable memory
