MSGP01 Diesel engine glow plug educational trainer

Overview

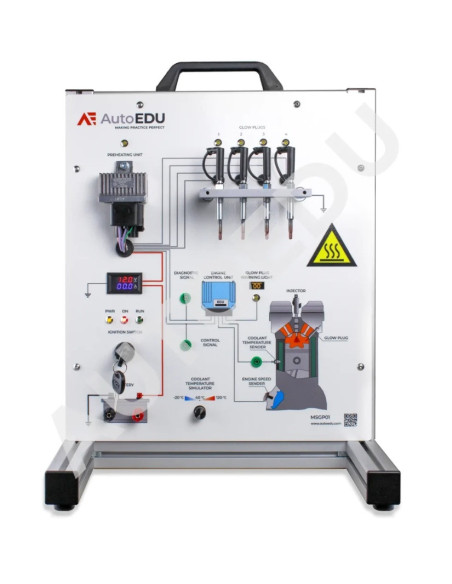

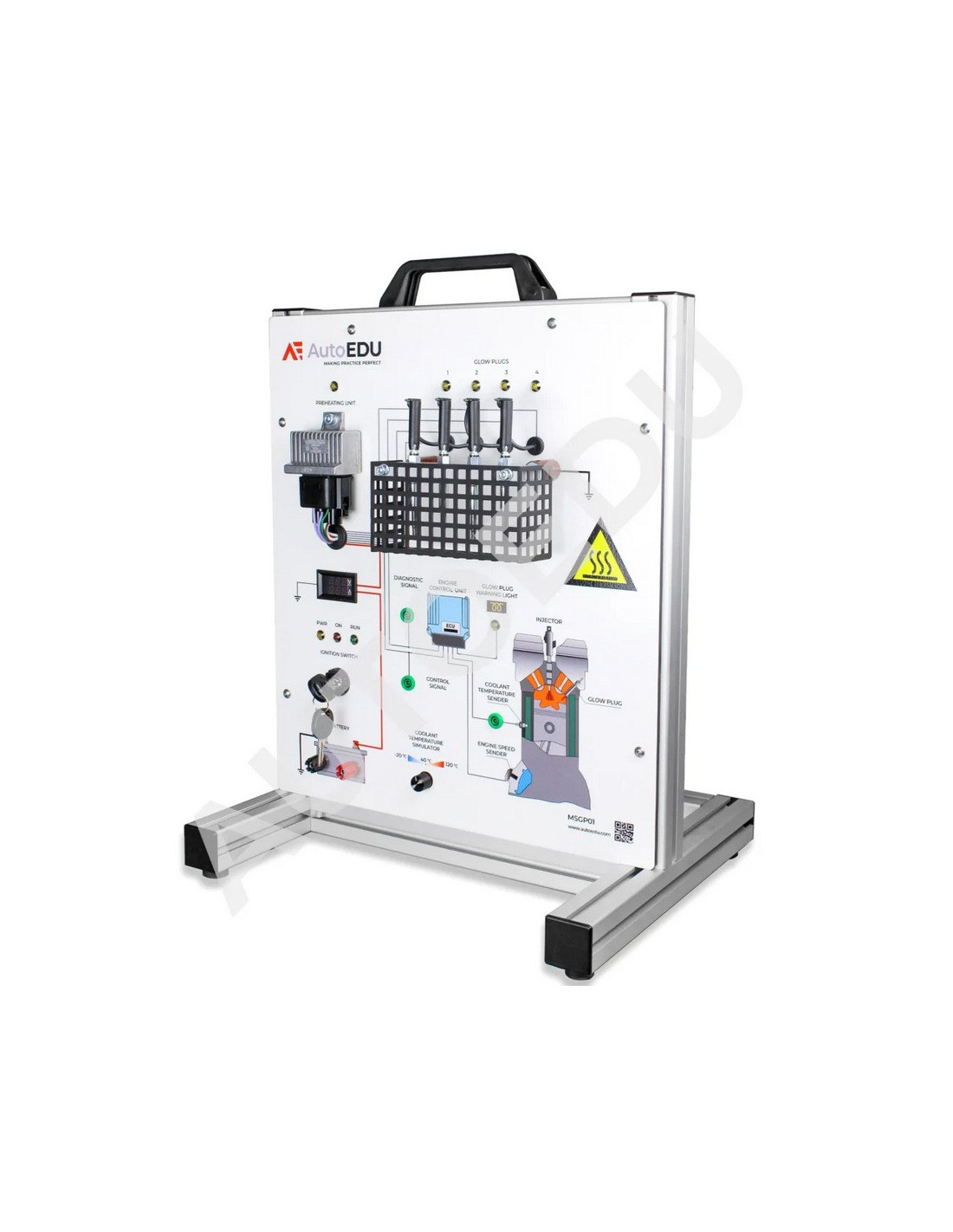

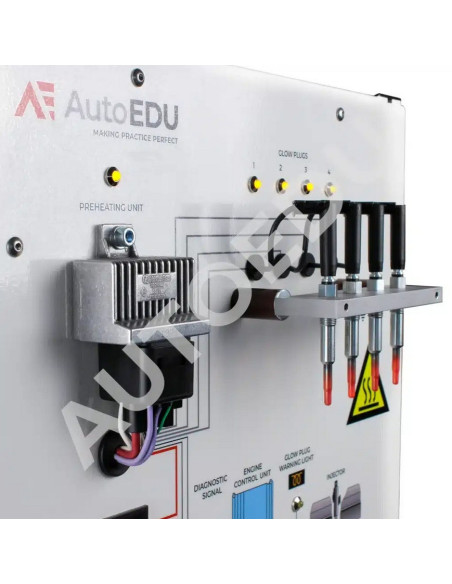

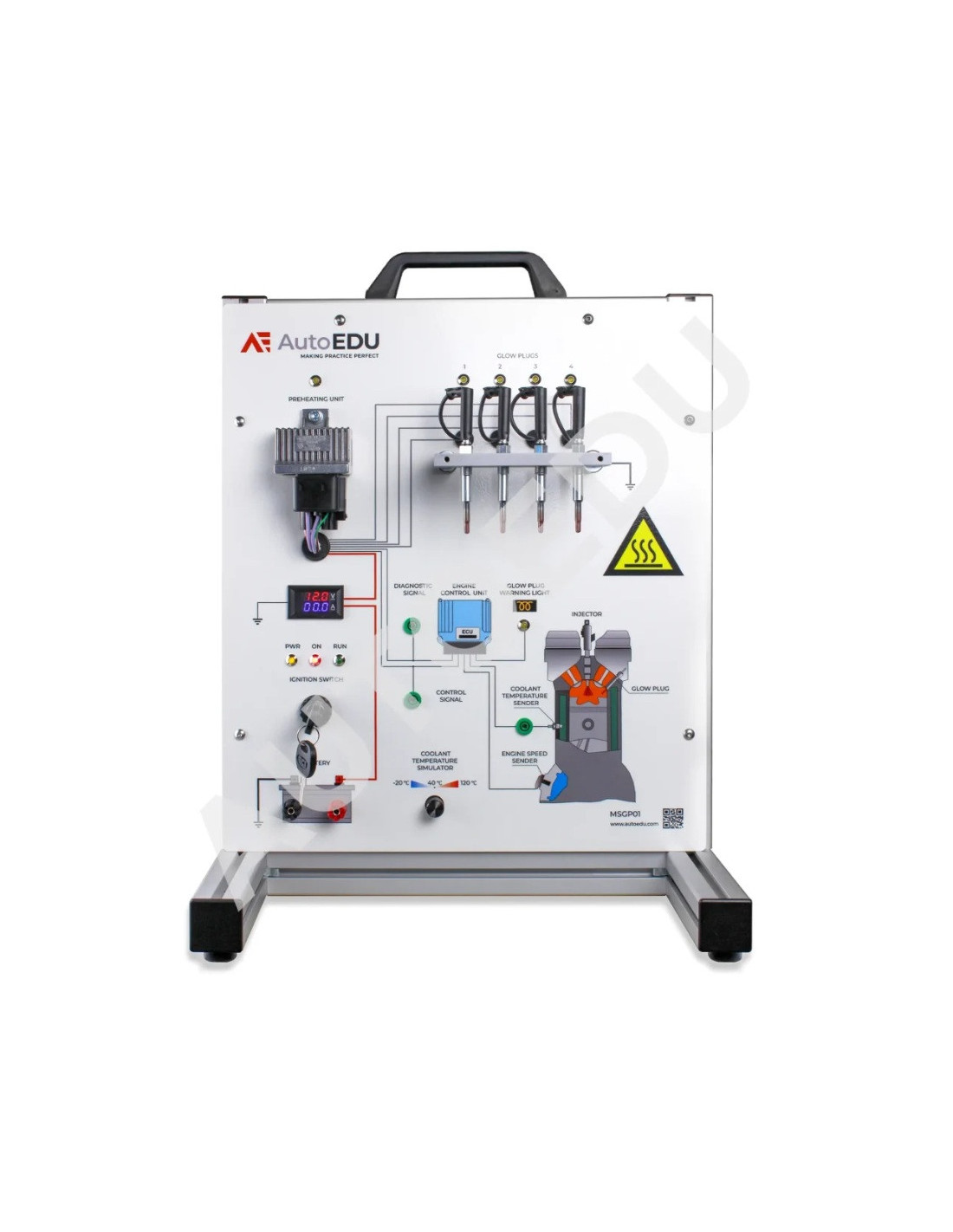

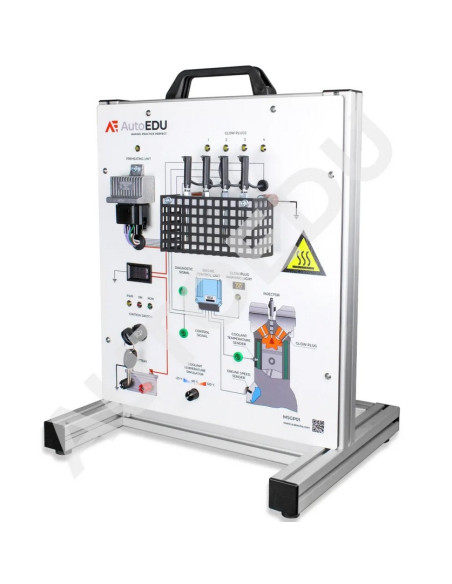

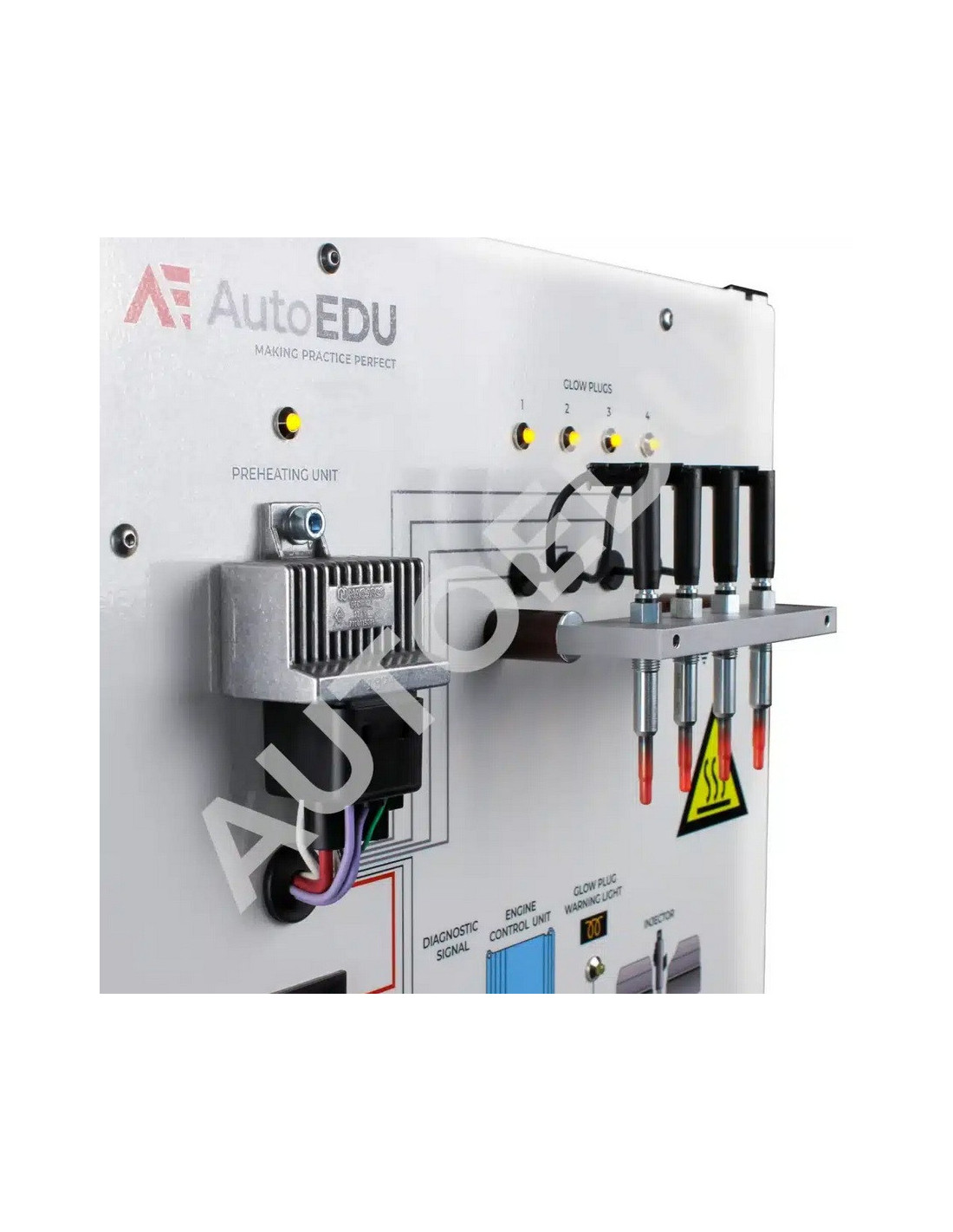

Compact and mobile trainer designed to demonstrate the operating principles of diesel engine glow plug systems. The trainer features exposed functional glow plugs, a preheating control unit, and a coolant temperature simulator to replicate real engine operating conditions.

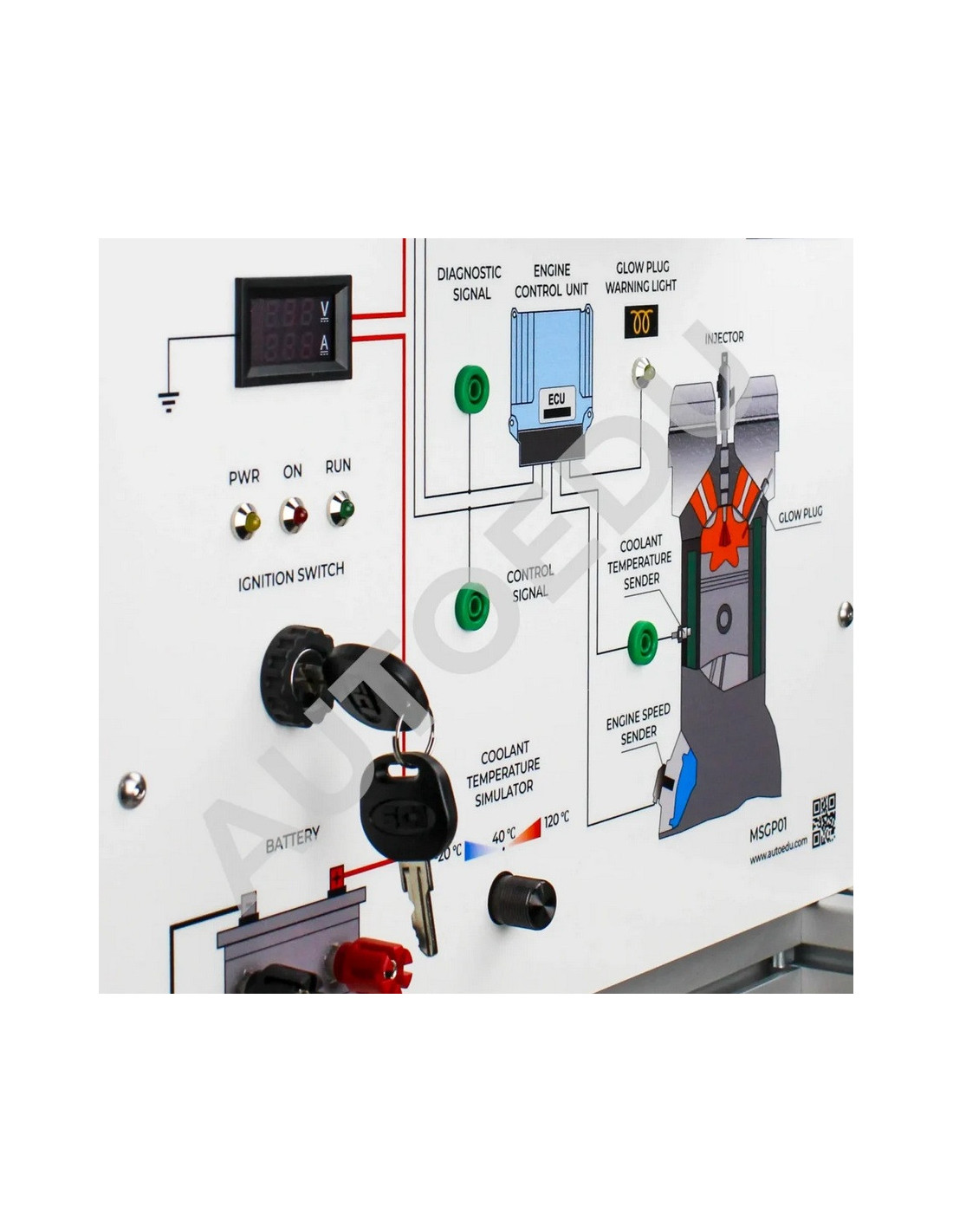

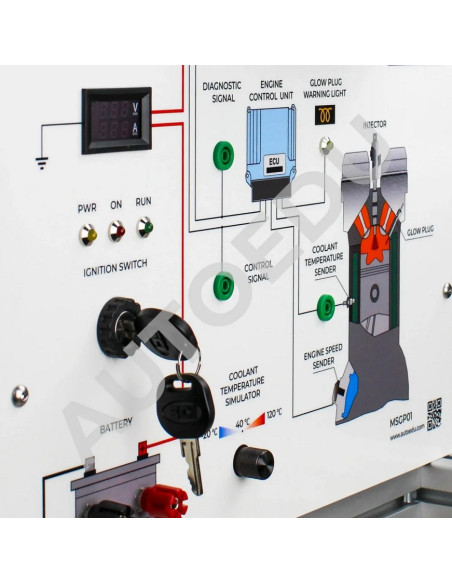

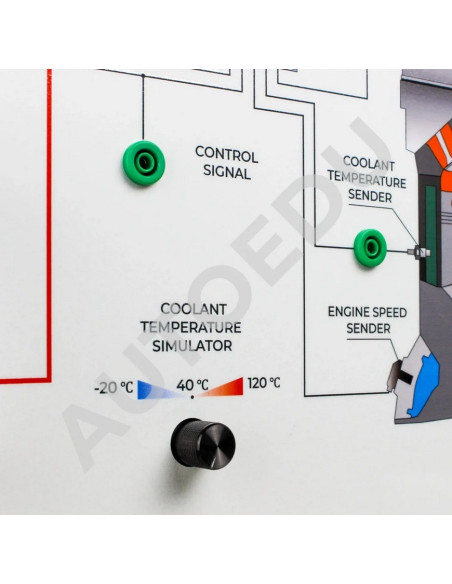

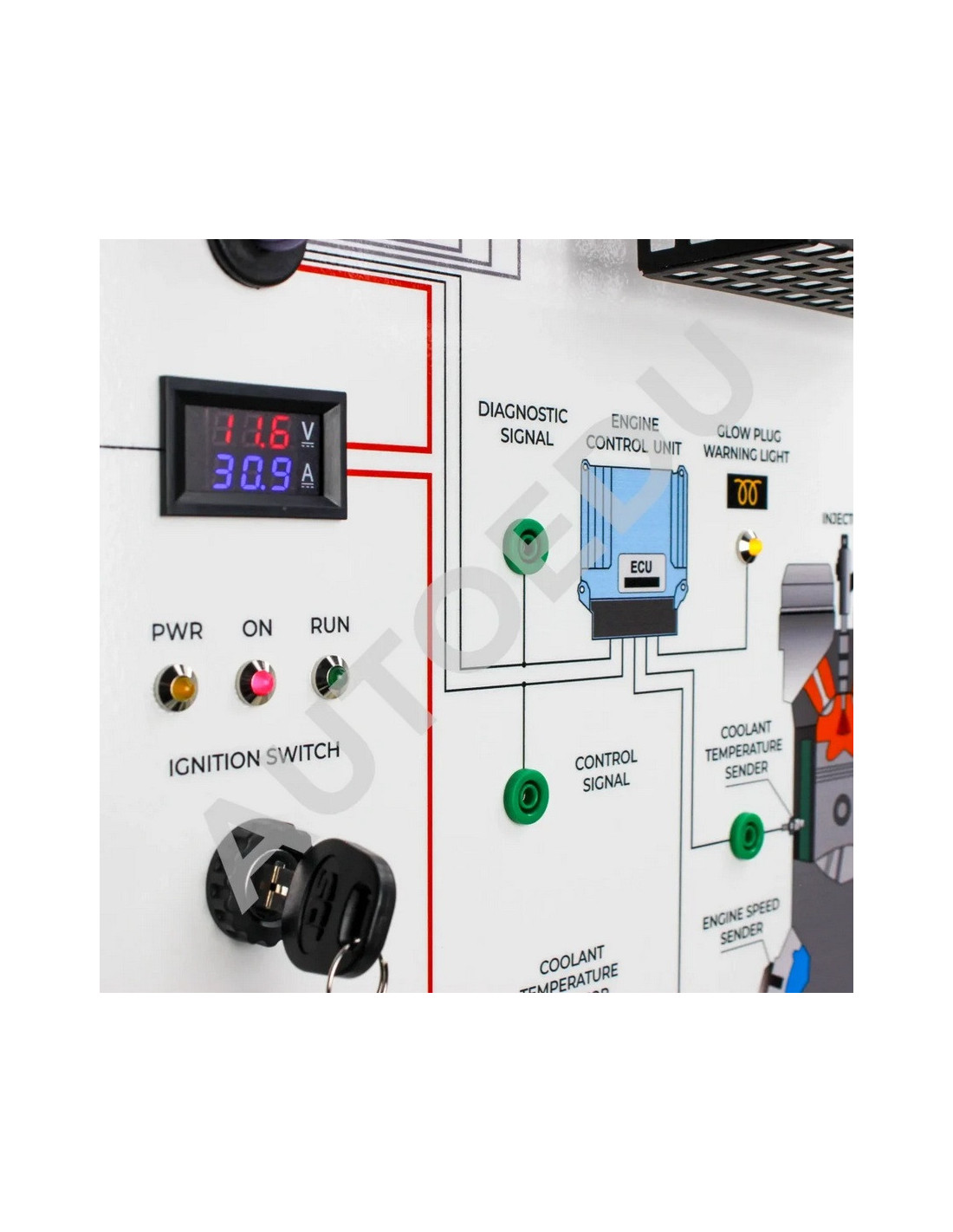

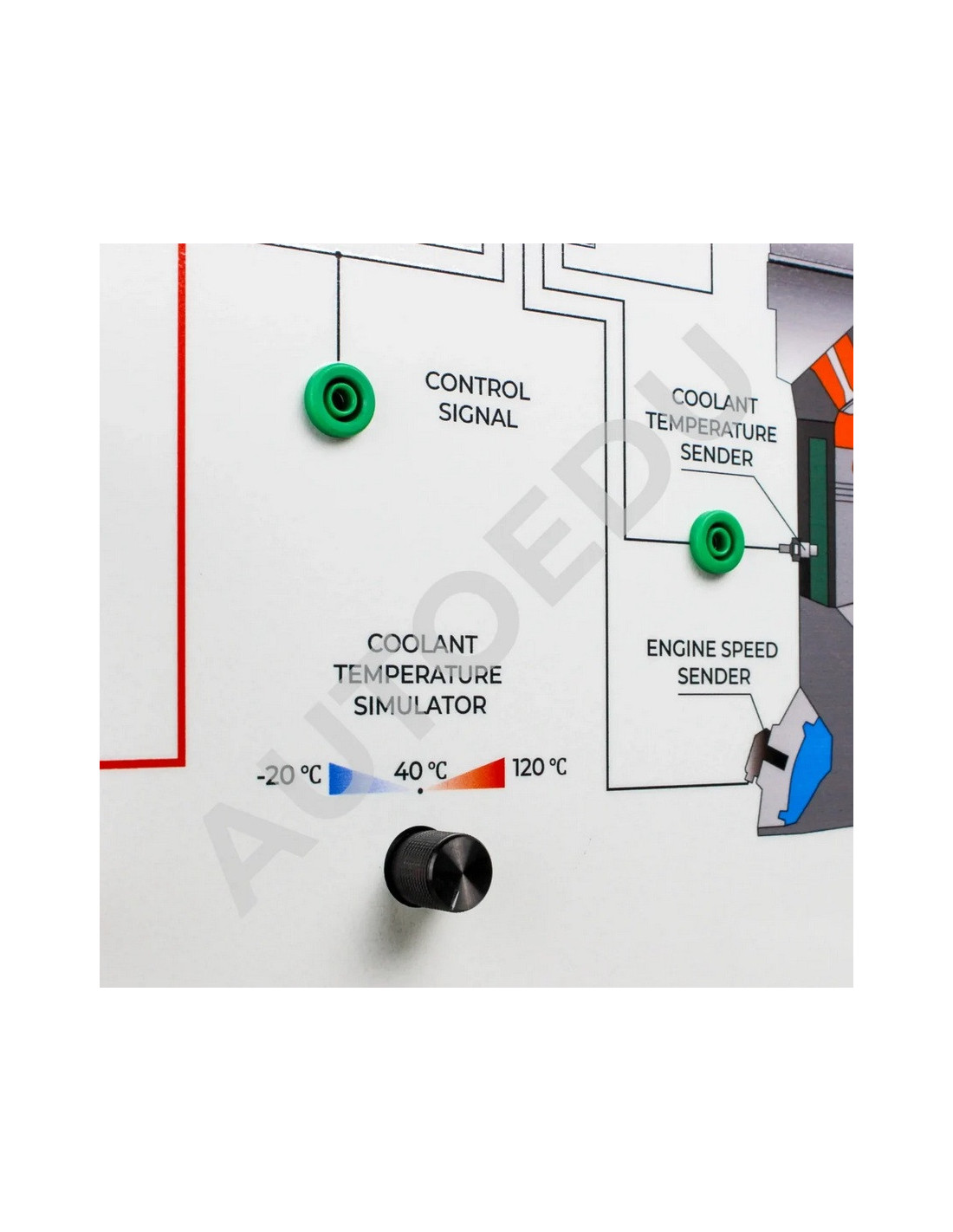

The integrated temperature simulator allows users to manually set coolant temperature using a control knob to simulate four different glow plug operating modes corresponding to typical diesel engine conditions. LED indicators display the operation of the glow plug warning light, preheating unit, and glow plugs in real time.

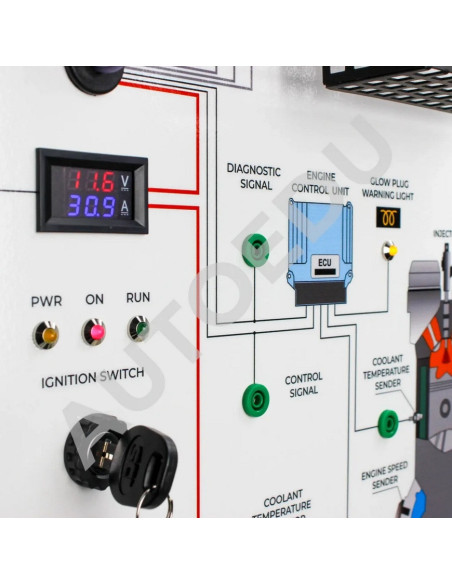

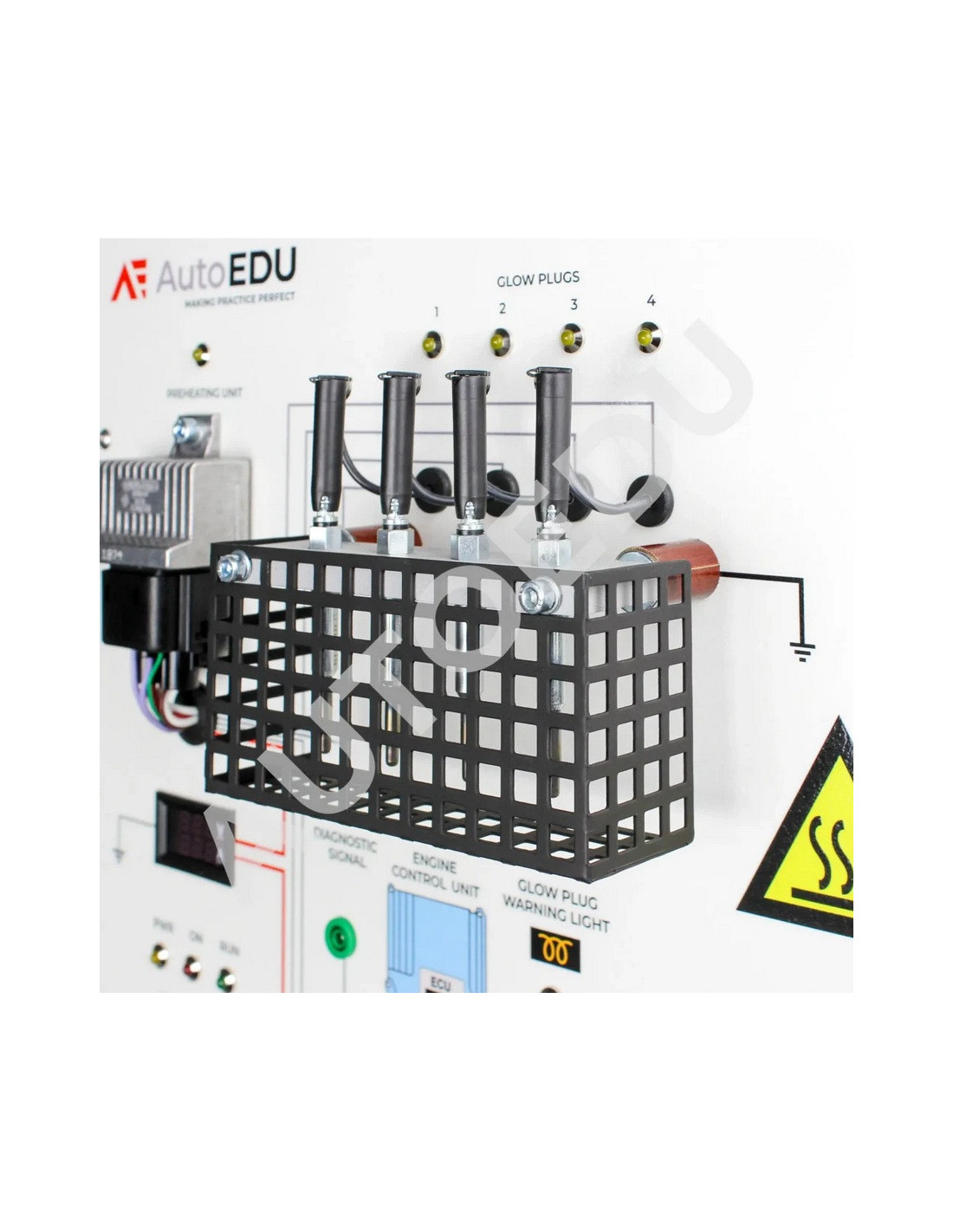

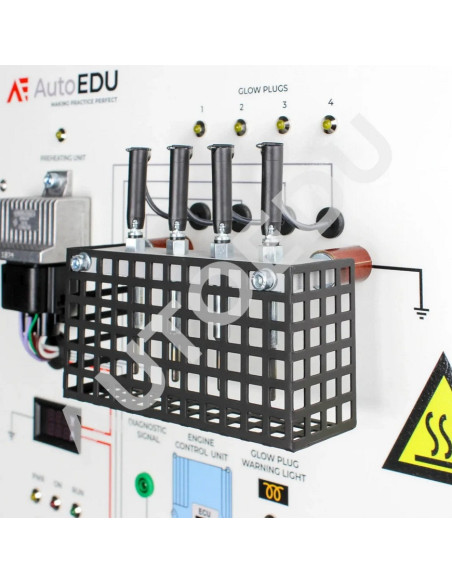

Real-time outputs via 4 mm banana plug terminals allow connection to measuring instruments to observe coolant temperature sender voltage and diagnostic and control signals using a multimeter or oscilloscope. Exposed glow plugs can be disconnected for easy resistance measurement and testing, supporting practical training and exercises.

Value for Students

• Hands-on experience with a real diesel engine glow plug system.
• Understanding of glow plug operation during different engine temperature conditions.
• Ability to observe the preheating process and glow plug activation in real time.
• Practical skills in measuring electrical parameters using multimeters and oscilloscopes.
• Understanding of coolant temperature influence on glow plug control strategy.
• Experience measuring glow plug resistance and analyzing component condition.
• Development of troubleshooting skills related to diesel engine starting systems.

Value for Instructors

• Clear visual demonstration of diesel engine glow plug system operation.
• Ability to simulate different engine temperature conditions using the coolant temperature simulator.
• Real-time signal outputs for teaching electrical diagnostics and signal analysis.
• Safe and controlled training environment without the need for a running engine.
• Suitable for laboratory work, demonstrations, and practical exercises.
