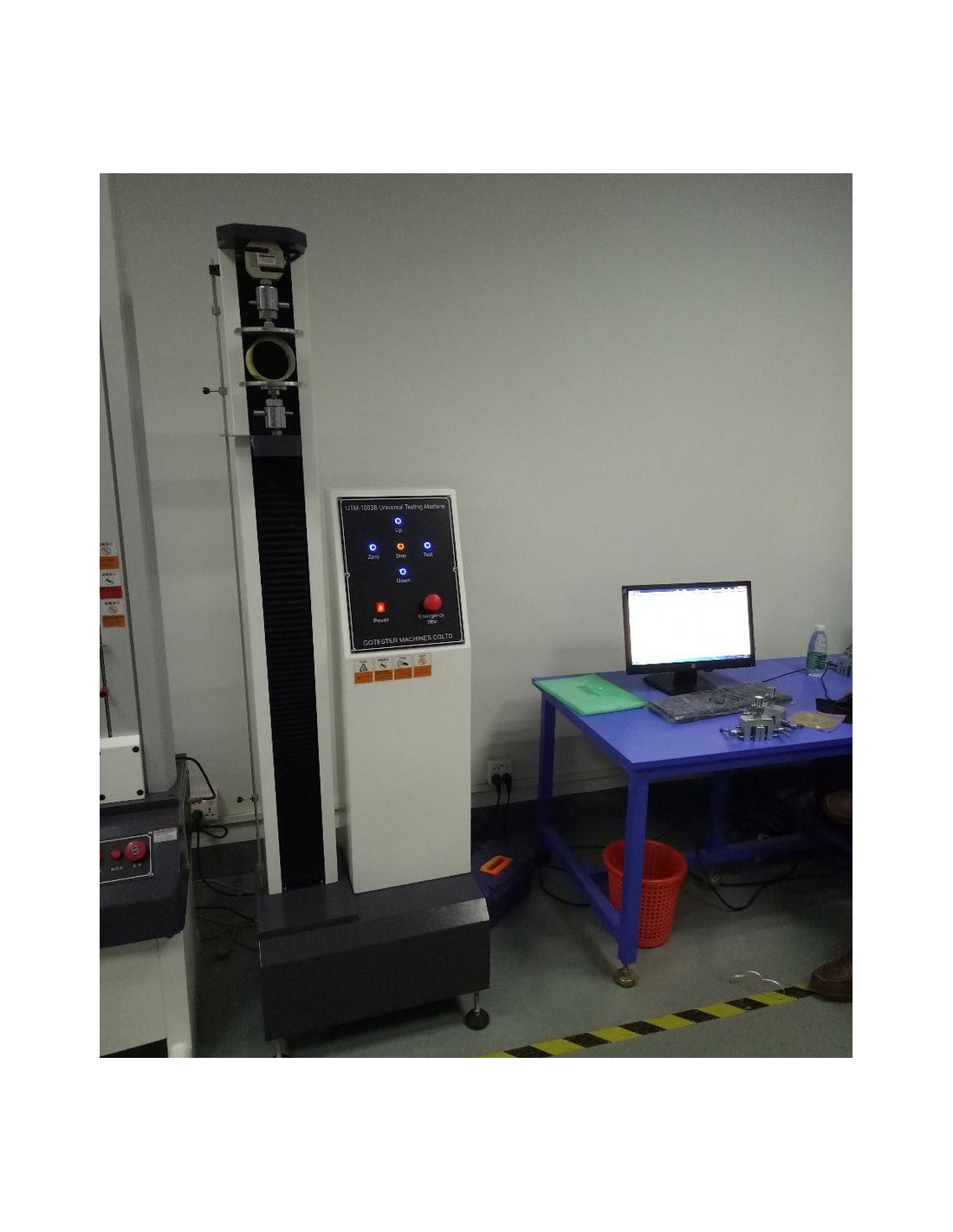

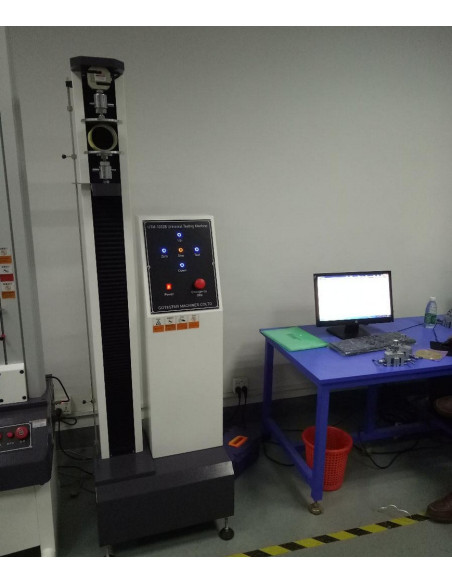

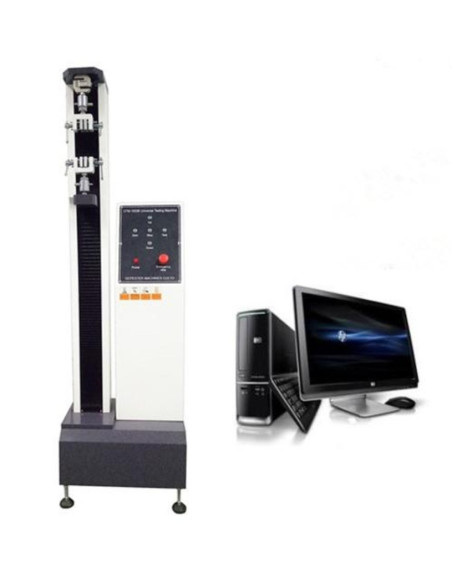

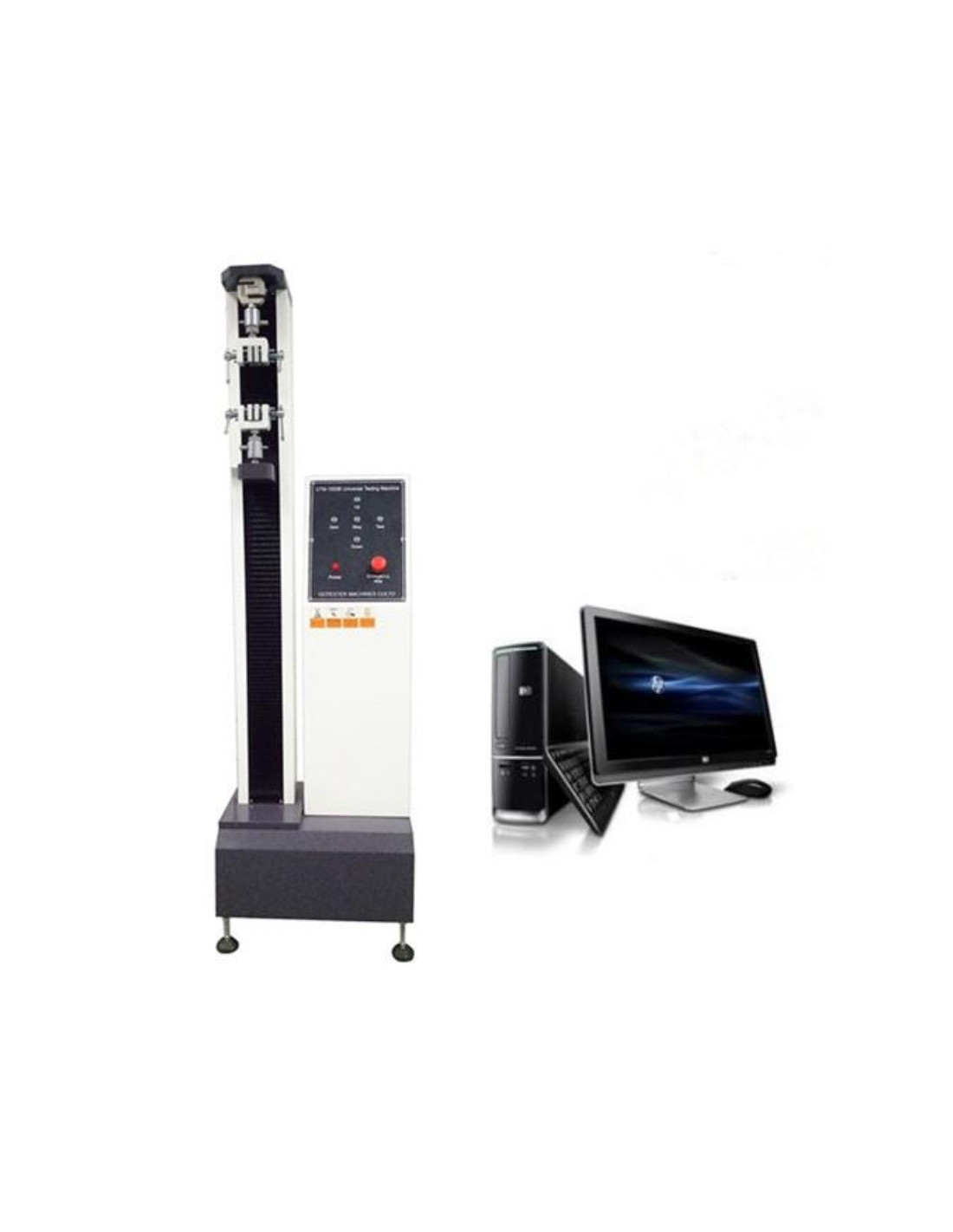

UTM-1003B 5KN Computer Servo Universal Material Testing Machine

Name: UTM-1003B 5KN Computer Servo Universal Material Testing Machine
Brand: GOTESTER
SKU: UTM-1003B

Reference: UTM-1003B - Manufacturer: GOTESTER

5KN computer servo universal material testing machine for tensile, compression, bending, shear, peel, and tear tests, with high accuracy and LCD control.

Ask for Quote

Equipment summary

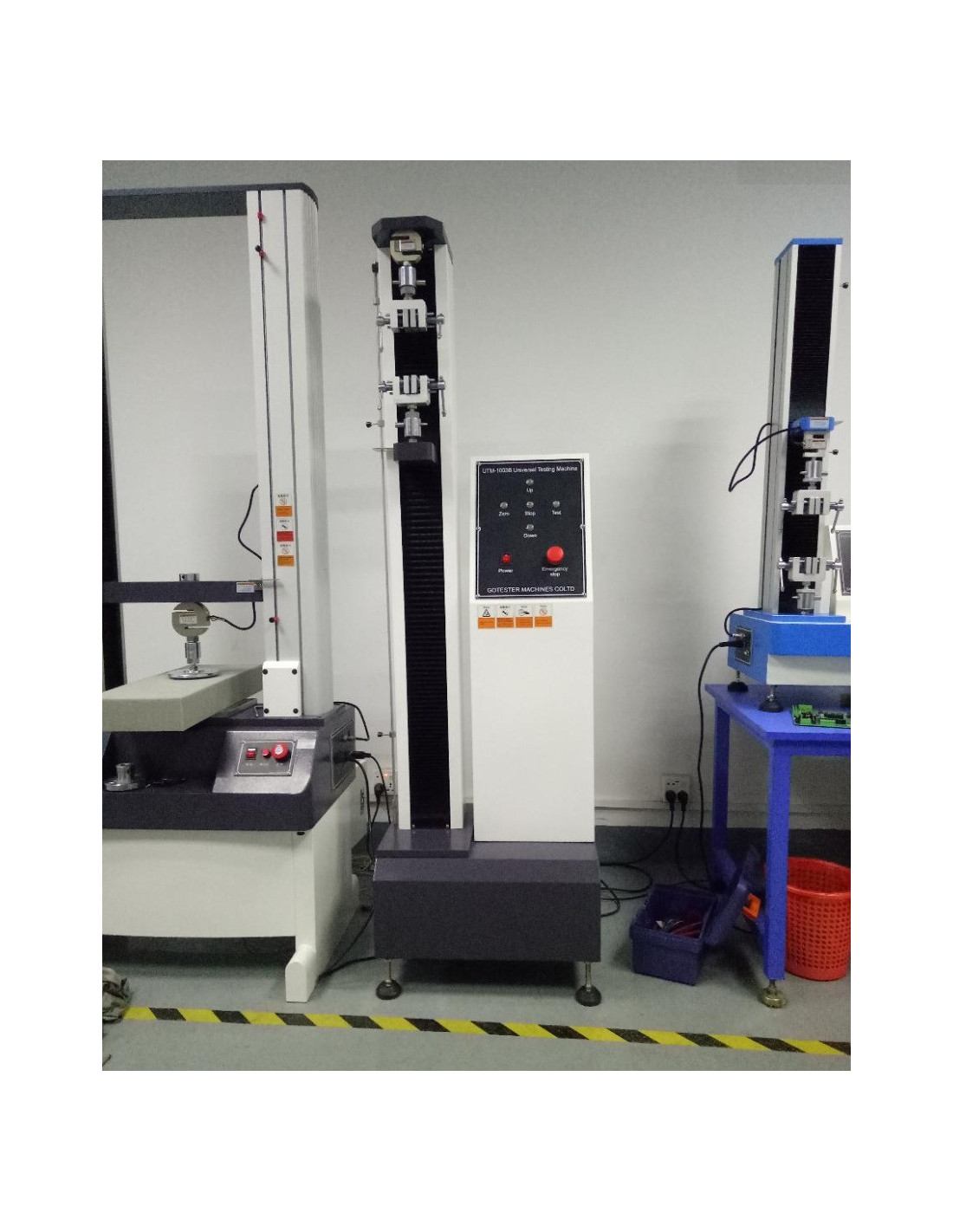

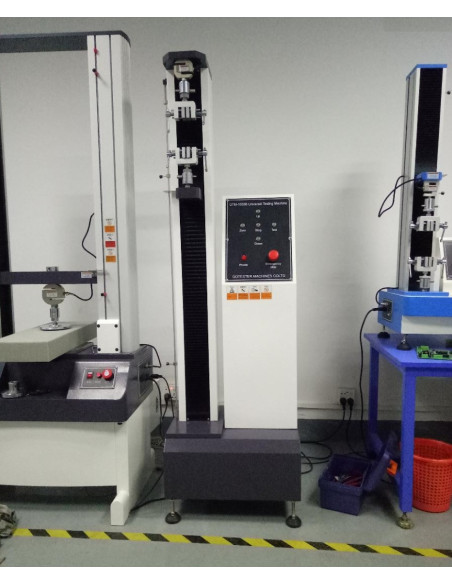

The UTM-1003B 5KN Computer Servo Universal Material Testing Machine combines electronic technology and mechanical transmission to deliver accurate load speed, a broad measuring range, and high sensitivity for load and displacement measurement and control. The structure is simple and compact, allowing placement directly on the test table and making it particularly suitable for quality control in production lines for non-metallic and metallic materials up to 5KN.

Main functions

This machine can test materials in tensile, compression, bending, shear, peel, tear, and two-point extension when an extensometer is added. It is suitable for textiles, rubber, plastics, synthetic leather, tape, adhesives, plastic film, composite materials, electronics, metals, and other materials.

Main features

Exterior finished with electrostatic spray for a simple, attractive, multifunctional, and economical design.

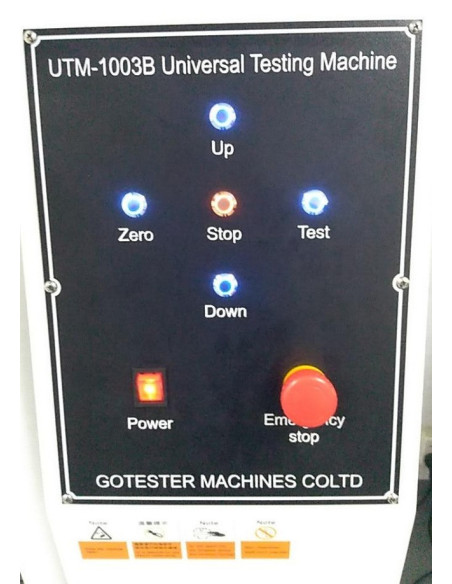

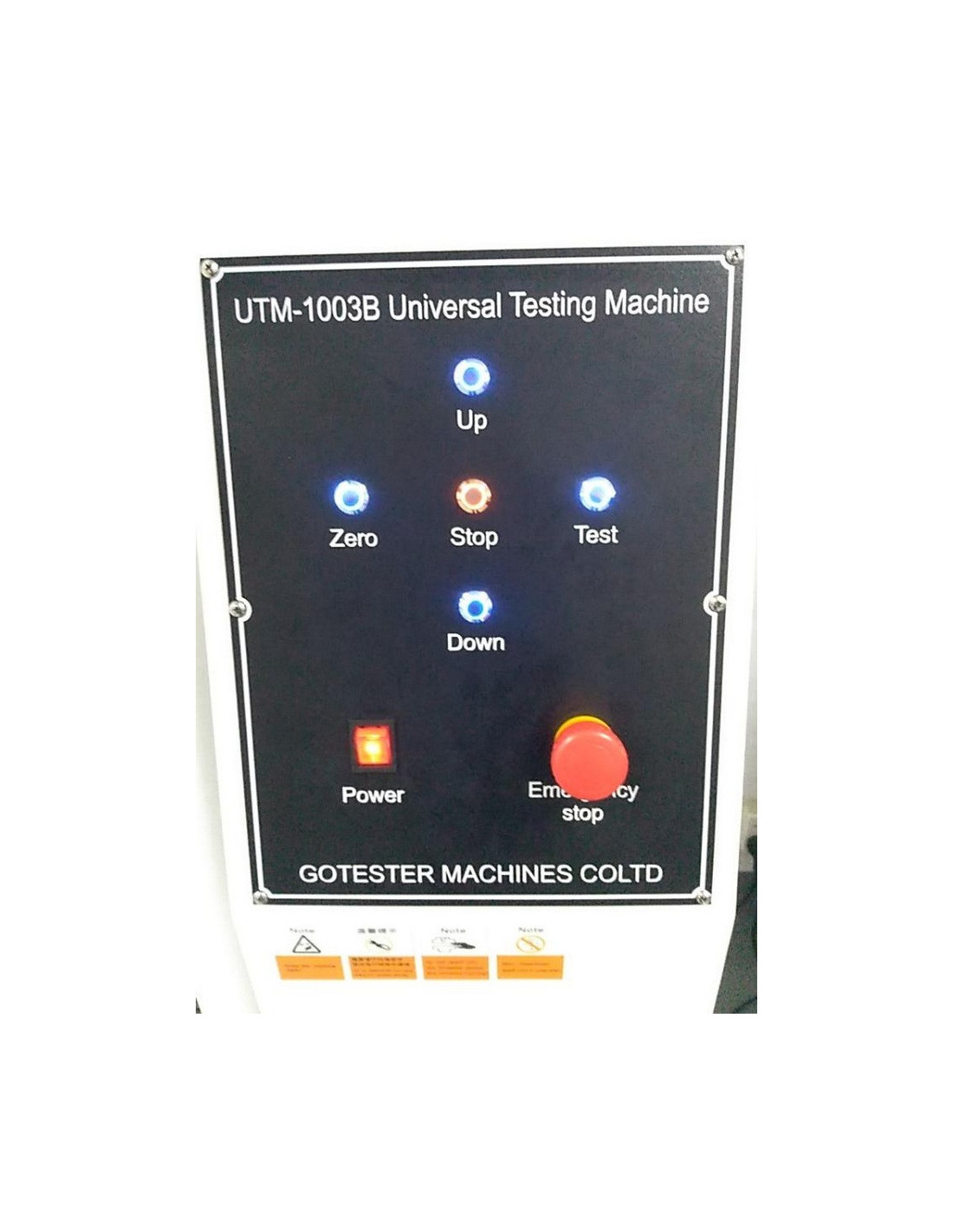

LCD digital force display with clear tension or compression readings.
Units N, Kg, and Lb selectable, with optional automatic conversion.
Backlit LCD suitable for low-light environments.
Single measurement mode records maximum tensile and compression force in both directions, with manual or automatic zero clearing.
Automatic shutdown in case of overload or over-travel.
Beautiful and economical single-column structure.

Standards and applications

Corresponding standard: GB/T16491-1996 electronic universal testing machine. It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles, leather, clothing, shoes, rubber and plastic products, universities, research laboratories, inspection arbitration, and technical supervision departments.

Specifications

Model: UTM-1003B 5KN Computer Servo Universal Material Testing Machine.
Maximum load options: 100N, 200N, 500N, 1KN, 2KN, 5KN.
Accuracy grade: grade 1 or grade 0.5.
Effective measuring range: force from 0.2% to 100% for grade 1, or 0.4% to 100% for grade 0.5.
Measuring accuracy: value ±1% or value ±0.5%.
Tester resolution: max load 1/200000 with constant resolution.
Load sensor: one basic configuration load sensor.
Effective testing width: 400 mm, extendable according to customer requirements.
Effective tensile stroke: 400, 500, or 600 mm, customizable.
Testing speed: 0.001 to 500 mm/min.
Displacement measurement accuracy: tolerance ±0.5% or ±0.2%.
Measured deformation system: minimum span 10 mm, maximum deformation range 800 mm, extended spans 25 mm, 50 mm, 100 mm, deformation ranges 5 mm, 10 mm, 25 mm.
Accuracy of measured deformation: tolerance ±0.5%.
