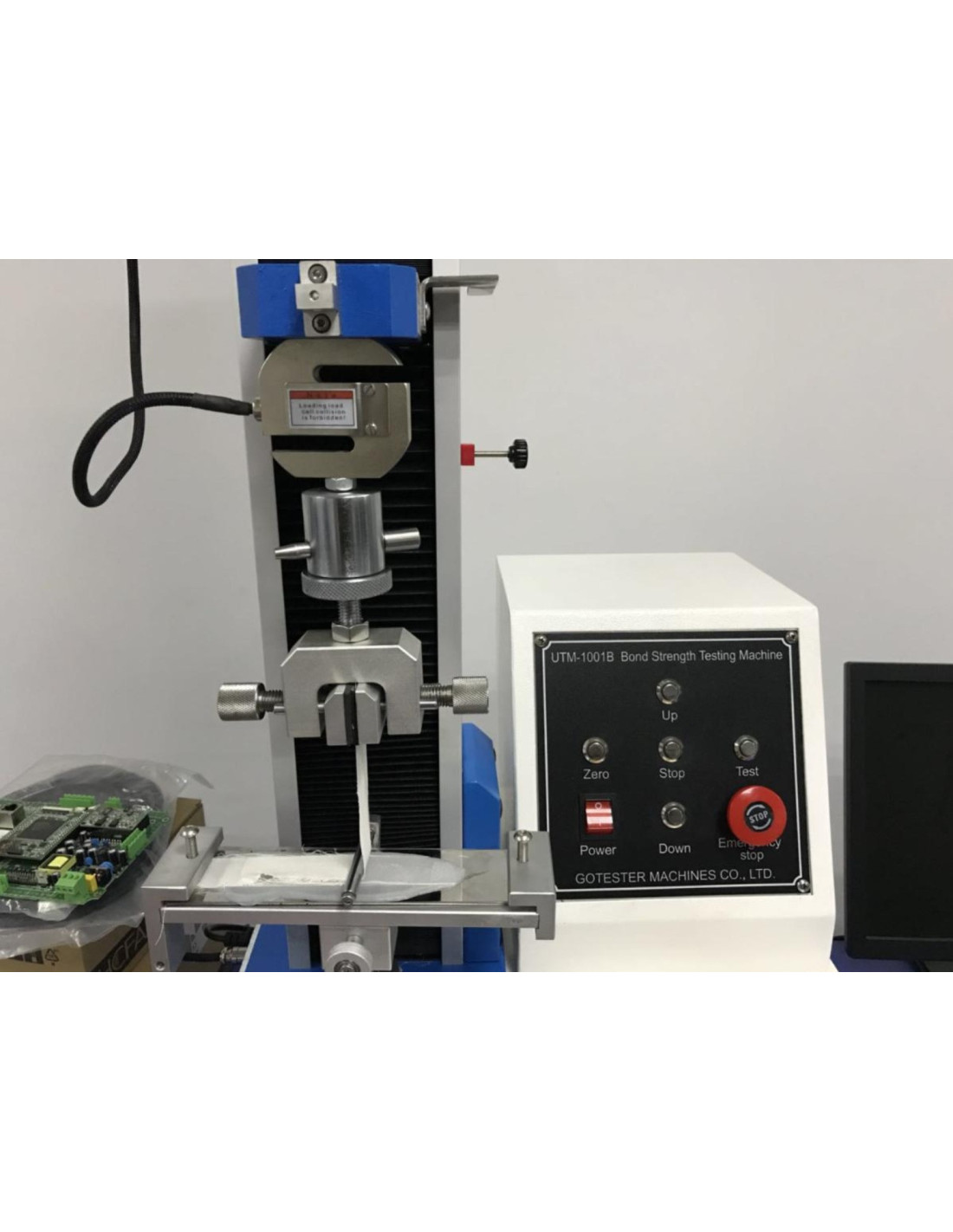

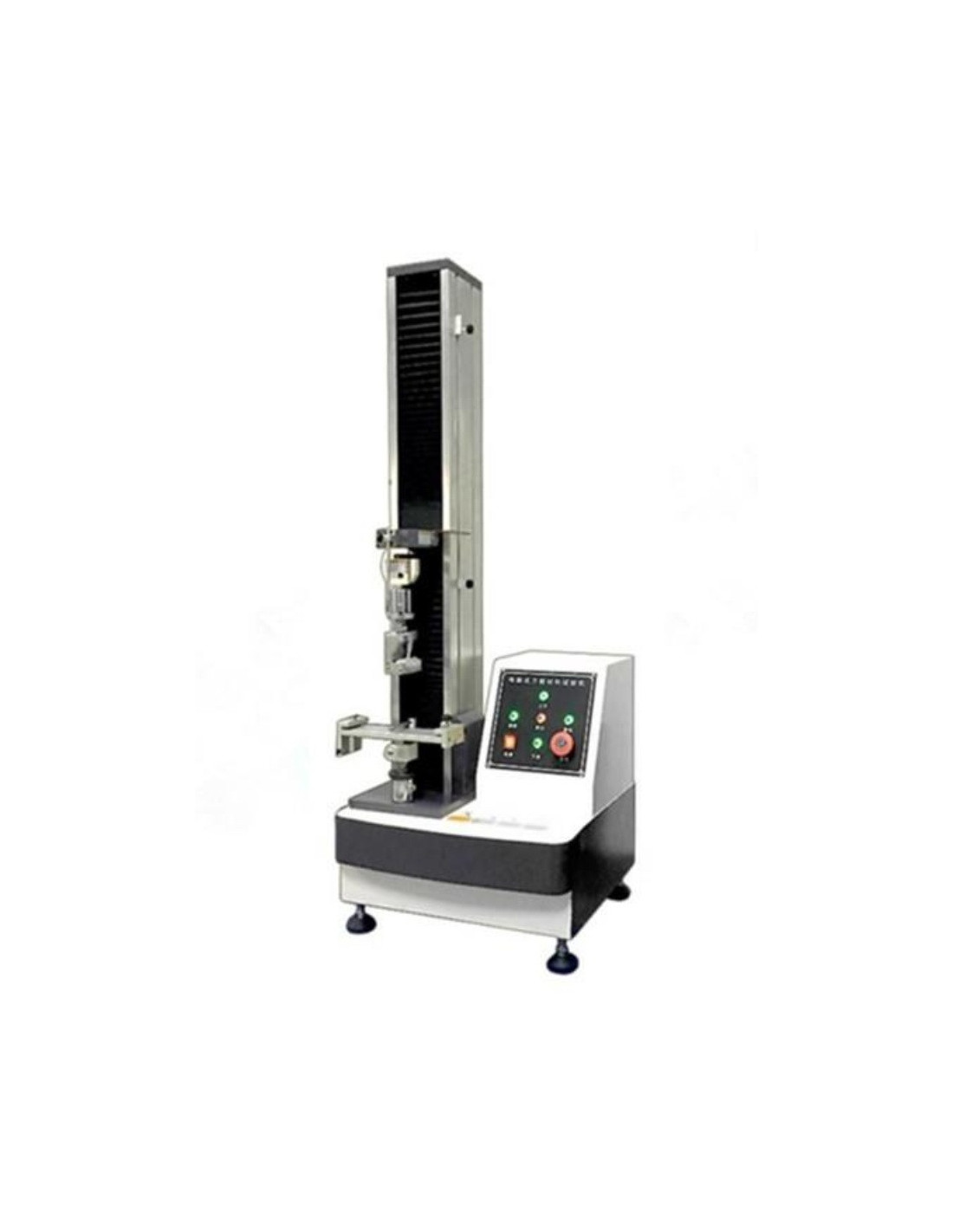

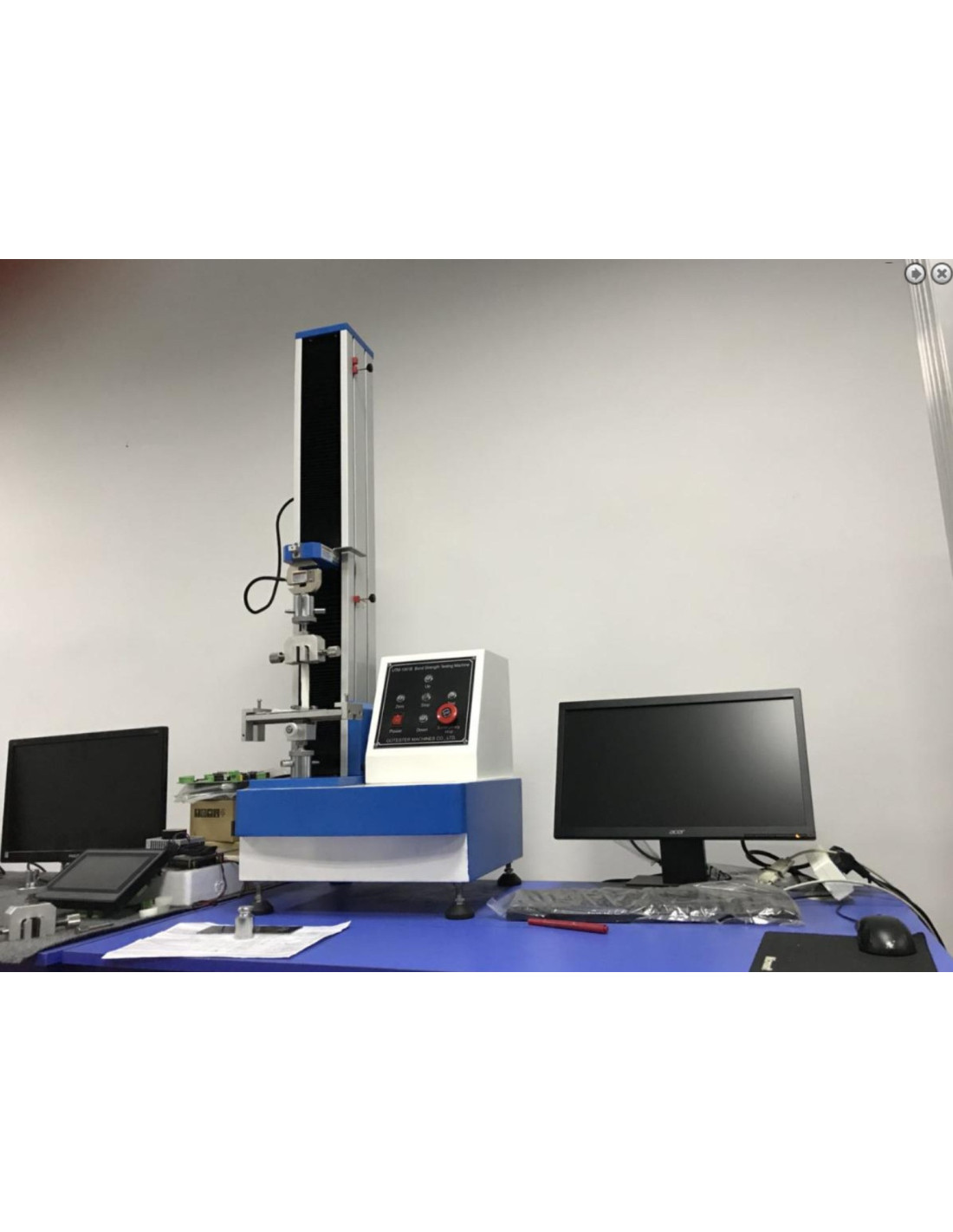

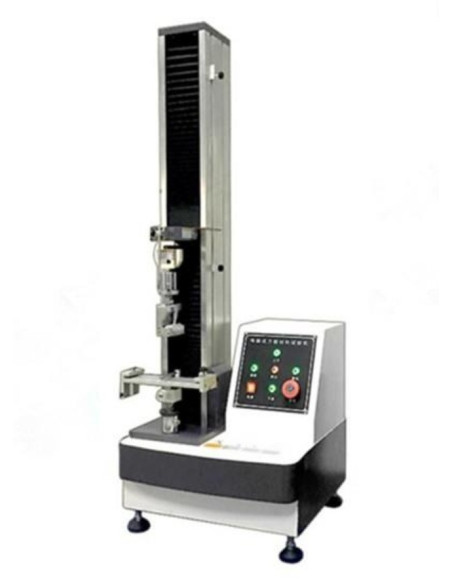

UTM-1002B 2KN Computer Servo Universal Testing Machine

Name: UTM-1002B 2KN Computer Servo Universal Testing Machine
Brand: GOTESTER
SKU: UTM-1002B

Reference: UTM-1002B - Manufacturer: GOTESTER

2KN computer servo universal testing machine for tensile, compression, peel, and tear tests, with microcomputer control and high measurement accuracy.

Ask for Quote

Equipment summary

The UTM-1002B 2KN Computer Servo Universal Testing Machine combines electronic technology and mechanical transmission to provide accurate load speed, a wide force measuring range, and high sensitivity for load and displacement measurement and control. This single-space machine has the operational area at the bottom and is mainly intended for metallic and non-metallic materials with loads below 2kN.

The system can calculate stress, strain, displacement control mode, maximum force, tensile strength, bending strength, compressive strength, elastic modulus, elongation rate, yield strength, and other parameters.

Main functions

This machine can test a wide variety of materials in tension, compression, tear, peel at 90 and 180 degrees, and other mechanical tests. Typical materials include rubber, tires, belts, shoes, plastics, films, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipes, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, springs, wood, medicine packaging materials, and tapes.

Main features

Panasonic servo motor drives the beam up and down through the transmission system.

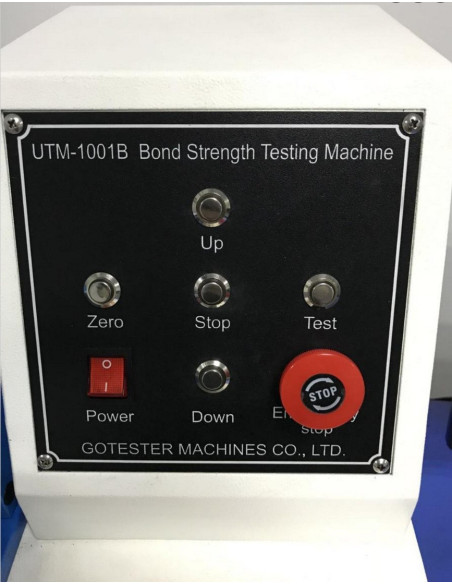

Control system designed for safety and high reliability.

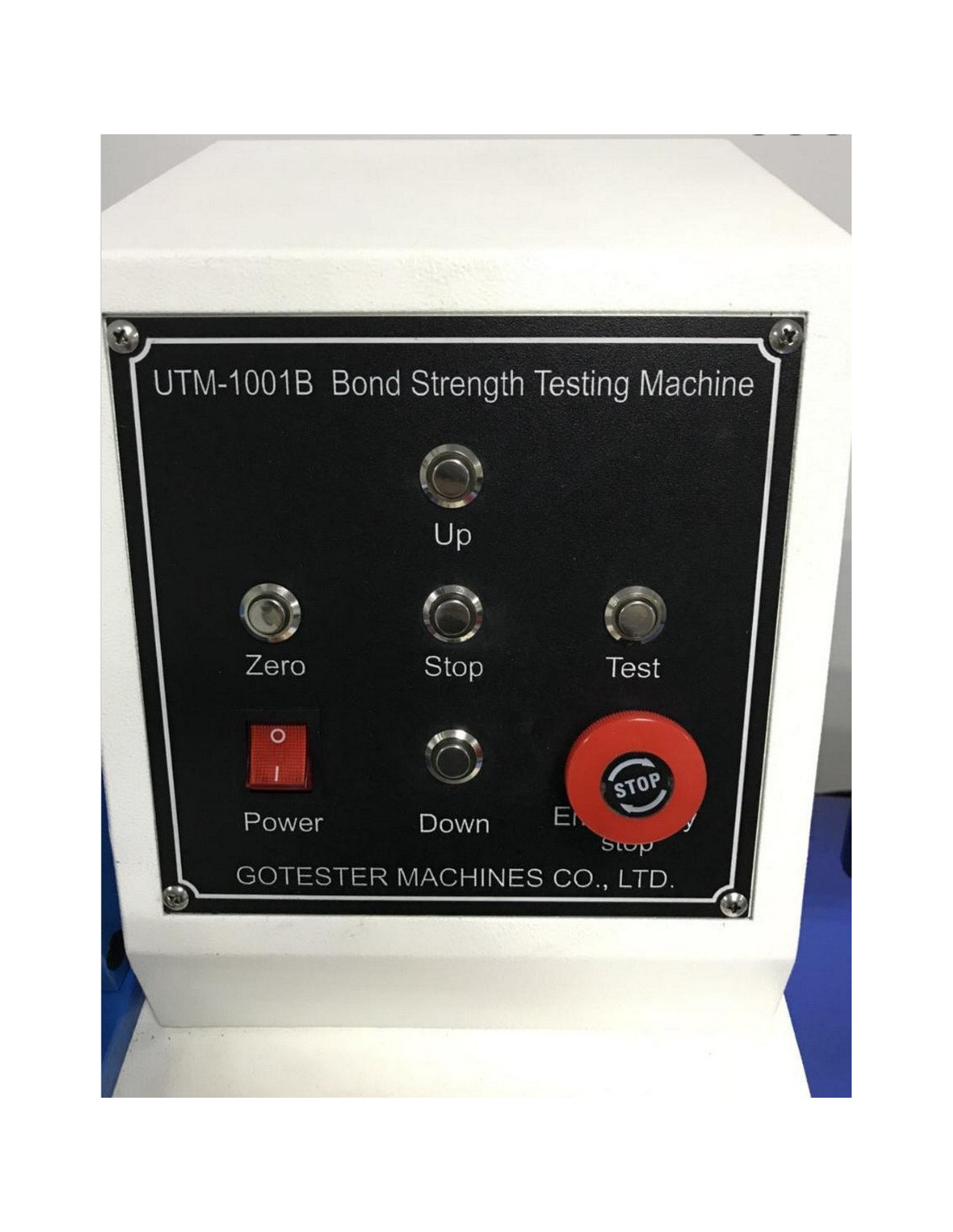

Microcomputer controls the full test process and shows load, displacement, deformation, speed, and test curves in real time.
Automatic data saving and test curve export for later analysis, comparison, and amplification.
Windows testing software with strong data and graphics processing capability, immediate printing of reports and curves.
Includes limit protection, overload protection, emergency stop, and other safety functions.

Applicable industries

Widely used in wire and cable, hardware, electronics, electrical equipment, packaging, printing, medical equipment, auto parts, textiles, leather, clothing, shoes, rubber and plastic products, universities, research laboratories, inspection and arbitration, and technical supervision departments.

Reference

Basic testing reference examples shown by the manufacturer include paint, brick, plywood, plastic, and CS10, CS17, S32, S33, H18H22 examples.

Specifications

Model: UTM-1002B 2KN Computer Servo Universal Testing Machine.
Maximum load: optional 50N, 100N, 200N, 500N, 1KN, 2KN.
Accuracy grade: grade 1 or grade 0.5.
Effective measuring range: force from 0.2% to 100% or from 0.4% to 100%.
Measuring accuracy: value ±1% or value ±0.5%.
Tester resolution: max load 1/200000 with constant resolution.
Load sensor: one basic configuration load sensor.
Effective tensile stroke: 500 mm, customizable.
Testing speed: 0.001 to 500 mm/min.
Displacement measurement accuracy: tolerance ±0.5% or ±0.2%.
Safety: electronic limit protection.
Testing platform moving device: fast and slow two-speed control with jog capability.
Return back: manual or automatic, moving iron returns to initial position at highest speed after testing.
Overload protection: 10% overload automatic protection.
Fixture: one set of tensile clamps.
Machine size: 45 x 58 x 135 cm.
Motor: Delta AC servo motor and drive.
Power supply: 220V 50Hz or according to requirement.
Power: 0.4 kW depending on force demand and motor selection.
Weight: about 75 kg.
Units: KG, N, LB, TON exchangeable.
