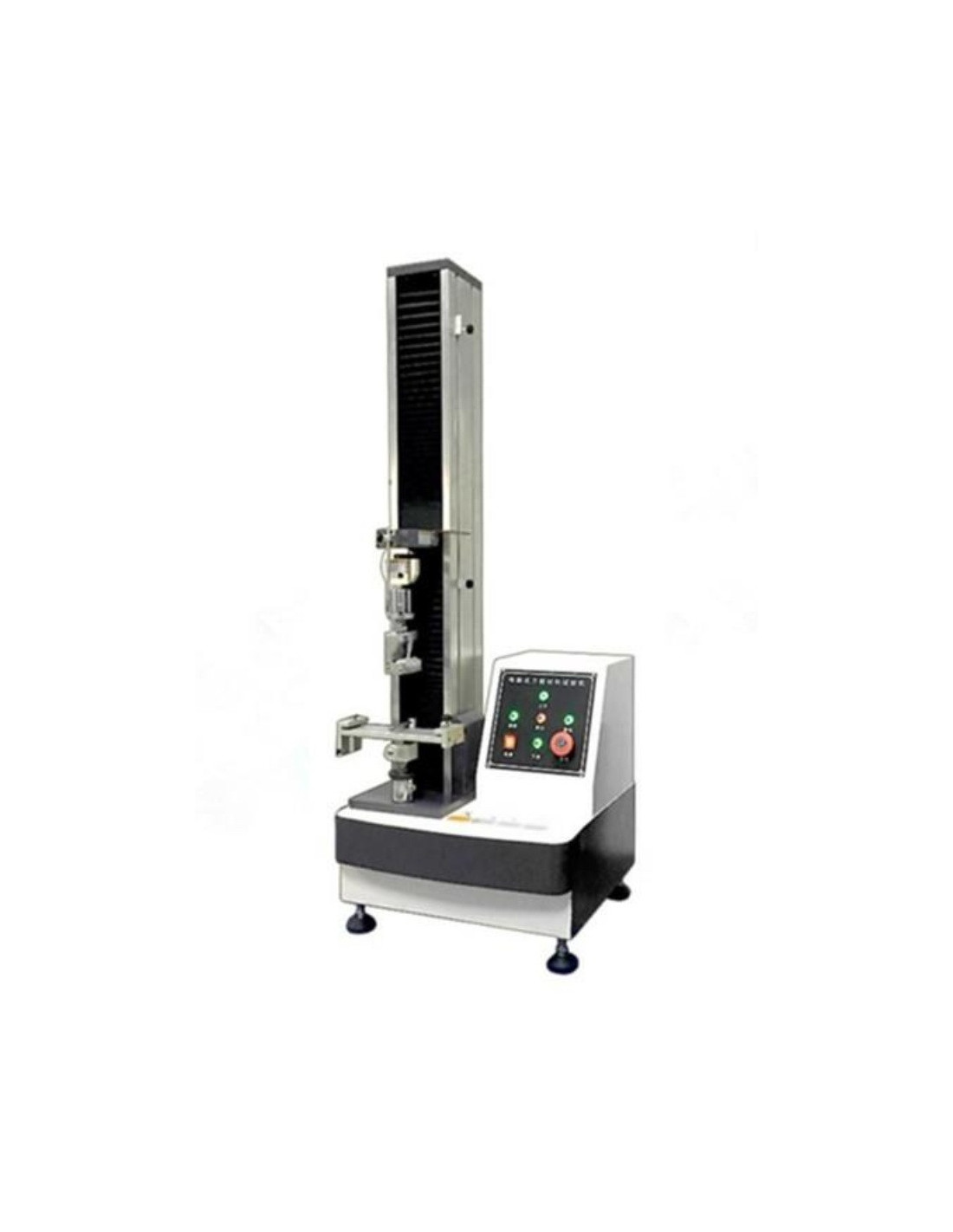

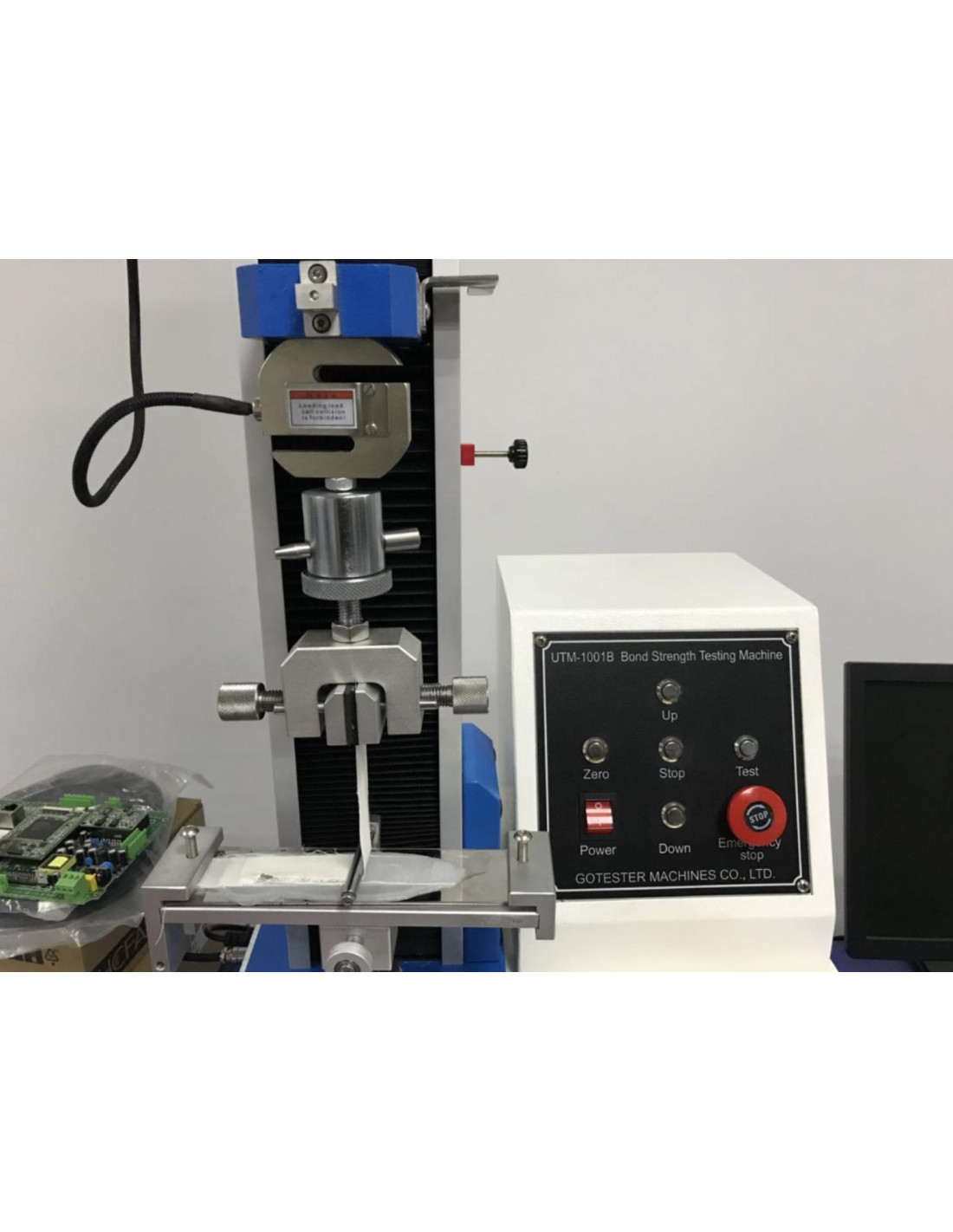

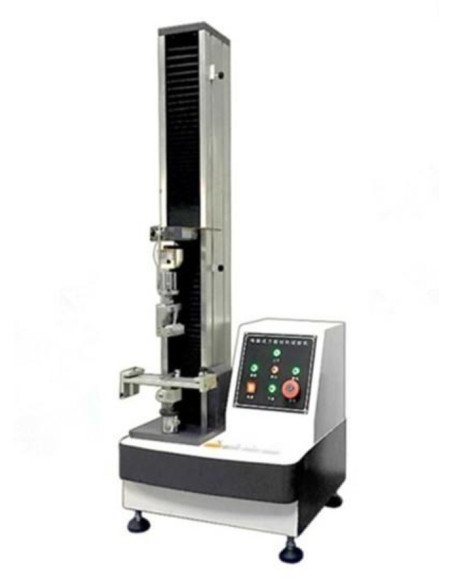

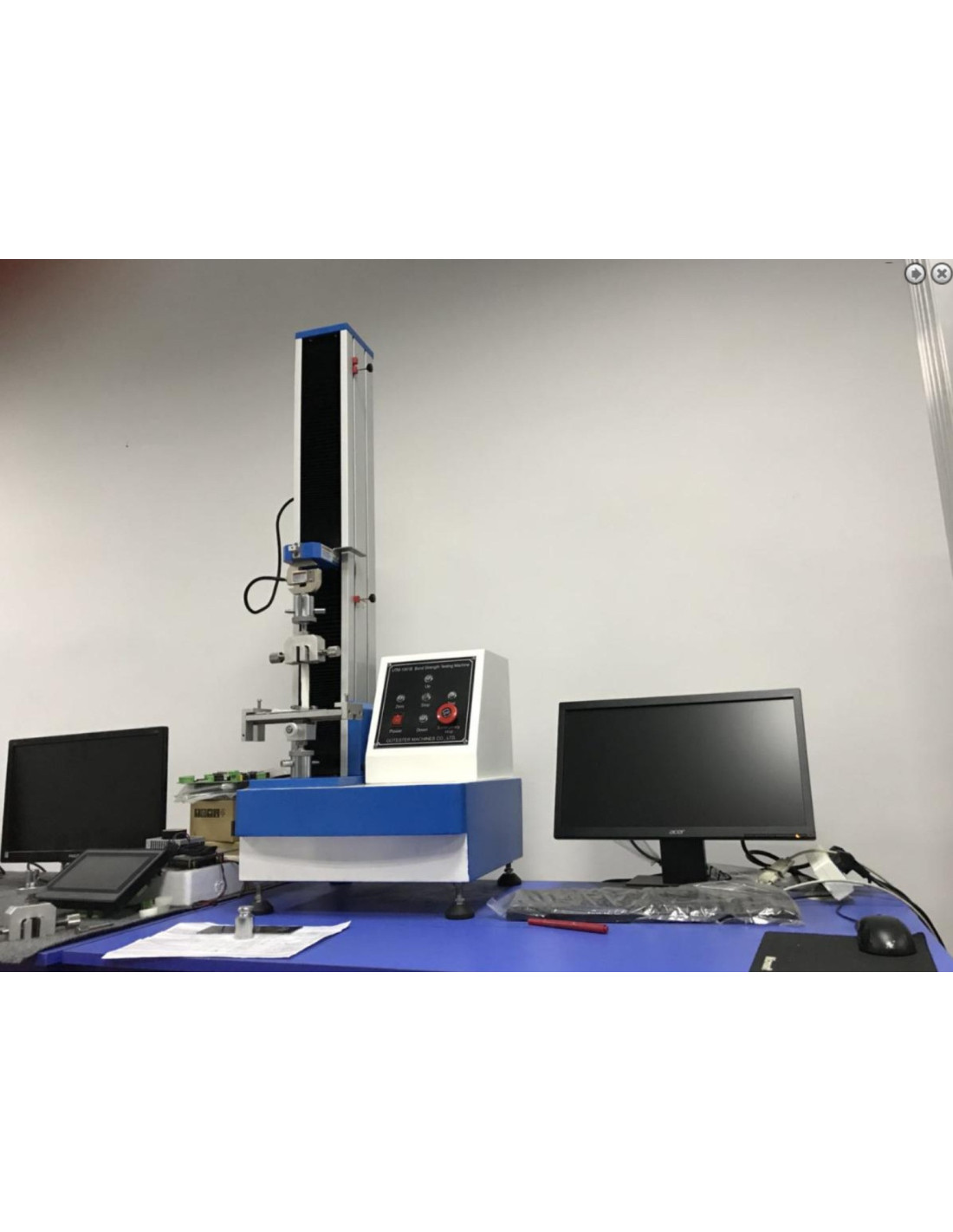

UTM-1001B 1KN Computer Servo Press Button Resilience Testing Machine

Equipment summary

The UTM-1001B 1KN Computer Servo Press Button Resilience Testing Machine is a simple-structure universal testing machine designed for convenient operation on the worktable. It uses an electronic control system, motor drive, transmission mechanism, and T-screws to raise and lower the load sensor for tensile or compression testing. It is especially suitable for production line quality control and for testing both non-metallic and metallic materials with loads below 1KN.

Main functions

This machine can test tensile, compression, bending, shear, peel, tear, and two-point extension applications when an extensometer is added. It is suitable for textiles, rubber, plastics, synthetic leather, tape, adhesives, plastic film, composite materials, electronics, metals, and other materials.

Main features

• Excellent industrial design with aluminum exterior treated by electrostatic spray.
• LCD digital force display with clear tension and compression readings.
• Selectable units N, Kg, Lb, and ton, with automatic conversion capability.
• Backlit LCD for low-light environments.
• Single measurement mode can record maximum tensile and compression force in both directions with automatic or manual zero clearing.
• System shuts down automatically in case of overload or over-travel.
• Single-column structure with compact and practical seated-operation design.
• Thermal printer can automatically output test results.
• Stores up to 10 test results and automatically calculates average, maximum force, and break force.

Applicable industries

Widely used in wire and cable, hardware, electronics, electrical equipment, packaging, printing, medical devices, auto parts, textiles, leather, garments, shoes, rubber and plastic products, colleges and universities, research laboratories, inspection and arbitration, and technical supervision departments.

Standards

Corresponding standard: GB/T16491-1996 electronic universal testing machine.
