LS-1V Electrocorder Interruption Voltage Logger

Reference: LS-1V - Manufacturer: Acksen

The LS-1V is a single-phase interruption voltage logger that records when supply voltage is present or absent against a user-defined threshold. It is ideal for long-term power interruption studies and equipment duty-cycle monitoring.

€565.00
Tax excluded Envío: 3 a 6 semanas



The Electrocorder LS-1V is designed to record periods when voltage is present or absent in industrial and commercial installations where the key question is whether the supply is available rather than how the waveform varies.

The logger records the date and time whenever voltage moves above or below a user-defined threshold. This makes it well suited to mains interruption studies, checking supply availability in remote or unreliable areas and monitoring duty cycles for compressors, motors and other equipment.

Setup is carried out with Electrosoft software. Once configured, the logger is connected to the monitored supply and stores on and off events over time. When the study is complete, the data is downloaded to a PC by USB for review, export and reporting. The package includes the LS-1V logger, voltage lead, USB lead, carry case, batteries, user instructions and free Electrosoft analysis software.

  • Single-phase interruption voltage logger.
  • Records date and time when voltage is above or below a user-defined threshold.
  • Designed for long-term monitoring of supply presence or absence.
  • Suitable for power interruption studies and supply availability checks.
  • Useful for monitoring compressor, motor and other equipment on and off duty cycles.
  • Helps verify intermittent supply availability in remote or unreliable areas.
  • Simple event-style logging focused on voltage availability rather than detailed variation.

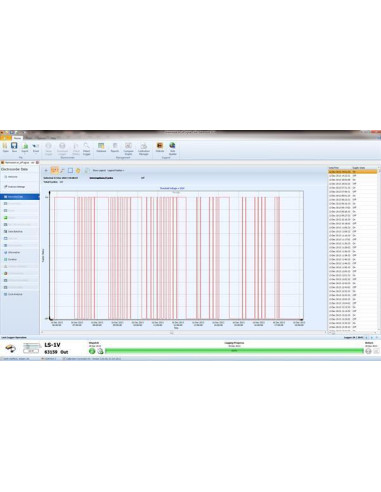

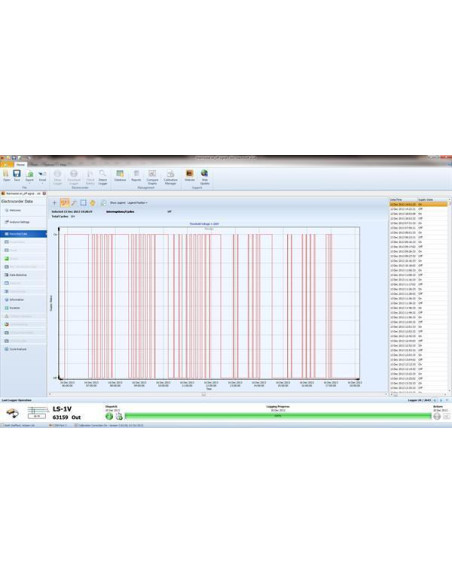

  • Analysis, export and reporting through Electrosoft software.

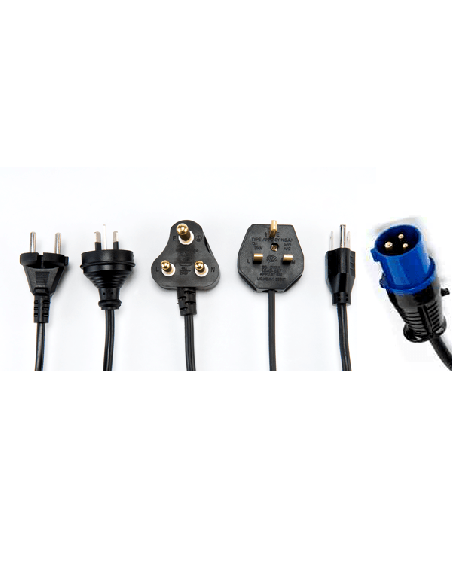

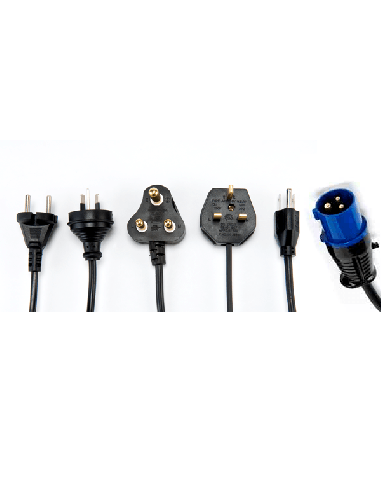

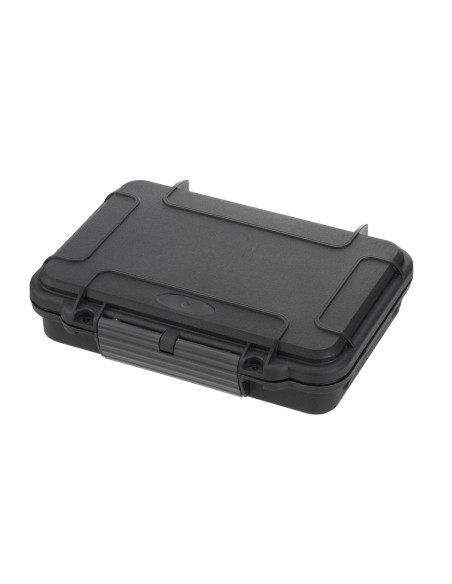

  • Supplied with voltage lead, USB lead, carry case, batteries and user instructions.
