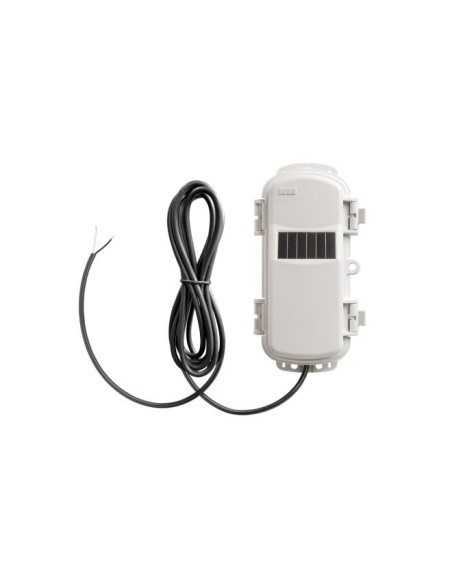

HOBOnet Pulse Input - Electronic Switch Sensor

Onset

New

A HOBOnet wireless pulse input sensor that connects to sensors with a pulse output; compatible with electronic switch closures, such as FET or open-collector outputs, or CMOS-level logic signals.

IMPORTANT INFORMATION: Compatible with electronic switch closures, such as FET or open-collector outputs, or CMOS-level logic signals. A complete system requires at least one HOBO RX3000 Remote Monitoring Station, a HOBOnet Wireless Manager, and a HOBOnet Wireless Sensor, OR one HOBO MicroRX Station (which has an integrated HOBOnet Wireless Manager) and a HOBOnet Wireless Sensor. HOBOnet Wireless Repeaters (RXW-RPTR-xxx or RXW-RPTR-B-xxx) can be added to extend the range.

Add to wishlist

A wireless pulse input sensor that connects to sensors with a pulse output. This sensor is compatible with electronic switch closures, such as FET or open-collector outputs, or CMOS-level logic signals. HOBOnet wireless sensors communicate data directly to the HOBO RX3000 or the HOBO MicroRX station, or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy, and data is accessed through HOBOlink, Onset's innovative cloud software platform.

Features

  • Sensor Features:
    • Maximum input frequency: 120 Hz (120 pulses per second)
    • Electronic solid-state switch closure or CMOS-level digital output
  • Wireless Features:
    • 900 MHz wireless mesh self-healing technology
    • 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
    • Up to 50 wireless sensors or 336 data channels per HOBO RX station
    • Simple button-push to join the HOBOnet wireless network
    • Onboard memory to ensure no data loss
    • Powered by rechargeable AA batteries and built-in solar panel
SpecificationDetails
Measurement Input Frequency 120 Hz (120 pulses per second)
Measurement Range 0-65,533 pulses per logging interval
Resolution 1 pulse
Lockout Time 45 µs ±10%
Recommended Input Type Electronic solid state switch closure or CMOS-level digital output (example: FET, opto-FET or open collector)
Preferred Switch State* Active low input
Edge Detection Falling edge, Schmitt Trigger buffer (logic levels: low =2.7 V)
Minimum Pulse Width 1 ms
Input/Output Impedance 100 KΩ
Open Circuit Input Voltage 3.3 V
Maximum Input Voltage 3.6 V
User Connection 24 AWG wires, 2 leads: white(+), black(-)
Operating Temperature Range -25° to 60°C (-13° to 140°F) with rechargeable batteries
-40 to 70°C (-40 to 158°F) with lithium batteries
Radio Power 12.6 mW (+11 dBm) non-adjustable
Transmission Range Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
Wireless Data Standard IEEE 802.15.4
Radio Operating Frequencies RXW-UCC-900 and RXW-UCD-900: 904-924 MHz
RXW-UCC-868 and RXW-UCD-868: 866.5 MHz
RXW-UCC-921 and RXW-UCD-921: 921 MHz
RXW-UCC-922 and RXW-UCD-922: 916-924 MHz
Modulation Employed OQPSK (Offset Quadrature Phase Shift Keying)
Data Rate Up to 250 kbps, non-adjustable
Duty Cycle <1%
Maximum Number of Motes Up to 50 wireless sensors or 336 data channels per one HOBO RX station
Logging Rate 1 minute to 18 hours
Number of Channels 2
Battery Type/ Power Source Two AA 1.2 V rechargeable NiMH batteries powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F)
Battery Life With NiMH batteries: Typical 3-5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see Deployment and Mounting), operation outside this range will reduce the battery service life
With lithium batteries: 1 year, typical use
Memory 16 MB
Dimensions Cable length: 6.5 m (21.3 ft.)
Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
Weight Cable: 250 g (9 oz)
Mote: 223 g (7.87 oz)
Materials Mote: PCPBT, silicone rubber seal
Environmental Rating Mote: IP67, NEMA 6
Compliance Marks
  • FCC Logo RXW-UCC-900
  • CE RXW-UCC-868
  • Taiwan NCC Mark RXW-UCC-921
  • Australia/New Zealand General Compliance mark RXW-UCC-922
