SPLIT-CORE DC VOLTAGE OUTPUT TRANSDUCER

SPLIT-CORE DC VOLTAGE OUTPUT TRANSDUCER

AO-DCT-0028 AC TRANSDUCER (10 to 500A) TO ONE OUTPUT 5 Vdc

Reference: AO-DCT-0028 - Manufacturer: AO-Electronics

Cables

Input Amp Options

€25.00

Tax excluded Envío: 1 a 3 semanas

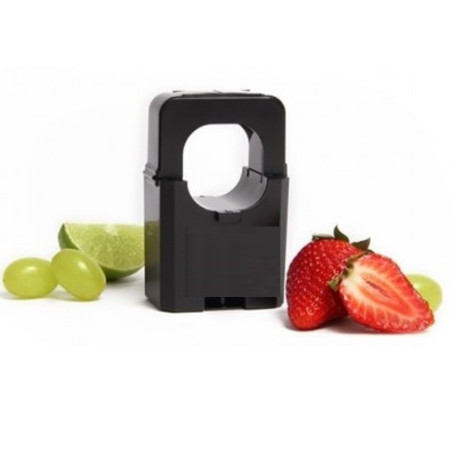

AO-DCT-0028 10 mm split-core current transducer that converts an alternating current of 10A, 20A, 25A, 30A, 50A, 100A, 300A and 500A to a DC voltage output of 5V. Split core sensors are ideal for installation in existing electrical wiring by fitting around the conductor. The DCT-0028AO has an automatic closing mechanism.

Features

Rated input 5 to 50 Amps AC
Output of 5 Vdc at rated current (7.5 Vdc limit built in)
Accuracy +/- 2% full scale (50/60 Hz Sinewave)
Accuracy at 5% to 120% of rated current
Output Impedance 6.2 KOhms
Output Ripple +/- 5%
2 X M3-Screw terminals
System Voltage: CAT III 600 VAC
UL recognized, CE and RoHS Compliant
7-Year Warranty

Download (187.7KB)
