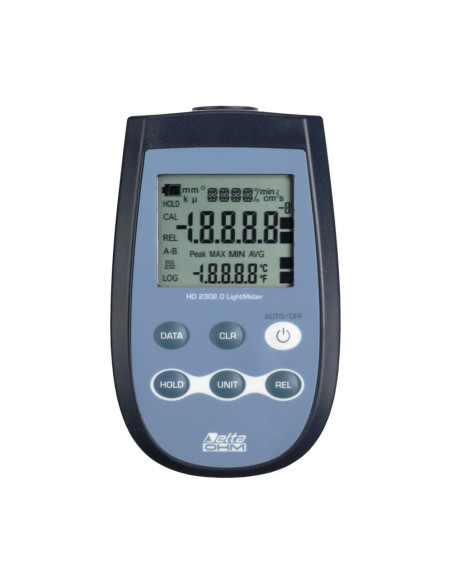

HD2302.0 Delta Ohm Luxmeter

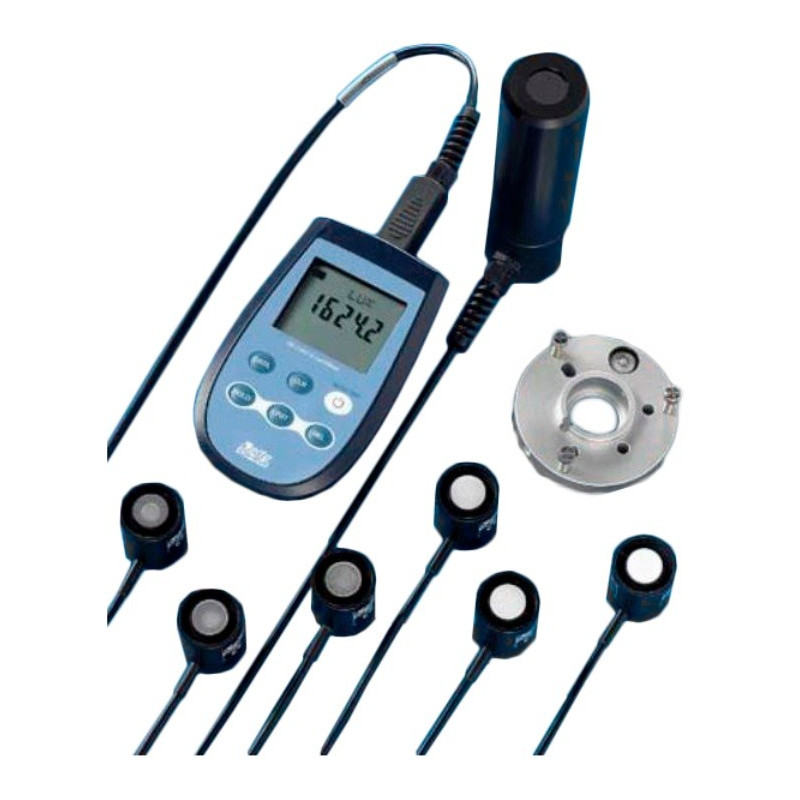

HD2302.0 Delta Ohm Luxmeter shown with optional accessories

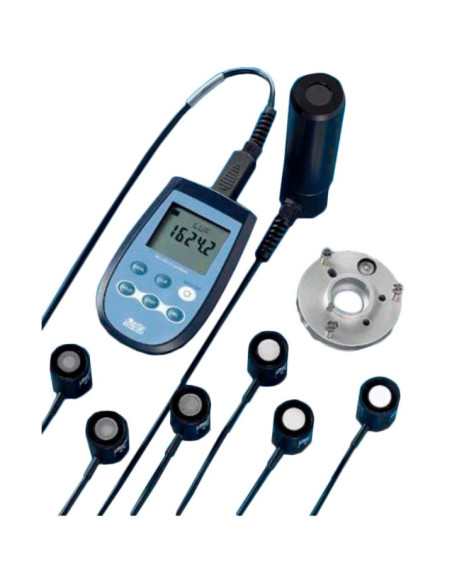

HD2302.0 Delta Ohm Luxmeter shown with optional accessories

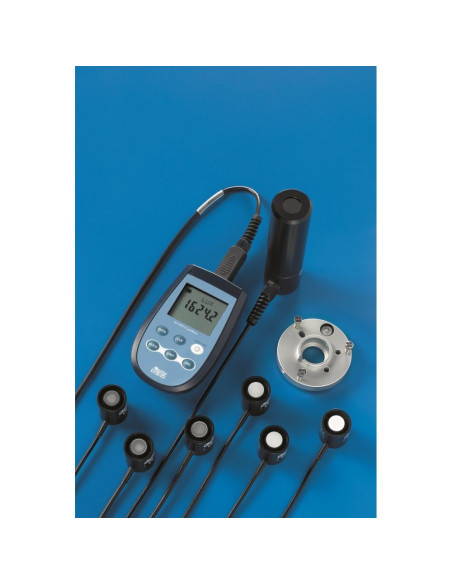

HD2302.0 Delta Ohm Luxmeter shown with optional accessories

HD2302.0 Delta Ohm Luxmeter

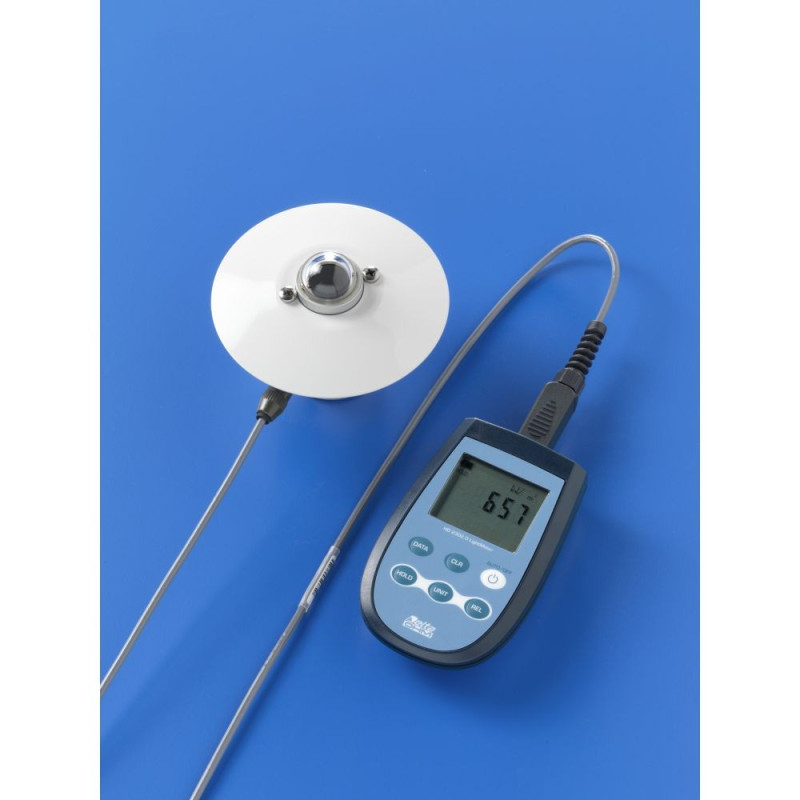

HD2302.0 Delta Ohm Luxmeter shown with optional accessories

HD2302.0 Delta Ohm Luxmeter shown with optional accessories

HD2302.0 Delta Ohm Luxmeter shown with optional accessories

HD2302.0 portable Delta Ohm Luxmeter

Reference: HD2302.0 - Manufacturer: SENSECA (Delta Ohm)

Portable luxmeter for measuring illuminance, luminance, PAR, irradiance (across VIS-NIR, UVA, UVB and UVC spectral regions or measurement of irradiance effective according to the UV action curve).

Storage of maximum, minimum, average value. Functions: REL, HOLD and auto power off which can be disabled, IP 67 protection degree.

LP471 series probes with SICRAM module are suitable.

Optional LP471 series probes with SICRAM module are suitable.

Probes must be ordered separately. See the Accessories tab.

The HD2302.0 is a portable instrument with a large LCD display.

Measures illumination, luminance, PAR and irradiation (in the VIS-NIR, UVA, UVB and UVC spectrum areas or to the extent of effective irradiation according to the UV action curve).

The probes have a SICRAM automatic recognition module: in addition to the recognition, the measurement unit selection is also automatic.

Inside, the company's calibration data is saved.

The Max., Min. And Avg function calculates the maximum, minimum and average values.

Other functions are: the relative REL measure, the HOLD function and the automatic power off.

The instrument has the degree of protection IP67.

TECHNICAL CHARACTERISTICS OF THE INSTRUMENT

Dimensions (Length x Width x Height) 140x88x38 mm

Weight 160 g (complete with batteries)

ABS materials

2x4½ digit display plus symbols

Visible area: 52x42 mm

Working conditions

Working temperature -5… 50 ° C

Storage temperature -25… 65 ° C

Relative working humidity 0… 90% RH, without condensation

Degree of protection IP67

Download (744.68KB)

HD2302.0 Data Sheet

Download (532.19KB)
