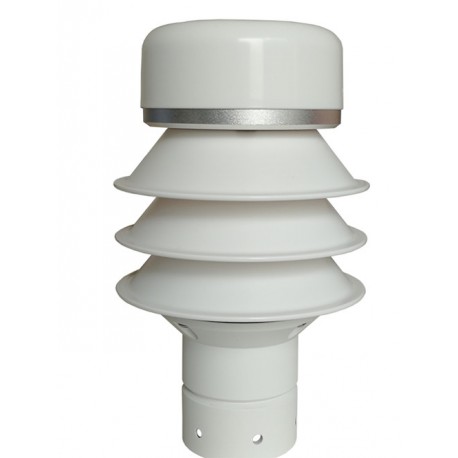

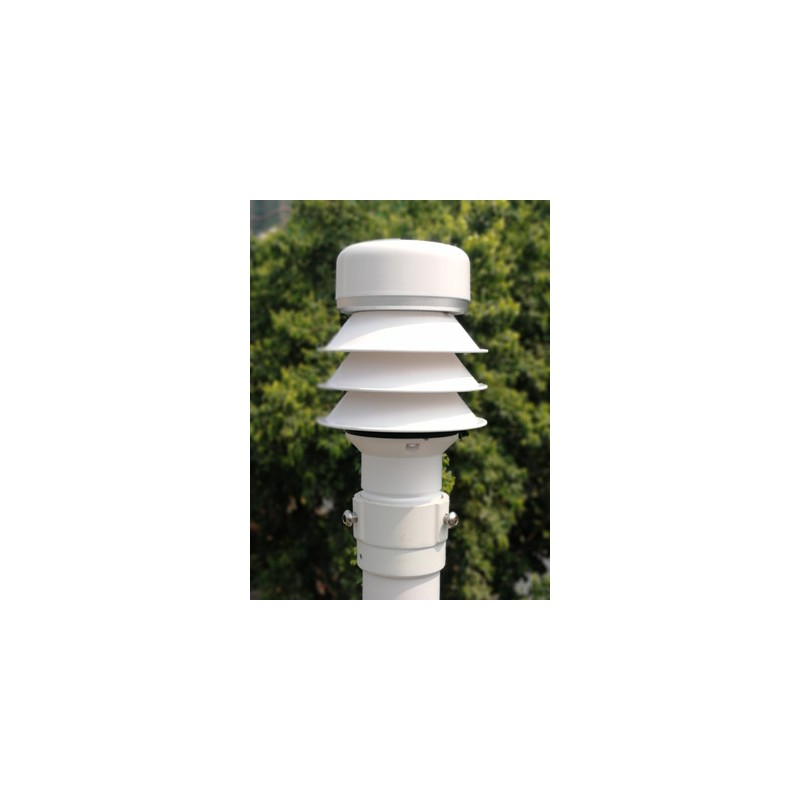

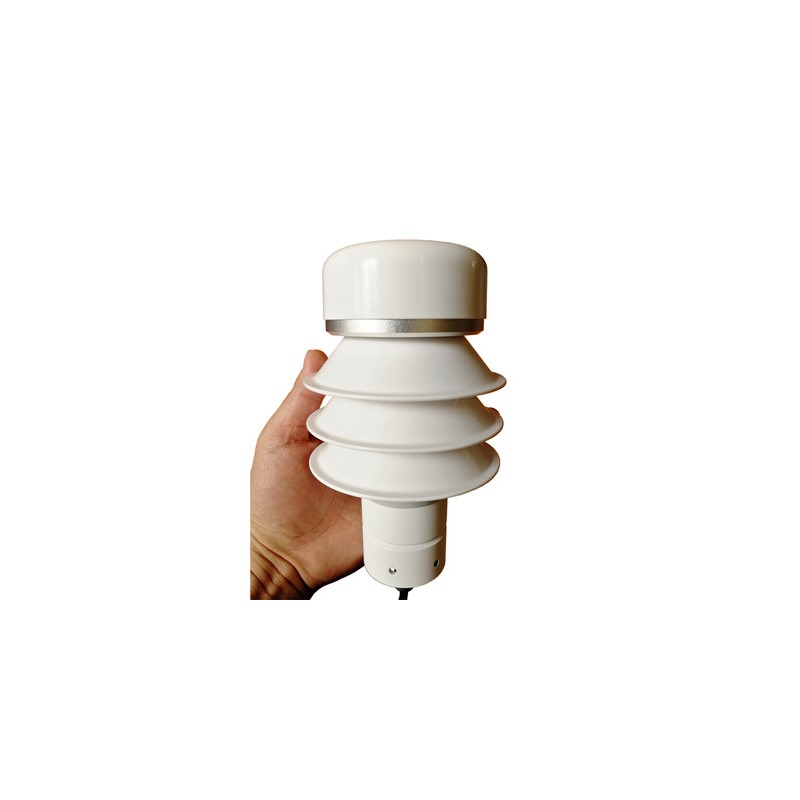

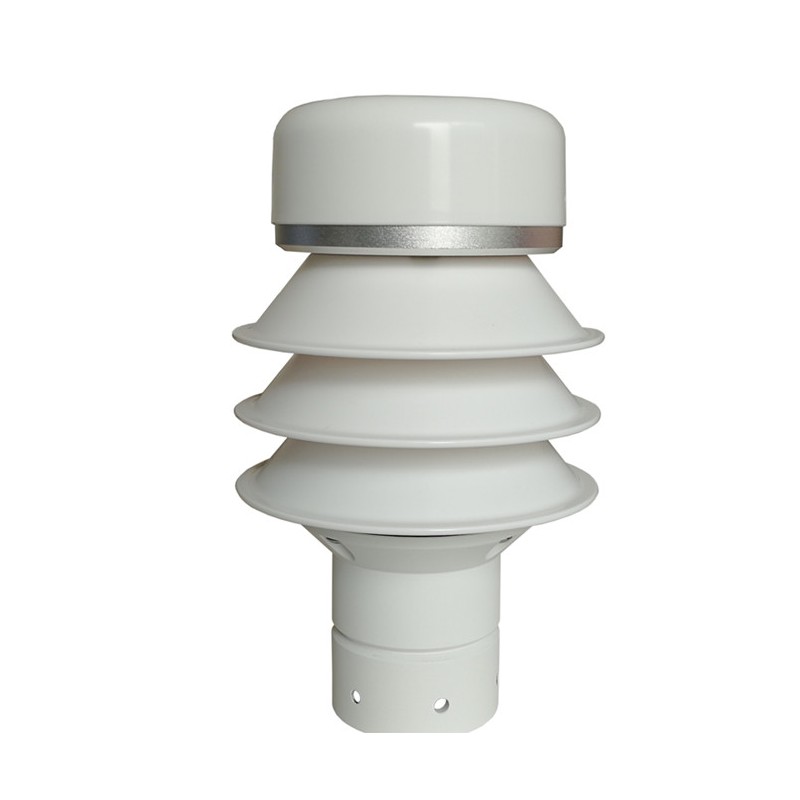

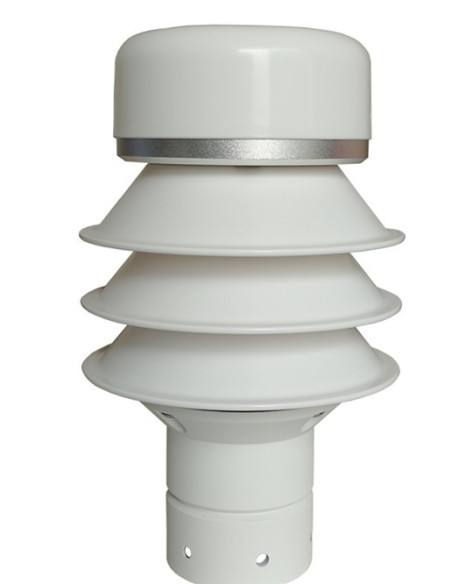

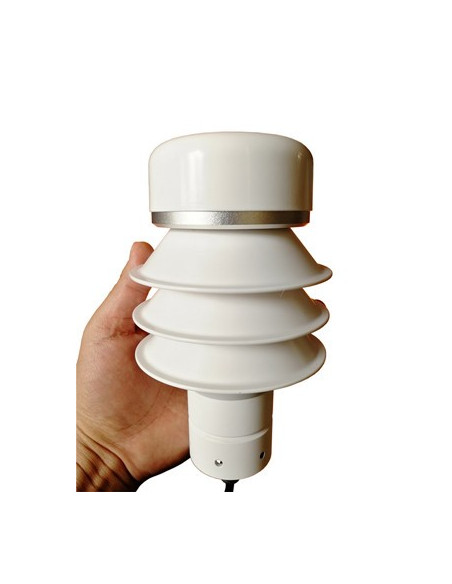

AO-RS2E Radar Rain Detector for Rain Precipitation
AO-RS2E radar precipitation detector has higher sensitivity and faster response than the traditional mechanical type when detecting start and end time of rain, besides, neither do you need to worry about obstruction such as leaves covered in the surface of the detector to interfere with rainfall detection, nor do you need to have heating device to prevent freezing.
AO-RS2E adopts advanced small 24GHz Doppler radar.
The speed rate of drops is registered with a 24 GHz radar system.
By comparison between the speed rate and the size of drops, the quantity of rain or its intensity will be registered.
The rain/precipitation type (rain/snow/snow-covered rain/freezing rain/hail) is determined thanks to the speed rate of the rain. Resolution up to 0.1mm, without maintenance.
- Application:
- Weather station rain/precipitation detection
- Smart city weather system
- River flood control forecasting
|
Model |
AO-RS2E |
||||
|
Type of precipitation |
Rain, Snow, Hail, sleet, freezing |
||||
|
Measurement surface |
8cm2 |
||||
|
Measurement Range |
0-100mm/hour (rain) |
||||
|
Accuracy |
±10% |
||||
|
Measuring drop size range |
0.5-5.0mm |
||||
|
Resolution |
0.1mm |
||||
|
Sample rate |
1 time per second |
||||
|
Communication interface |
RS485、RS232、 SDI-12 |
||||
|
Protocol |
ModBus、NMEA-0183、ASCII |
||||
|
Voltage |
DC7-30V; 120mA@12V |
||||
|
Operating Temperature |
-40°C - +60°C |
||||
|
Operating Humidity |
0-100% |
||||
|

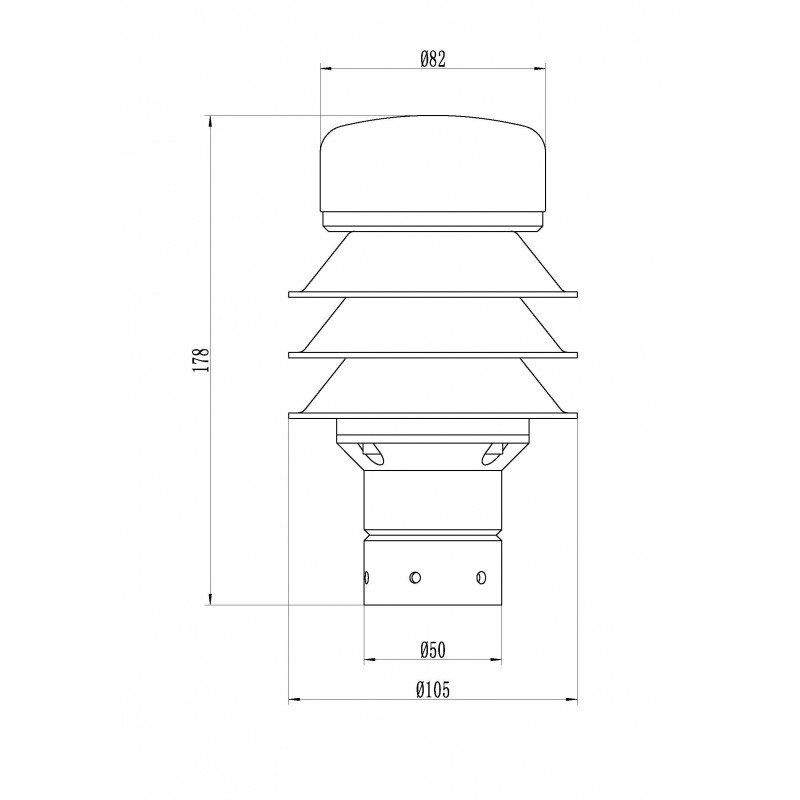

Size |
Ø 105 * 178mm |
||||
|
Material |
Aluminum alloy +ABS |
||||
|
Weight |
0.45kg |
||||
- The Sensor measures:
- Rain/Snow/Hail/Sleet/Freezing
- Output Signal:
- RS485, RS232, SDI-12
- Power Supply:
- 7-30V dc; 120mA@12V dc
