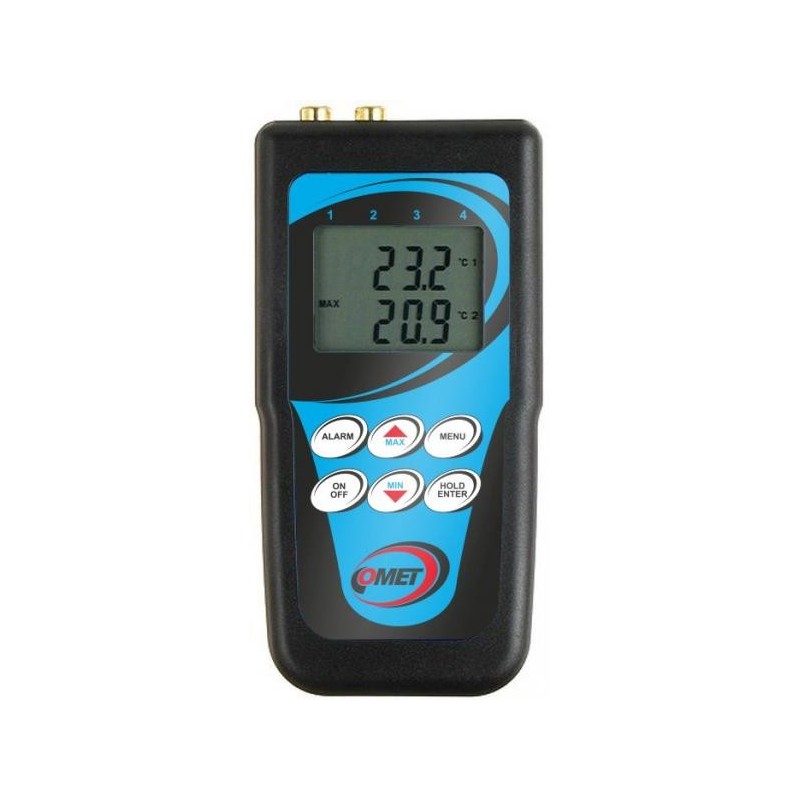

D0221 Dual channel thermometer (-200 to +500°C View larger

D0221 Dual channel thermometer (-200 to +500°C

D0221

Comet System

New

Single channel thermometer Ni1000/Pt1000(-200 to +500°C)

Thermometer is designed for direct measurement and datalogging of temperature into the internal non-volatile memory. Free PC program enables to transfer recorded data via RS232 serial link to the personal computer for consequent evaluation. Instrument is connected to the PC through included communication cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.

250,40 €

tax excl.

Add to wishlist

Included in delivery:

Instrument including the battery

  • Traceable calibration certificate
  • Instruction manual
  • Plastic transport case
  • PC communication cable
  • Self adhesive Dual Lock for easy installation
  • Free basic Windows software is ready to download at folder

Measured Value

Temperature From Pt1000 sensor

Construction Type

For Two External Temperature Probe

Temperature Measuring Range

-200 to +500°C

Data Logging Function

Yes

Operating temperature range

-30 to +65°C

Temperature input

RTD Pt1000-3850ppm; -200 to +500°C
RTD Ni1000/6180ppm; -50 to +250°C

Accuracy of Pt1000 input without external probe

±0.3°C from -50 to +100°C
±0.3% from reading from +100 to 500°C
±0.6% from reading from -200 to -50°C

Accuracy of Ni1000 input without external probe

±0.2°C from -50 to +100°C
±0.2% from reading from +100 to +250°C

Power

battery 9V

Battery life

6 months typically

Real time clock

year, leap year, month, day, hour, minute, second

PC interface

serial RS232

Sampling interval in data logging mode

10s to 24hours (18 adjustable intervals)

Total memory capacity

up to 16000 recorded values

Data logging modes

noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Dimensions

141 x 71 x 27 mm

IP protection

IP20

Weight including battery

approximately 150 g

Warranty

2 years
ac/dc adapter 230Vac to 12Vdc/0.5A
code: A1515
ac/dc adapter 230Vac to 12Vdc/0.5A		 NiMH rechargeable batt. 9V/200mAh
code: A3400
NiMH rechargeable batt. 9V/200mAh		 Transducer USB/RS232 complete
code: MP006
Transducer USB/RS232 complete
Communication cable for COMMETER Dxxxx
code: QLOG015
Communication cable for COMMETER Dxxxx
Pt1000TG8/C, temperature probe, cable 1 m
code: SN104C
Pt1000TG8/C, temperature probe, cable 1 m		 Pt1000TG8/C, temperature probe, cable 2 m
code: SN105C
Pt1000TG8/C, temperature probe, cable 2 m		 Pt1000TG8/C, temperature probe, cable 5 m
code: SN108C
Pt1000TG8/C, temperature probe, cable 5 m
Pt1000TG8/C, temperature probe, cable 10 m
code: SN113C
Pt1000TG8/C, temperature probe, cable 10 m		 Pt1000TG7/C, temperature probe, cable 1 m
code: SN164C
Pt1000TG7/C, temperature probe, cable 1 m		 Pt1000TG7/C, temperature probe, cable 2 m
code: SN165C
Pt1000TG7/C, temperature probe, cable 2 m
Pt1000TG7/C, temperature probe, cable 5 m
code: SN166C
Pt1000TG7/C, temperature probe, cable 5 m		 Pt1000TG7/C, temperature probe, cable 10 m
code: SN167C
Pt1000TG7/C, temperature probe, cable 10 m		 2301-220/C, temperature probe, cable 1 m
code: SN168C
2301-220/C, temperature probe, cable 1 m
2021-150/C, temperature probe, cable 1 m
code: SN169C
2021-150/C, temperature probe, cable 1 m		 PTS350A-2/0, temperature probe, cable 2 m
code: SN170C
PTS350A-2/0, temperature probe, cable 2 m		 2034-220/C, temperature probe, cable 1 m
code: SN175C
2034-220/C, temperature probe, cable 1 m
2061-200/C, temperature probe, cable 1 m
code: SN178C
2061-200/C, temperature probe, cable 1 m		 2061-200/C, temperature probe, cable 2 m
code: SN179C
2061-200/C, temperature probe, cable 2 m		 2061-200/C, temperature probe, cable 5 m
code: SN180C
2061-200/C, temperature probe, cable 5 m
2061-200/C, temperature probe, cable 10 m
code: SN181C
2061-200/C, temperature probe, cable 10 m		 PTS350A-5/C, temperature probe, cable 5 m
code: SN182C
PTS350A-5/C, temperature probe, cable 5 m		 PTS350A-10/C, temperature probe, cable 10 m
code: SN183C
PTS350A-10/C, temperature probe, cable 10 m
Pt1000TGL40/C, temperature probe, cable 1 m
code: SN185C
Pt1000TGL40/C, temperature probe, cable 1 m		 Pt1000TGL40/C, temperature probe, cable 2 m
code: SN186C
Pt1000TGL40/C, temperature probe, cable 2 m		 Pt1000TGL40/C, temperature probe, cable 5 m
code: SN187C
Pt1000TGL40/C, temperature probe, cable 5 m
Pt1000TGL40/C, temperature probe, cable 10 m
code: SN188C
Pt1000TGL40/C, temperature probe, cable 10 m		 Pt1000TR160/C, temperature probe, cable 1 m
code: SN199C
Pt1000TR160/C, temperature probe, cable 1 m		 Pt1000TR160/C, temperature probe, cable 2 m
code: SN200C
Pt1000TR160/C, temperature probe, cable 2 m
Pt1000TR160/C, temperature probe, cable 5 m
code: SN201C
Pt1000TR160/C, temperature probe, cable 5 m		 Pt1000TR160/C, temperature probe, cable 10 m
code: SN202C
Pt1000TR160/C, temperature probe, cable 10 m		 Pt1000TR160/C, temperature probe, cable 15 m
code: SN203C
Pt1000TR160/C, temperature probe, cable 15 m
Pt1000TR160/C, temperature probe, cable 20 m
code: SN204C
Pt1000TR160/C, temperature probe, cable 20 m		 PTS380K/C temperature sensor with a stainless steel connection head and connector
code: SN205C
PTS380K/C temperature sensor with a stainless steel connection head and connector		 2091-200/C, Stick-in probe, cable 1 m
code: SN210C
2091-200/C, Stick-in probe, cable 1 m
2091-200/C, Stick-in probe, cable 2 m
code: SN211C
2091-200/C, Stick-in probe, cable 2 m		 2091-200/C, Stick-in probe, cable 5 m
code: SN212C
2091-200/C, Stick-in probe, cable 5 m		 2091-200/C, Stick-in probe, cable 10 m
code: SN213C
2091-200/C, Stick-in probe, cable 10 m
N1ATG8/C, temperature probe with Ni1000 sensor, cable 1 m
code: SN001C
N1ATG8/C, temperature probe with Ni1000 sensor, cable 1 m		 N1ATG8/C, temperature probe with Ni1000 sensor, cable 2 m
code: SN002C
N1ATG8/C, temperature probe with Ni1000 sensor, cable 2 m		 N1ATG8/C, temperature probe with Ni1000 sensor, cable 5 m
code: SN005C
N1ATG8/C, temperature probe with Ni1000 sensor, cable 5 m
N1ATG8/C, temperature probe with Ni1000 sensor, cable 15 m
code: SN015C
N1ATG8/C, temperature probe with Ni1000 sensor, cable 15 m		 N1ATG7/C, temperature probe with Ni1000 sensor, cable 1 m
code: SN016C
N1ATG7/C, temperature probe with Ni1000 sensor, cable 1 m		 N1ATG7/C, temperature probe with Ni1000 sensor, cable 2 m
code: SN017C
N1ATG7/C, temperature probe with Ni1000 sensor, cable 2 m
N1ATG7/C, temperature probe with Ni1000 sensor, cable 5 m
code: SN020C
N1ATG7/C, temperature probe with Ni1000 sensor, cable 5 m		 N1ATG7/C, temperature probe with Ni1000 sensor, cable 15 m
code: SN030C
N1ATG7/C, temperature probe with Ni1000 sensor, cable 15 m		 0061-200/C, temperature probe with Ni1000 sensor, cable 1 m
code: SN031C
0061-200/C, temperature probe with Ni1000 sensor, cable 1 m
0061-200/C, temperature probe with Ni1000 sensor, cable 2 m
code: SN032C
0061-200/C, temperature probe with Ni1000 sensor, cable 2 m		 301-220/C, temperature probe with Ni1000 sensor, cable 1 m
code: SN061C
301-220/C, temperature probe with Ni1000 sensor, cable 1 m		 031-150/C, temperature probe with Ni1000 sensor, cable 1 m
code: SN076C
031-150/C, temperature probe with Ni1000 sensor, cable 1 m
NS151-2/C, surface temperature transducer with Ni1000 sensor, cable 2 m
code: SN103
NS151-2/C, surface temperature transducer with Ni1000 sensor, cable 2 m		 100-60, air temperature probe with Ni1000 sensor
code: SN124
100-60, air temperature probe with Ni1000 sensor		 031-60, surface temperature probe with Ni1000 sensor
code: SN130
031-60, surface temperature probe with Ni1000 sensor
