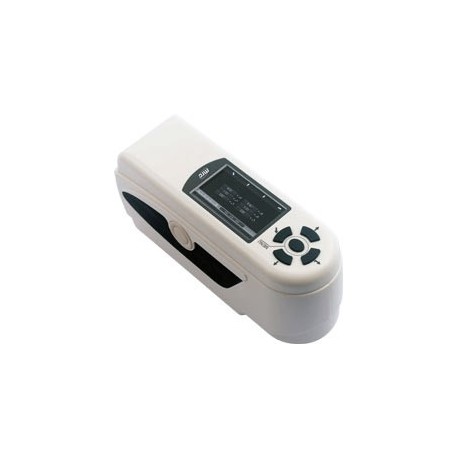

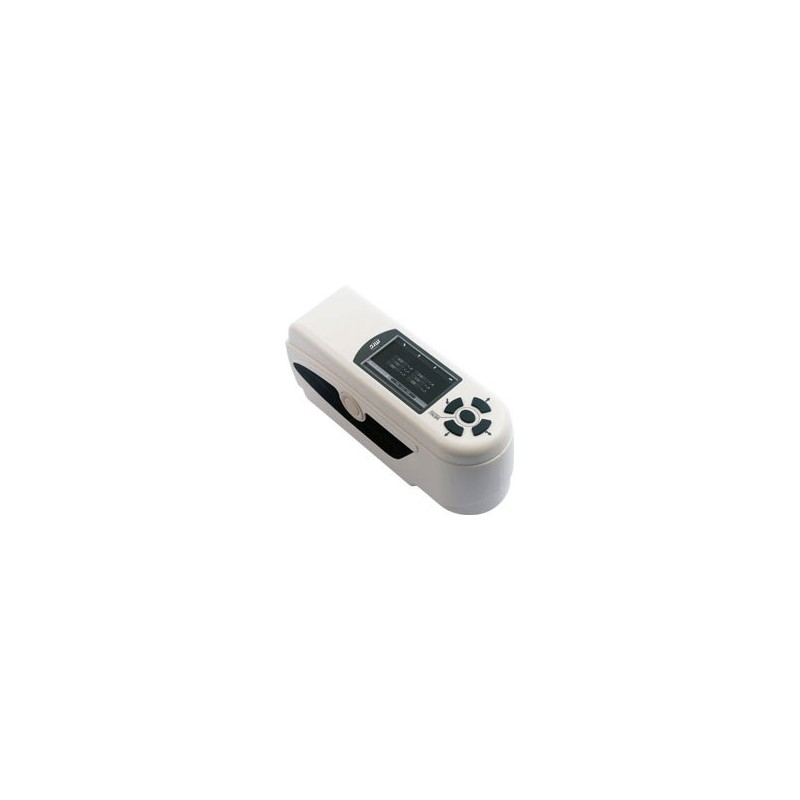

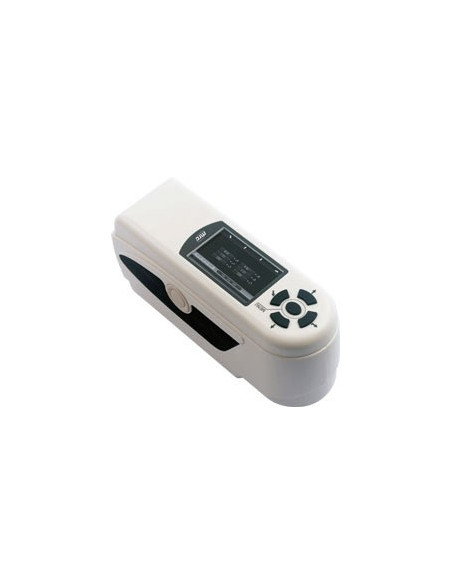

CLRM-200 Precision Colorimeter Ф8mm Measuring Aperture

Reference CLRM-200

Manufacturer: MRC

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet
Download

---------- INDUSTRY ------------	Colorimeter

CLRM-200_SPEC Download (313k)

CLRM-200_OPR Download (909.01k)

CLRM-200_analysis Download (2.43M)

High quality portable colorimeter, widely used in R&D, quality control and production management in plastic, electronic, paint, ink, print, paper, food, medical, cosmetic industries, scientific research etc.
Illuminating/viewing geometry: 8d
Measuring aperture: 8mm
Detector : Silicon photoelectric diode.
Error: ≤0.50ΔE*ab
White/Black Calibration :Manual
Automatic light and color locating.
Rechargeable lithium-ion battery 3.7VDC@3200mA.
Operating temperature/humidity range10~40℃，relative humidity 0~85% with no condensation
Optional:
CLRM-O-PR Miniature thermal printer.
CLRM-O-LP Liquids/creams/powders measuring cell.
CLRM-O-P Powders measuring cell.

Model	CLRM-200	CLRM-300	CLRM-310
Color Space	CIEL abCh* CIEL ab CIEXYZ		CIEL abCh* CIEL ab CIEXYZ CIERGB CIEL uv* CIEL Ch Yellowness & Whiteness Color Fastness
Color Difference Formula	ΔEab ΔLab ΔECh		ΔEab ΔLab ΔECh ΔECIE94 ΔEhunter
Iliuminating/Viewing Geometry	8/d
Detector	Silicon photoelectric diode
Measuring Aperture	?8mm		?4mm / ?8mm
Light Source	D65		D65 D50 A
Light Source Device	LED blue light excitation
Lamp Life	5 years, more than 1.6 million
Dimension	205 x 70 x 100 mm		205 x 67 x 80 mm
Storage	100pcs standards 20000pcs samples
Weight	500g
Errors Between Each Equipment	≤0.50ΔE*ab	≤0.40ΔE*ab	≤0.40ΔE*ab
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh
