Precision Colorimeter Ф4mm Measuring Aperture

Precision Colorimeter Ф4mm Measuring Aperture

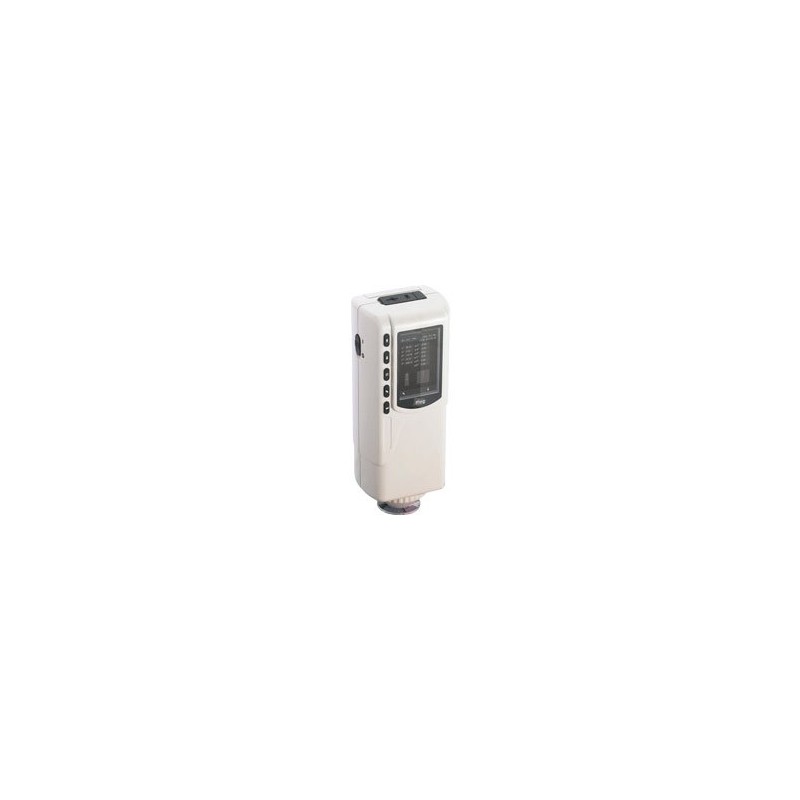

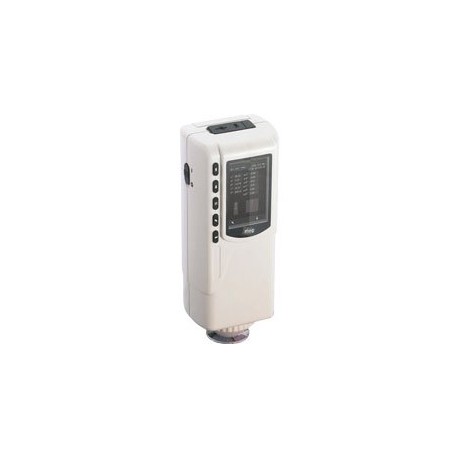

CLRM-110 Precision Colorimeter Ф4mm Measuring Aperture

Reference: CLRM-110 - Manufacturer: MRC

Precision Colorimeter, Auto locating of light source.
Built in calibration plate
Illuminating/viewing geometry: 8d
Rechargeable lithium-ion battery 3.7VDC@3200mA.
Error : ≤0.80ΔE*ab
Repeatability: Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate.
Rechargeable lithium-ion battery 3.7V@3200mAh
Light Source: LED blue light excitationSCM Metrological Certification, CE Certification, and ISO9001
Operating temperature/humidity range10~40℃，relative humidity 0~85% with no condensation
Optional:
CLRM-O-PR Miniature thermal printer.
CLRM-O-LP Liquids/creams/powders measuring cell.
CLRM-O-P Powders measuring cell.

Model	CLRM-110
Measurement End-face	Large stable end-face and small area concave-convex end face
Color Space	CIEL abCh* CIEL ab
Color Difference Formula	ΔEab ΔLab ΔECh
Illuminating/Viewing Geometry	8/d
Detector	Silicon photoelectric diode
Measuring Aperture	?4mm
Locating	Illuminating Locating / Cross Locating
Light Source	D65
Light Source Device	LED blue light excitation
Lamp Life	5 years, more than 1.6 million
Dimension	205 x 67 x 80 mm
Storage	100pcs standards 20000pcs samples
Weight	450g
Errors Between Each Equipment	≤0.50ΔE*ab
Repeatability	Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh
Charging Time	2 hours(8 hours for first charge)--100% electricity
PC Software	CQCS3 Software
Printer (optional)	Miniature thermal printer

---------- INDUSTRY ------------: Colorimeter

Download (298.41KB)

Download (633.43KB)

CLRM-110_analysis

Download (2.43MB)
