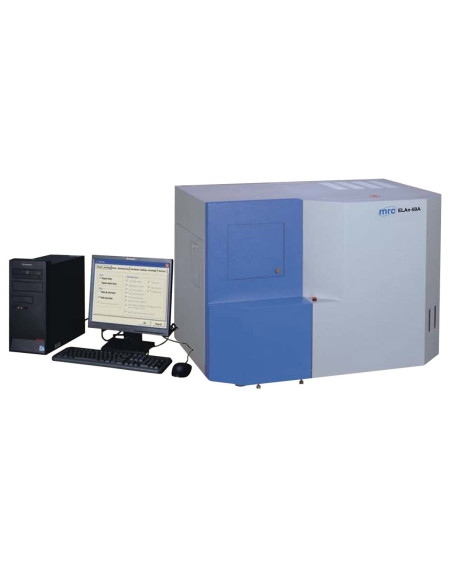

Proximate Analyzer Elan-50a

Reference Elan-50a

Manufacturer: MRC

Condition: New

Working Process
System temperature will automatically be controlled to the constant-temperature point and keep the thermostatic stage according to the test content and method chosen by the user. After weighing, coal sample will be introduced into the combustion furnace by the driving mechanism. After the preset time, coal samples will be transferred to the sample weighing carousel for weighing. Then the corresponding index values will be calculated automatically.

- Sample weight:0.5-1.1 g
- Furance temperature: up to 1000deg.C
- Temperature control percision: +3deg.C moisture /+5deg.C ash, volatile matter

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet
Download

Instrument for:	Hospitals, Lab's, Clinics
Function:	Chemical Analyzer

Elan-50a Data Sheet Download (328.26k)

Elan-50a Manual Download (2.94M)

ELan-50A Proximate Analyzer is suitable to analyze the moisture, ash and volatile matter with large quantities in short time and to calculate the content of fixed carbon content and calorific value.
It can be widely used in fields such as coal, electric power, metallurgy, etrochemical processing, geological prospecting, environmental rotection, scientific research and education etc.

1. High efficiency and test speed ELan-50A Proximate Analyzer can analyze 16 samples simultaneously. It has a remarkable advantage in
large scale test, which improves the efficiency greatly.
2. High precision and accuracy of test results
3. Reliable and stable performance

- Sample weight:0.5-1.1 g
- Furance temperature: up to 1000deg.C
- Temperature control precision: +3deg.C moisture /+5deg.C ash, volatile matter
- Max smaple:18
- Max power:4.5kW
- Power requierment: 220V 50Hz
- Gas requierment: compressed air
- Windows- base software
- Real-time data transmition via internal network
- RS-232 output
