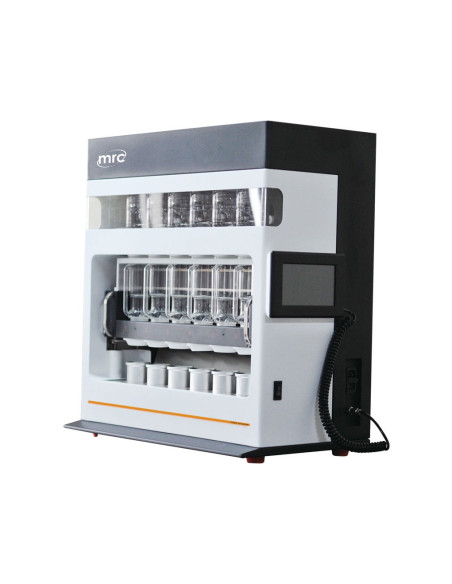

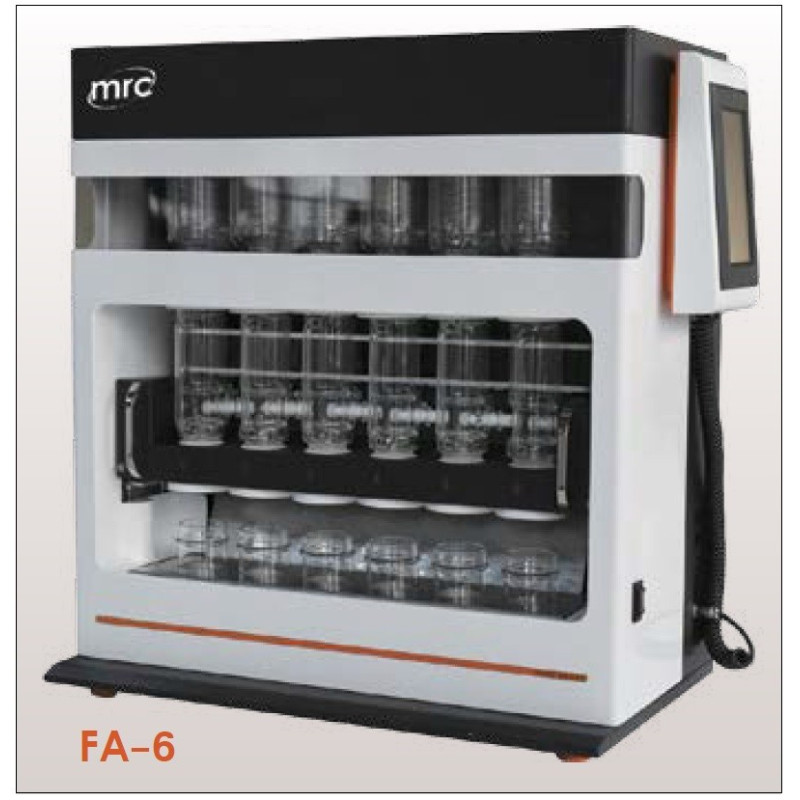

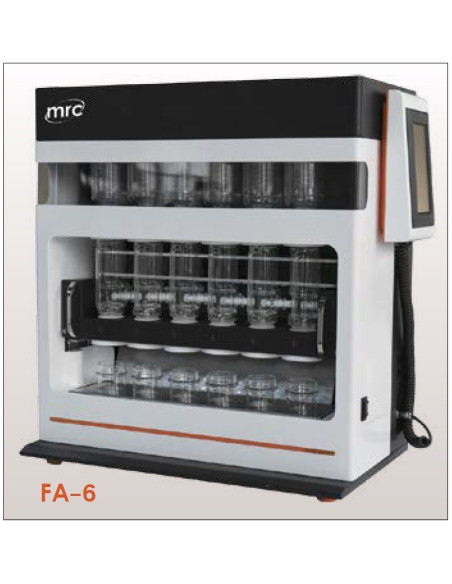

FA-6 Auto Fat Analyzer - Soxhelt extraction method

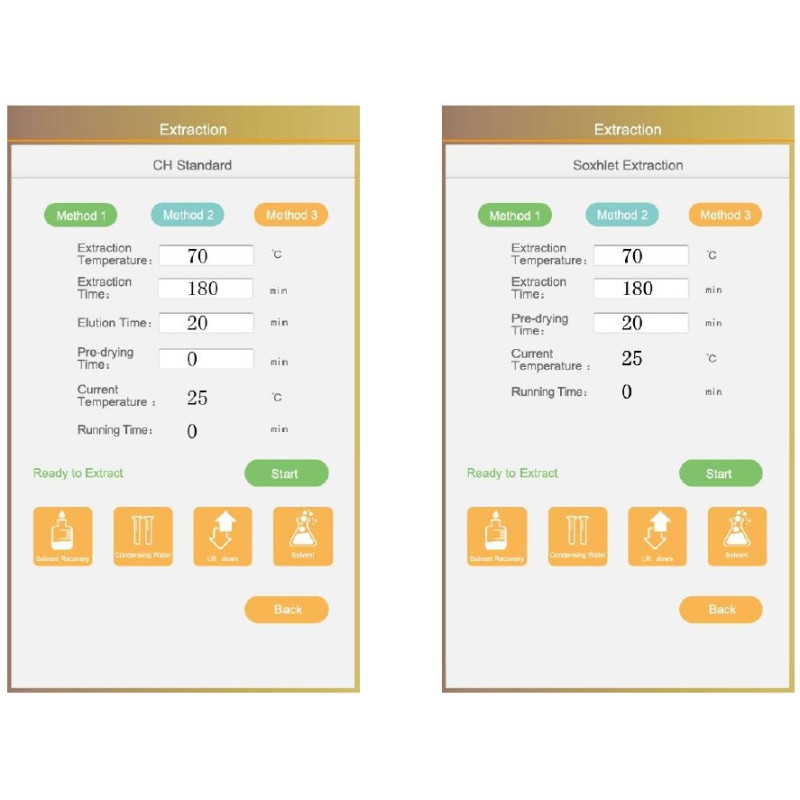

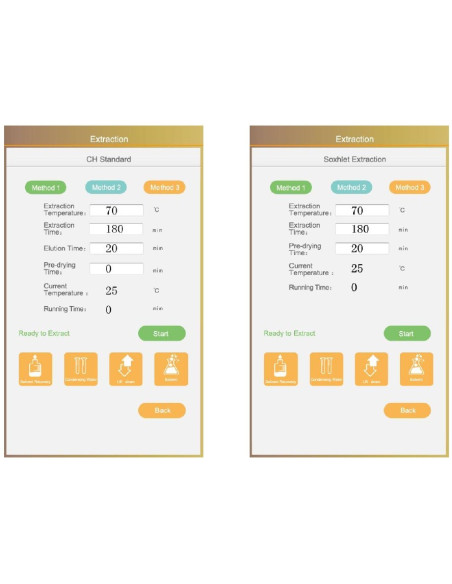

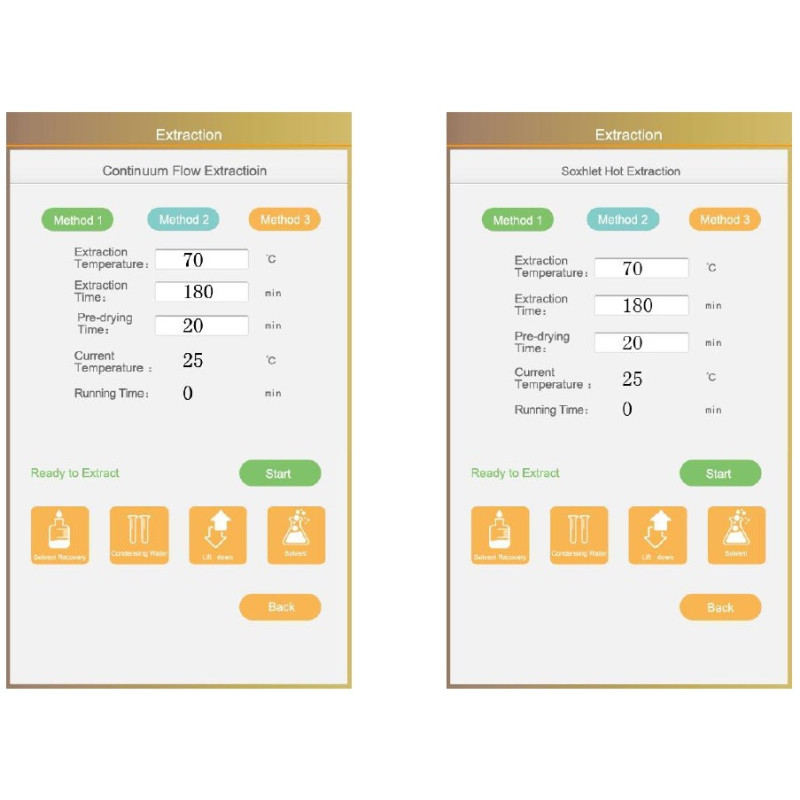

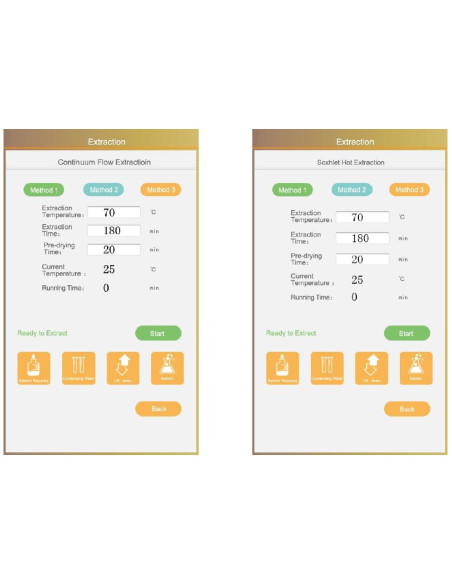

FA-6 Automatic Soxhlet Extractor, designed based on the Soxhlet extraction principle with weight method to determine the fat content. It has five extraction methods to meet different demands from customers.
The whole metal heating module, heating up fast, good effect, low power consumption; access to all-round water temperature, flow control, environmental protection.
It is more economical and has a built-in ether leak detection device to ensure experimental safety.
It is widely used in agricultural, food, chemical environment and other areas, especially for the drug, soil, sludge cleaner and other substances in the extraction of soluble organic compounds.

► Temperature range
► Room temp.: +50C - 3000C
► Measuring range: 0.1-100%
► Temperature accuracy: ±1°C
► Reproducibility: Relative error  1%
► Capacity per batch: 6pcs./batch
► Sample weight: 0.5-15g

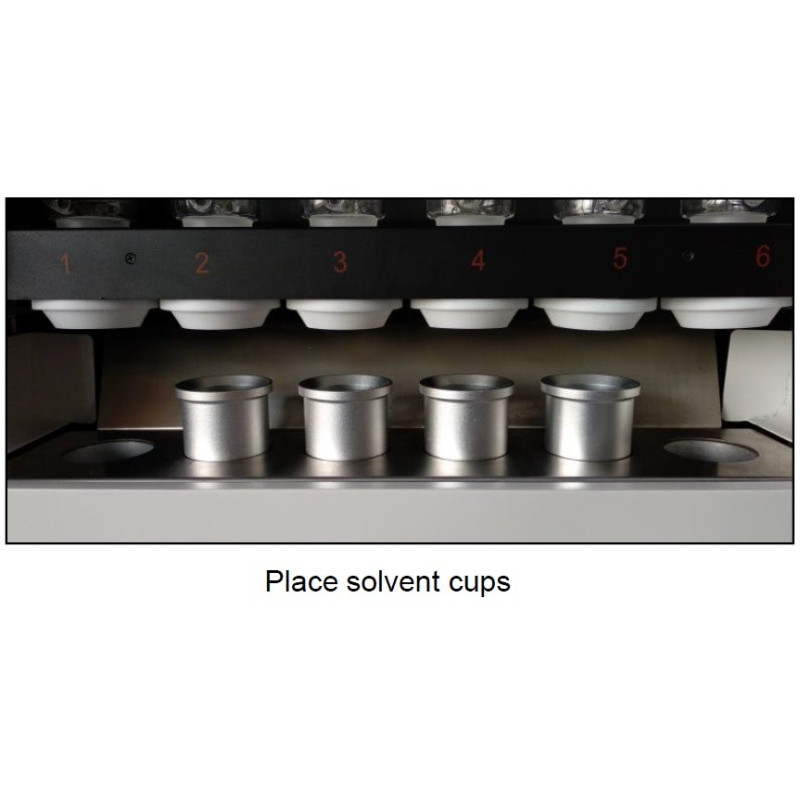

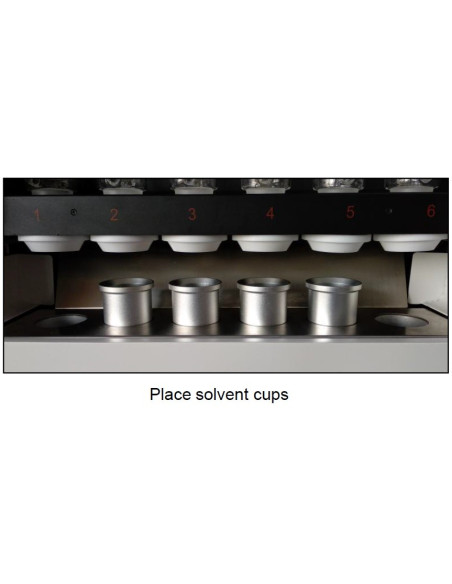

► Solvent cup volume: 150ml
► Solvent recovery: >85%
► Power supply: 220VAC±10%, 50Hz
► Power: 2.6KW
► Dimensions: 650mmx380mmx720mm
► Net Weight: 50Kg

► With a measurement scope of 0.1-100%, it can measure the content of crude fat in food, feed, grain, seeds and other samples.
► Extracts the grease in the sludge.
► Extracts the semi volatile organic compounds in the soil, insecticides, herbicides, etc.
► Extracts the plasticizer in the plastic, rosin in the paper and paper
mold, grease in the leather, etc.
► Conducts the digestion pretreatment of solid samples according to the gas and liquid chromatography.
► It can be used for other experiments of extracting the soluble compounds or measuring crude fat.
