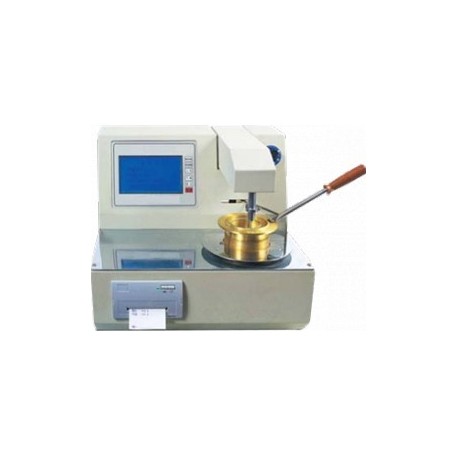

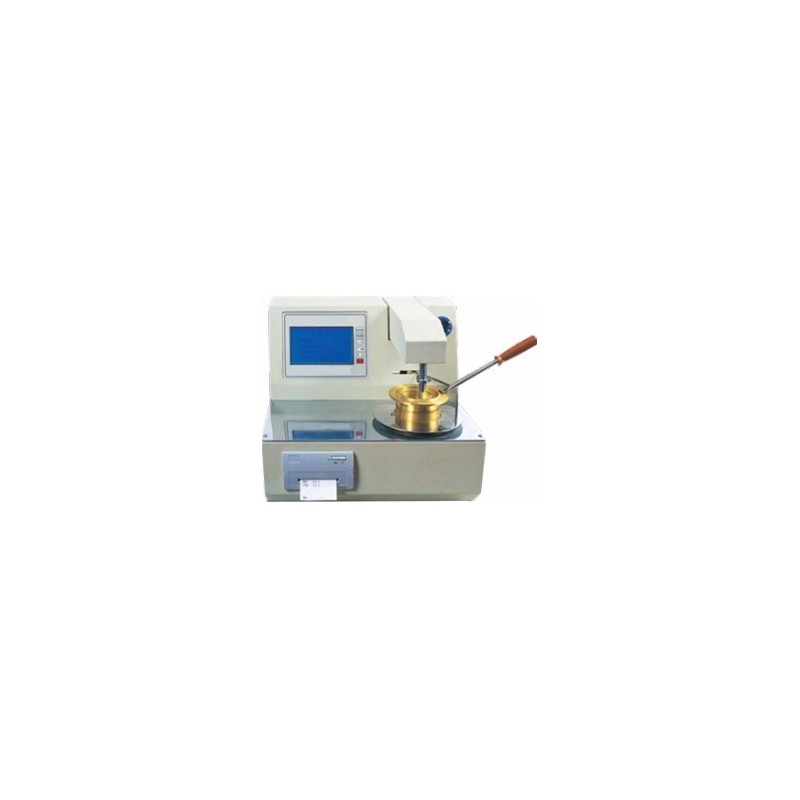

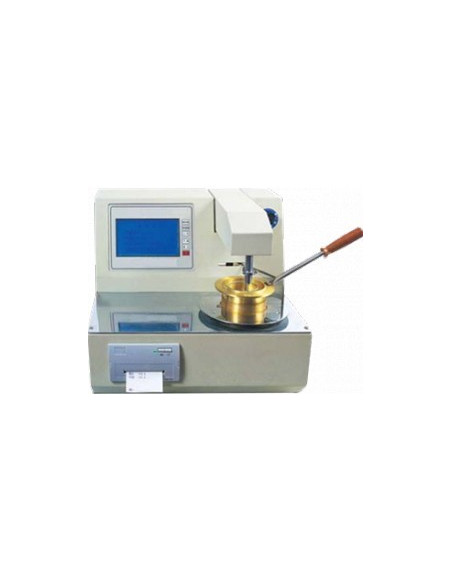

FP-536A Automatic "OPEN CUP" Flash Point Tester

Name: FP-536A Automatic "OPEN CUP" Flash Point Tester
Brand: MRC
SKU: FP-536A

Reference: FP-536A - Manufacturer: MRC

The instrument is used to determine the flash point of petroleum products.

Flash Point + Fire Point
standard : National GB/T3536, Industry JTJ025
Temp up to 300 Degrees Celsius
Repetability up to 8 Degrees Celsius
Reproducibility up to 16 Degrees Celsius
Resolution 0.1 Degrees Celsius
Precision 0.5%
Ignition mode : Electric Flame (Gas Flame 3-4mm
Temperature rising speed as per GB/T3536
Ignition mode by an electric flame
(gas flame is 3 to 4 mm)
Ambient temperature 10~40°C
Relative humidity ≤ 80%
Total power consumption not more than 500W
the flash point can test petroleum products only.
fit Only for liquid testing
Can’t measure for 3 ranges.

Model	FP-536A
Power supply	AC 220 V±10%, 50 Hz
Temperature measurement
Full scale	Ambient temperature to 300°C
Repeatability	≤ 8°C
Reproducibility	≤ 16°C
Resolution	0.1°C
Precision	0.5%
Basic parameters
Temperature rising speed	as per GB/T3536
Ignition mode	by an electric flame (gas flame is 3 to 4 mm)
Ambient temperature	10~40°C
Relative humidity	≤ 80%
Total power consumption	not more than 500W
