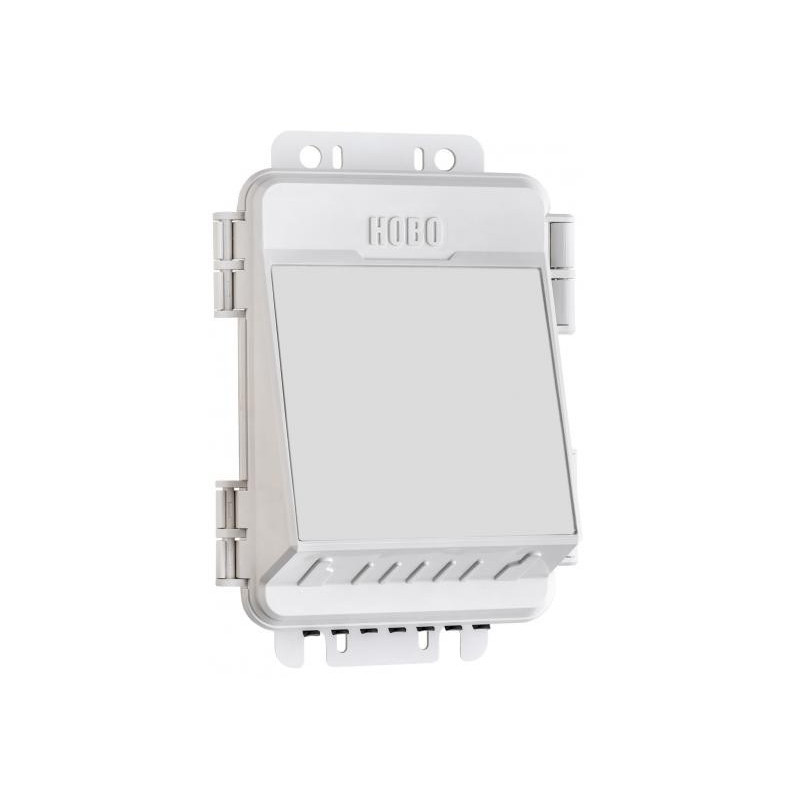

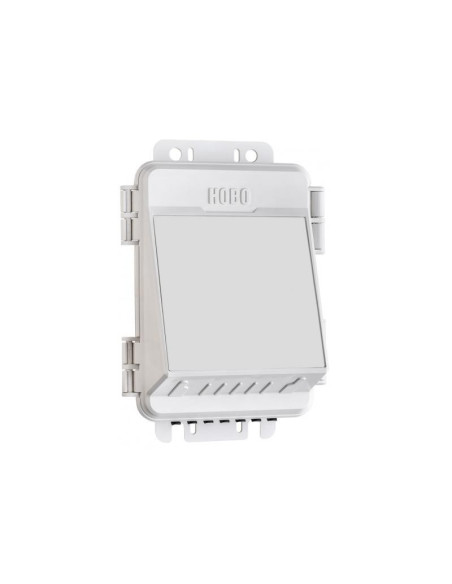

RX2100 Estação Meteorológica Compacta HOBO MicroRX

Operating Range

MicroRX Station, battery-powered (RX2101) and Micro RX Water Level Station, battery-powered (RX2103): -40° to 60°C (-40° to 140°F)
MicroRX Station, solar-powered (RX2102), MicroRX Water Level Station, solar-powered (RX2104) and MicroRX Station for HOBOnet, solar-powered (RX2106): -20° to 60°C (-4° to 140°F)

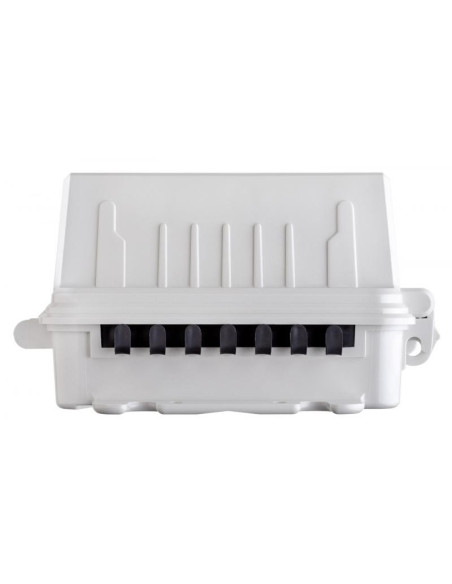

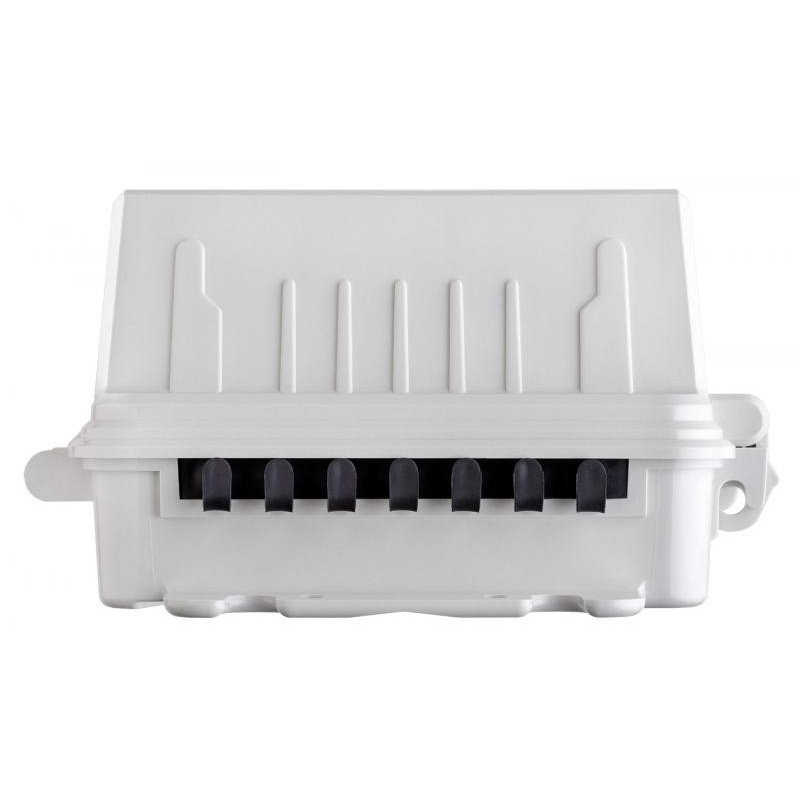

Smart Sensor Connectors

5

Smart Sensor Network Cable Length

100 m (328 ft) maximum

Smart Sensor Data Channels

Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)

Logging Rate

1 minute to 18 hours

Time Accuracy

±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range

Battery Type/Power Source

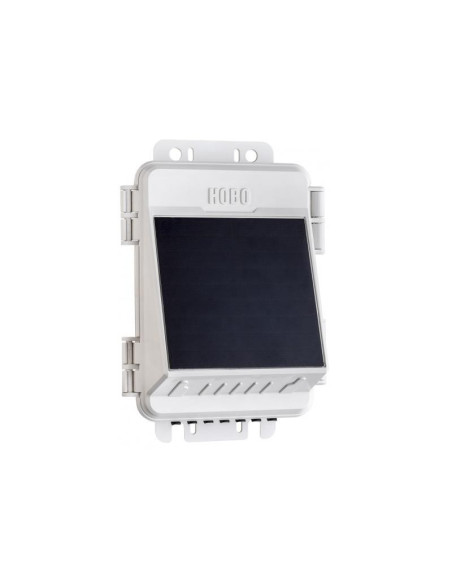

RX2102, RX2104 and RX2106: Integrated 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel
RX2101 and RX2103: 6 AA 1.5 V lithium batteries or AC power adapter (P-AC-1)

Battery Life

RX2102, RX2104 and RX2106 Battery Life:

Typical 3–5 years when operated in the temperature range -20° to 40°C (-4° to 104°F); operation outside this range will reduce the battery service life.

Maximum connection rates with built-in solar panel, in full sun:

• 10 minute connections year round for latitudes less than ±40°
• 10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter

Maximum connection rates with external 5W or 15W solar panels:

• 10 minute connections year round, in full sun
• Connection rate with external solar panels may be less if deployed in partial sun

Battery life without solar recharging, with hourly connections and
1 minute logging:

• RX2102: 3 months
• RX2104: 2 months
• RX2106: 3 months

RX2101 and RX2103 Battery Life:

Battery life with daily connections:

• RX2101: 1 year with 1 minute logging
• RX2103: 1 year with 2 minute logging

Battery life with hourly connections and 1 minute logging:

• RX2101: 3 months
• RX2103: 2 months

Note: Deployments in areas with weak cellular strength could reduce battery life.

Memory

16 MB, 1 million measurements, continuous logging

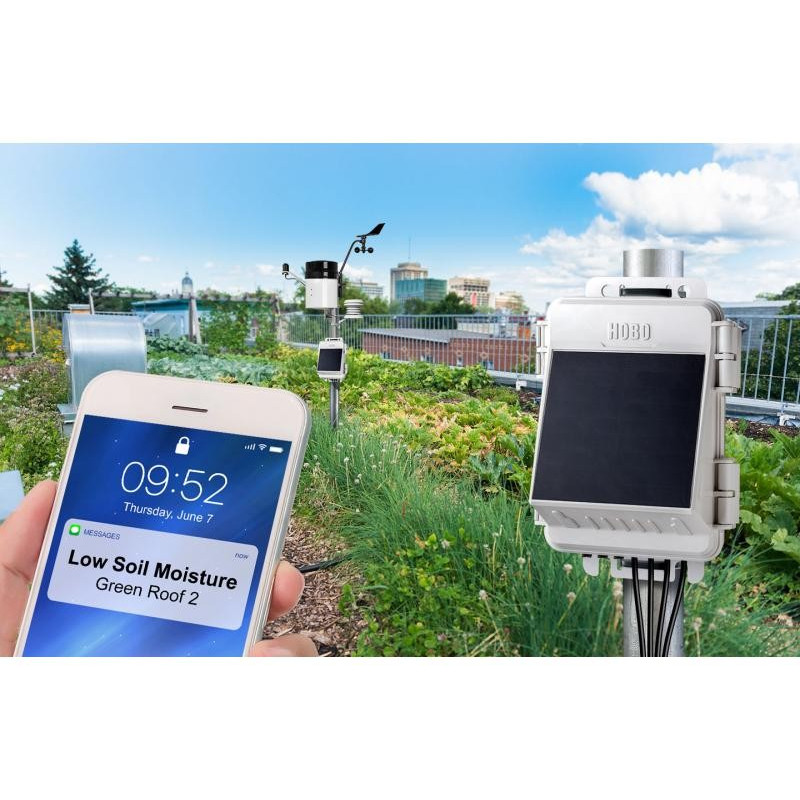

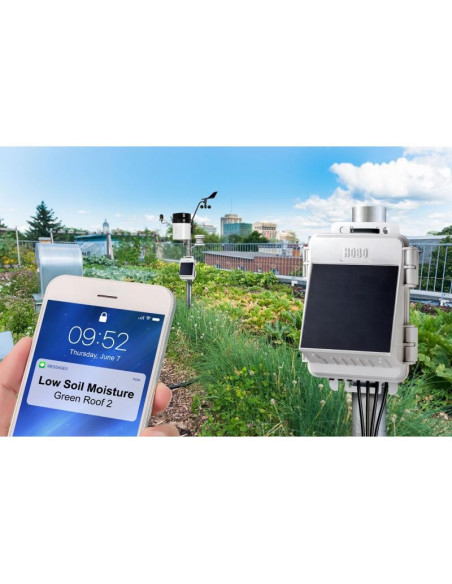

Alarm Notification Latency

Logging interval plus 2–4 minutes, typical

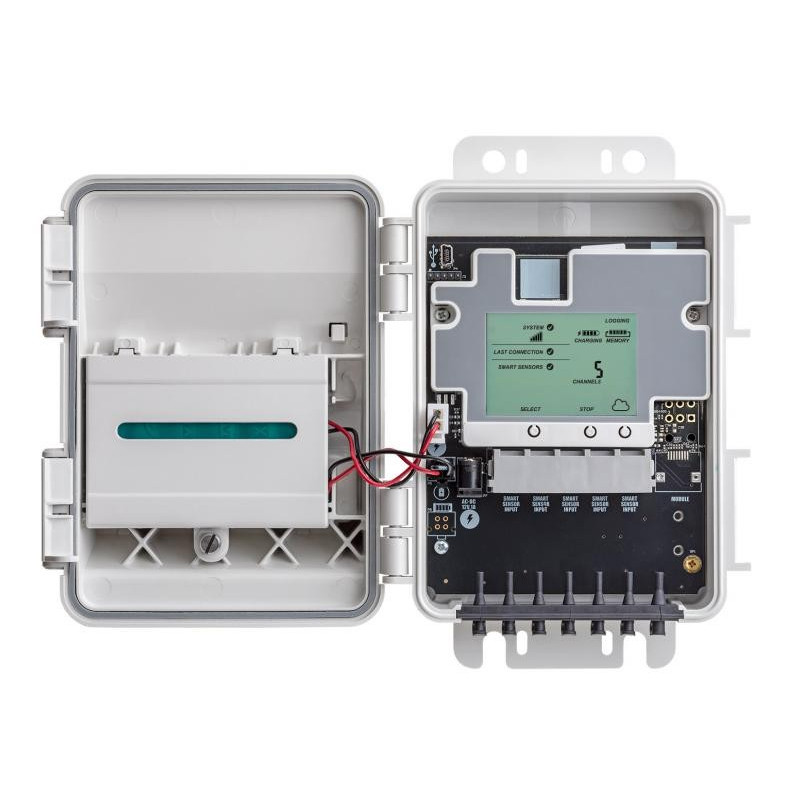

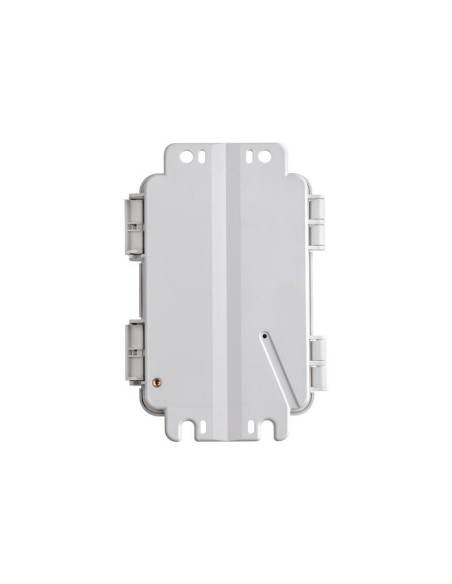

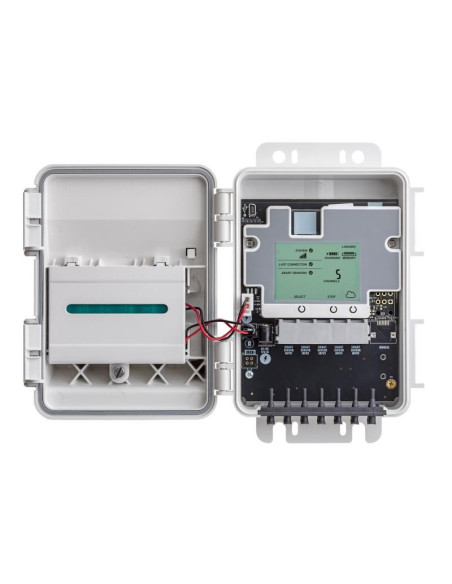

Enclosure Access

Hinged door secured by two latches with eyelets for use with user-supplied padlocks

LCD

LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Materials

Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene™ TPE; U-Bolts (not included): Steel with zinc dichromate finish

Dimensions

19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.)

Weight

678 g (23.9 oz)

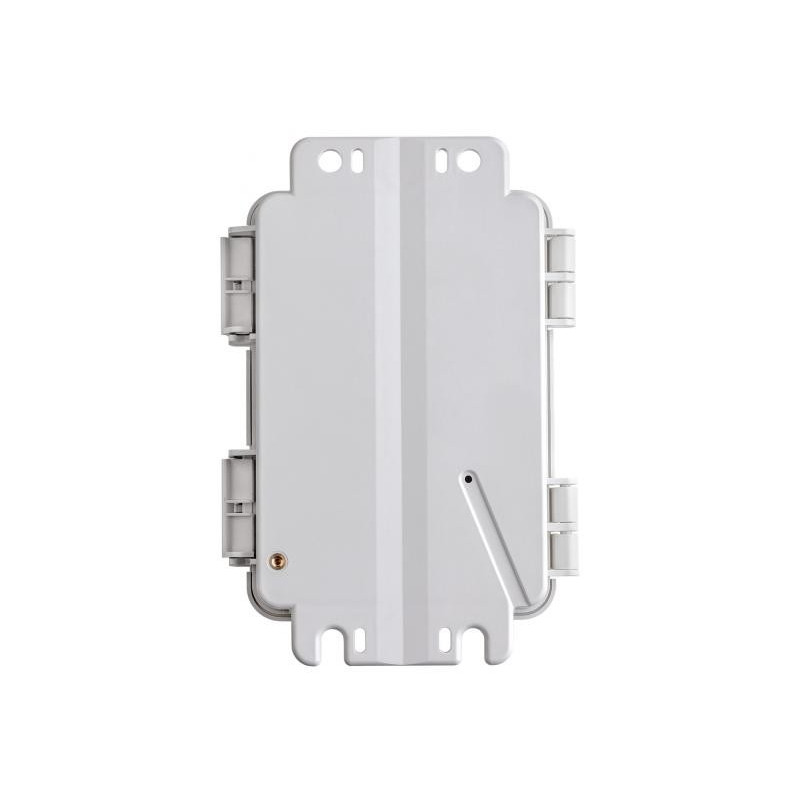

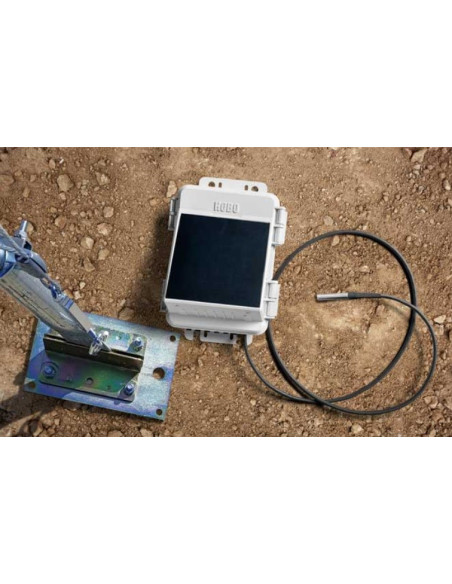

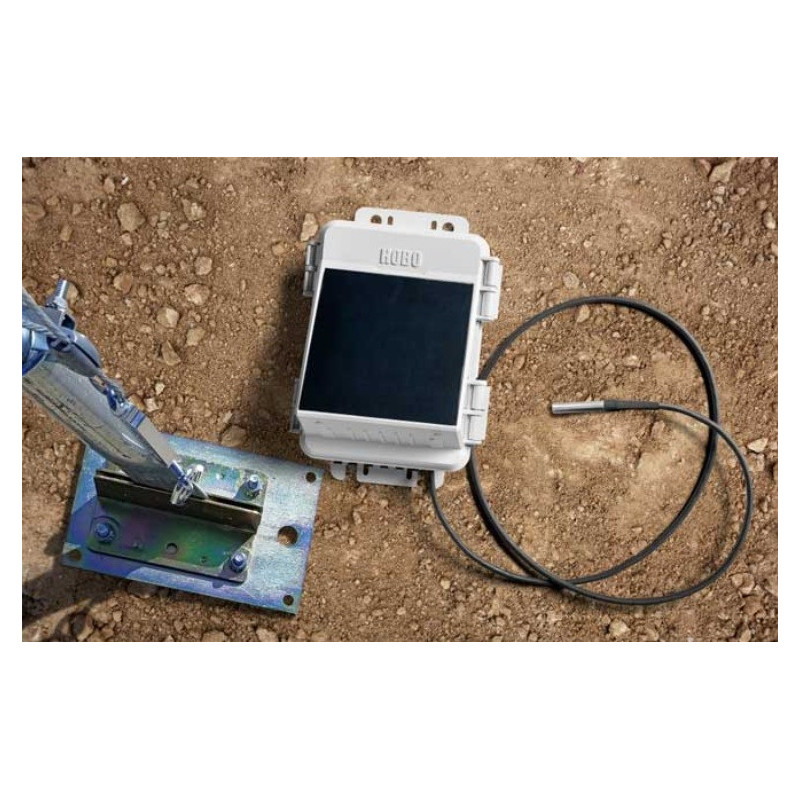

Mounting

Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws

Environmental Rating

Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system)

GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz

4G LTE

The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)

FCC ID QIPPLS62-W, IC ID:7830A-PLS62W
