RX2100-WL Estação GSM de nível de água HOBO MicroRX (Modelos RX2103 e RX2104)

MODELOS DISPONÍVEIS:

- Estação RX2101 HOBO MircroRX com bateria
- Estação RX2102 HOBO MircroRX com painel solar de 1,7 W

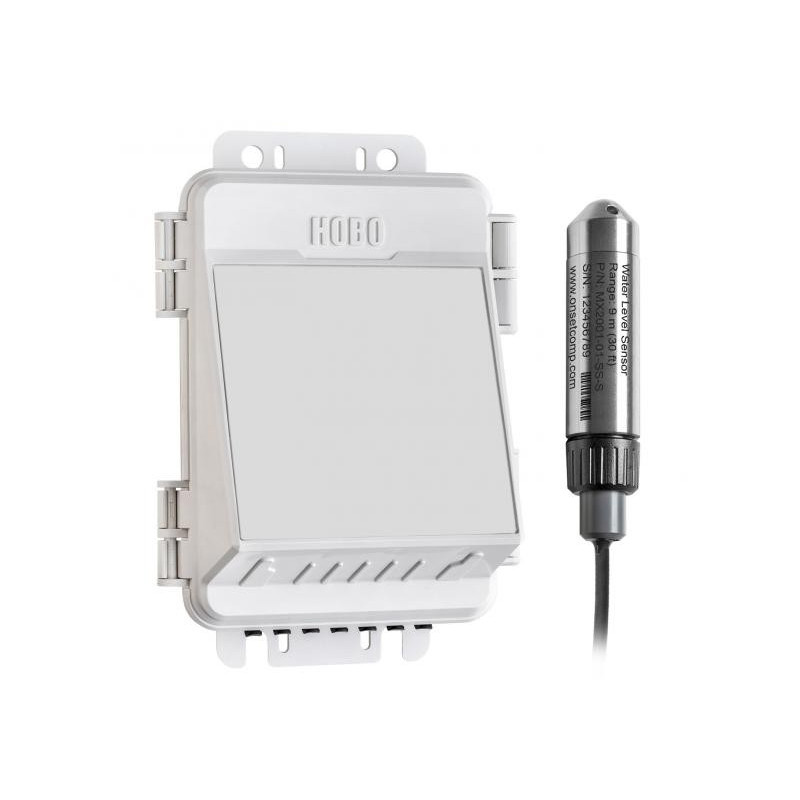

- Estação RX2103 de nível de água HOBO MircroRX com bateria

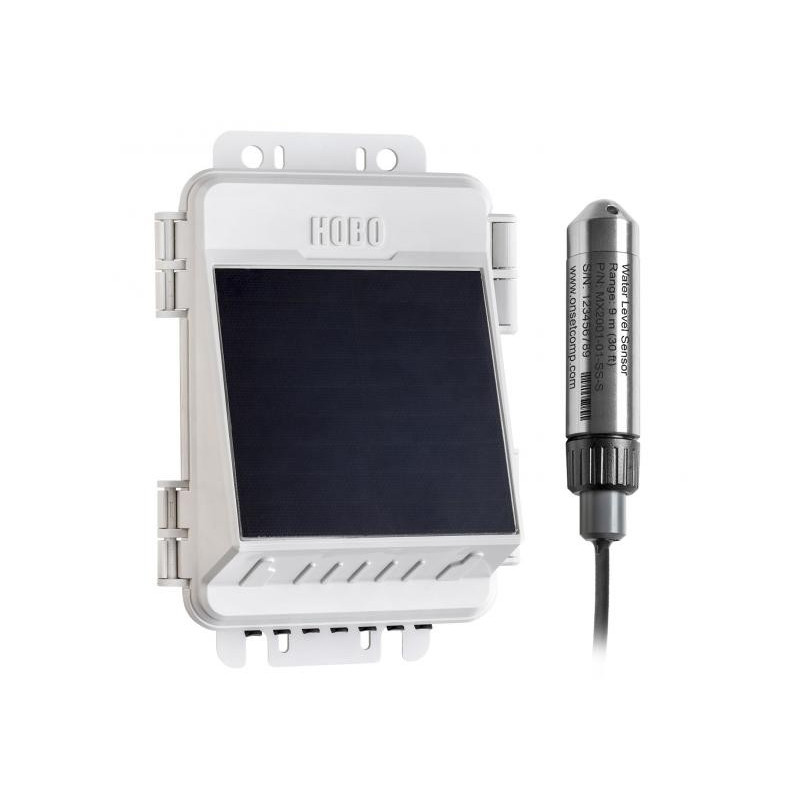

- Estação RX2104 de nível de água HOBO MircroRX com painel solar de 1,7 W

COMPRIMENTO DO CABO (SELECIONE DA LISTA):
- CABLE-RWL-5.0 Cabo do sensor para HOBO RX2100-WL, 5 metros
- CABLE-RWL-015 Cabo do sensor para HOBO RX2100-WL, 15 metros
- CABLE-RWL-030 Cabo do sensor para HOBO RX2100-WL, 30 metros

Novos cálculos de vazão de água e precipitação acumulada, que são executados diretamente na estação no momento da medição, acionam notificações imediatas de condições críticas do nível da água.

A estação compacta e durável, juntamente com o sensor de nível de água sem ventilação, permite implantações em condições adversas e monitoramento confiável. O painel solar integrado opcional ou a energia da bateria, com uma ampla variedade de sensores inteligentes plug-and-play, oferecem suporte ao monitoramento ambiental flexível.

Recursos destacados:
- Alarmes laterais da estação para fluxo de água e chuva acumulada ativados no momento da medição
- Sensor de nível de água de cerâmica sem ventilação com opção de quatro faixas
- Cabos sensores de nível de água reforçados com Kevlar intercambiáveis
- Sensor de pressão barométrica integrado.
- Invólucro compacto IP66 / NEMA 4X

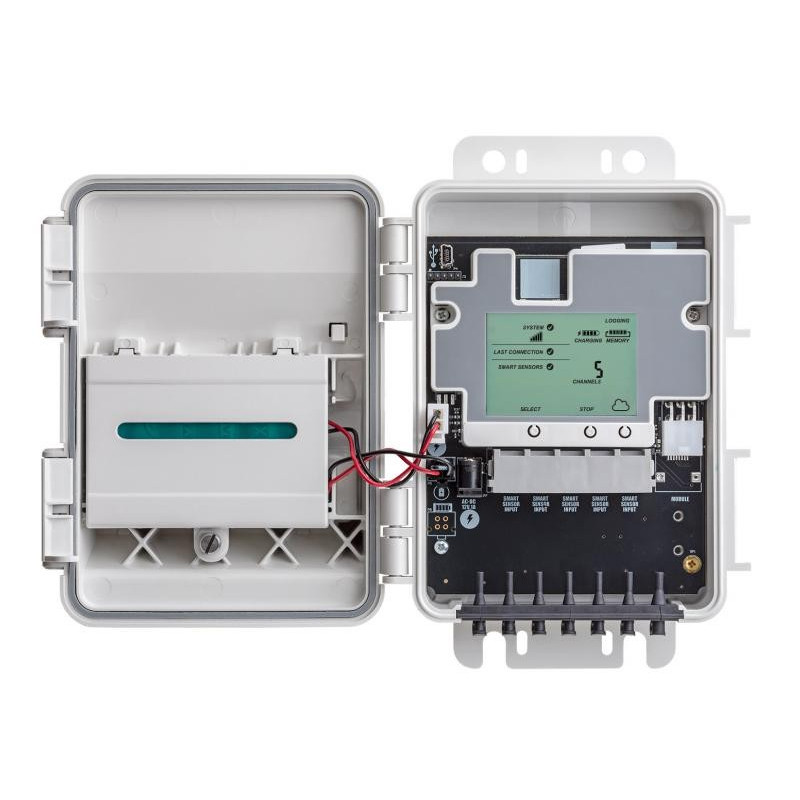

- LCD embutido confirma a configuração e operação corretas
- Duas opções de energia:
- Painel solar de 1,7 W integrado com bateria recarregável
- Painéis solares externos de 5W e 15W podem ser adicionados (apenas RX2104)
- Baterias de lítio AA substituíveis pelo usuário
- Entradas para cinco sensores plug-and-play
- Taxas de conexão de até 10 minutos por meio de planos de dados de celular 4G
- Monitoramento baseado em nuvem e acesso a dados através do HOBOlink
- Disponível com pontas de sensor de aço inoxidável ou titânio
- Certificado de calibração rastreável NIST de 3 pontos incluído para o sensor de pressão de água

Em que ambiente esse registrador de dados opera?

Este data logger opera em um ambiente subaquático.
Quais medidas são compatíveis com este registrador de dados?

O registrador de dados RX2100-WL suporta as seguintes medidas: Pressão Absoluta, Pressão Barométrica, Evapotranspiração, Umidade da Folha, Intensidade da Luz, PAR, Entrada de Pulso, Precipitação, Chuva, Umidade Relativa, Umidade do Solo, Temperatura, Fluxo de Água, Nível de Água e Vento

Operating Range:
RX2103: -40 ° to 60 ° C (-40 ° to 140 ° F)
RX2104: -20 ° to 60 ° C (-4 ° to 140 ° F)

Smart Sensor Connectors: 5

Smart Sensor Network Cable Length: 100 m (328 ft) maximum

Smart Sensor Data Channels: Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)

Logging Rate: 1 minute to 18 hours

Time Accuracy:
± 8 seconds per month in 0 ° to 40 ° C (32 ° F to 104 ° F) range;
± 30 seconds per month in -40 ° to 60 ° C (-40 ° to 140 ° F) range

Battery Type / Power Source:
RX2103: 6 AA 1.5 V lithium batteries or AC power adapter (P-AC-1)
RX2104: Integrated 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel

Battery Life

RX2103 Battery Life:
Battery life with daily connections: RX2103: 1 year with 2 minute logging

Battery life with hourly connections and 1 minute logging: RX2103: 2 months

Note: Deployments in areas with weak cellular strength could reduce battery life.

RX2104 Battery Life: Typical 3–5 years when operated in the temperature range -20 ° to 40 ° C (-4 ° to 104 ° F); operation outside this range will reduce the battery service life.

Maximum connection rates with built-in solar panel, in full sun:
10 minute connections year round for latitudes less than ± 40 °
10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter

Maximum connection rates with external 5W or 15W solar panels:
10 minute connections year round, in full sun
Connection rate with external solar panels may be less if deployed in partial sun

Battery life without solar recharging, with hourly connections and 1 minute logging: RX2104: 2 months

Memory


16 MB, 1 million measurements, continuous logging: Alarm Notification Latency


Logging interval plus 2–4 minutes, typical: Enclosure Access


Hinged door secured by two latches with eyelets for use with user-supplied padlocks

LCD: LCD is visible from 0 ° to 50 ° C (32 ° to 122 ° F); the LCD may react slowly or go blank in temperatures outside this range

Materials

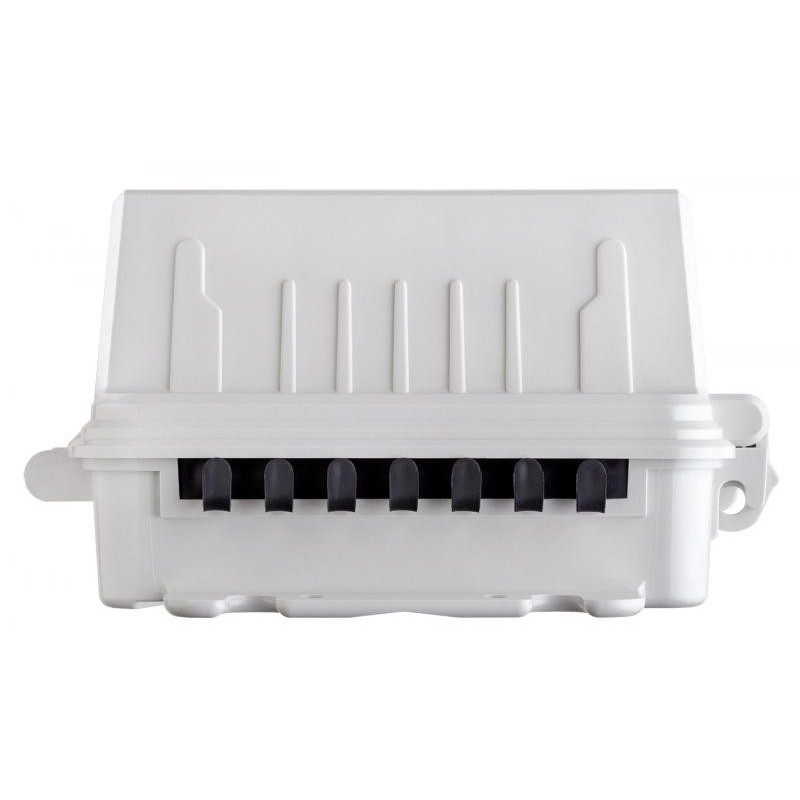

Outer enclosure: Polycarbonate / PBT blend with brass inserts; Interior: Polycarbonate / PBT; Gasket: Silicone foam; Cable channel: Santoprene ™ TPE; U-Bolts (not included): Steel with zinc dichromate finish

Dimensions: 19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.)

Weight: 678 g (23.9 oz)

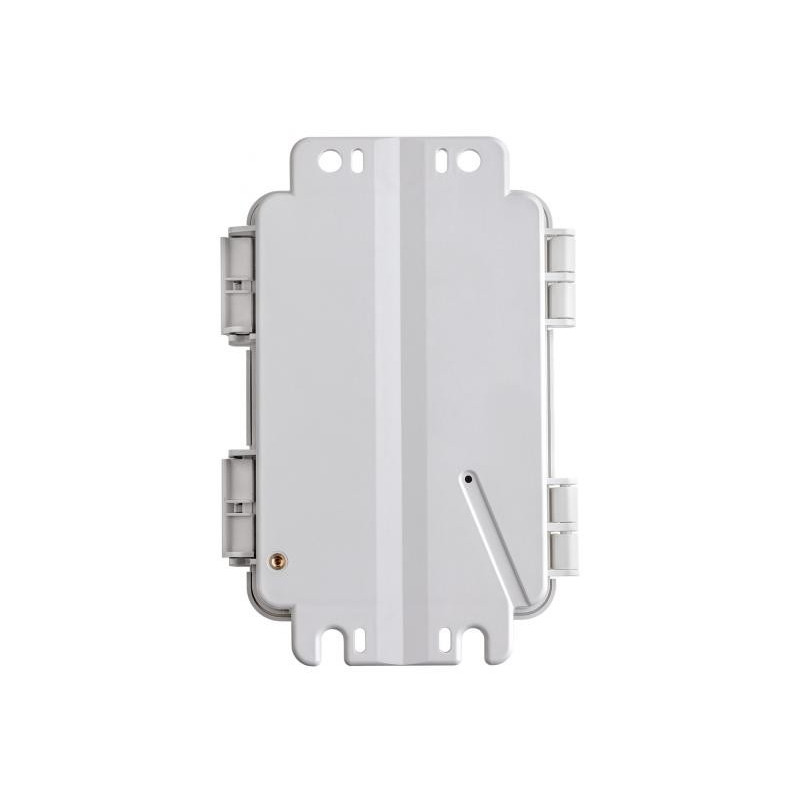

Mounting: Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) Mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws

Environmental Rating: Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system)
Wireless Radio

GSM / GPRS / EDGE: Quad band 850/900/1800/1900 MHz
UMTS / HSPA +: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz

Antenna: 4G LTE

CE Marked: The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)

FCC Logo Australia / New Zealand General Compliance mark


FCC ID QIPPLS62-W, IC ID: 7830A-PLS62W



Water Level Sensor: Pressure (Absolute) And Water Level Measurements MX2001-01-S and MX2001-01-Ti-S:

Operation Range: 0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude

Factory Calibrated Range: 69 to 207 kPa (10 to 30 psia), 0 ° to 40 ° C (32 ° to 104 ° F)

Burst Pressure: 310 kPa (45 psia) or 18 m (60 ft) depth

Water Level Accuracy *:
Typical error: ± 0.05% FS, 0.5 cm (0.015 ft) water
Maximum error: ± 0.1% FS, 1.0 cm (0.03 ft) water

Raw Pressure Accuracy **: ± 0.3% FS, 0.62 kPa (0.09 psi) maximum error

Resolution: <0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water

Pressure Response Time (90%) ***: <1 second at a stable temperature


Pressure (Absolute) And Water Level Measurements MX2001-02-S:

Operation Range:
0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at 3,000 m (10,000 ft) of altitude

Factory Calibrated Range: 69 to 400 kPa (10 to 58 psia), 0 ° to 40 ° C (32 ° to 104 ° F)

Burst Pressure: 500 kPa (72.5 psia) or 40.8 m (134 ft) depth

Water Level Accuracy *:
Typical error: ± 0.05% FS, 1.5 cm (0.05 ft) water
Maximum error: ± 0.1% FS, 3.0 cm (0.01 ft) water

Raw Pressure Accuracy **:
± 0.3% FS, 1.20 kPa (0.17 psi) maximum error

Resolution: <0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water

Pressure Response Time (90%) ***: <1 second at a stable temperature


Pressure (Absolute) And Water Level Measurements MX2001-03-S:

Operation Range:
0 to 850 kPa (0 to 123.3 psia); approximately 0 to 76.5 m (0 to 251 ft) of water depth at sea level, or 0 to 79.5 m (0 to 262 ft) of water at 3,000 m (10,000 ft) of altitude

Factory Calibrated Range: 69 to 145 kPa (10 to 21 psia), 0 ° to 40 ° C (32 ° to 104 ° F)

Burst Pressure: 310 kPa (45 psia) or 18 m (60 ft) depth

Water Level Accuracy *:
Typical error: ± 0.075% FS, 0.3 cm (0.01 ft) water
Maximum error: ± 0.15% FS, 0.6 cm (0.02 ft) water

Raw Pressure Accuracy **: ± 0.3% FS, 0.43 kPa (0.63 psi) maximum error

Resolution: <0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water

Pressure Response Time (90%) ***: <1 second at a stable temperature


Barometric Pressure (RX2103 and RX2104 station):

Operation Range: 66 to 107 kPa (9.57 to 15.52 psia)

Temperature Calibrated Range: -20 to 50 ° C (-4 to 122 ° C)

Accuracy: ± 0.2 kPa (± 0.029 psi) over full temperature range at fixed pressure; maximum error ± 0.5% FS

Water Level Accuracy *:
Typical error: ± 0.075% FS, 0.3 cm (0.01 ft) water
Maximum error: ± 0.15% FS, 0.6 cm (0.02 ft) water

Resolution: <0.01 kPa (0.0015 psi)

Response Time: <1 second at a stable temperature

Stability (Drift): <0.01 kPa (0.0015 psi) per year



Temperature (Water Level Sensors MX2001-0x-S and MX2001-0x-Ti-S):

Operation Range: -20 ° to 50 ° C (-4 ° to 122 ° F)

Accuracy: ± 0.44 ° C from 0 ° to 50 ° C (± 0.79 ° F from 32 ° to 122 ° F)

Resolution: 0.1 ° C to 25 ° C (0.18 ° F to 77 ° F)

Response Time (90%): 5 minutes in water (typical)

Stability (Drift): 0.1 ° C (0.18 ° F) per year

* Water Level Accuracy: With accurate reference water level measurement, known water density, and a stable temperature environment. System Water Level Accuracy equals the sum of the Barometric Water Level Accuracy plus the selected Water Level Accuracy sensor.

** Raw Pressure Accuracy: Absolute pressure sensor accuracy includes all sensor drift, temperature, and hysteresis-induced errors.

*** Changes in Temperature: Allow 20 minutes in water to achieve full temperature compensation of the pressure sensor. There can be up to 0.5% of additional error due to rapid temperature changes.

Measurement accuracy also depends on temperature response time.

- Estação MicroRX HOBO RX2100
- Pacote de gordura
- Flanges
- Parafusos e arruelas
- Seis baterias de lítio AA (estação alimentada por bateria RX2103)
- Bateria (estação de energia solar RX2104)
