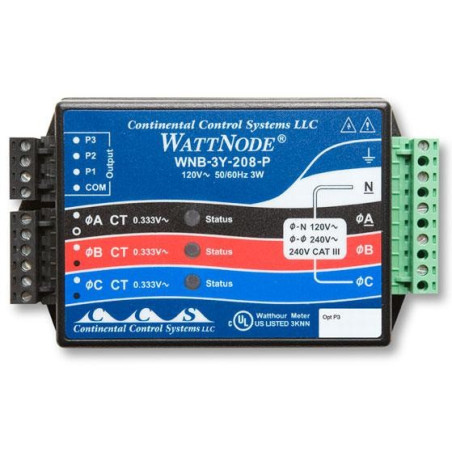

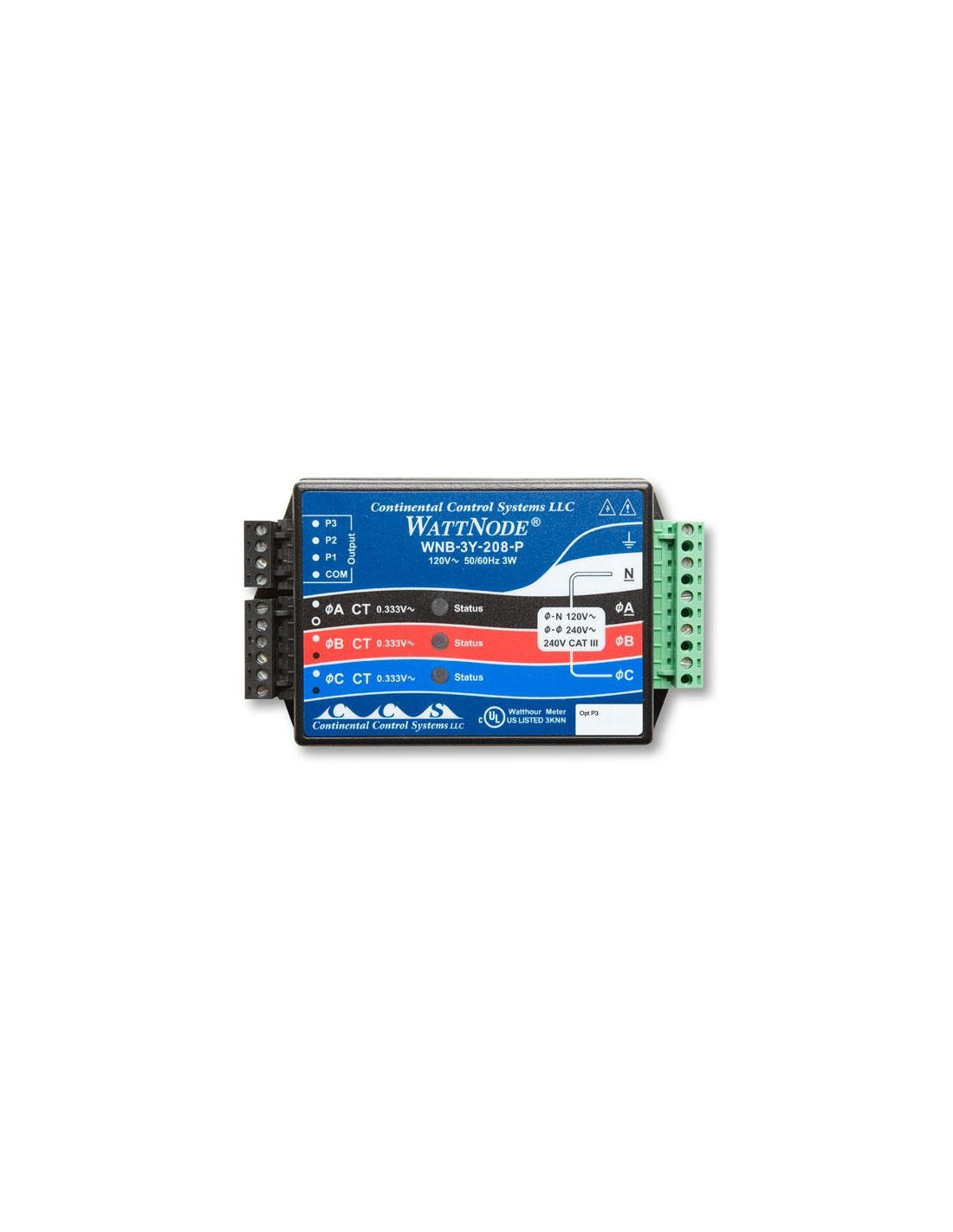

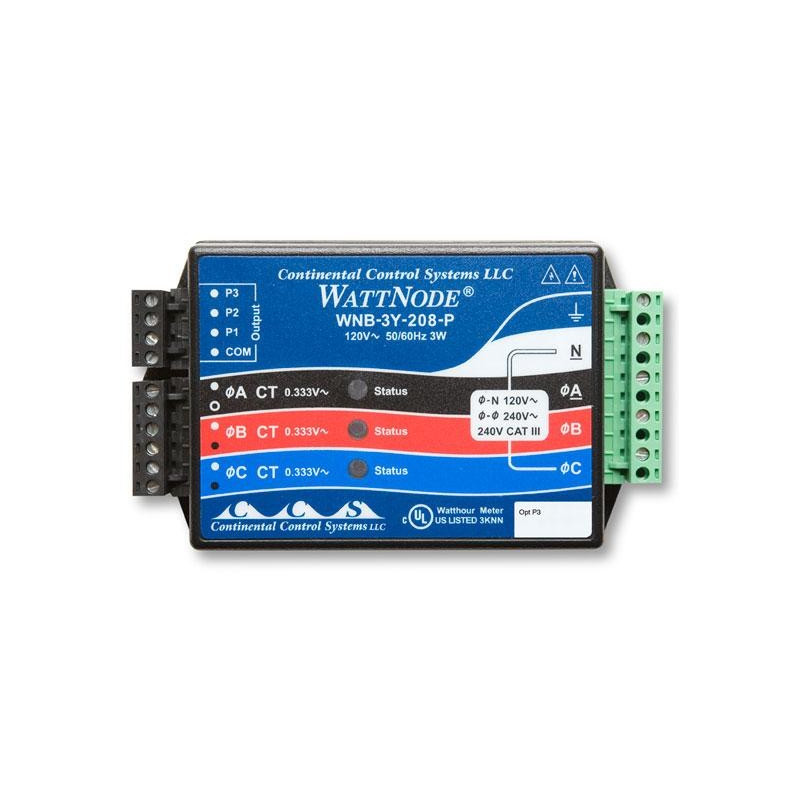

AO-T-WNB-3Y-208-P Transductor de Potencia KW/h 2 ó 3 Circuitos Derivados

Name: AO-T-WNB-3Y-208-P Transductor de Potencia KW/h 2 ó 3 Circuitos Derivados
Brand: Onset
SKU: AO-T-WNB-3Y-208-P
Price: 499 EUR
Availability: InStock

Referencia: AO-T-WNB-3Y-208-P - Marca: Onset

Transductores Potencia T-WNB-3Y-208-P para KW/h, 2 ó 3 Circuitos Derivados

499,00 €

Sem IVA Envío: 1 a 3 semanas

Quantidade	Desconto por unidade	Poupa
5	2.8571%	71,28 €
10	6.0714%	302,96 €

The WattNode sensor provides accurate kWh measurement at a low cost to meet your needs for sub-metering, net-metering, energy management, and performance contracting applications.

This WattNode kWh Transducer works with Magnelab AC Current Transformers and a Pulse Input Adapter, or a HOBO^® Data Node pulse input port to provide True RMS kilowatt hours of energy used, even for loads with non-sinusoidal waveforms. Because these sensors tie directly into the line, they should be used only by qualified personnel. This model supports up to 3 separate 120 VAC single-phase branch circuits or individual 120 VAC phases of a 3-phase wye-connection 208/240 VAC circuit.

Features:

Measures up to 3 separate branch circuits simultaneously, reducing complexity and cost.
Use with wide choice of current transformers (sold separately) - ratings from 5 to 1500 amps.
Accurate measurement of multiple single phase or each phase of 3-phase configurations.
Easy to install and wire.
Individual pulse outputs for each circuit - compatible with pulse input logger models.
Small size - can be installed in existing service panels or junction boxes.
Diagnostic LEDs - confirms proper installation for all phases.
Line powered - no external supply required.
Detachable terminal blocks - easy to install and remove.

Environment:

The T-WNB-3Y-208-P Sensor is for use in Indoor environments

Measurements:

The T-WNB-3Y-208-P Sensor supports the following measurements : Kilowatt Hours (kWh)

Wye Configuration ranges: 120, 208, 240 Volts AC - Neutral required
1 Phase 2 Wire 120V (with neutral)
1 Phase 3 Wire 120V/240V
3 Phase 4 Wire 120V/208V

Rating: FCC Class A
Operating: voltage range: ±20% of nominal
Frequency: 60 Hz
CT input: 0-0.5 VAC operating, 3 VAC maximum
Accuracy: ±0.45% of reading + 0.05% FS through 25th harmonic (dependent on CT used and line variation accuracy could be 1.5% to 4% of reading)
Enclosure: High impact, UL rated ABS plastic
Connectors: UL, cUL recognized, detachable screw terminals (14 AWG), 600V
Operating temp range: -30 to 60°C (-22 to 140°F)
Operating humidity range: 0 to 90% RH, non-condensing
Dimensions: 8.5 cm x 14.3 cm x 3.8 cm (3.3 in. x 5.6 in. x 1.5 in.)
Weight: 295 g (10.4 oz.)
Number of data channels: 3
