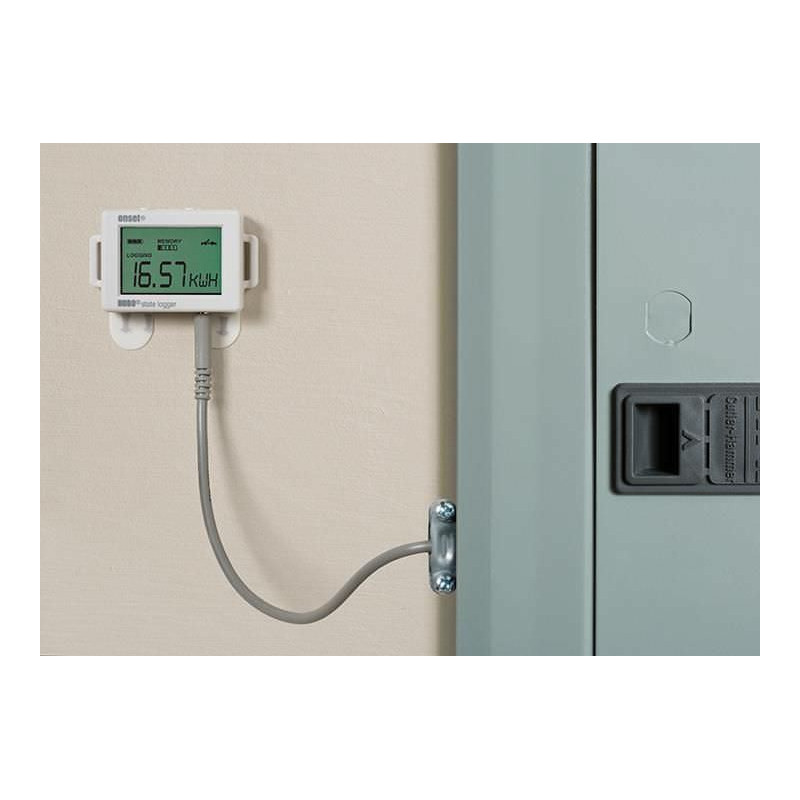

UX90-001 Data Logger para Estado, Pulsos, Eventos e Horas

Reference:

Manufacturer: Onset

Condition: New

O registrador de dados HOBO State / Pulse / Event / Runtime registra mudanças de estado, pulsos eletrônicos e fechamentos de contato mecânicos ou elétricos de dispositivos de detecção externos.

- HOBO UX90-001: modelo de memória de 128 KB capaz de 84.650 medições
- HOBO UX90-001M: versão de memória expandida de 512 KB com capacidade para mais de 346.795 medições.

More info about this product.

Partilhar no Facebook
Retirar este produto da minha lista de favoritos.
Adicionar este produto à minha lista de favoritos.
Print

139,00 €

Imposto Excluido

Quantidade

Opções de Memória

Adicionar à Lista de desejos

General
Especificaciones
VIDEOS
Data sheet
Download
Accessories

Ambiente de Uso	Interior
Tipo de Logger	Portátil
Parâmetros Medidos	Pulsos
Aplicação	Energia e Consumo
Capacidade da Memória	128K

UX90-001 Data Sheet Download (88.09k)

UX90-001 Loggers Download (416.73k)

UX90-001 Manual Download (474.02k)

Data Logger de Estado HOBO UX90-001 (128KB de memoria) y UX90-001M (512KB de memoria)

Medidas Soportadas:
Eventos, Kilovatios Hora (kWh), Motor On/Off, Pulsos de Entrada, Runtime, State Open/Closed, Water Flow
Rango: Interno: Conmutador Magnético Reed
Contacto Entrada Externa: Electronic solid state switch closure or logic driven voltage output
Recambio para modelos antiguos: H06-001-02, U9-001
The HOBO State/Pulse/Event/Runtime data logger records state changes,electronic pulses and mechanical or electrical contact closures from external sensing devices. This logger is ideal for monitoring energy consumption, mechanical equipment operation, and water and gas flow. The HOBO UX90-001 State Logger is available in a standard 128 KB memory model (UX90-001) capable of 84,650 measurements and an expanded 512KB memory version (UX90-001M) capable of over 346,795 measurements.

Características:
- One logger with 4 recording modes
- Internal reed switch can be used to determine when a door or window is open or closed
- Compatible with a wide range of external sensors
- Ships with 2.5 mm input cable (CABLE-2.5-STEREO)
Entorno:

The UX90-001 Data Logger is for use in Indoor environments

Measurements:

The UX90-001 Data Logger supports the following measurements : Event, Kilowatt Hours (kWh), Motor On/Off, Pulse Input, Runtime, State Open/Closed, Water Flow

Sensor Interno

Maximum State, Event, Runtime Frequency: 1 Hz

Preferred Switch State: No magnet present (normally open)

Entrada Externa

External Contact Input: Electronic solid state switch closure or logic driven voltage output

Rango: 0 to 3 V DC (USB powered), 0 to 2.5 V DC (battery powered)

Maximum Pulse Frequency: 50 Hz

Maximum State, Event, Runtime Frequency: 1 Hz

Pulse, Event Lockout Time: 0 to 1 second in 100 ms steps

Solid State Switch Closure: Input Low: < 10 KΩ; Input High: > 500 KΩ

Internal Weak Pull-Up: 100 KΩ

Input Impedance: Solid state switch closure: 100 KΩ pull up

Logger

Resolución: Pulse: 1 pulse, Runtime: 1 second, State and Event: 1 State or Event

Logging Rate: 1 second to 18 hours, 12 minutes, 15 seconds

Time Accuracy: ±1 minute per month at 25°C (77°F) (see Plot A)

Battery Life: 1 year, typical with logging intervals greater than 1 minute and normally open contacts

Memoria:
UX90-001: 128 KB (84,650 measurements, maximum)
UX90-001M: 512 KB (346,795 measurements, maximum)

Download Type: USB 2.0 interface

Download Time: 10 seconds for 128 KB; 30 seconds for 512 KB

Logger Operating Range:
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification

LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
