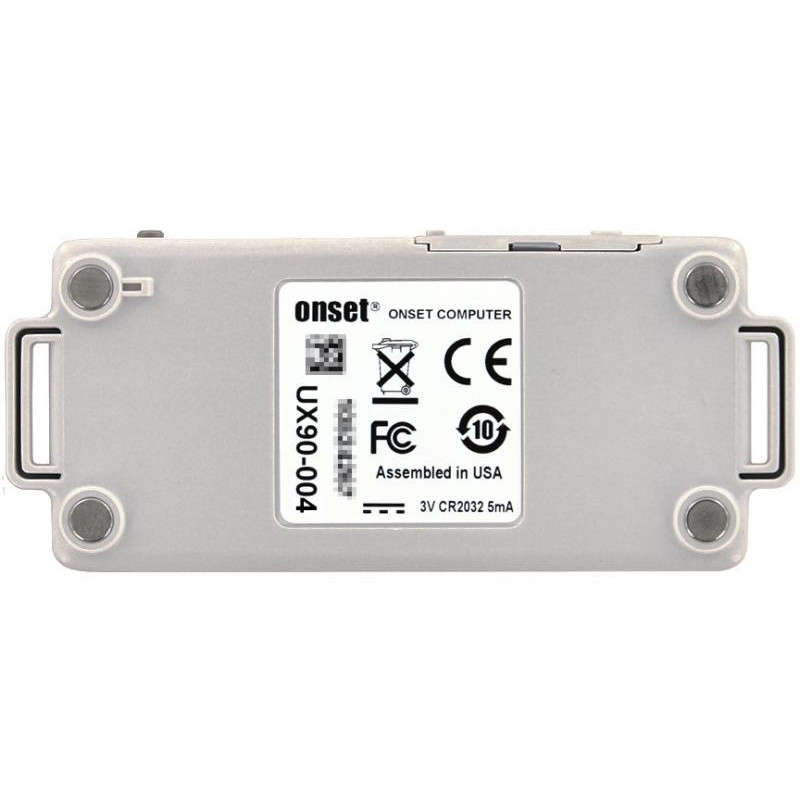

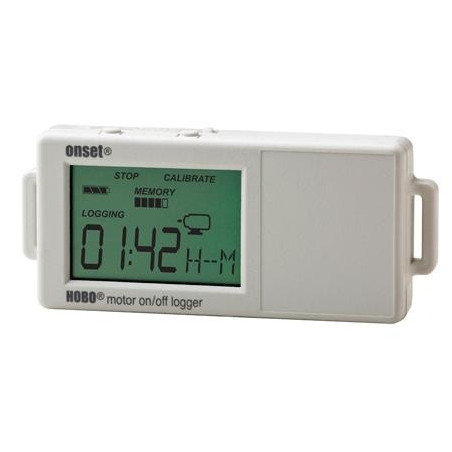

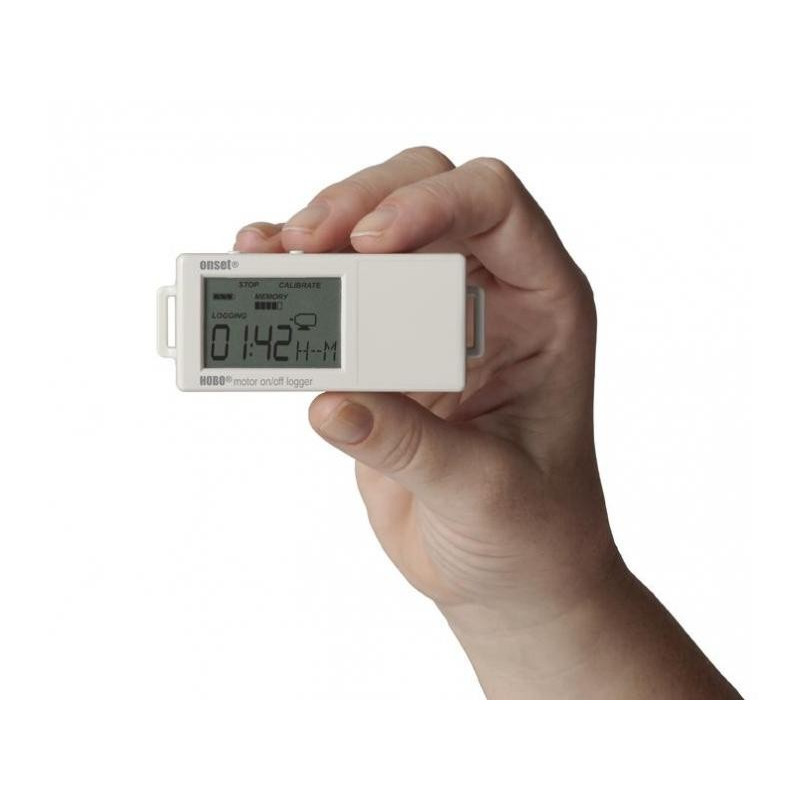

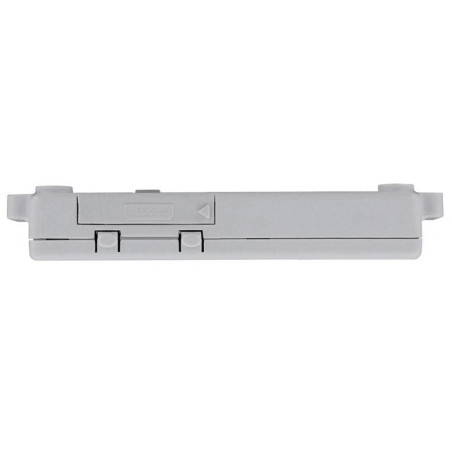

> >>>UX90-004 Data Logger Estados ON/OFF y Eventos en Motores
UX90-004 Data Logger Estados ON/OFF y Eventos en Motores View larger
Previous Next

UX90-004 Data Logger Estados ON/OFF y Eventos en Motores

Onset

New

139,00 €

Imposto Excluido

Adicionar à Lista de desejos

UX90-004 MANUAL Download (471.17k)
The HOBO Registrador de Datos UX90-004 Motor On/Off data logger records motor on and off conditions within an AC magnetic field
with its internal sensor, or mechanical contact closures from external sensing devices.
This logger is ideal for tracking the usage & runtimes of motors, pumps, compressors, and other equipment. The HOBO UX90-004 Motor On/Off Logger is available in a standard 128 KB memory model (UX90-004) capable of 84,650 measurements and an expanded 512KB memory version (UX90-004M) capable of over 346,795 measurements.

•Dual internal motor sensors gives better sensitivity for well shielded motors
•External input for measuring mechanical contact closures when signal strength is low
•Auto-calibration of ON and OFF thresholds ensures reliable readings
Environment:
The UX90-004 Data Logger is for use in Indoor environments

Medidas:
The UX90-004 Data Logger supports the following measurements: Motor On/Off, Runtime, State Open/Closed

IMPORTANTE: HOBO data loggers require HOBOware software (USB interface cable included w/CD purchase) and a communications device.

Internal Motor Sensor:

AC Magnetic Field Threshold: > 40 mGauss at 60 Hz

External Input:

External Contact Input: Electronic solid state switch closure or logic driven voltage output

Range: 0 to 3 V DC (USB powered), 0 to 2.5 V DC (battery powered)

Maximum State and Runtime Frequency: 1 Hz

Solid State Switch Closure: Input Low: < 10 KΩ; Input High: > 500 KΩ

Internal Weak Pull-Up: 100 KΩ

Input Impedance: Solid state switch closure: 100 KΩ pull up

Logger:

Resolution: Pulse: 1 pulse, Runtime: 1 second, State and Event: 1 State or Event

Time Accuracy: ±1 minute per month at 25°C (77°F) (see Plot A)

Battery Life: 1 year, typical with logging intervals greater than 1 minute and normally open contacts

Memoria:
UX90-004: 128 KB (84,650 measurements, maximum)
UX90-004M: 512 KB (346,795 measurements, maximum)

Download Type: USB 2.0 interface

Download Time: 10 seconds for 128 KB; 30 seconds for 512 KB

Logger Operating Range:
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification

LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Dimensiones: 3.66 x 8.48 x 1.52 cm (1.44 x 3.34 x 0.6 in.)

Peso: 30 g (1.06 oz)

Environmental Rating: IP50

The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
