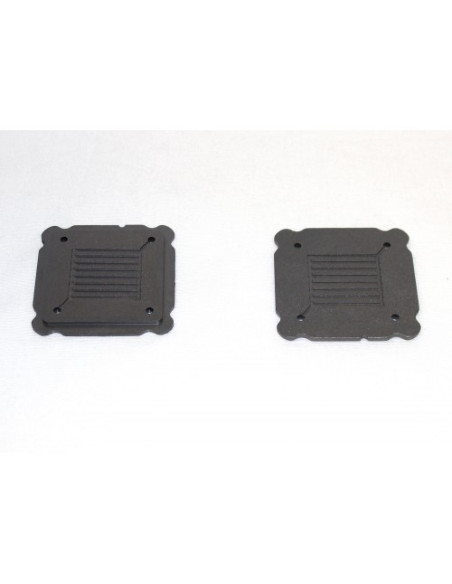

Flex-Stak Closed Bipolar Graphite Plate - 10 cm², Ref.: 590335
Flex-Stak Closed Bipolar Graphite Plate - 10 cm², Ref.: 590335

Flex-Stak Closed Bipolar Graphite Plate - 10 cm², Ref.: 590335

Reference: Ref.: 590335 - Manufacturer: AO-Electronics

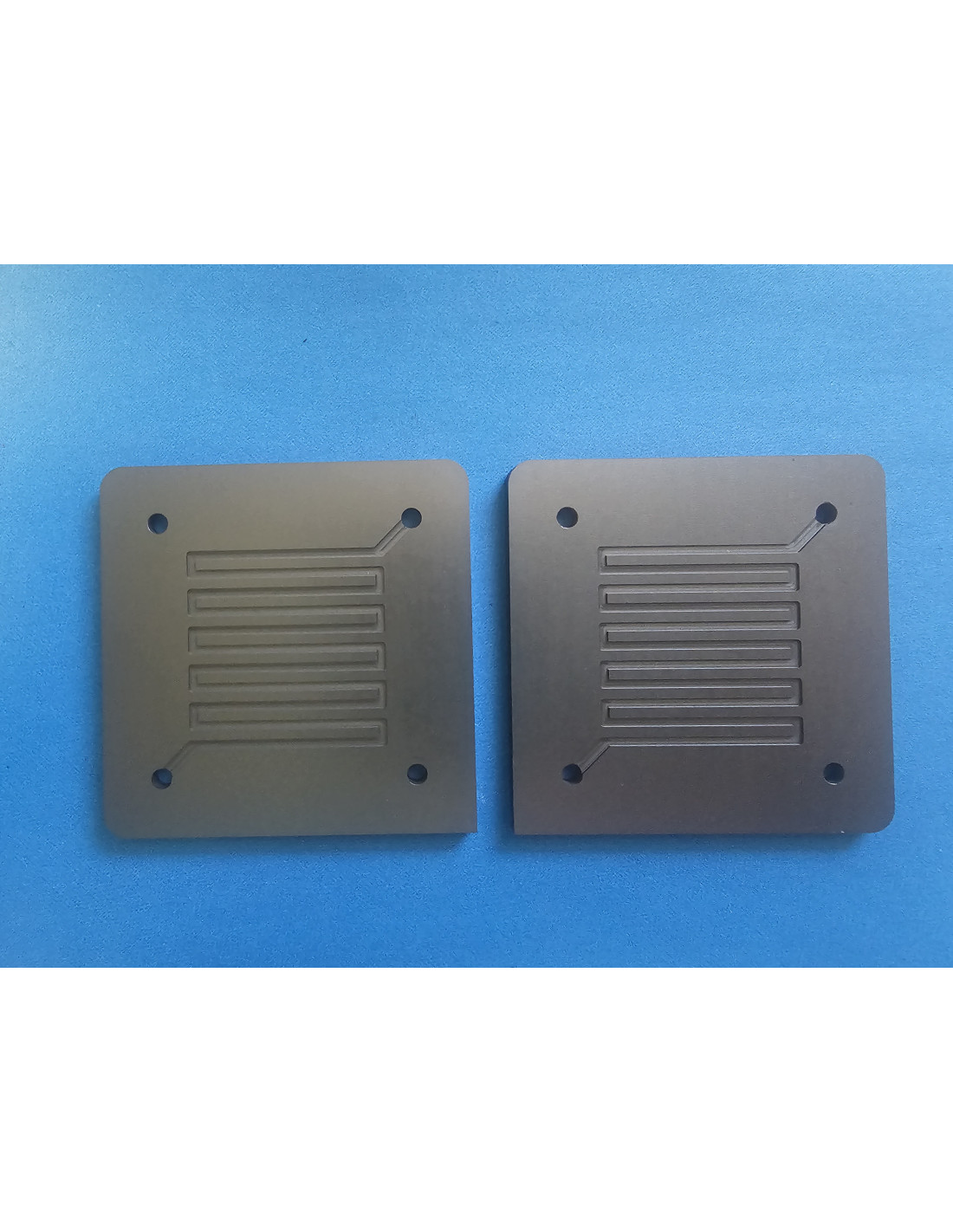

These are closed bipolar graphite plates that can be used as replacement plates for the Flex-Stak Electrochemical Cell.
You can also use them as the basis to build your own closed fuel cell.

help_outlineAsk for Quote

Flex-Stak Closed Bipolar Graphite Plate - 10 cm², Ref.: 590335

I accept privacy policy rules



Active Area Dimensions: 3.2 x 3.2 cm
Total Area Dimensions: 5.3 x 5.3 cm
Overall Dimensions (L x W x D): 6.3 x 6.3 x 0.4 cm

Graphite Plate Specifications:
-  Depth of Flow Fields: 0.75 mm
-  Length Per Flow Field: 30 mm
-  Number of Flow Field Lines: 8
-  Total Length of Flow Fields: 240 mm

Type of Cells
Graphite Plates
