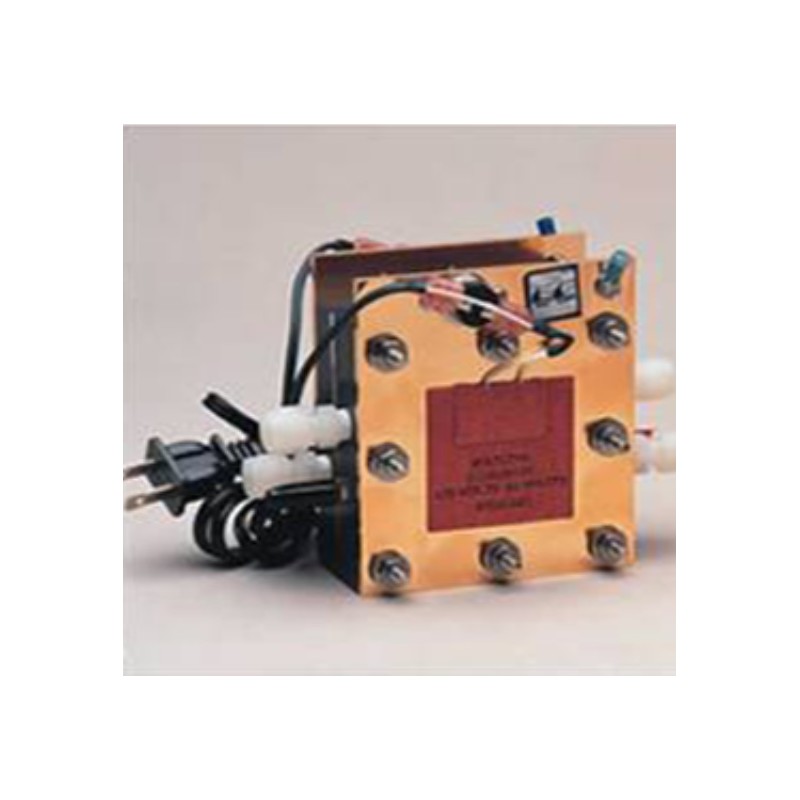

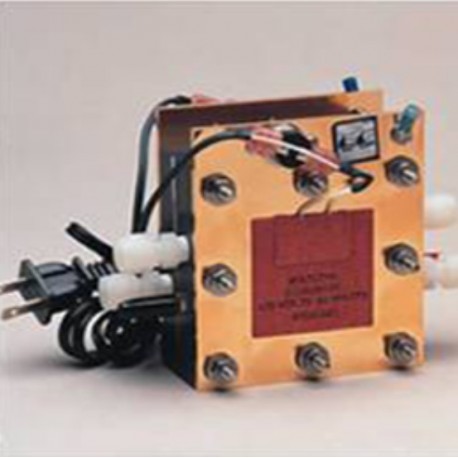

PEM Fuel Cell hardware, Serpentine flow pattern, with conditioned MEA, AO-EFC-02-50
PEM Fuel Cell hardware, Serpentine flow pattern, with conditioned MEA, AO-EFC-02-50

PEM Fuel Cell hardware, Serpentine flow pattern, with conditioned MEA, (active area: 1, 5, 25, & 50cm2), AO-EFC-02-50

Reference: AO-EFC-02-50 - Manufacturer: ELECTROCHEM INC.

Proton Exchange Membrane Fuel Cell w/MEA "AO-EFC".

Options


-  Machined graphite separator plates
-  Gold plated current collectors
-  Banana plugs for monitoring voltage
-  Belleville washer
-  Built-in silicon rubber heaters (power 120 watt) for maintaining the cell temperature
-  Nylon fitting/SS nut for gas tight connection to 1/4” tubing
- The Membrane Electrode Assembly is included

-  Gaskets 1 silicone (standard)
-  Size (H x W x L) 11cm x 9.5cm x 4.5cm
-  Weight 3 lb
-  Fuel compatibility for oxygen, hydrogen, air, methanol, ethanol, liquid acid/base electrolyte.
-  Normal operating temp. 65 – 75ºC
-  Maximum temperature (2) 180ºC

(1) Other gasket materials like silicone-coated fiberglass, Teflon, Teflon-coated fiberglass, stc., are also available
(2) A Thermostat may be attached at an extra cost to assure that the fuel cell does not go beyond certain temperature.

Active Area: 1cm2, 5cm2, 25cm2, 50cm2.
