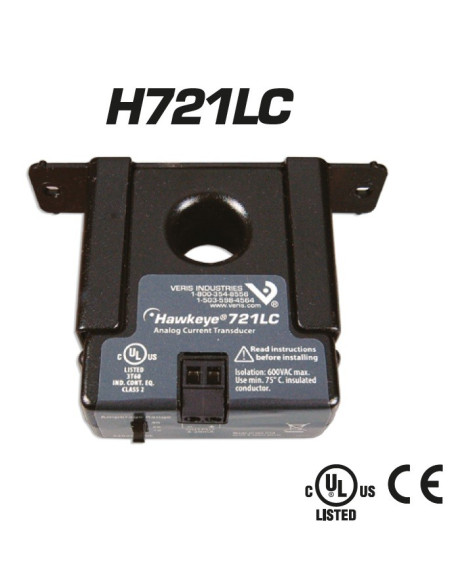

Hawkeye H721 AC Current Transducer (4-20mA output)

Reference: H721 - Manufacturer: Veris

Solid core transducer. (does not open to insert the cable).
Selectable amperage range:
H721LC: 0 - 10/20 / 40A
H721HC: 0 - 50/100 / 200A
Analog output: 4-20 mA, powered by external @ 12-30VDC

Minimum Order: 2 Units

Input Amp Options

The Hawkeye H721HC y H721LC models provide accurate load trending information with a proportional 4-20mA output signal.

There are three models available and each device offers three amperage range options, with slide-switch selection for easy field adjustment – no need for jumpers.

Select Model and range:
H721LC: 0 - 10/20/40A
H721HC: 0 - 50/100/200A

Applications:

Load trending
Motor control
Fan/Pump Status

Loop powered analog current sensor simplifies installation

Power the sensor, and receive the signal with only two wires...lower cabling and commissioning costs than with traditional 3-wire sensors
Self-gripping split-core for fast retrofit installation...no need to remove conductor

Selectable factory calibrated ranges for increased flexibility and resolution

Factory calibrated switch-selectable ranges for high resolution and installation ease
Three field-selectable ranges per unit...fewer versions to choose from, stock, and install

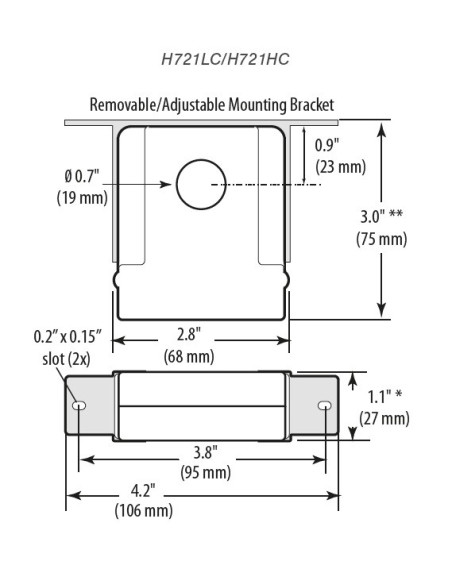

Bracket can be installed in three different configurations...added flexibility
100% solid state, no moving parts to fail
5-year limited warranty

Specs:

Sensor Power 30mA (max)@12-30VDC
Insulation Class 600VAC rms (UL), 300VAC RMS (CE)
Frequency 50/60Hz
Temperature Range -15° to 60°C (5° to 140°F)
Humidity Range 10-90% RH, non-condensing
Accuracy ±2%FS from 10% - 100% of selected range, but not less than ±0.4A
Response Time 2 sec.
Terminal Block Maximum Wire Size 14 AWG
Terminal Block Torque (nominal) 4 in-lbs (0.45 N-m)
Agency Approvals UL 508 open device listing CE: EN61010-1:2001-2, CAT III, deg. 2, basic insulation

The Sensor measures:: AC Current
Output Signal:: 4-20 mA
Power Supply:: 12 - 30 Vdc
Sensor for use in:: Indoor

H721 Data Sheet

Download (668.01KB)

H721 Installation Guide

Download (673.07KB)
