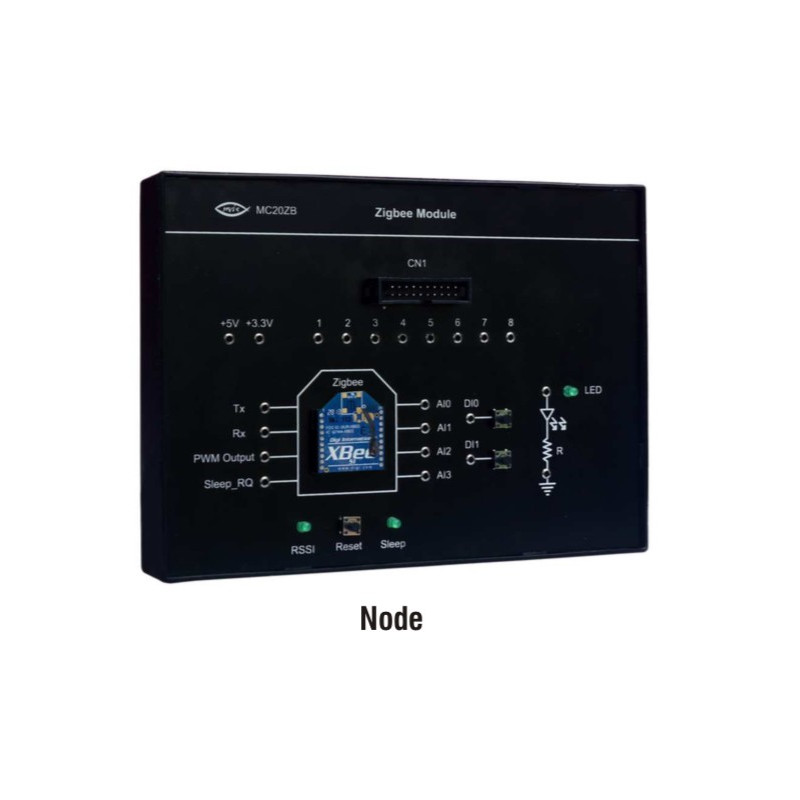

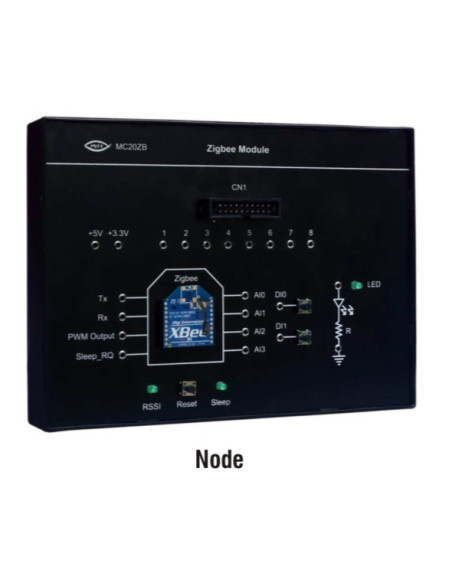

MC20ZB Zigbee Module

MC20ZB Zigbee Module is an ideal platform to enhance education, training, skills & development amongs our young minds.

Zigbee modules are embedded solutions providing wireless endpoint connectivity to devices. These modules use the Zigbee networking protocol for fast point-to-multipoint or peer-to-peer networking. The Zigbee modules interface to a host device through a logic-level asynchronous serial port. Through its serial port, the module can communicate with any logic and voltage compatible UART, or through a level translator to any serial device.

• Features:

- Wireless communication via Zigbee series 2 module
- On board 4nos 10-bit ADC
- On board 2 digital input switches
- On board PWM interface
- On board Power saving mode
- On board RSSI indicator
- On board Sleep mode indicator
- On board LED for indicator

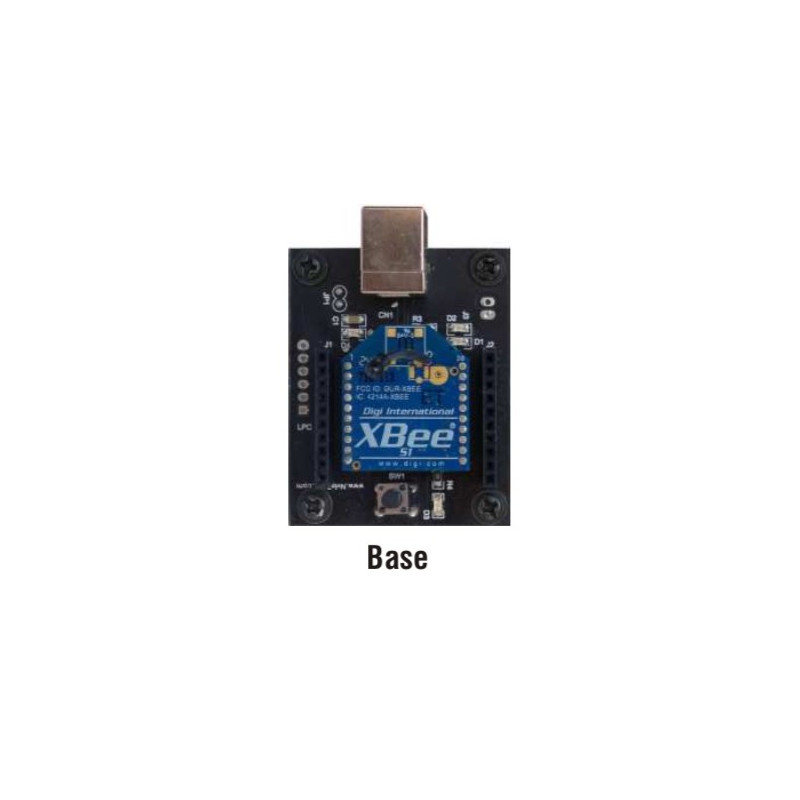

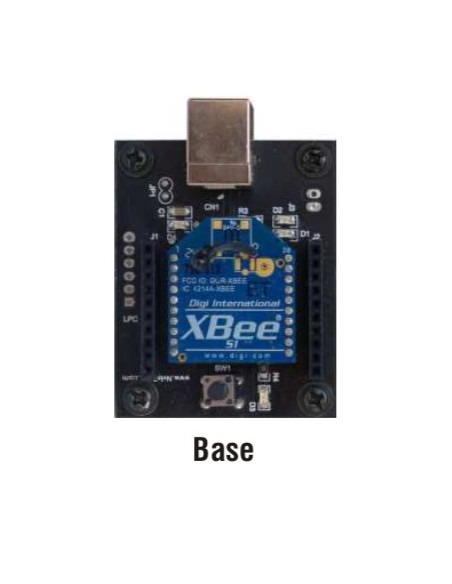

- USB board for PC interface
- On board +5V and +3.3V Supply
- Board can be used as a standalone product

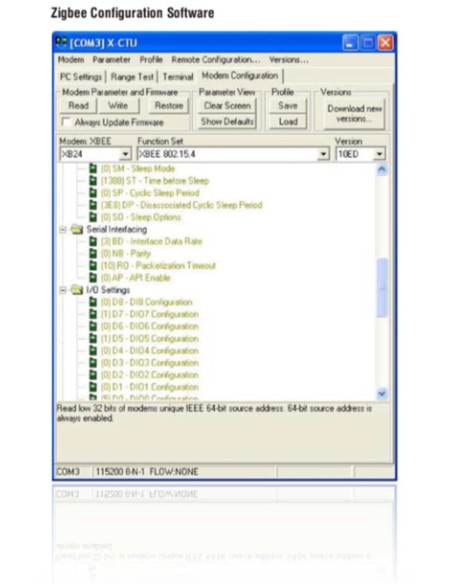

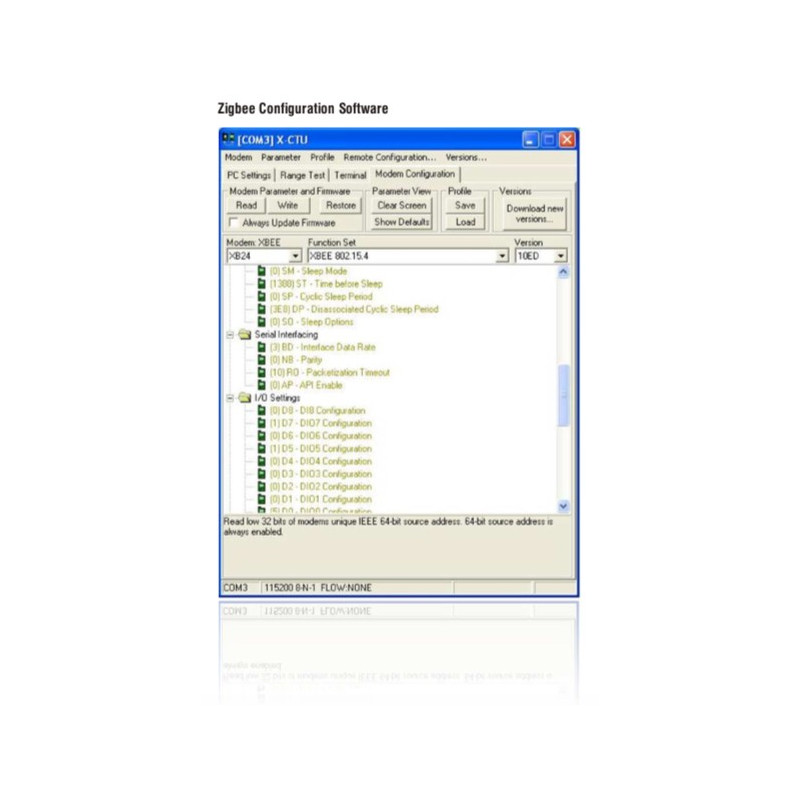

- Zigbee firmware up gradation using USB board
- Expansion connectors for Microcontroller
- Every pin is marked in order to make the work easier

- Indoor / Urban range: Up to 80 ft
- Outdoor RF line-of-sight range: Up to 250 ft
- Transmit Power output: 1 mW (0dbm)
- RF data rate: 250 Kbps
- Supply Voltage: 2.8 - 3.4V
- Transmit Current (typical): 45 mA (@ 3.3V)
- Idle/Receive Current (typical): 50 mA (@ 3.3V)
- Frequency: ISM 2.4 GHz
- Antenna: Wire type
- Network topologies: Point to point, Star, Mesh
- ADC: 4 nos 10-Bit ADC (internal)
- PWM output: 0 to + 3.3V
- Digital input: 2 switches
- LED: +5V
- Power Supply: From Scientech 620X Series and Nvis 500X Series Microcontroller development platforms
- Product Tutorial: Online (on www.NvisTech.com)
- Interface: 20 pin FRC cable
- Dimensions (mm): 220 gms (approximately)
- Included Accessories:
        -- USB board: 1 no.
        -- Zigbee module S2: 2 nos.
        -- USB A to B cable: 1 no.
        -- Patch cords: 6 nos.

+ Note:
- This module is compatible with Scientech 620X Series and Nvis 5001A/3/4/4A/5 Series Microcontroller development platforms.
- To run MC20ZB module with Nvis 5004, add-on board is required.
- Star and Mesh networking can be created using multiple MC20ZB modules.
