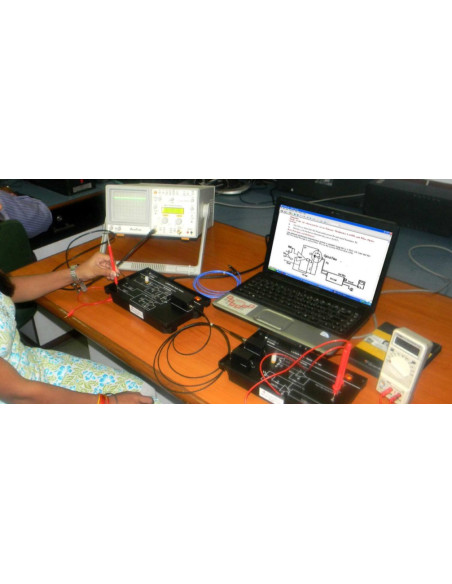

Scientech2506 Laser Fiber Optics Trainer Lab

Scientech 2506 Laser Fiber Optics Trainer Lab is an ideal platform to enhance education, training, skills & development amongs our young minds.

The experiments introduce the student to the concepts underlying Laser technology in simple way. The platform includes accessories to conduct experiments, however instrument like DMM are needed extra. Seven experiments based on the Scientech 2506 have been included in the manual with full details. The students can design a number of other experiments and do small projects based on the platform.

• Features:

- 660 nm Laser diode source with external signal modulation facility
- Selectable Automatic Power control/ Automatic Current control mode
- SMA connector for coupling optical power in to fiber
- Optical intensity/ Carrier level control facility
- Laser diode current and monitor photo detector current monitoring facility
- Free space communication facility through a line-of-sight path
- On-board Photo detector & Power meter.

- Study of V-I & P-I Characteristics of LASER Diode
- Study of ACC and APC modes of operation
- Study of Intensity modulation and demodulation
- Study of Propagation delay and various types of Losses
- Determination of Numerical Aperture of Optical fiber
- Study of free space communication system
