Scientech2423A Traffic Light Control by PLC

Traffic light control Scientech 2423A enables Students and practicing Engineers to gain invaluable practical experience of the principles and application of Programmable Logic Controllers.

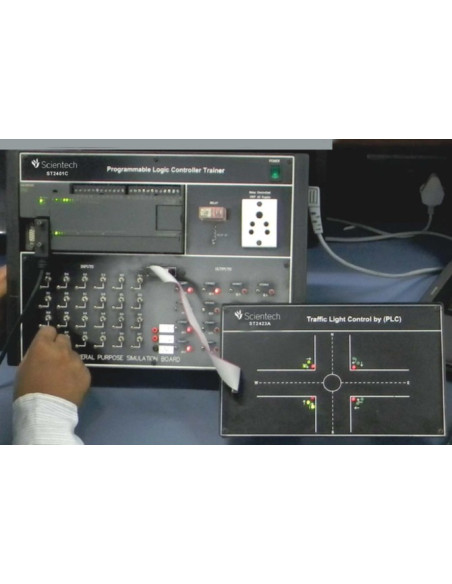

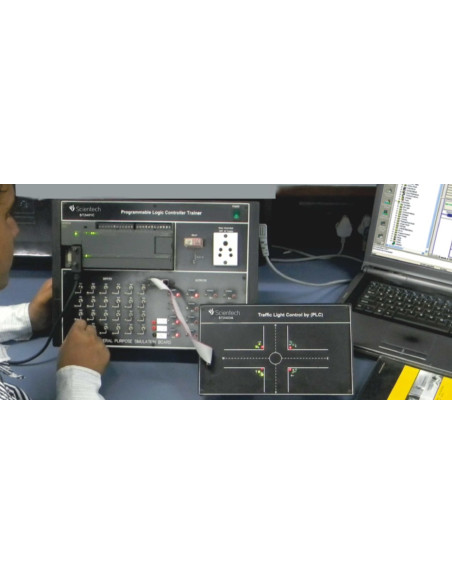

The objective is to connect and program an external Programmable Logic Controller to monitor and control a traffic light system.

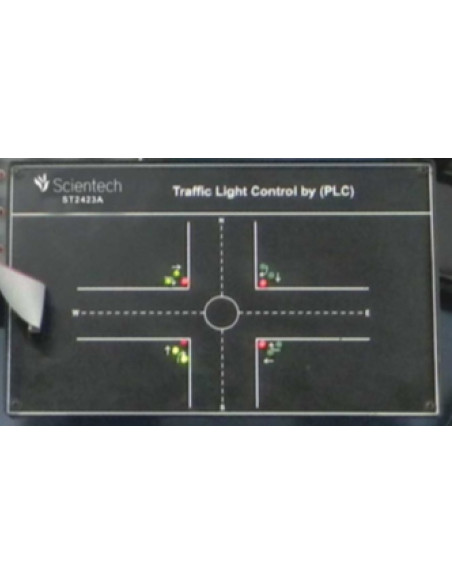

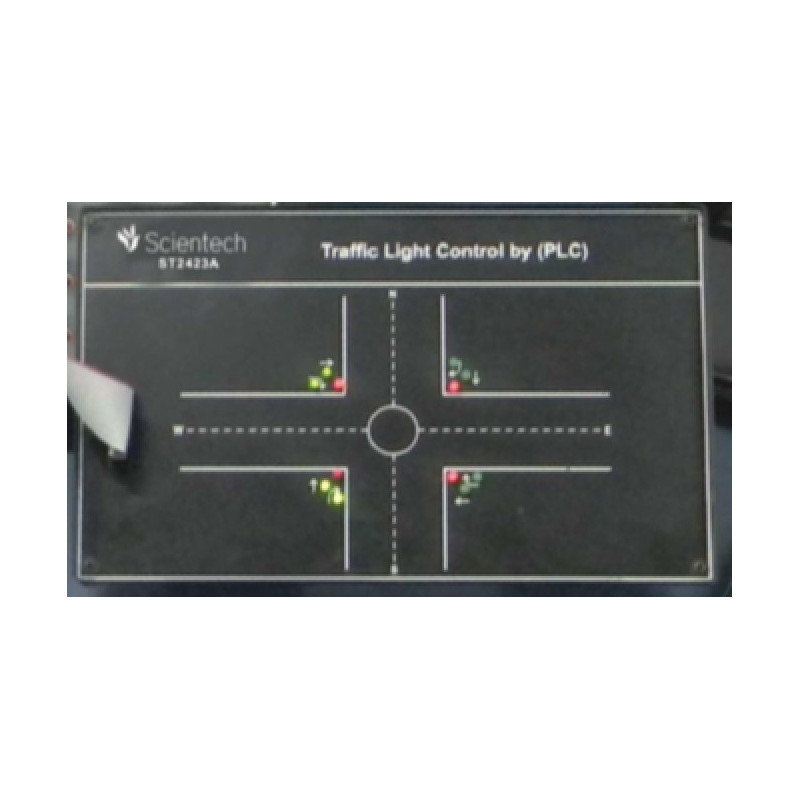

Traffic light controlling is shown with the help of LEDs. The module is connected with output of PLC. Four way traffic is automatically controlled by PLC this is mode for PLC which has less number of PLC output.
