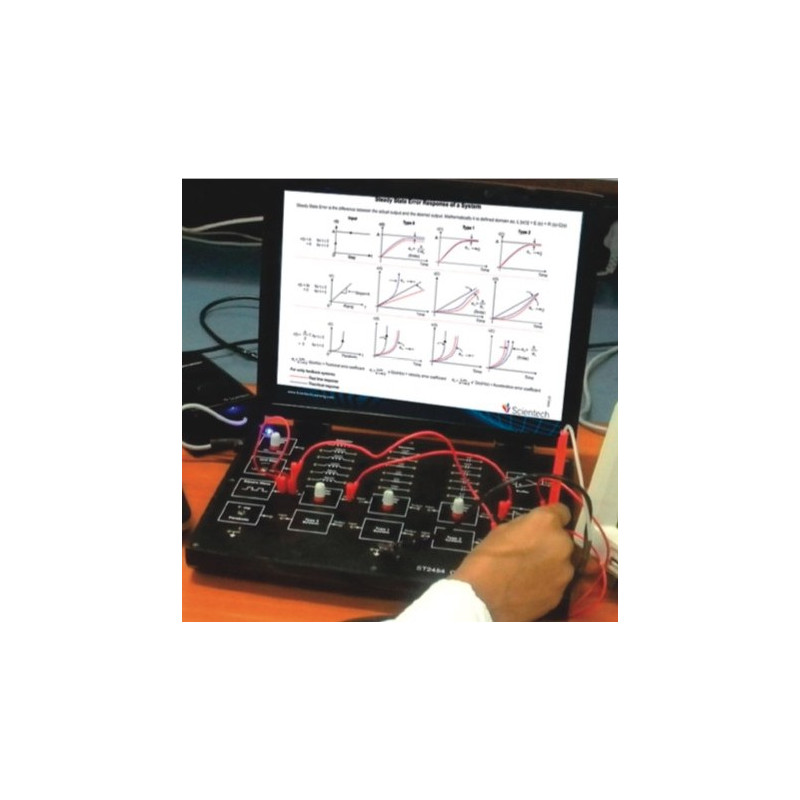

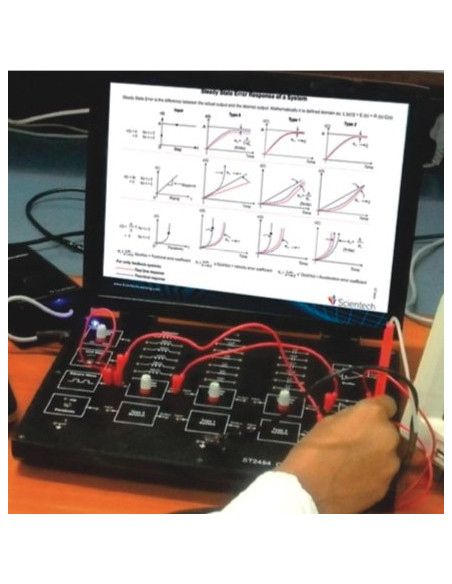

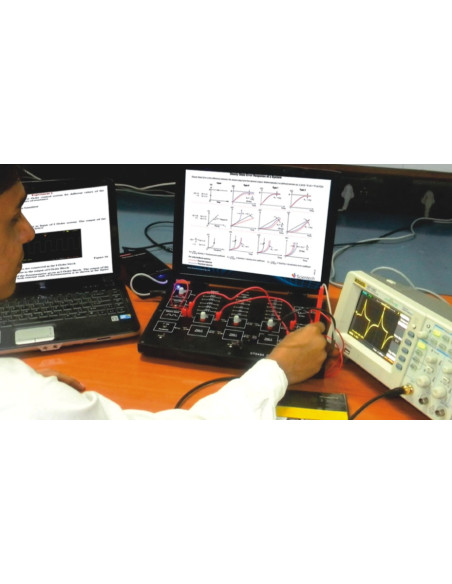

Scientech2454 TechBook for Control Systems Simulator

Reference: Scientech2454 - Manufacturer: SCIENTECH TECHNOLOGIES

Scientech's TechBooks are compact, easy-to-use learning platforms to provide a modern, portable, complete and practical way to learn Technology. Each TechBook is provided with detailed multimedia learning material that covers the basic theory, the step-by-step procedure for conducting the experiment and other useful information.

Scientech 2454 Control System Simulator helps the users to gain invaluable knowledge about Order and type of Control System. Square wave, Ramp wave, Parabolic wave, Unit step signal and variable DC supply are provided on board as standard inputs. On board Resistance, Capacitor and Inductor banks for studying different combination for the order of a system are also available.

Study of I Order System
Study of II Order System
Study of III Order System
Study of Type 0 System
Study of Type 1 System
Study of Type 2 System
Additional Resistance Bank
Additional Capacitance Bank
Additional Inductance Bank
Variable Voltage Output
Unit Step Output
Square Wave Output
Ramp Output
Parabolic Output
Buffers
Ess Block

Scope of Learning:

To observe the First Order control system for different values of the Damping Ratio at different values of resistance
To observe the Second Order control system for different values of the Damping Ratio at different values of resistance
To observe the Third Order control system for different values of the Damping Ratio at different values of resistance
To observe the Type0 control system Steady State Error (Ess) for Unit Step or Square wave input
To observe the Type0 control system Steady state error (Ess) for Ramp as input
To observe the Type0 control system Steady State Error (Ess) for Parabolic as input
To observe the Type1 control system Steady State Error (Ess) for Unit Step or Square wave input
To observe the Type1 control system Steady State Error (Ess) for Ramp as input

Category: Control Systems
