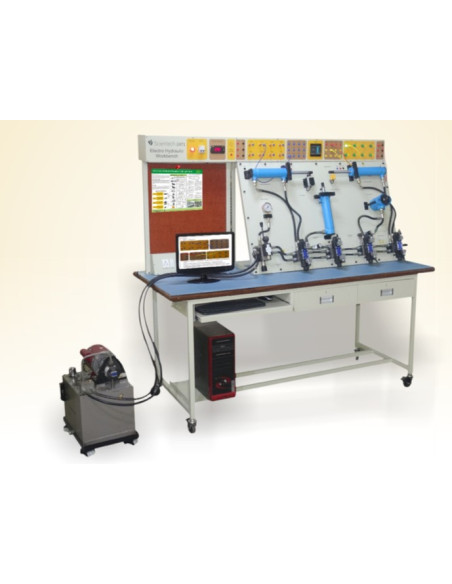

Scientech2471 Banco de Trabajo Electro Hidráulico

PLC operated Electro Hydraulic platfor m

12 Digital Inputs, 8 Digital Outputs

Open platfor m to explore wide PLC and Hydraulic applications

Industrial feel & look

DIN rail mounting for PLC

Function and identification of Hydraulic components and their symbols

Powerful instruction sets

High execution speed

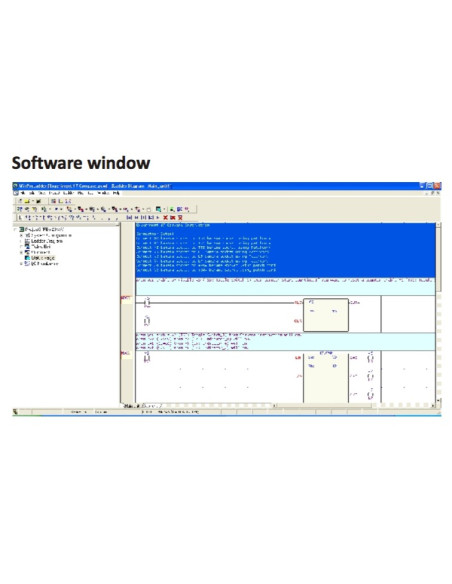

Extremely easy and student friendly software

Several sample Ladder programs

Practice troubleshooting skills

Extensive Learning

Workbench has 4 wheels, suitable for movement installation

Robust construction

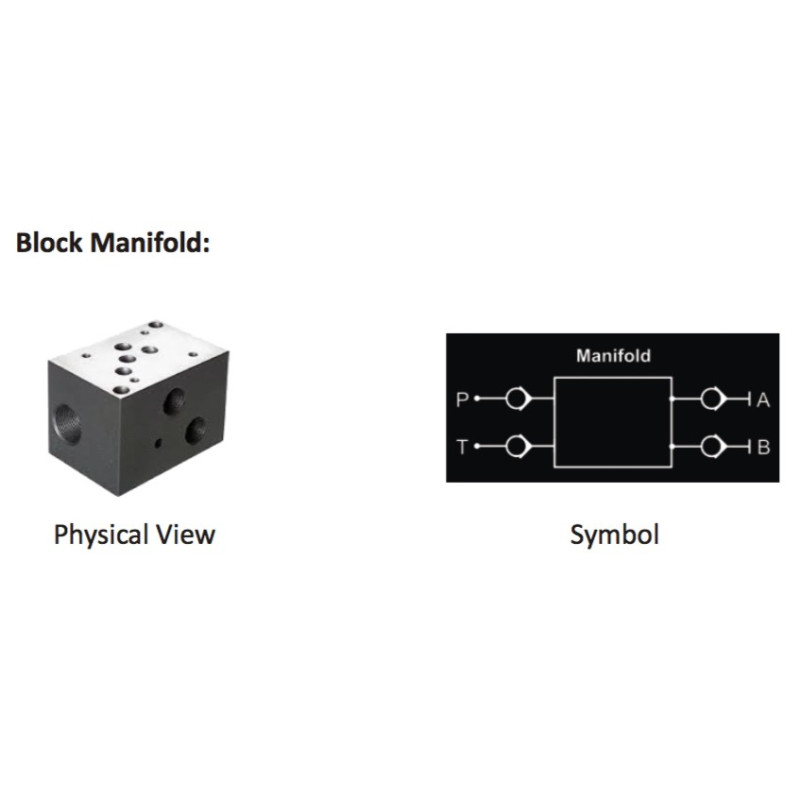

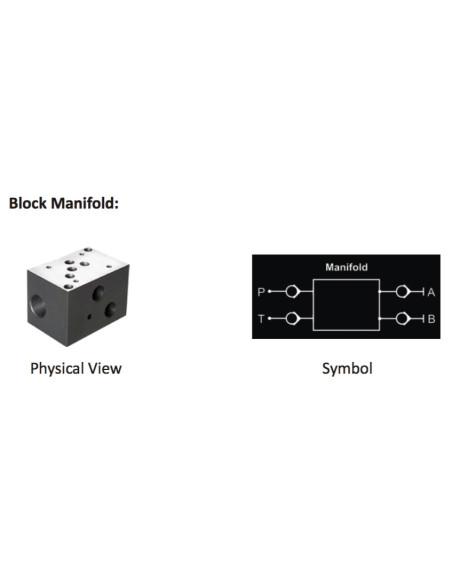

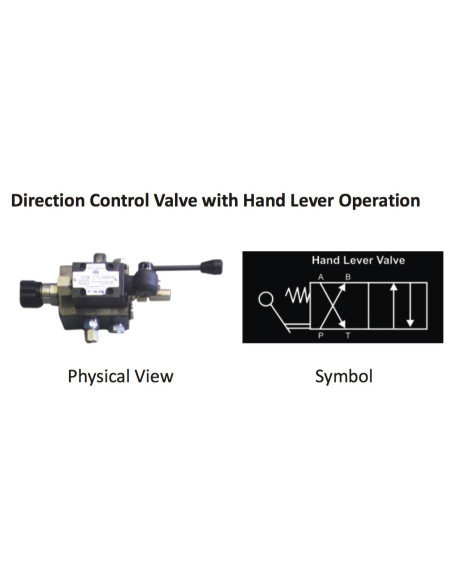

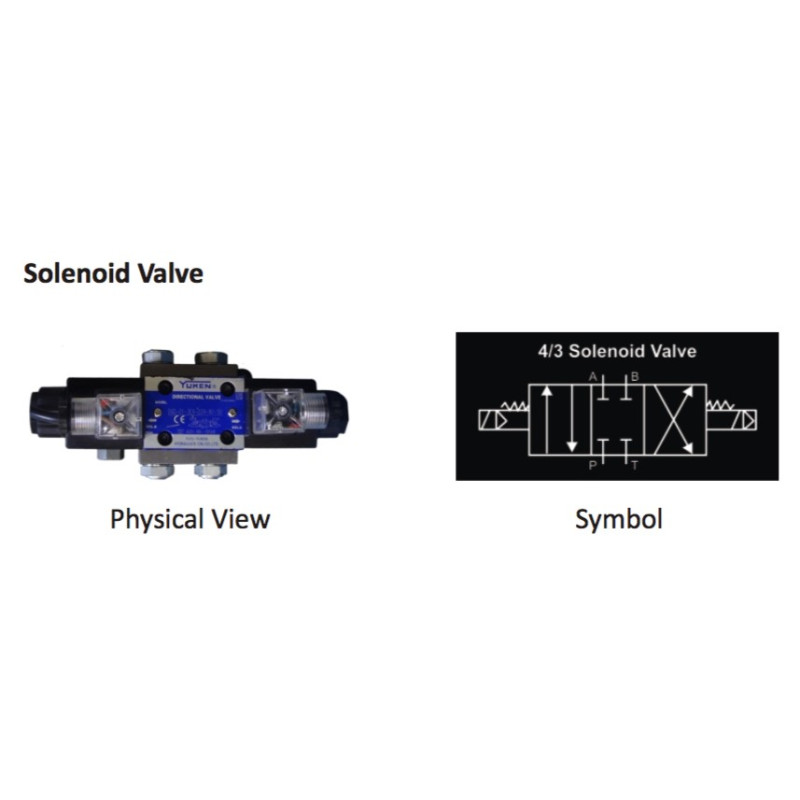

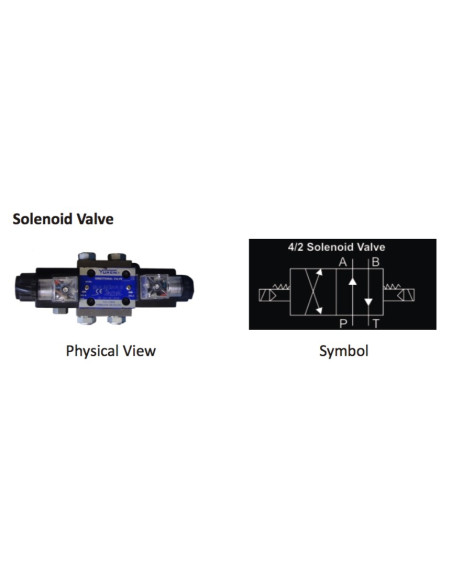

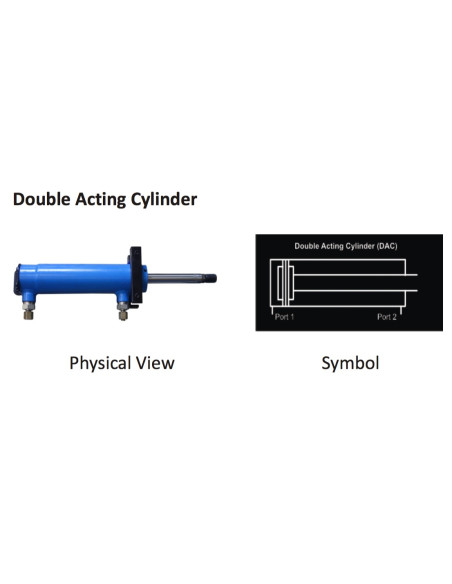

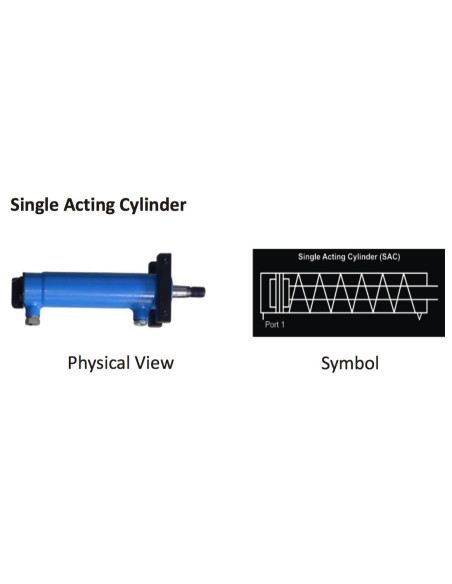

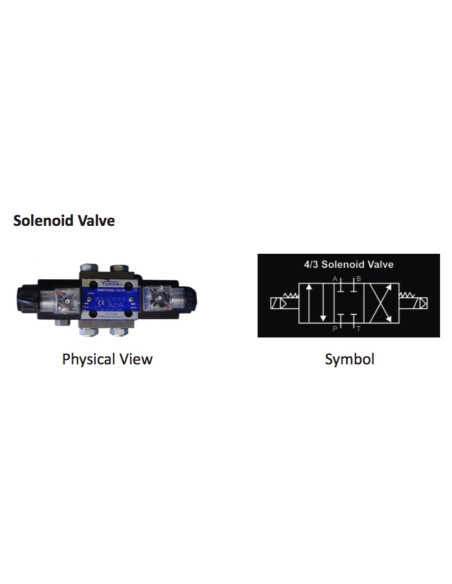

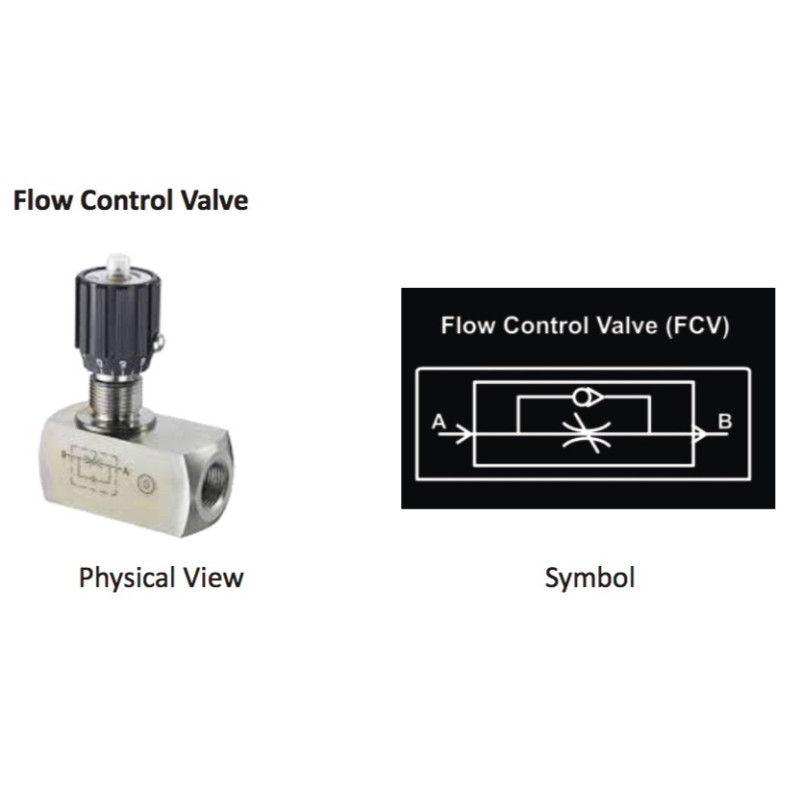

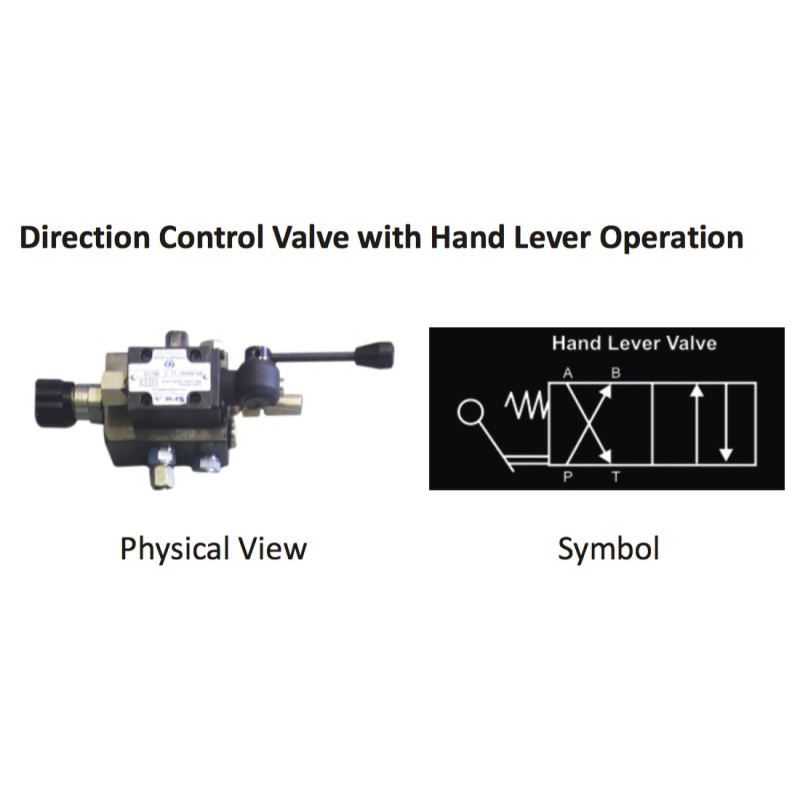

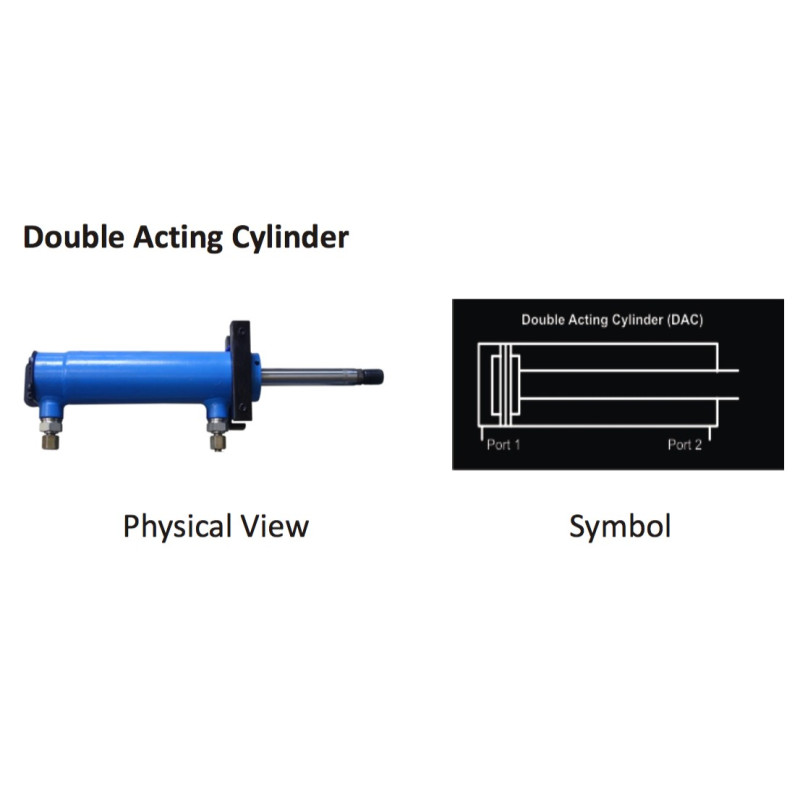

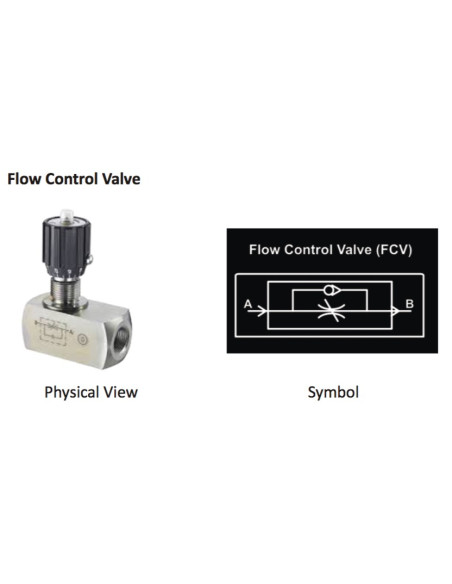

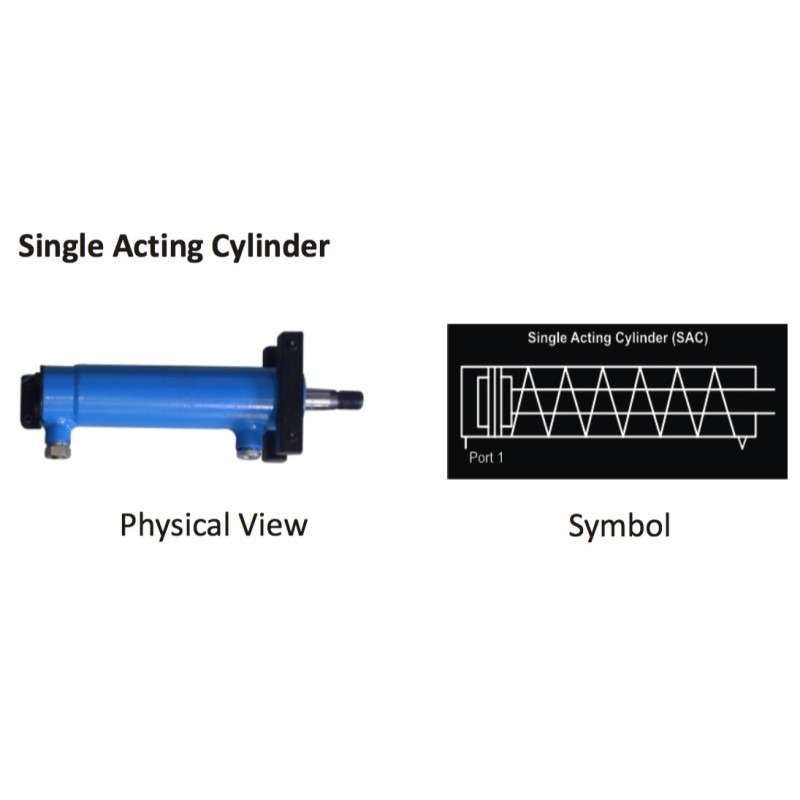

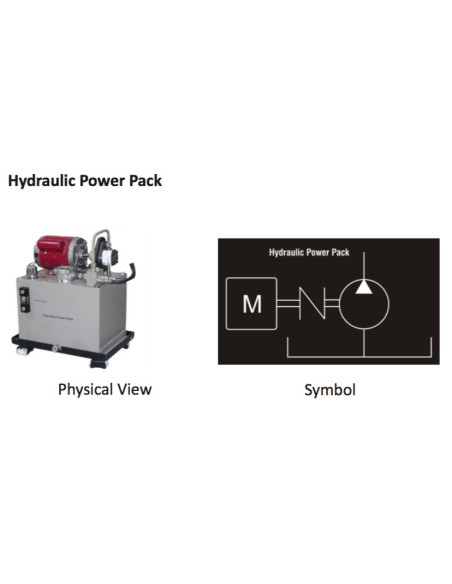

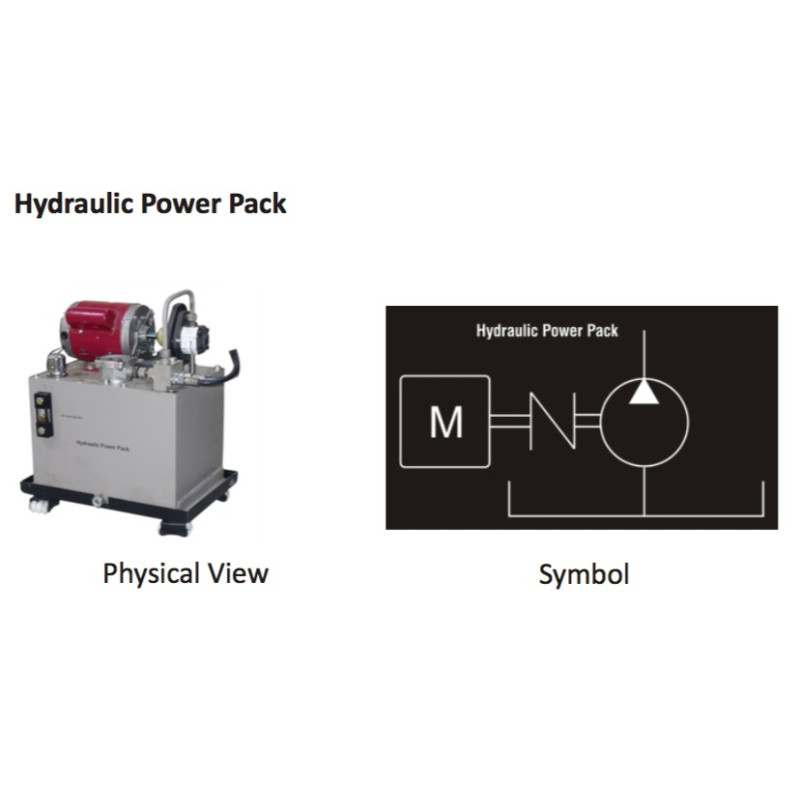

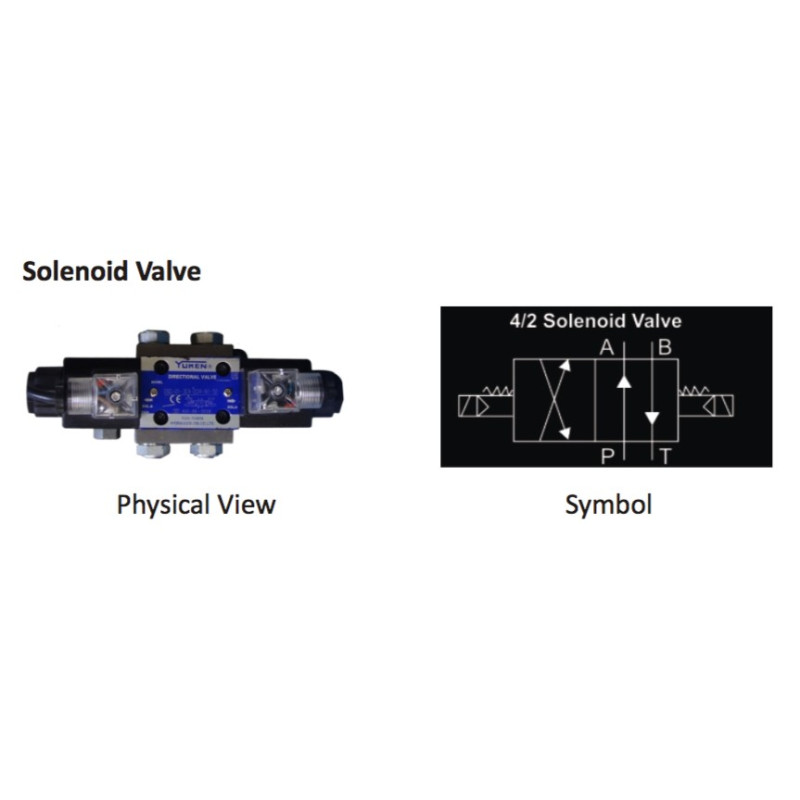

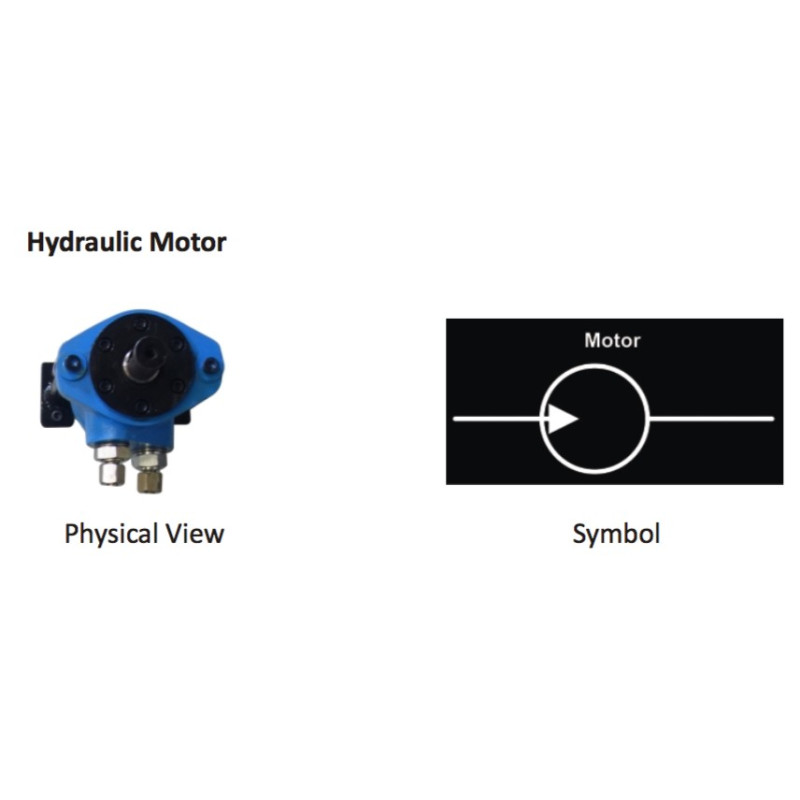

Toggle switches, LEDs, buzzer , double acting cylinder , solenoid valve, flow control valve, manifold, hand lever valve, limit switch, hydraulic motor, single acting cylinder, proximity sensor, power pack

Board to attached documents

4 mm patch cord connections

Mounting panel for Hydraulic components

Two storage drawers with telescopic locking facility, place in drawers for meters, patch cords, components, bread board and otheraccessories for storage, easy identification and access inside the drawers.

MCB for ON/OFF control and over load protection

Provision for PC – CPU

Sequential & linear Hydraulic control

Understanding of Industrial Hydraulic components

Hydraulic safety awareness

Product tutorial-Online
