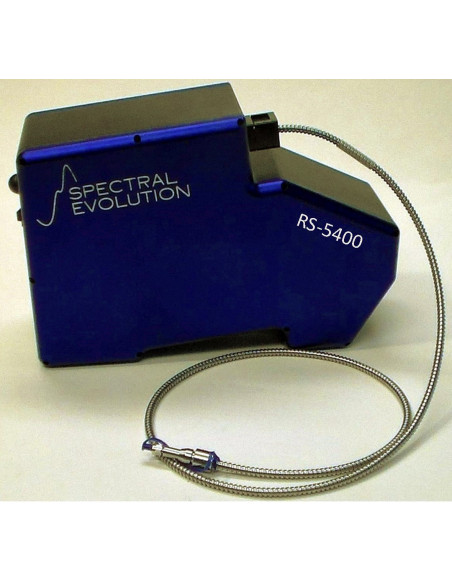

RS-5400 High-Resolution, High-Sensitivity UV-VIS-NIR Spectroradiometer

RS-5400 Spectroradiometer features a rugged chassis, no moving optical parts, and metal-clad fiber optic cable that’s easily replaceable.

It features one-touch operation with auto-dark current and auto-exposure.
Communications include wireless Bluetooth and USB connections. It includes DARWin™ SP Data Acquisition software that is Windows 7/8/10 compatible and saves all files as ASCII.

The RS-5400 running EZ-ID™ mineral identification software is very well-suited for mineral identification, including identification of clays in soil.

EZ-ID provides pattern matching software that matches customer target samples against three libraries of known samples for more than 1000 minerals: the USGS, SpecMIN, and GeoSPEC libraries.

► Spectral range: 350-2500nm

► Photodiode Arrays:
 -   1024 element UV-Enhanced silicon detector (VIS-NIR)
 -   512 element TE-cooled InGaAs detector (SWIR 1)
 -   512 element TE-cooled extended InGaAs detector (SWIR 2)

► Minimum scan speed: 100milliseconds

► Spectral resolution:
 -   2.7nm @ 700nm
 -   5.5nm @ 1500nm
 -   5.8nm @ 2100nm

► Noise Equivalence Radiance (with 1.2 meter fiber optic):
 -   0.3×10-9 W/cm2/nm/sr @ 700nm
 -   0.1×10-9 W/cm2/nm/sr @ 1500nm
 -   2.5×10-9 W/cm2/nm/sr @ 2100nm
