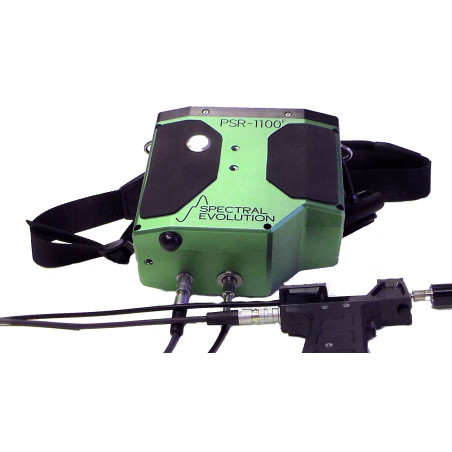

PSR-1100f Portable Spectrometer shown with optional probe

PSR-1100f Lightweight Compact Field Portable Spectrometers & Spectroradiometers

PSR-1100f Analyze spectra using 19 Vegetation Indices

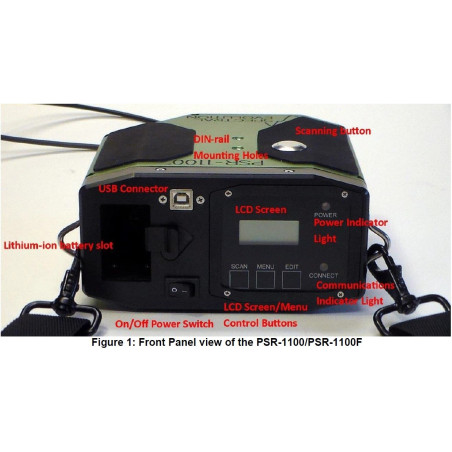

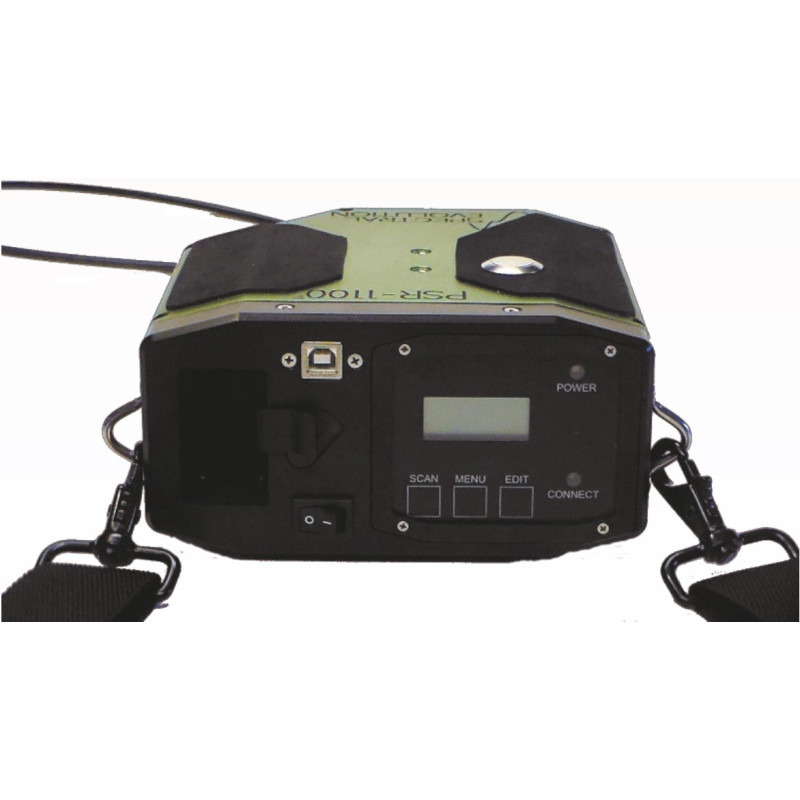

PSR-1100f has a built-in LCD screen and keypad and can store up-to 2500 scans

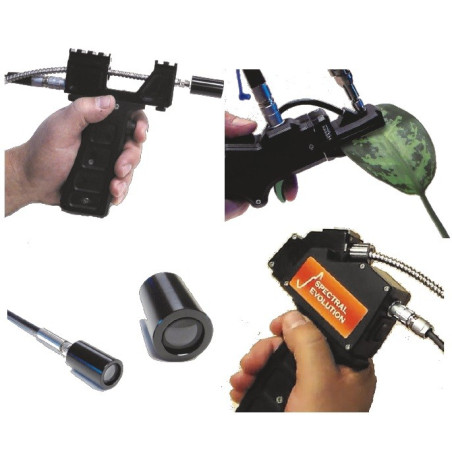

PSR-1100f - Options: Accessories for field and Laboratory use

PSR-1100f Lightweight Compact Field Portable Spectrometers & Spectroradiometers

Reference: PSR-1100f - Manufacturer: Spectral Evolution

Is well-suited for:

- Remote Sensing
- Soils & Crops
- Oceanography & Inland Water
- Forestry & Ecology
- Vegetation Studies
- Plant Science
- Biomass Research

Small in size– big on performance and features including:

- PSR-1100f has an industry standard FC connection for a range of fiber optic cable lengths and 1,2,3,4,5,8 and 10 degree FOV lenses
- Rugged anodized aluminum construction for field reliability
- 320-1100nm spectral range
- Keypad and function display– can take and store 2500 spectra without a computer
- Calibrated for spectral radiance and irradiance with NIST- traceable standards
- Tag spectra with GPS, elevation, photo and voice notes with companion GETAC PS336 PDA
- High reliability– all photodiode array optics with no moving gratings to break in the field
- Autoexposure and autoshutter for easy one-touch operation
- Snap-in 2800mAH Li-Ion rechargeable battery for >4 hours of continuous use
- Remote sensing with wireless Bluetooth interface
- Lightweight– less than 4 pounds
- Exclusive DARWin SP Data Acquisition software provided

True handheld convenience for field work or remote sensing! - Use the PSR-1100f’s LCD function display to take scans and store up to 2500 spectra, so the unit can be operated without a laptop or tablet.

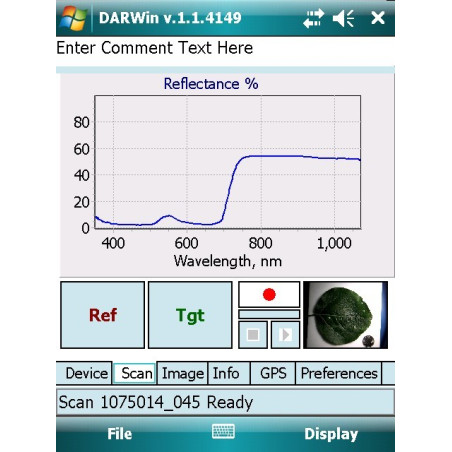

Or use the optional ALGIZ 8X rugged handheld tablet running DARWin LT on Windows 10 to control the PSR-1100f via Bluetooth. SPECTRAL EVOLUTION offers the ALGIZ 8X tablet preloaded with all necessary software to run all Bluetooth enabled SPECTRAL EVOLUTION Spectrometers. The ALGIZ 8X can be used to tag spectra with GPS readings, photos (with its built-in digital camera) and voice notes with its built in microphone.

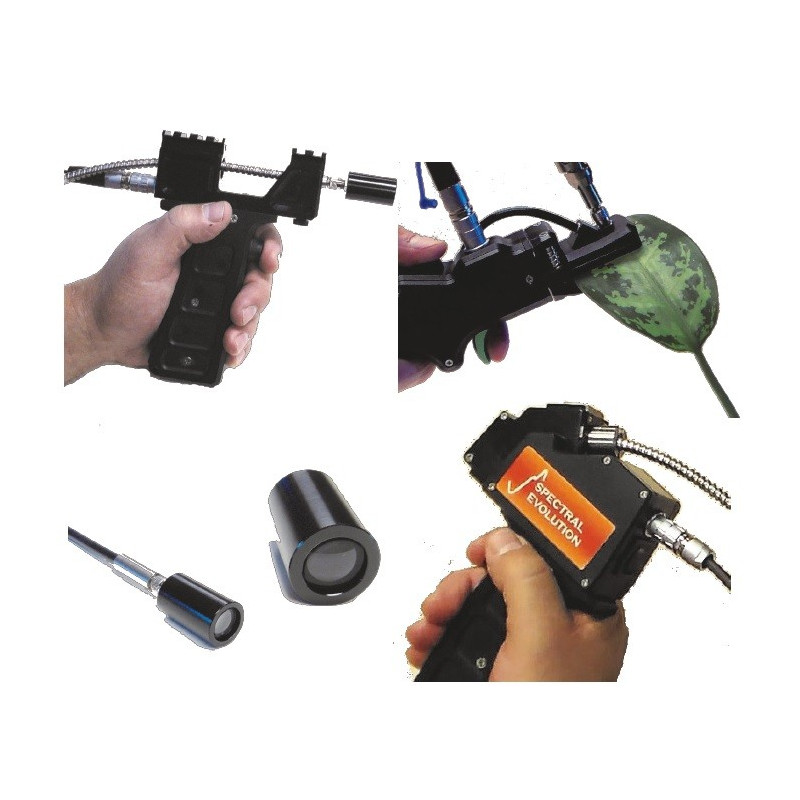

The PSR-1100f can be ordered with a range of accessories for field and laboratory use, including:

- Leaf clips—specifically designed for leaf reflec-tance measurements with a built-in white plate, small spot, and low power illumination. Perform measurements on a very small leaf area without damaging the sample.
- Tungsten halogen contact probe—easy-to-use with a built-in light source, it is well-suited for vegetation reflectance studies in the field.
- FOV lenses—with a 25° FOV fiber optic cable with an industry standard FC connector, the PSR-1100f can be equipped with 1, 2, 3, 4, 5, , 8 and 10° FOV lenses to meet your application requirements
- ALGIZ 8X rugged handheld tablet—with a sunlight readable display for viewing spectra, the ability to store an almost limitless number of scans, and the capability of tagging scans with images from its digital camera, and GPS coordinates—ALGIZ 8X is the perfect complement to the PSR-1100f in the field.

Accessories compatible with the PSR-1100f:

ACC040000: pistol grip fiber holder. To hold the fiber optic (or install it on a tripod) and trigger the scan directly from the holder.

LSH040001: Contact probe: has a built in light source. Designed to take direct contact measurements without sunlight.

CLP040001L Leaf-clip to take measurements of single leaves. See the video here

*Various field-of-view lenses Ref. LNS080021 to LNS080110:

Ref:	Description
LNS080021	1 degree FOV lens for SMA fiber optic
LNS080020	2 degree FOV lens for SMA fiber optic
LNS080023	3 degree FOV lens for SMA fiber optic
LNS080024	4 degree FOV lens for SMA fiber optic
LNS080028	5 degree FOV lens for SMA fiber optic
LNS080026	8 degree FOV lens for SMA fiber optic
LNS080110	10 degree FOV lens for SMA fiber optic
