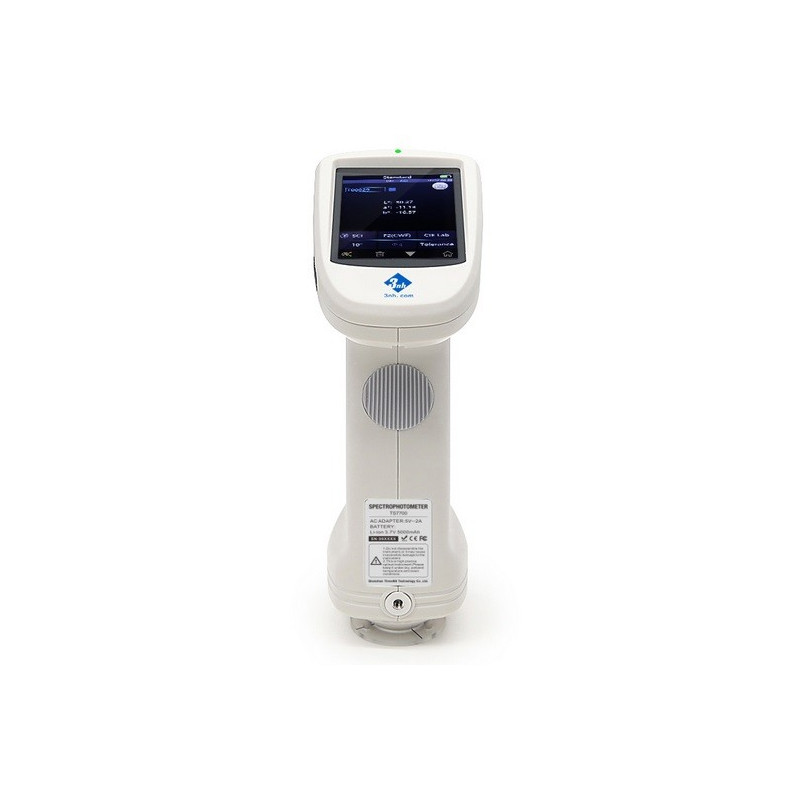

TS7708 Handheld Spectrophotometer

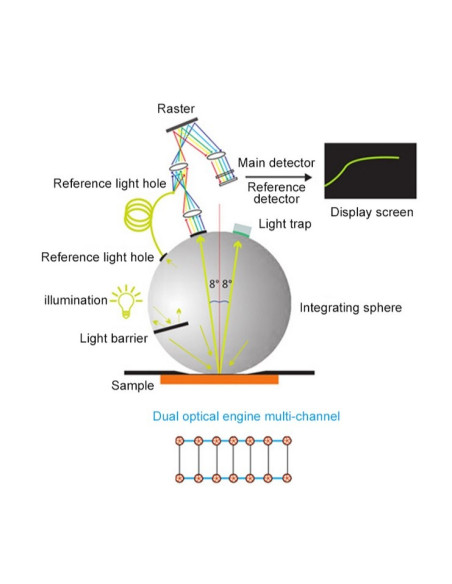

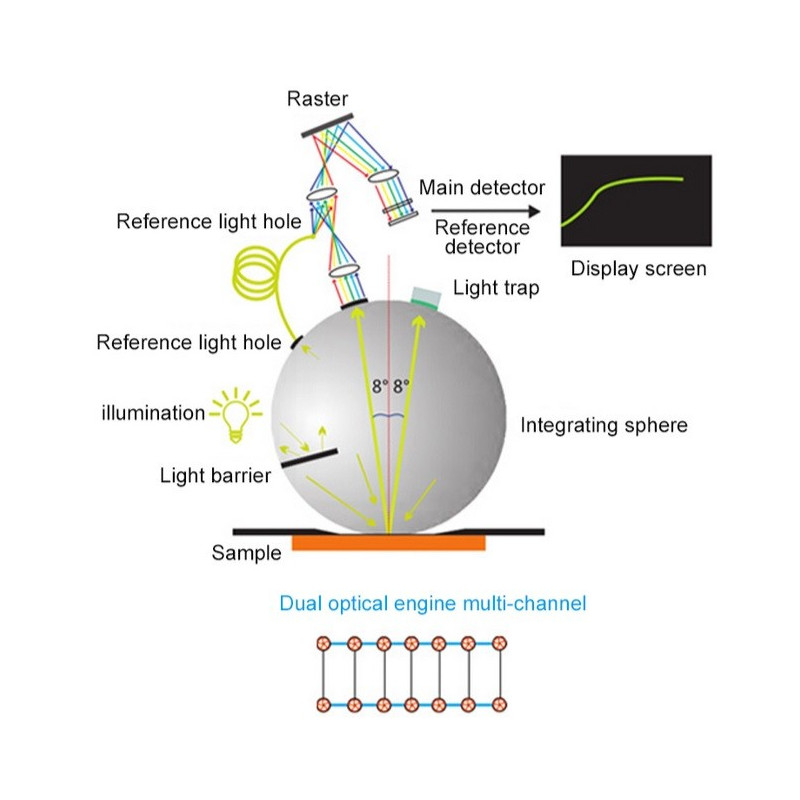

The TS7700 grating spectrophotometer incorporates a 1000-line precision shining grating as the optical splitter, ensuring accurate light separation. The device is equipped with a silicon photodiode array sensor (double row, 40 groups), and an imported white reference board to ensure precise measurements. With a repeatability delta E AB* maintained within 0.03, it provides consistent results. The spectrophotometer utilizes a long-life full-spectrum LED as the light source, achieving an optical resolution of less than 10nm within the visible range.
This design ensures superior accuracy and performance for a wide range of color measurement applications.

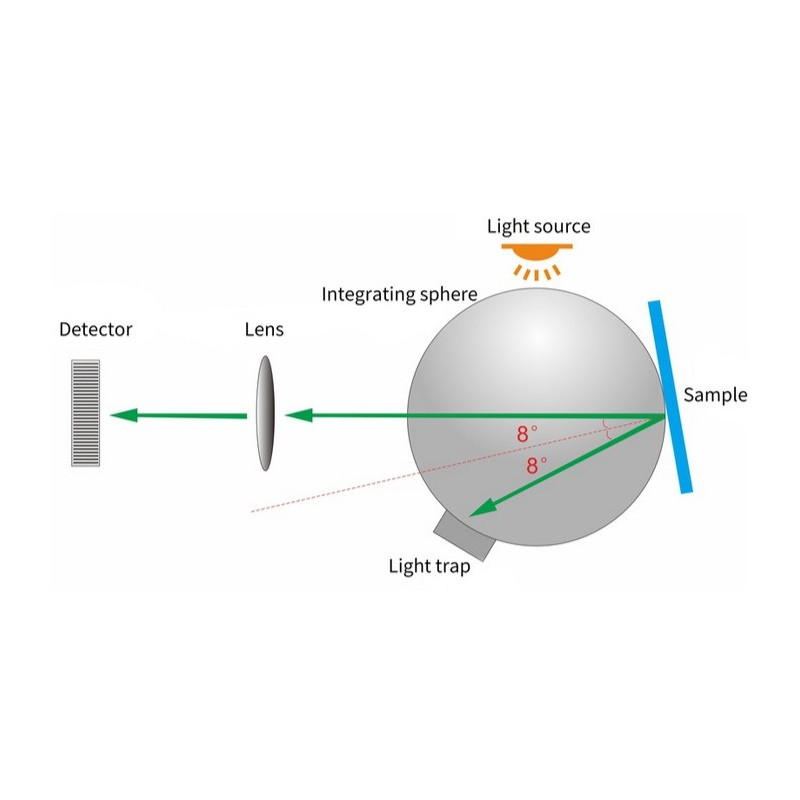

It utilizes the d/8 geometric optical illumination as recommended by CIE to provide accurate measurement of both SCI (Specular Component Included) and SCE (Specular Component Excluded) reflectance data, including fluorescent samples. It can precisely measure and express various color difference formulas and color indexes in different color spaces, ensuring accurate color transmission and making it ideal for use in color matching systems.

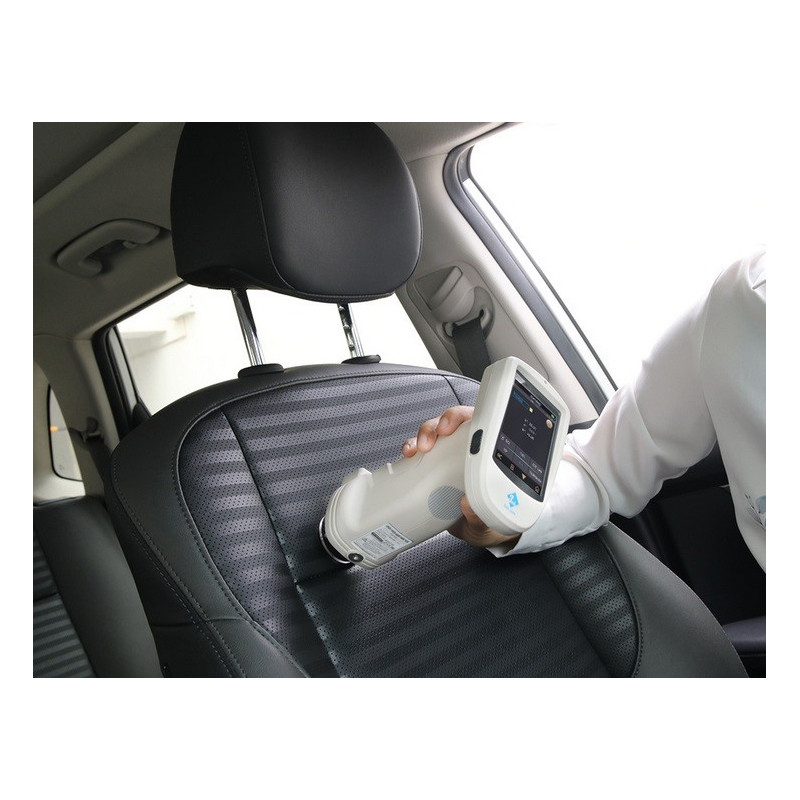

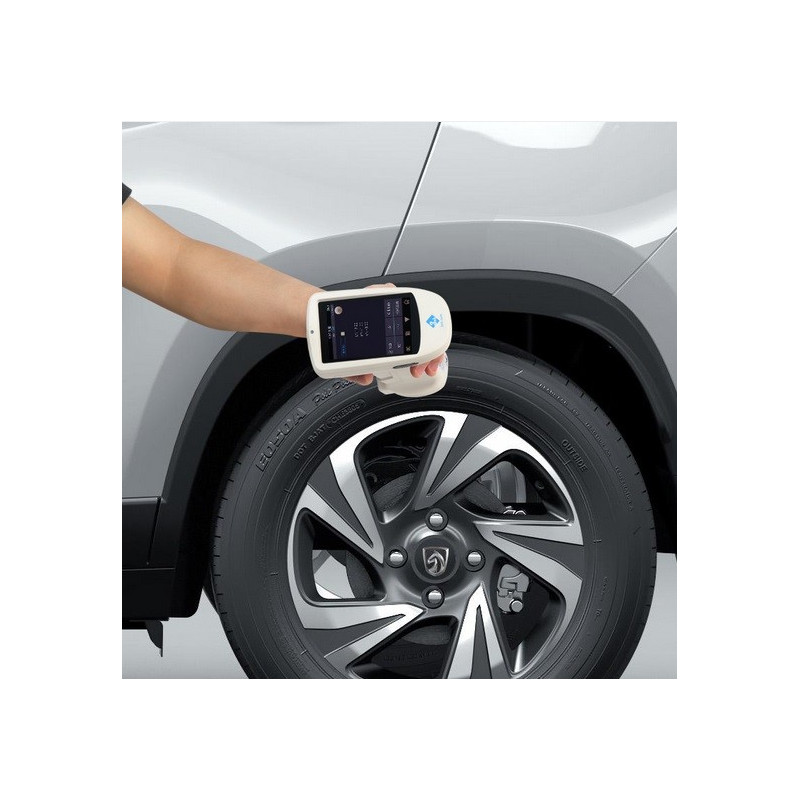

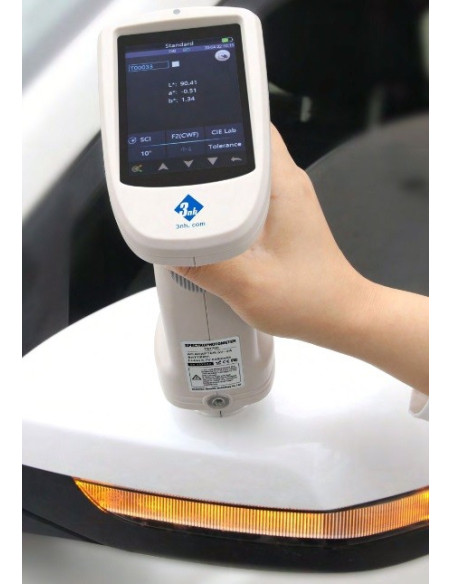

The TS7708 model comes equipped with three measuring apertures: φ 8mm, φ 4mm, and 1x3mm, offering increased adaptability and precision across a range of applications. It delivers accurate color measurement with stable performance, making it a versatile instrument widely used in industries such as plastic electronics, paint coatings, textiles, printing, automotive, cosmetics, and food, as well as in scientific research institutions and laboratories.

Technical Advantages:

► Silicon Photodiode Array (Double 40 Array) Sensor
► The double 40 array sensor features a larger area, enhancing both light sensitivity and saturation resistance. It ensures that strong light does not cause saturation, while weak light is captured with high sensitivity, offering a wider spectral response range.
► This advanced sensor design guarantees faster measurement speed, improved accuracy, enhanced stability, and consistent performance.
► The sensor’s core technology aligns with international standards, providing complete compatibility and maintaining high-quality measurement results.
