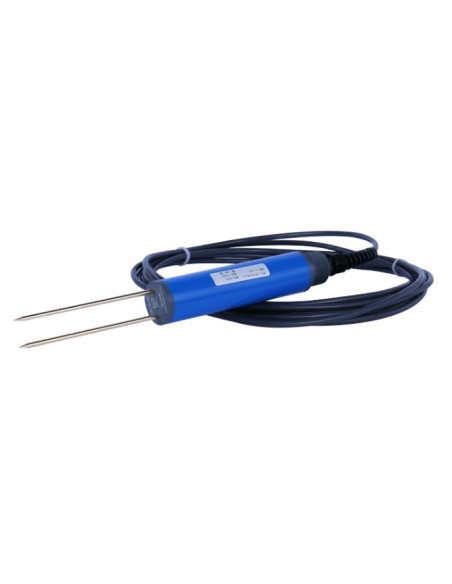

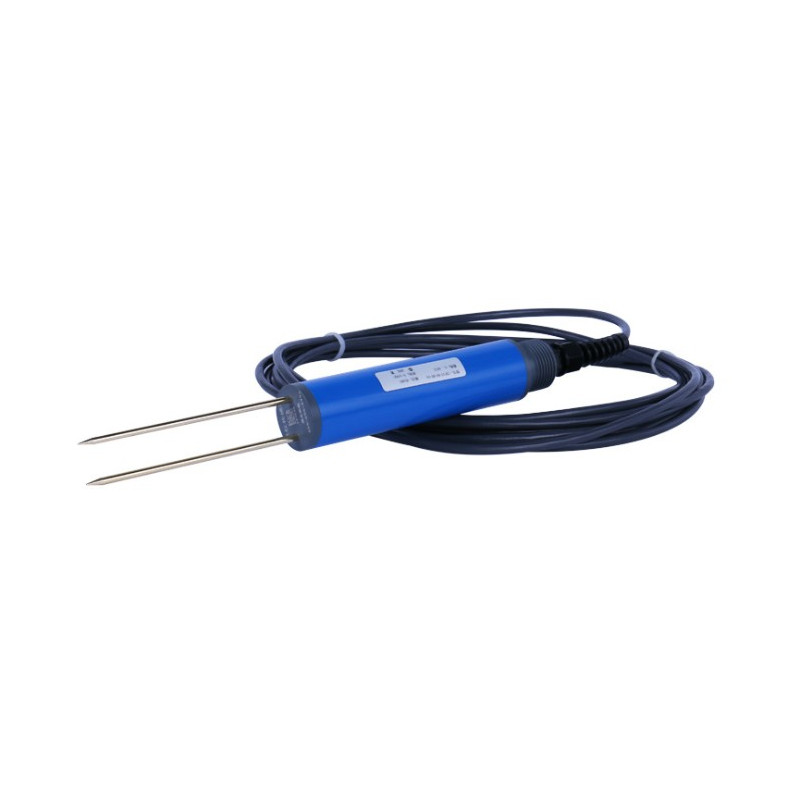

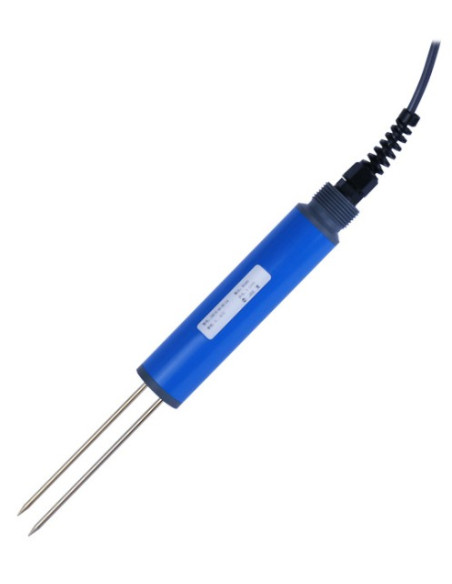

TDR Soil Moisture Sensor

The AO-TDRSoilSensor is a cutting-edge device designed to accurately measure soil volumetric water content using Time Domain Reflectometry (TDR) technology. This robust and reliable sensor is ideal for applications in precision agriculture, environmental research, and water resource management.

With a measurement range of 0 to 60% volumetric water content and an accuracy of ±3% (under standard conditions), the AO-TDRSoilSensor provides reliable data for informed decision-making in irrigation management and soil condition studies. Its high resolution of 0.1% and fast measurement time (less than 500ms) allow for detailed, real-time monitoring of soil moisture conditions.

The sensor uses an RS485 interface with Modbus-RTU protocol, facilitating its integration into existing data acquisition systems and sensor networks. Its robust construction, with a 316 stainless steel probe and ABS plastic housing, along with its IP68 rating, ensure long-lasting performance in challenging agricultural and outdoor environments.

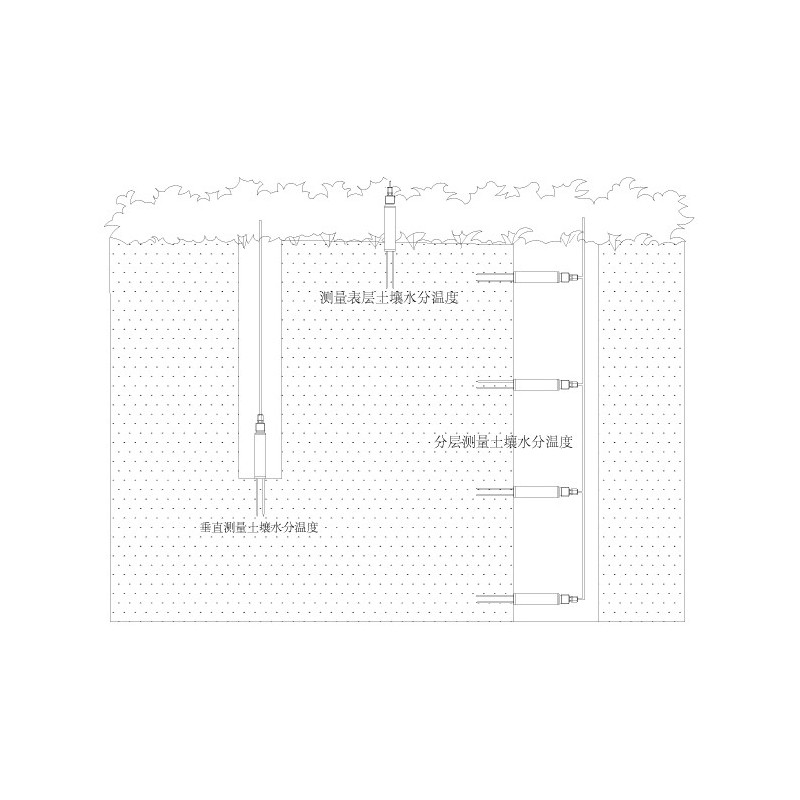

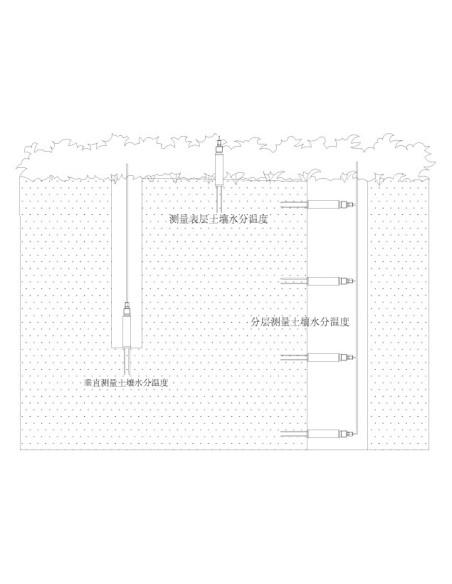

Designed to operate with a 12-24VDC power supply and moderate power consumption, the AO-TDRSoilSensor is suitable for remote installations and solar-powered applications. Its standard 5-meter cable allows for flexible installation in various field scenarios.
