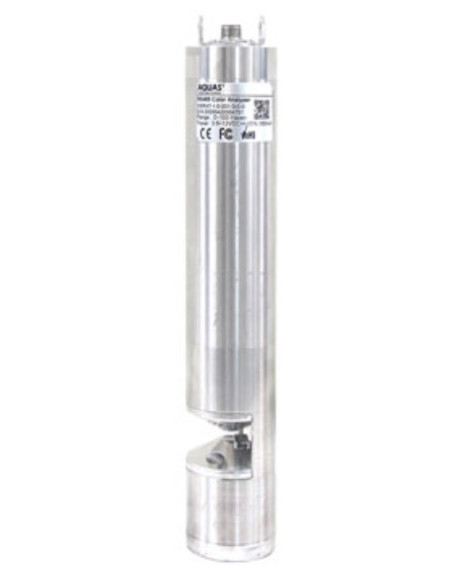

SMR47 Water Quality Color Analyzer Probe

Reference SMR47

Manufacturer: Aquas Inc.

Condition: New

Color Analyzer is connected directly via RS485 communication interface, providing simple, reliable, cost-saving process data with remote monitoring, calibration, configuration and diagnostics capabilities.
The Color Meter housing in a robust IP68 proof enclosure, 1000 N tensile strength cable, up to 1.2 km digital data transmission, the transmitter is ideally used in water/wastewater industry.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
APPLICATIONS
OPTIONS
ORDERING MATRIX
Data sheet

The Sensor measures:	Color
Output Signal:	RS485
Cable Length:	5 meters
Sensor IP Rating	IP68

■ All-in-One Compact Housing, Built-in Transmitter and Sensors
■ Robust IP68 Water Submersible Enclosure, Solution Without Cabinet
■ Software Configuration Calibration and Data Monitoring
■ Standard Modbus RTU Protocol, Direct Connected with PLC,
■ 1 sec On-line Realtime Measurement
■ 0.2 W Ultra Low Power Consumption, Ideal for HMI, Eliminate I/O Module Cost
■ Auto Cleaning Wiper, Almost No Maintence Cabling and Engineering Cost
■ Sapphire Glass Lenses to Prevent Scratch
■ Pressurized Flow Chamber, Prevent Noise Caused by Bubble
■ Turbidity Compensation
■ Onboard memory allowing users to easily calibrate and Outdoor Applications
■ High Reliability, Drift Free
■ Lightening and Surge Protection for Power and RS485 Communication
■ 1.2 Km RS485 Digital Communication, Minimize configure sensor at lab and distribute to various fields sites

SMR47 Color Analyzer

Measurement range	SMR47-1: 0~50 Hazen (Pt/Co, APHA, PCU) SMR47-2: 0~50 Hazen (Pt/Co, APHA, PCU) SMR47-3: 0~500 Hazen (Pt/Co, APHA, PCU)
Accuracy	±3% FS
Resolution	0.01 Hazen (Pt/Co)
Repeatability	±1% FS
Light source	LED 465 nm
Process flow rate	SMR47-1: Max. 20 l/min SMR47-2/3: Max. 3m/sec
Operation pressure	Max.10 Kgf/cm²
Operating temperature	0~60 °C
Response time	1 secs
Protection	IP68
Housing	SS316L
Dimension	Φ 39 X 320 mm
Weight	analyzer: approx. 1 Kg; Cable: 80g/m

Typical Application:

Type	Applications	Measurements	Order Selections
A	Source Water (River, Reservoir)	Pressure Level pH Temperature Conductivity Dissolved Oxygen Turbidity Nitrate (NO3- ) Ammonium (NH4+) Chloride (CL-) Nitrite (NO2-)	SMR01 SMR02 SMR04 SMR06 SMR07 SMR09 SMR10 SMR21 SMR23 SMR27 SMR28
B	Ground Water	Pressure Level pH Temperature Conductivity	SMR01 SMR02 SMR04 SMR06 SMR07
C	Water Treatment	Pressure Level Free Chlorine pH Conductivity TDS Turbidity Salinity Differential Pressure	SMR01 SMR02 SMR03 SMR04 SMR07 SMR08 SMR10 SMR11 SMR14
D	Water Distribution	Pressure Level Free Chlorine pH Temperature Conductivity TDS Turbidity	SMR01 SMR02 SMR03 SMR04 SMR06 SMR07 SMR08 SMR10
E	Wastewater Effulence	Level pH Temperature Conductivity Dissolved Oxygen Suspended Solid Nitrate (NO3-) Chloride (CL-)	SMR02 SMR04 SMR06 SMR07 SMR09 SMR12 SMR21 SMR27
F	Fisheries, Aquarium and Aquaculture	Level pH Temperature Dissolved Oxygen Turbidity Salinity Level Free Chlorine ORP Temperature Nitrate (NO3-) Ammonium (NH4	SMR02 SMR04 SMR06 SMR09 SMR10 SMR11 SMR02 SMR03 SMR05 SMR06 SMR21 SMR23
G	Factory, Commercial Building	Conductivity TDS Humidity and Temperature Differential Pressure	SMR07 SMR08 SMR13 SMR14
H	Weather	Humidity Barometer Wind Speed and direction	SMR13 SMR15 SMR24
I	Environment I (Strain, Landslide, Level)	Rain Gauge Pyranometer Level (water pressure) Vibration Wire Input Noise	SMR29 SMR30 SMR02 SMR19 SMR26

PAD01	IP 67 Handheld Muptiparameter Water Quality Meter
FDC1	IP68 Field Display, 1 SMR Sensor input)
HMI1	IP66 Display Controller Logger, 2 SMR Sensor inputs
HMI2	IP66 Display Controller Logger, 4 SMR Sensor inputs
HMI3	IP66 Display Controller Logger, 8 SMR Sensor inputs
SFC01	Flow Chamber (SMR04/05/07/08/09/10/11/12/21/23/27/32/33/34/39/40/41)
SFC02	Flow Chamber (SMR43/44/45/46)
BOX01	RS485 hub(4 ports)
BOX02	RS485 hub(8 ports)
CAB12	IP68 2 ports RS485 cable
