PT1000CNT Class "A" PT1000 Surface Temperature Sensor

Reference PT1000CNT

Manufacturer: Capetti Elettronica s.r.l.

Condition: New

Temperature Transducer.: PT 1000 class "A"

The PT1000CNT is a temperature transducer to acquire surface temperatures.
The class “A” PT1000 sensible element is made by a brass block, meanwhile the cable insulation is realized in poly-propylene for the conductor an in thermoplastic rubber (TPE) for the secondary insulation.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
APPLICATIONS
Data sheet
Download

The Sensor measures:	Temperature of a surface
Sensor IP Rating	IP68

PT1000CNT Data Sheet Download (464.96k)

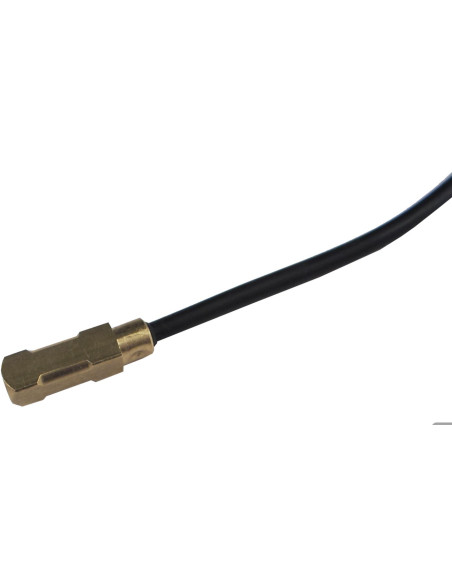

- Located in quadrangular brass case for contact surface temperature detection
- Cable length 3 meters
- Measure range from -50 to + 105 ° C.

Material: Brass block for clamp fastening.

Cable:
· Cable length: 3m
· Material: conductor isolated by polypropylene and secondary insulation in thermoplastic rubber (TPE)

Sensible element: Class “A” PT1000

Temperature range: -50°C ÷ +105°C

Sealing: IP68

Dimensions: 18x6x6mm

Insulation resistance: 100 MΩ at 1,000 VDC

Dielectric Stiffness: 3,750 VAC
