Surface Temperature Sensor - Magnetic, OF4/E

Reference

Manufacturer: Fuehler Systeme

Condition: New

-40...+400°C
PT100, PT500, PT1000
magnetic adhesive force 90 N

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

79,00 €

tax excl.

Quantity

Select Model

Add to wishlist

OVERVIEW
SPECIFICATIONS
MODELS
Data sheet

The Sensor measures:	Temperature
Sensor IP Rating	IP54

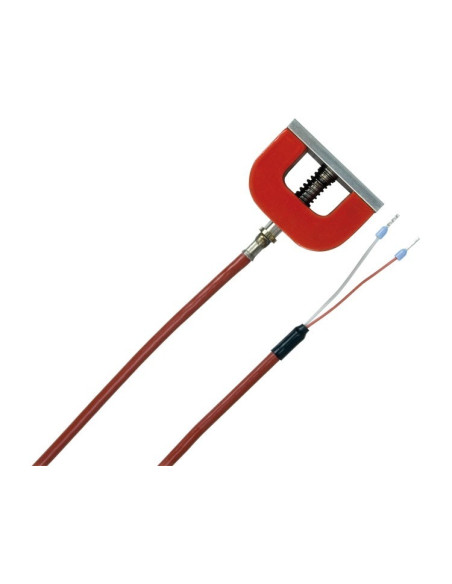

This magnetic OF4/E surface sensor measures the temperature of metallic surfaces in the range of -40 up to +400°C.
Using an extreme strong 90 N magnetic clamp, the temperature sensor can be mounted safely on central heating boilers.,The tension spring absorbs vibrations for optimal measurement signals.

Measurement range temp.	-40...+400°C
Sensor	Pt100, Pt500, Pt1000 (other on request)
Circuit type	2-wire connection
Measurement current	approx. 1 mA
Cable	silicone cable (2x0,22 mm², max. +180°C) with core cable ends in different lengths
Leakage resistance	> 100 MOhm, at +20°C (500 V DC)

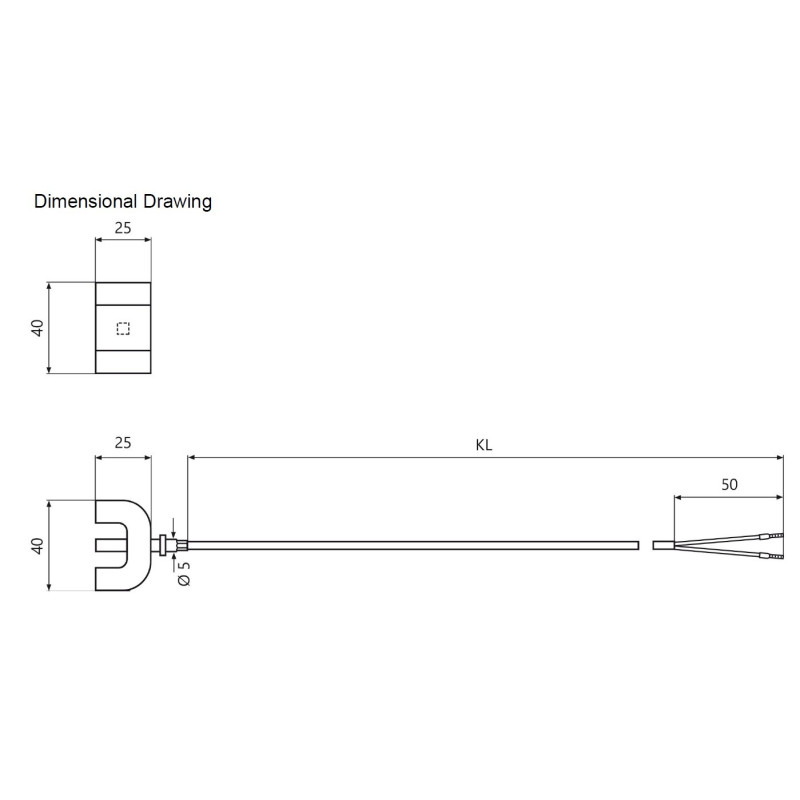

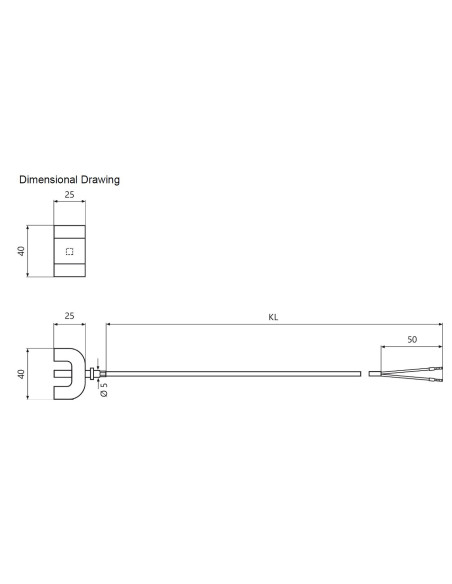

Dimensions	Magnet: L 40 x W 25 x H 25 mm
Protection type	IP54
Storage temperature	-20...+70°C
Installation	remove metal plate of the magnet and put on chosen measuring point straight tighten on
Approvals	CE, EAC, RoHS
