USH-9 Precise Snow Depth measurement Ultrasonic Sensor

Features and advantages

  -  Continuous and non-contact measurement
  -  Reliable sensor for extreme environmental conditions and high alpine employment
  -  Robust, sealed and therefore maintenance free ceramic membrane with protective shield against ice and snow
  -  High level of accuracy thanks to the integrated temperature compensation and filtering of snow and rainfall using intelligent spectrum analysis
  -  Energy-saving operation through sleep modus, ideal for solar-powered measuring stations


Fields of application

The USH-9 is especially suitable for extreme weather conditions and so for alpine and high alpine terrain. Its high operational safety enables a permanent and reliable recording of measurement values, for which reason it is commonly used by meteorologists, avalanche warning services, ski regions, research stations and the energy sector.


Implementation

The snow depth is an important parameter for evaluating the snow pack. It must be regularly measured as the development of the snow pack is subject to strong regional and temporal fluctuations and significantly influenced by the current weather Ultrasonic Measurement of Snow Depth conditions (snow or rainfall, air temperature, wind etc.). The USH-9 is a non-contact device and therefore does not compromise the snow pack. It can measure depths of up to ten meters continuously and with convenient remote data transmission if needed.

- Measuring element/principle: ultrasonic sensor (frequency 50 kHz; opening angle 12 °)
- Range - Measuring range: 0 - 10 m (0 to 32.8 ft); accuracy: 0.1% FS, max. +/- 1cm)
- Resolution 1 mm
- Accuracy 0.1% (FS)
- Measurement principle ultrasonic sensor (frequency 50 kHz; opening angle 12 °)
- Temperature measurement range -40 ° C to + 60 ° C (-40 ° F to + 140 ° F), resolution 0.1 ° C
- 2x Analog interface signal 4 to 20 mA, resolution 12 Bit
- Output: SDI-12, RS-485 (various ASCII formats, MODBUS RTU), 4-20 mA (configurable, snow and temperature)
- Supply: 9 - 27 VDC
- Power consumption: - Power consumption: typ. 40mA (max peak 300mA for 0.05s) <0.4mA (stand by)
- Total energy consumption: 0.5 Ah / d (1 min intervall)
- Air-temp measurement: -40 - +60 ° C (-40 ° F to + 140 ° F); accuracy: 0.3 ° C; resolution: 0.01 ° C
- Dimensions (D x H): 180mm x 320mm; opening angle: 12 °
- Protection type: housing: IP 66, ultrasonic head: IP 68
- Bracket for 61 mm (2 inch) mast diameter

Snow depth sensor, USH-9, Standard Bundle with 10m cable.

Non-contact ultrasonic sensor for recording snow depth with integrated temperature compensation.

- 3 years warranty on the utrasonic membrane
- incl. sensor mount for pipe 32-60mm
- incl. 10m cable
- incl. USB- RS-485 cable

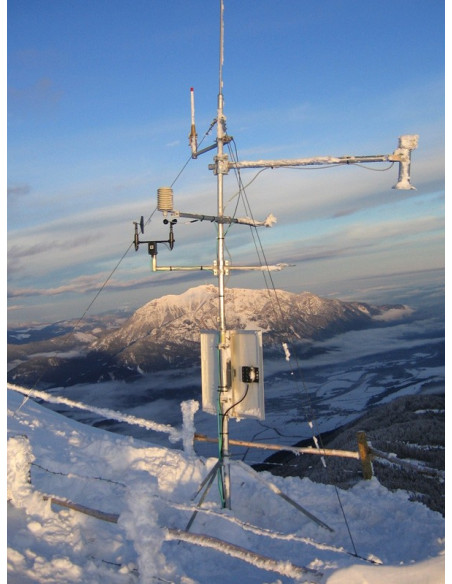

USH-9 Complete Snow depth Station

Includes:
- USH-9 Maintenance free Snow depth sensor
- Switchbox
- Datalogger with modem and solar charger
- Battery
- Solar panel
Optional:  MDS data processing and visualisation on SOMMER CLOUD, so user can see current and past data at any time from any place with any device.
