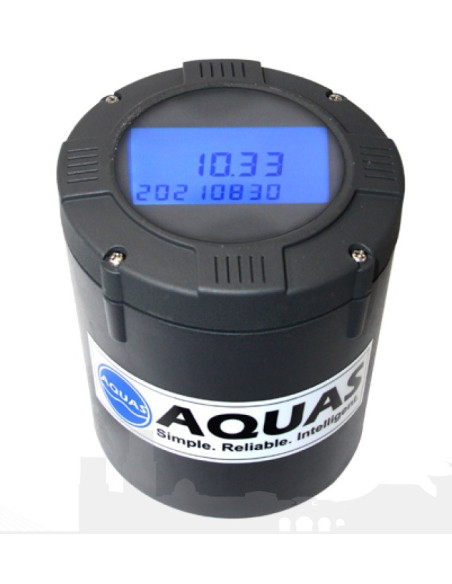

ECO2 Flow, Level, Water Quality Logger Battery Powered Logger

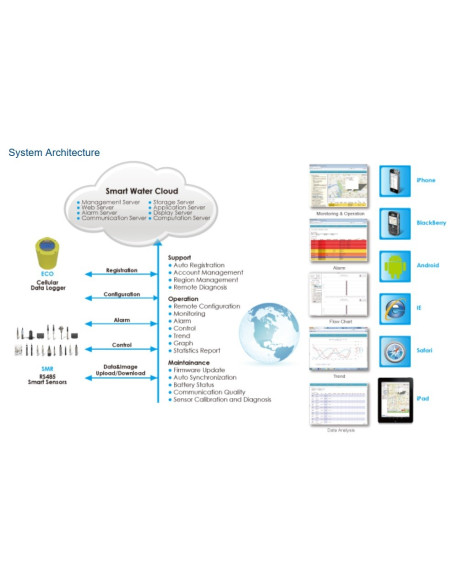

System Architecture

 -  Completely Self Contained
 -  Robust Outdoor, Compact Construction
 -  High Capacity and Flexibility
 -  High Accuracy and Reliability
 -  Transient Pressure Detection and Data Logging
 -  Quick Installation
 -  Easy Setup
 -  Smart Function
 -  Auto Data Collection, Cloud Storage, WEB Operation and Monitoring
 -  Security

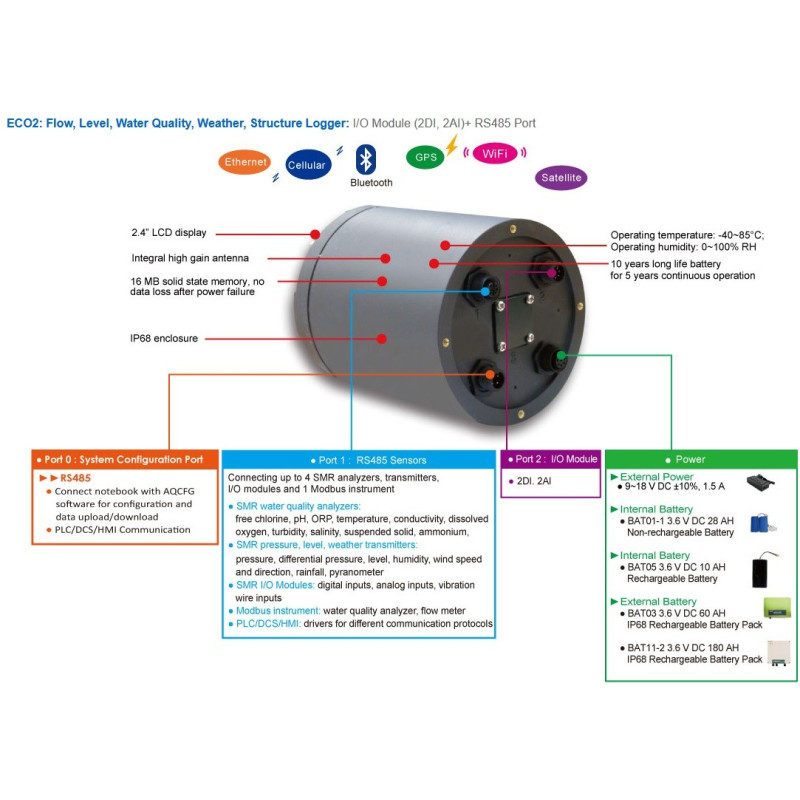

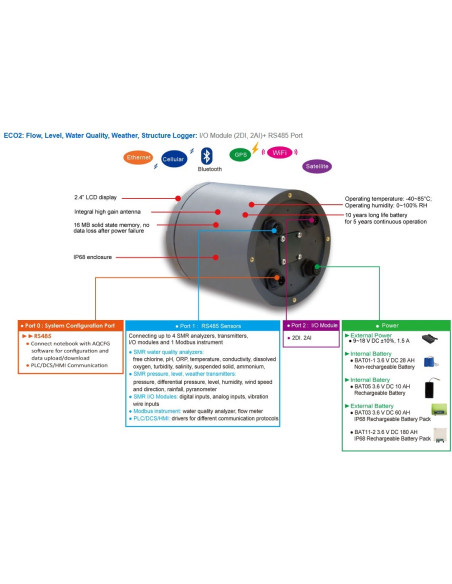

The RTU controller has a Built-in pressure, I/O module, cellular, WiFi, GPS, barometer and RS485 modules.
The RS485 port is able to connect level, water quality digital transmitters or to third party Modbus RTU devices.
Ultra low power consumption is ensured with battery or solar power for over 10 years of continuous operation.

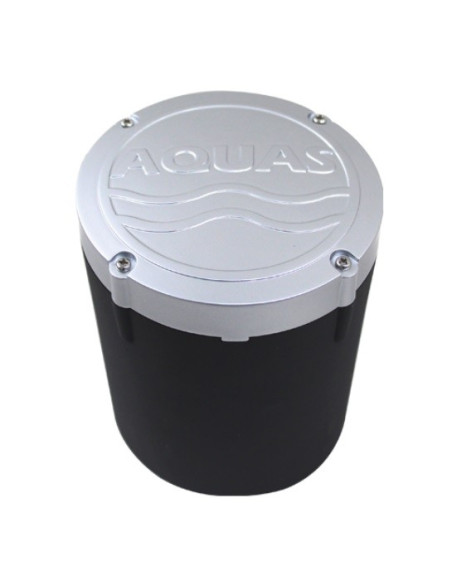

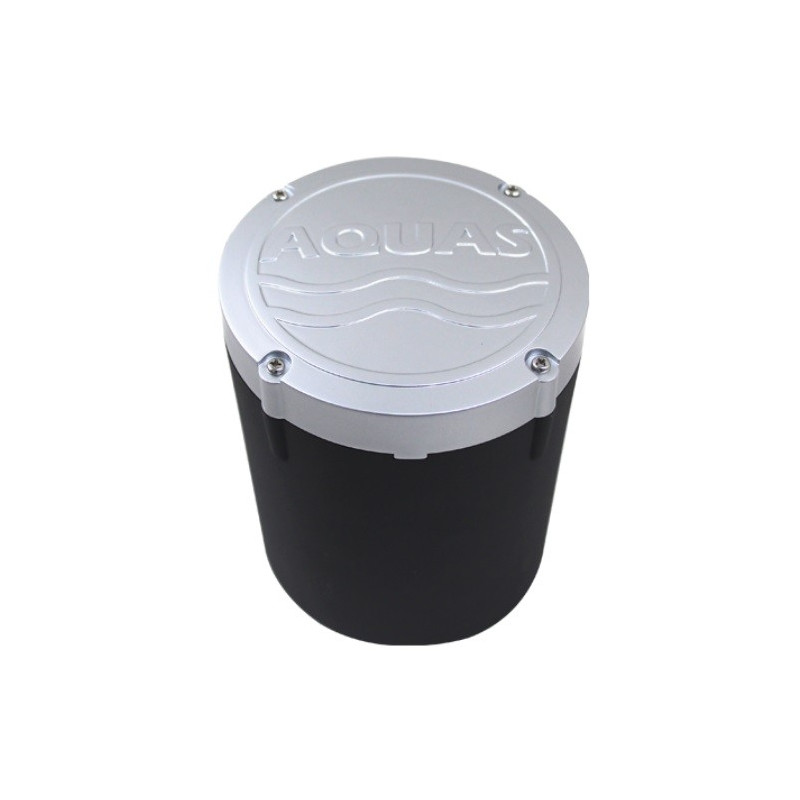

Housing in provided in a robust IP68 water submersible enclosure
The Flow, Level, Water Quality, Weather, Structure Logger is perfectly used in a frequent flood underground chamber that allows for harsh temperature and humidity outdoor environmental use.

ECO Series

The ECO Series is fully integrated with cellular, Bluetooth, RS485 communications, providing seamless connections from sensors and I/O to public or private networks.

     AQWEB/AQOPC Station

- Notebook with AQCFG software for configuration

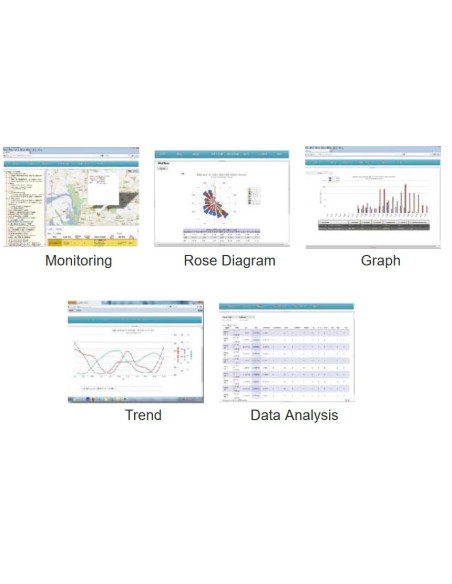

- AQWEB WEB Server software for configuration, automatic data acquisition and storage, remote monitoring, alarming, control, Google Earth fusion display, data analysis, transient pressure analysis, time series trend graph and tabular report functions
- Seamless SCADA software and database connectivity via AQOPC OPC server
- Application interface library for developing user customized software

    ECO Wireless Logger and Controller

- Periodically sample digital transmitters, I/Os and serial devices, logged with time stamp
- Borderless cellular and WiFi communication
- Peer to peer communication

    SMR Smart Digital Sensor and I/O Module

- RS485 serial communication
- Standard Modbus RTU protocol
- Up to 1.2 Km transmission distance

- Ultra Low Power Consumption, up to 10 Years of Operation on Internal Battery
- Supports Sub 2" Pipe Insersion Hydraulic Power Generator to P rovide Always On Control and Real-time Data Communication
- Robust IP68 Enclosure, Solution without Cabinet
- Operating Temperature: -40~85°C, 0~100% RH Operating Humidity
- Cellular Communication, No Field Data Collection
- Auto Delivery Incomplete Uploads to Ensure No Data Loss
- Simultaneous Acquisition of 8 Smart Digital Sensors, Built-in I/O Modules an d Pressure Sensors
- 0.001 sec Auto Detection Transient Pressure, Water Hammer, Pipeline Burst
- IF_THEN_ELSE, Time Table, Alarm Output and Manual ON/OFF Control for Valve, Pump, Gate and Dosing Pump
- Built-in Standard Modbus TCP Communication Protocol
- Integral FTP Protocal, Directly Upload Log Files to User Servers
- Standard OPC Server Software to Seamlessly Connect SCADA Software and Database
- Cloud Based Platform for Configuration, Operation, Monitoring, Alarm, Control and Data Analysis
