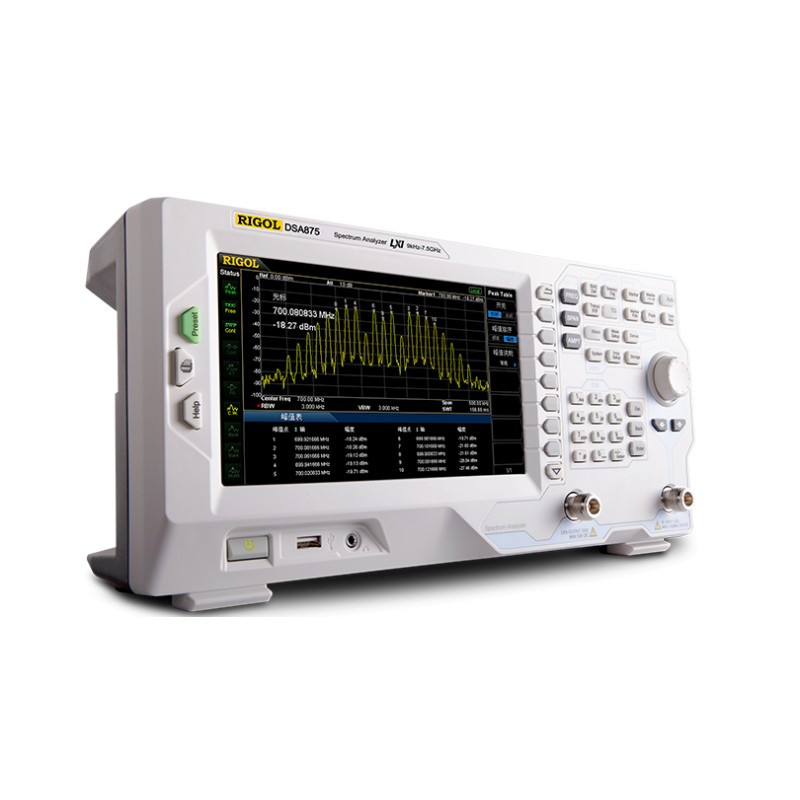

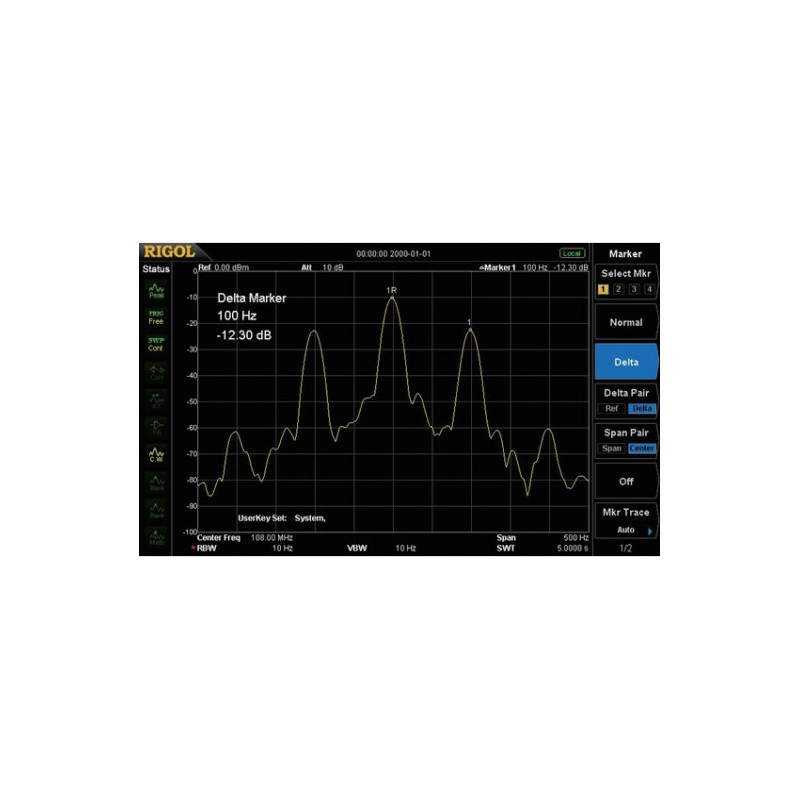

Spectrum Analyzer DSA875

Reference: DSA875 - Manufacturer: RIGOL

The exceptionally capable and affordable DSA800 Series Spectrum Analyzers are 1.5 GHz to 7.5 GHz models with tracking generators, preamps, EMI, VSWR and more options.

Frequency range from 9KHz to 7.5GHz
Min. RBW 10 Hz

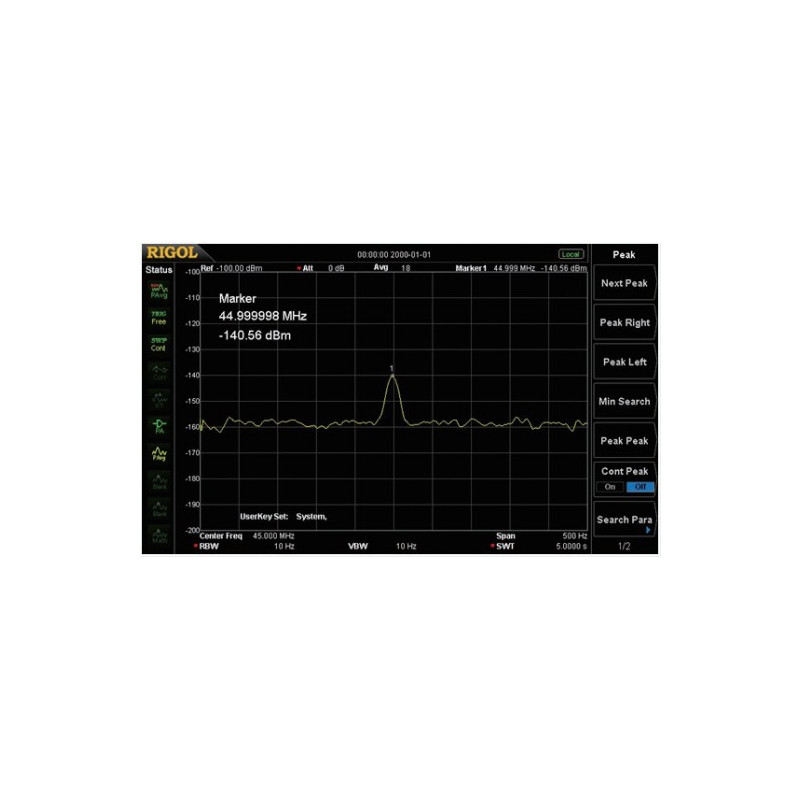

Min. Displayed Average Noise Level -161 dBm
Min. Phase Noise < -98 dBc/Hz @ 10 kHz Offset

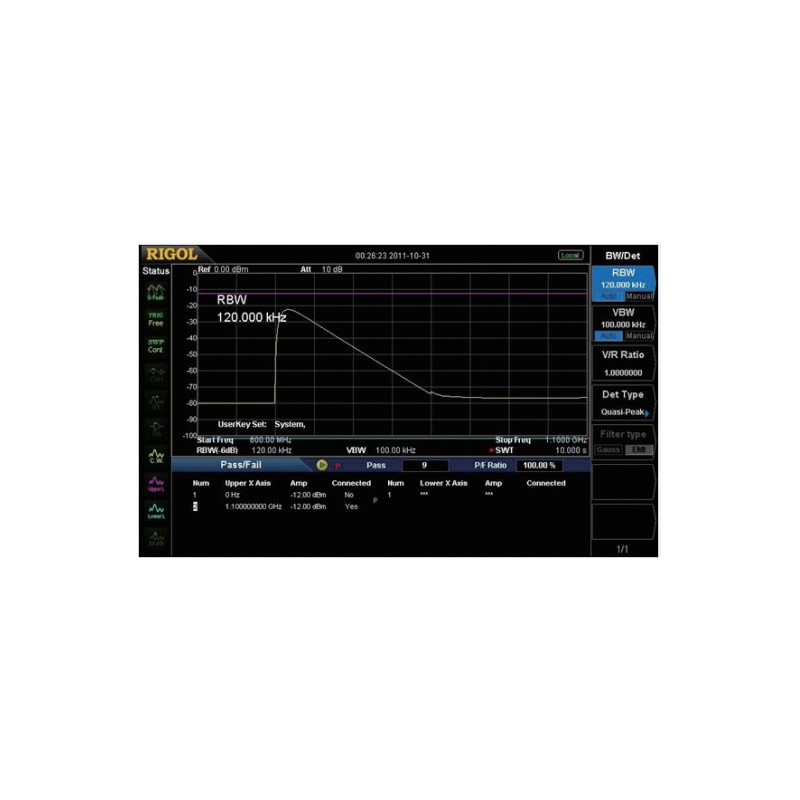

EMI Pre-compliance test

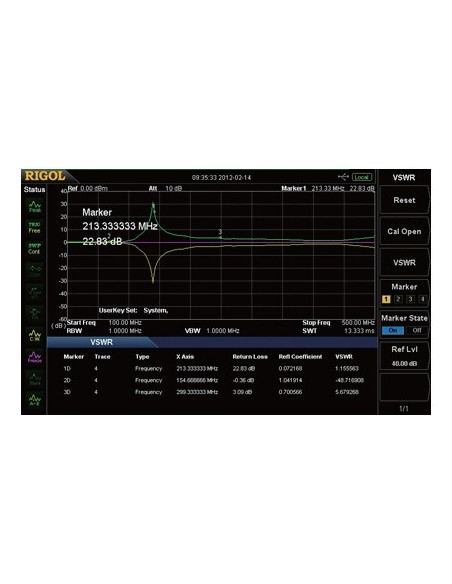

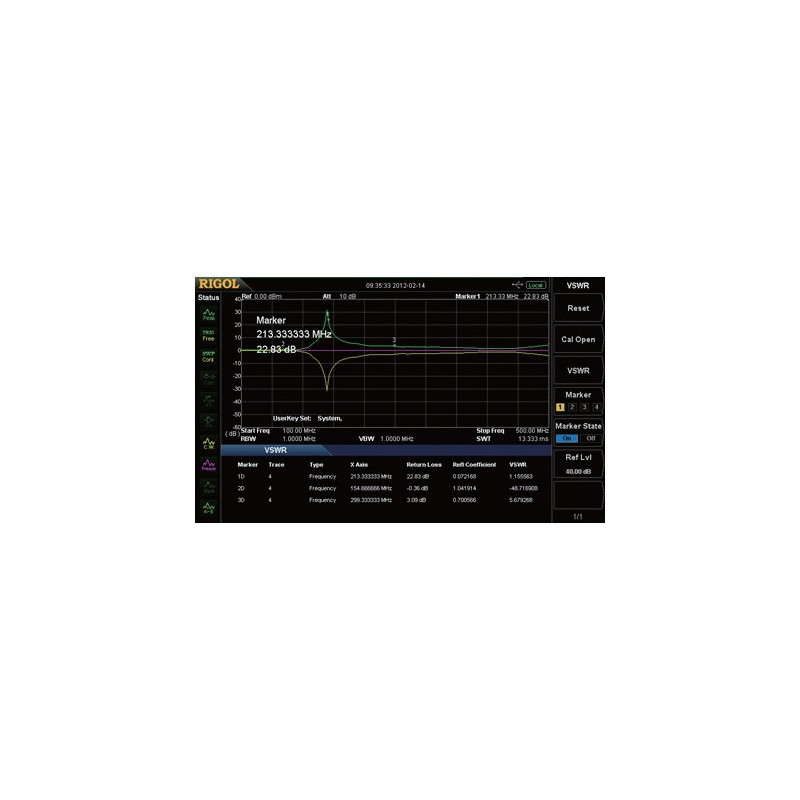

VSWR Measurement
Signal seamless capture mode (DSA815)

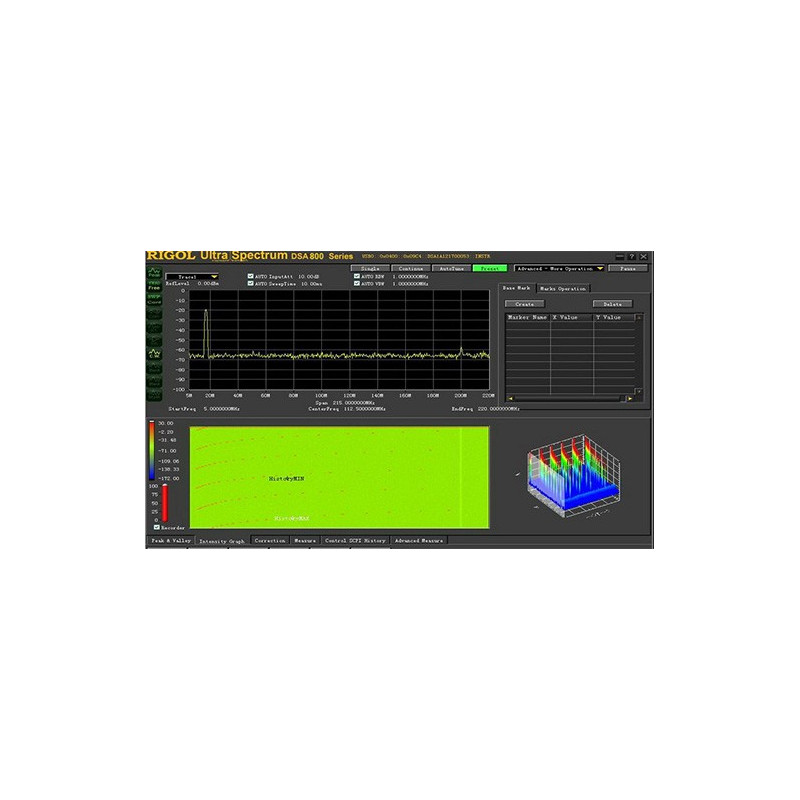

Powerful DSA PC software

MEASUREMENT AND CALIBRATION INSTRUMENTS: Spectrum Analyzers

DSA800 Series Manual

Download (4.8MB)

DSA800 Series Datasheet

Download (6.01MB)
