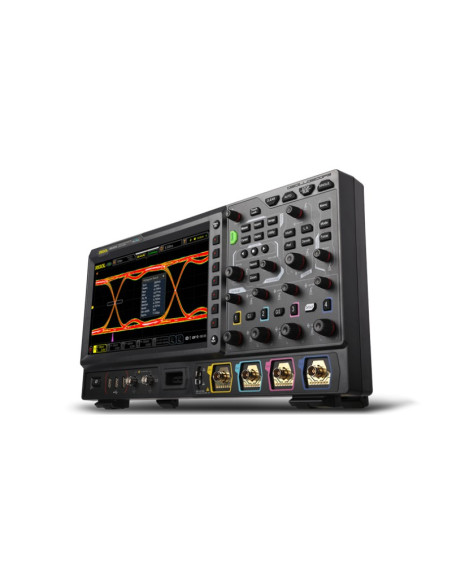

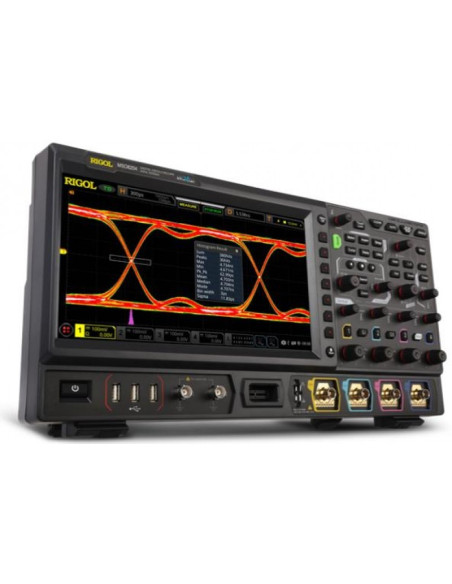

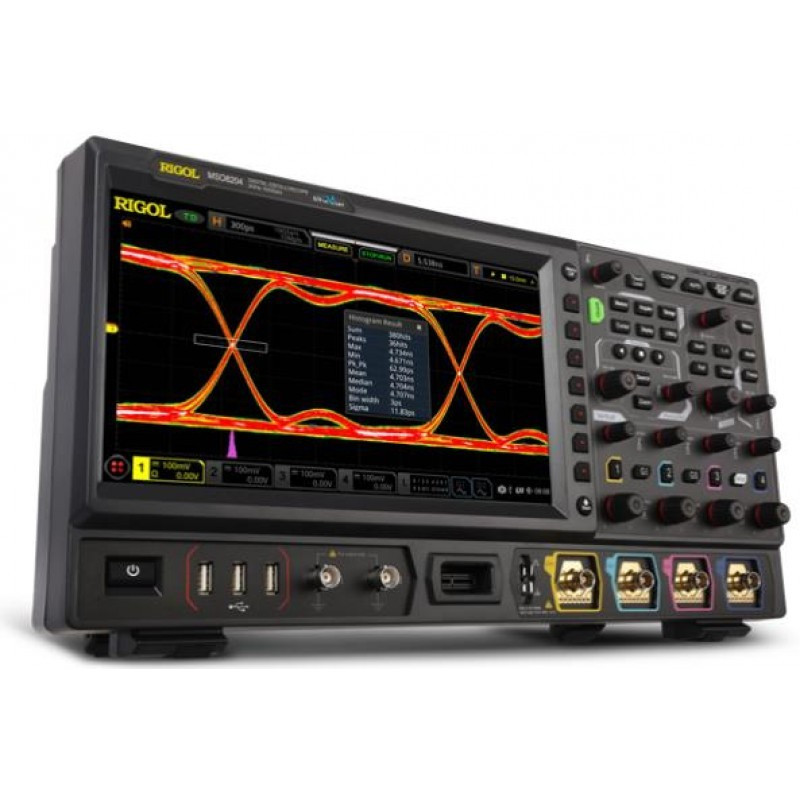

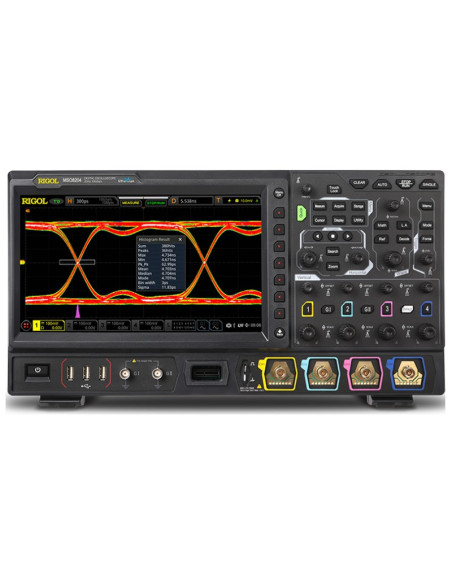

Digital Oscilloscope MSO8104

1 GHz, 10 GSa/s, 500 Mpts, 4+16 CH MSO, free MSO8000-BND for promotion
Analog bandwidth: 600 MHz, 1 GHz, and 2 GHz (single-channel and half-channel modes); bandwidth upgrade supported
4 analog channels, 1 EXT channel, and 16 standard configuration of digital channels (required to purchase the probe)
Up to 10 GSa/s real-time sample rate
Up to 500 Mpts memory depth (standard)
High waveform capture rate (over 600,000 waveforms per second)
Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions

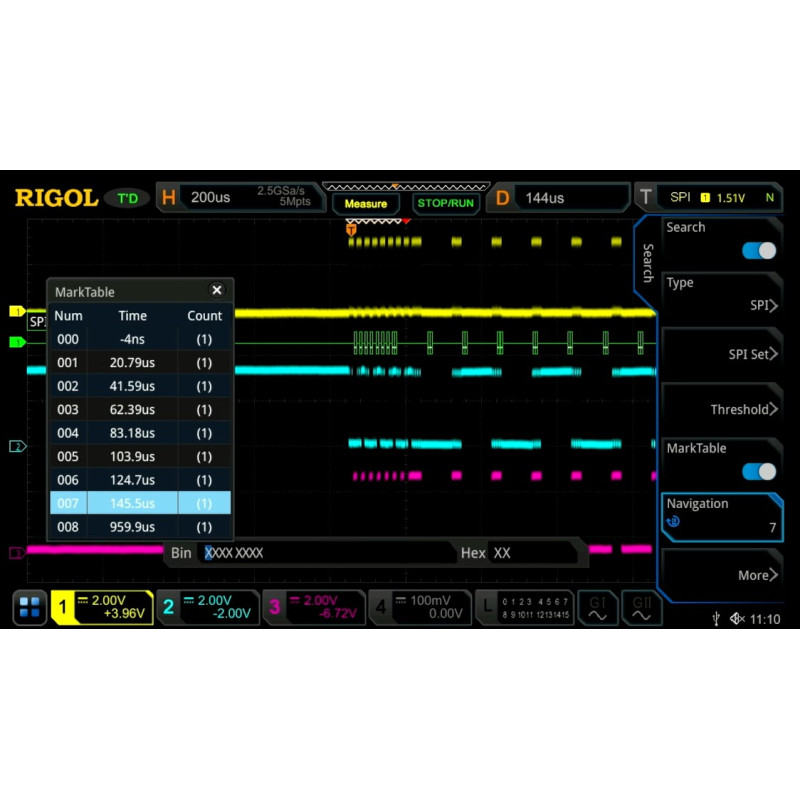

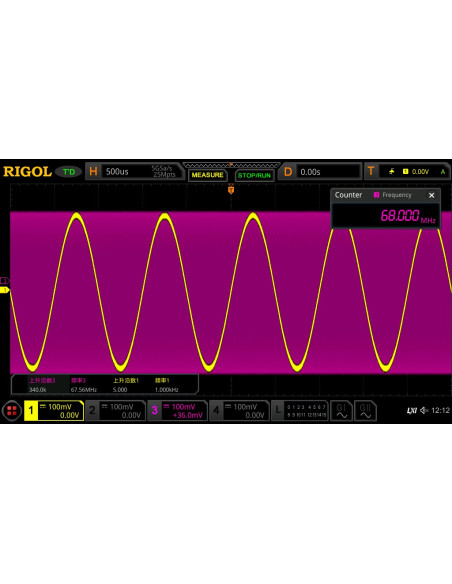

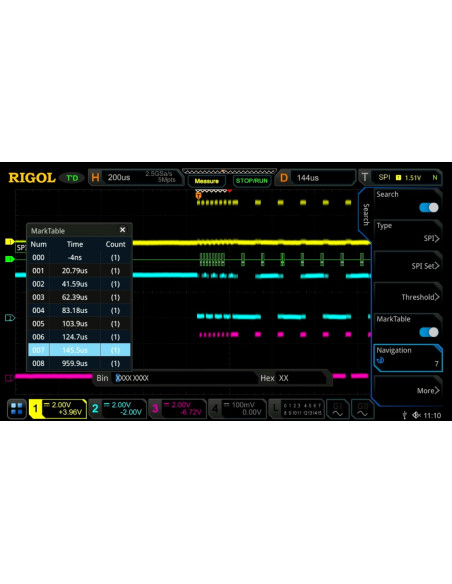

Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic analyzer, spectrum analyzer, arbitrary waveform generator (option), digital voltmeter, 6-digit frequency counter and totalizer, and protocol analyzer (option)

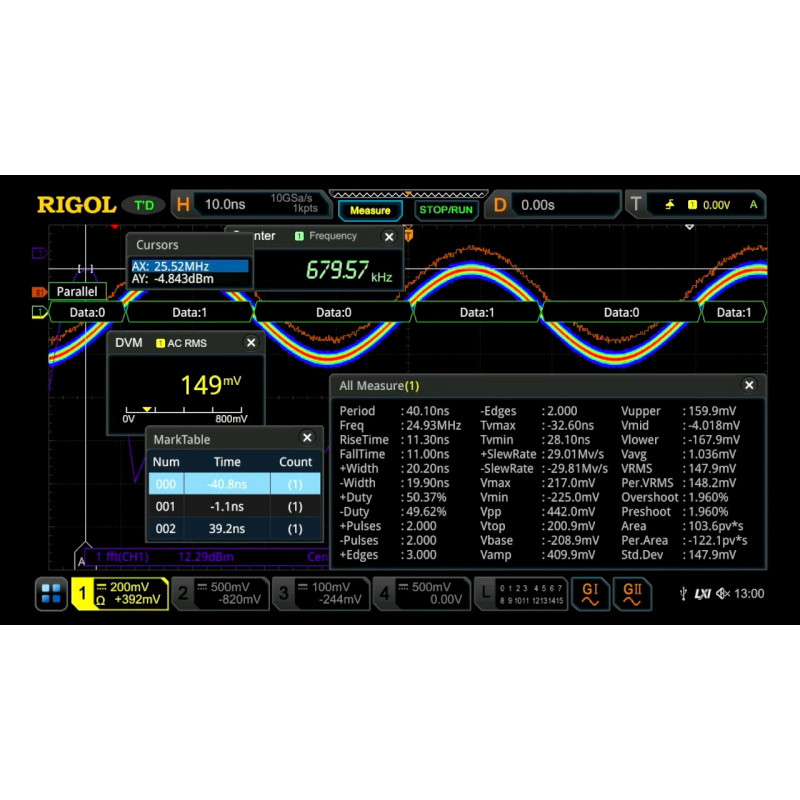

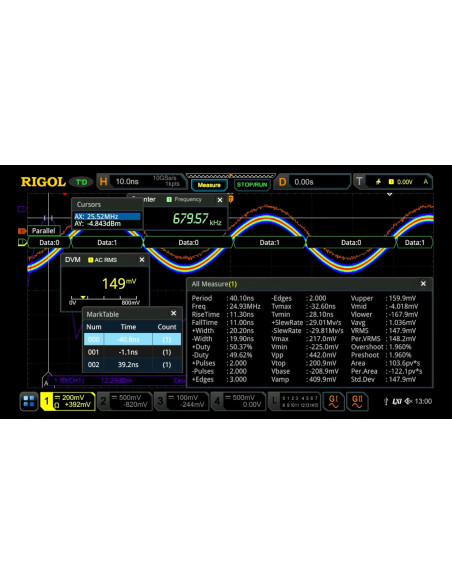

Auto measurement of 41 waveform parameters; full-memory
hardware measurement function

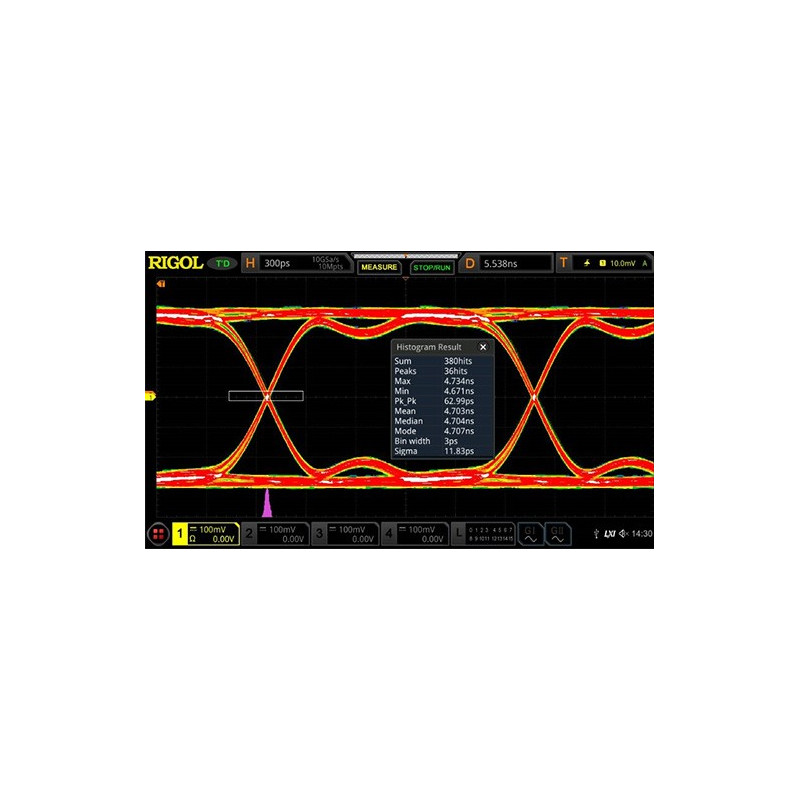

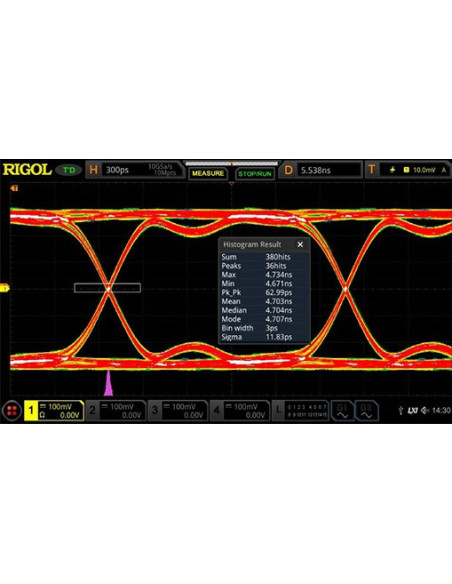

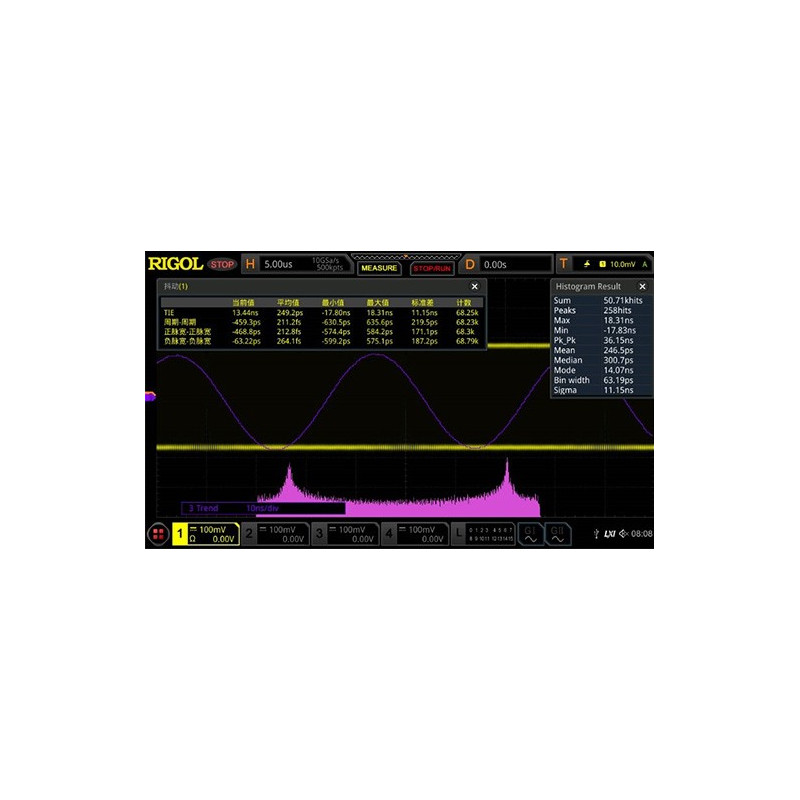

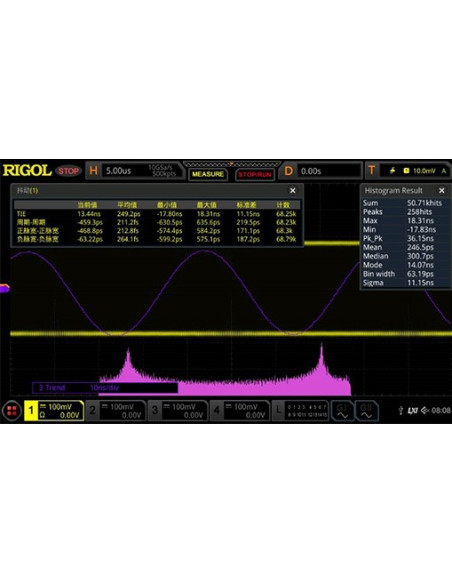

Real-time eye diagram and jitter analysis software (option)
10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
