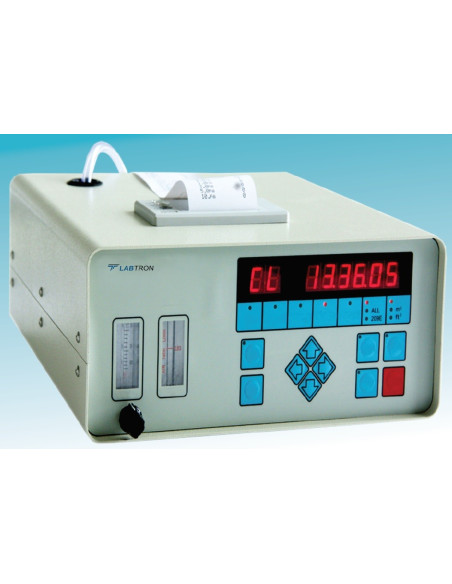

LDPC-A10 Dual Flow Particle Counter

Reference LDPC-A10

Manufacturer: LABTRON

Condition: New

Dual flow particle counter LDPC-A10 is a six channel microcomputer controlled unit.
It employs dual flow rate and a built-in air pump.
It features a provision of simultaneous counting of six different size ranges with real time monitoring.
The particle count data can be conveniently viewed, downloaded or printed directly using the in-built printer.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
APPLICATIONS
Data sheet
Download

Type of Instrument	Particles in Air Monitor
The instrument measures:	Optical Particle Counting
Instrument for:	Particle Size
Function:	Analyze Particle Size

LDPC-A10 Download (1.49M)

Data conversion : ft3 and m3
Data display modes : Counts, Counts/m3, Counts/ft3
Built-in air pump
UCL calculation
Built-in printer with multiple print-mode
Large data storage capacity
Date and time display
Rechargeable battery

Particle size channels	0.3 µm, 0.5 µm, 1.0 µm, 3.0 µm, 5.0 µm, 10.0 µm 0.3 µm, 0.5 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm
Flow rates	2.83 L/min 50 mL/min
Sensitivity	0.3 µm
Test class	Class 100 ∼ Class 300,000
Test period	1 min ∼ 10 min ( 10 levels )
Life of light source	˃ 30,000 hours
Self-clean time	≤ 10 min
Operating temperature range	10 °C to 35 °C
Operational humidity	≤ 75 % RH
Power	220 V ± 10 %, 50 Hz ± 2 Hz
Power dissipation	10 W
Dimensions	275 x 330 x 115 mm
Weight	3.8 kgs

Used in clean room monitoring, indoor air quality testing, HEPA filter performance testing, tracking particle sources.
Detects environmental purification levels; monitoring of biosafety cabinets, clean benches, computer rooms, HVAC system performance, food and beverage packing, hospitals.
Pharmacy and surgery, medical device assembly, aerospace assembly, paint spray booths, etc.
