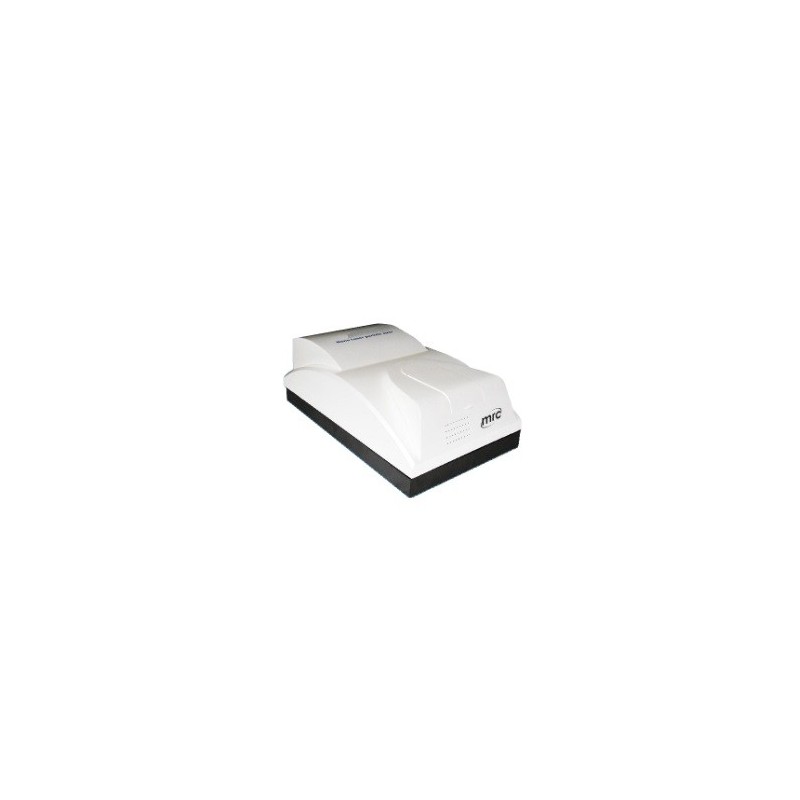

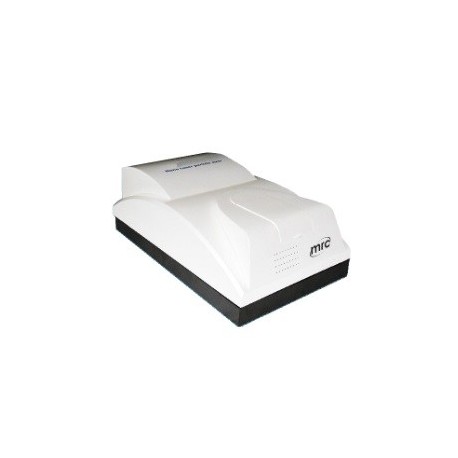

PA-200X Photon Correlation Laser Nanoparticles Size Analyzer

Reference: PA-200X - Manufacturer: MRC

PA-200X is our company’s latest laser particle size analyzer which based on the dynamic light scattering principle, and also 1st one which use digital correlator.
Based on Brownian movement principle, smaller particle, faster speed, bigger particle, more slowly.
It adopts the great performance of the HAMAMATSU photomultiplier & self-developed highspeed digital correlator as core parts.
Get diffusion coefficient by test scattering light change in some angle, and calculate particle diameter and distribution according to stokes-Einstein equation.
So the machine has characters for fast calculation, high resolution ration, good accuracy and repeatability.
Measured Range: 1-10000 nm
Concentration range: 0.1mg/ml--100mg/ml
Outer Dimensions: L48cm*W27cm*H17cm

Model	PA-200X
Measure range	1-10000nm
Concentration range	0.1mg/ml--100mg/ml
Accuracy	<1%( Average particle size of standard sample)
Repeatability	<1%(Average particle size of standard sample)
Light Source	Semiconductor laser λ= 532nm
Detector	Imported HAMAMATSU photo-multiplier
Scattering angle	90o
Sample pool	4mL
Temperature control	5-40OC (temperature controller within 0.1OC)
Test speed	<5 Min
Outer dimension	L48cm x W27cm x H17cm
Gross Weight	12Kg
Digital correlator	256 channels
Operation system	Win XP/Win 7
Analysis	Average particle diameter, particle distribution, photon counting rate etc.

Instrument for:: Particle Size
Function:: Analyze Particle Size

Download (108.22KB)

PA-200X_Present

Download (2.2MB)
