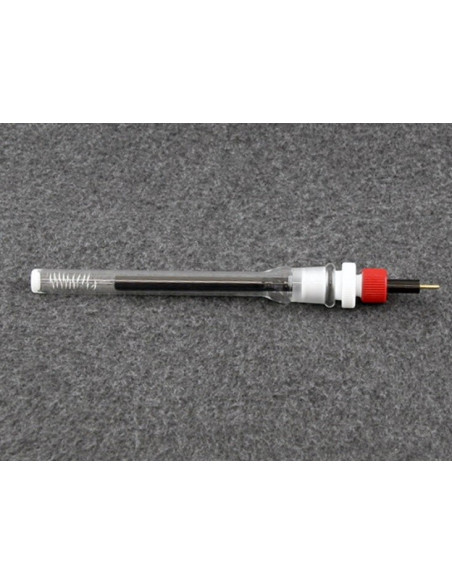

Standard Platinum Counter Electrode Kit AFCTR5
AFCTR5
New
Pt wire OD = 0.5 mm; approximate surface area = 4.7 cm2
6.9 mm OD x 150 mm epoxy tube shroud
Compatible with our standard electrochemical cells
It includes an isolation tube and an adapter to fit 14/20 port 6.9 mm OD epoxy tube shroud, 150 mm long.
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
| Electrochemistry | Electrodes |

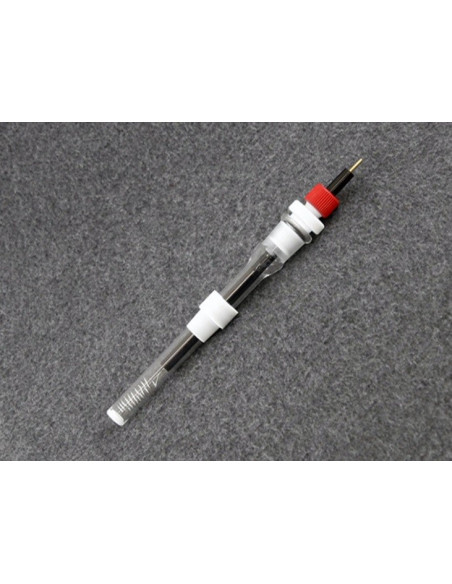

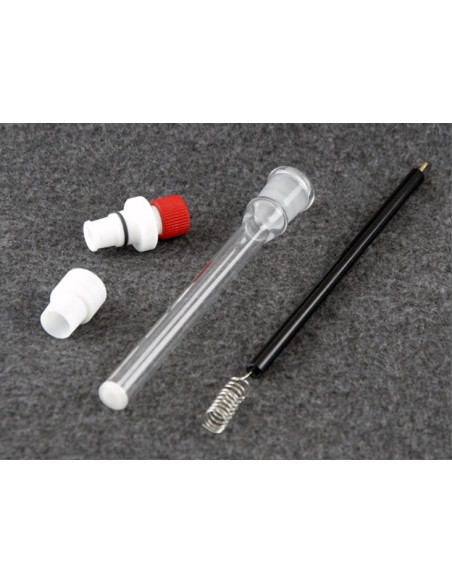

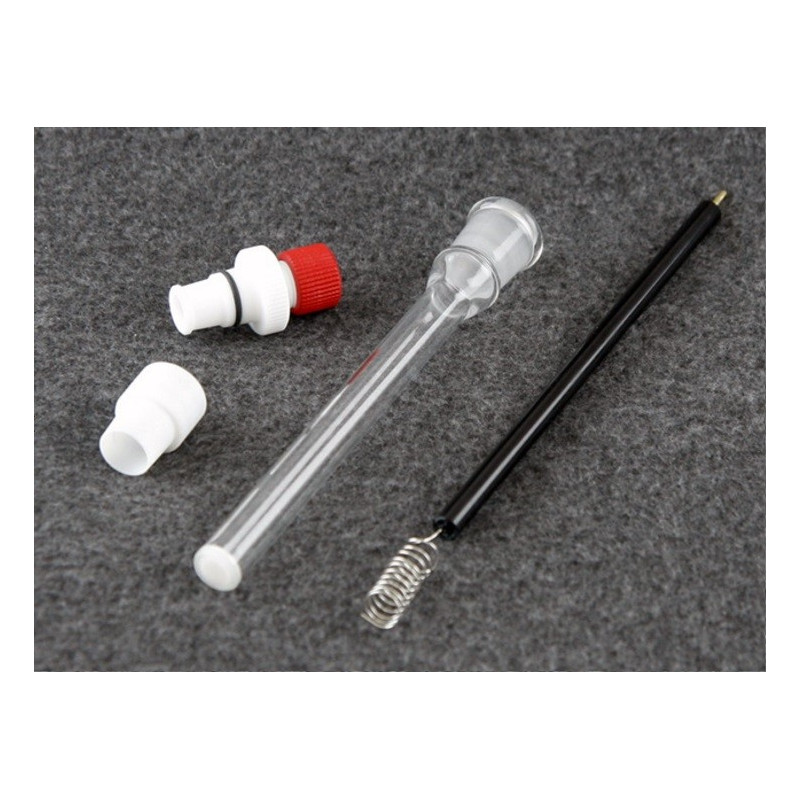

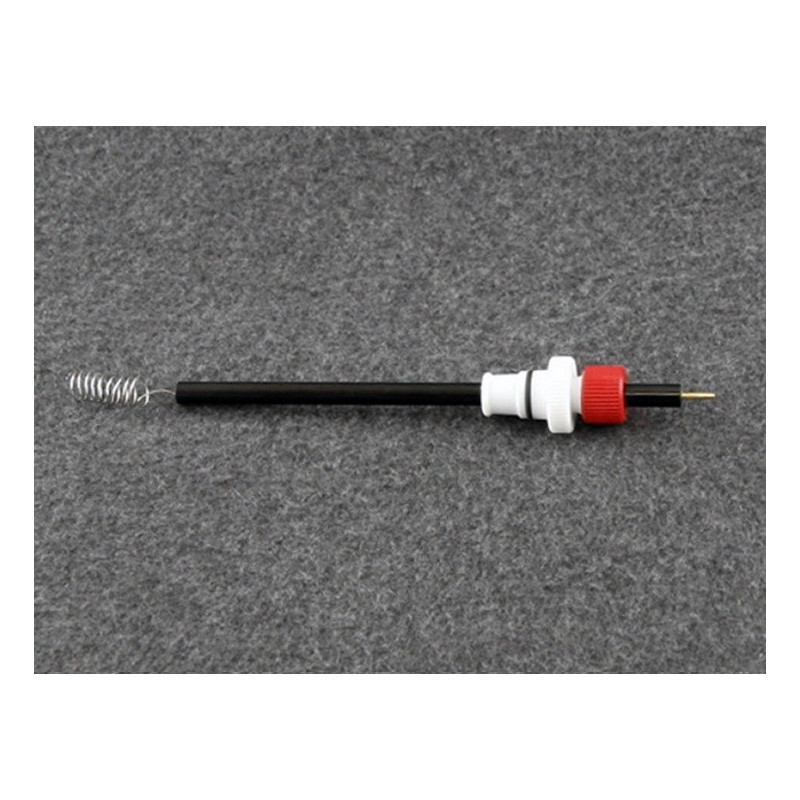

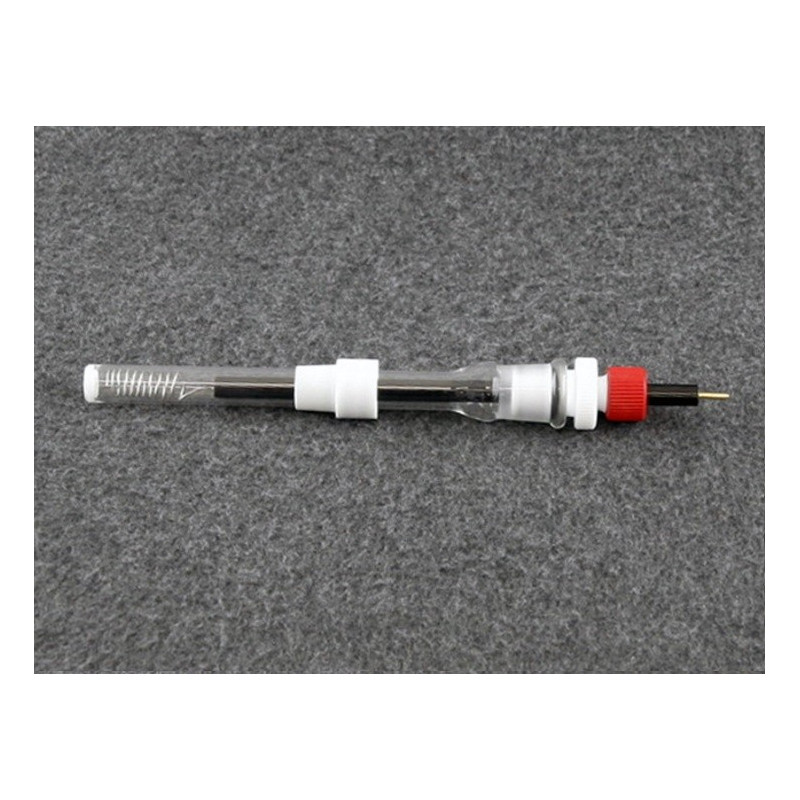

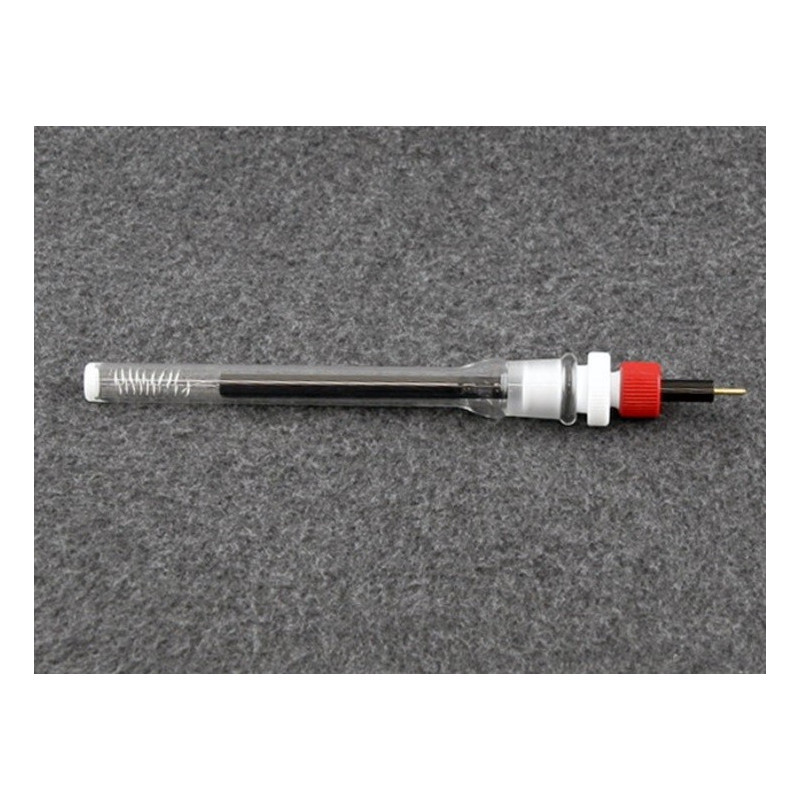

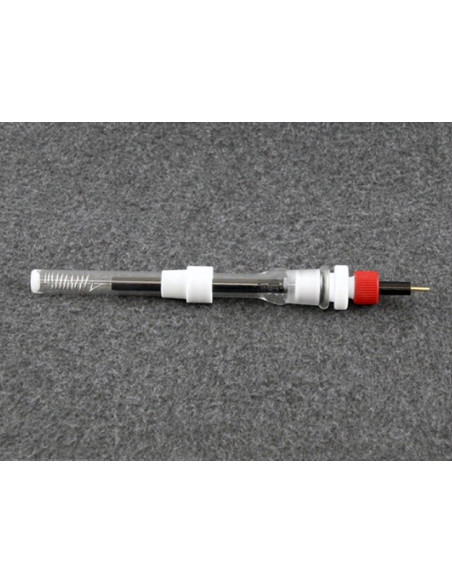

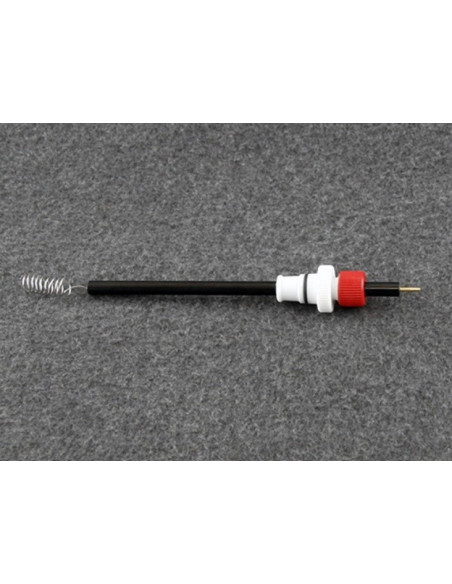

This Standard Platinum Counter Electrode features a coiled platinum wire (99.99% pure) mounted at the end of a chemically-resistant epoxy rod. A fritted glass tube isolates the counter electrode from the main test solution. The glass tube is equipped with a PTFE adapter suitable for mounting the tube in a 14/20 port on our standard electrochemical cells. Alternatively, the counter electrode may be removed from the glass tube and mounted directly in the electrochemical cell.
|
Pt Wire OD |
0.5 mm |
|
Pt Wire Approximate Surface Area |
4.7 cm2 |
|
Shroud Dimensions |
6.9 mm OD x 150 mm long |
This Standard Platinum Counter Electrode features a coiled platinum wire (99.99% pure) mounted at the end of a chemically-resistant epoxy rod. A fritted glass tube isolates the counter electrode from the main test solution. The glass tube is equipped with a PTFE adapter suitable for mounting the tube in a 14/20 port on our standard electrochemical cells. Alternatively, the counter electrode may be removed from the glass tube and mounted directly in the electrochemical cell. The coil is fabricated from a 0.5 mm OD Pt wire that has an approximate surface area of 4.7 cm2. The approximate diameter of the coil is 9 mm. The 6.9 mm OD black epoxy rod is 150 mm long. The overall length of the rod and the coil is approximately 180 mm.
COMPATIBLE CELLS:
Replacement Parts (Request Quote)
RRPG249PT: Standard Platinum Counter Electrode 6.9 mm OD epoxy tube shroud, 150 mm long.
RRPG097: Fritted Glass Tube 12 mm OD, 14/20 port at top, medium frit at bottom.
RRPG036K3: PTFE Mount with 1/4" ID red cap slides onto support rod, fits into a 14/20 port.
ACEP1420R12: PTFE Mount for Fritted Tube slides around fritted tube, fits into a 14/20 port.
