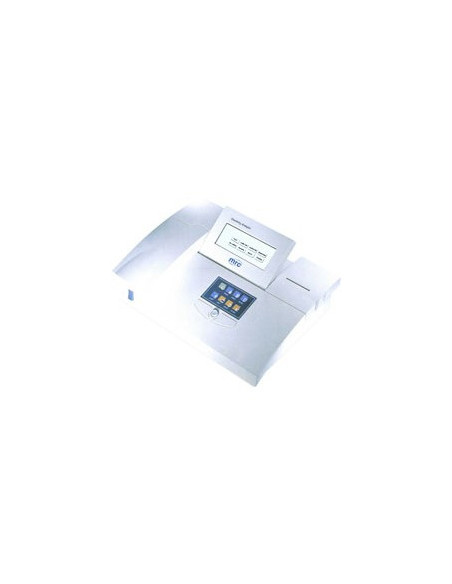

SACA-11904C MEDICAL ANALYZER

Reference: SACA-11904C - Manufacturer: MRC


● Reagent open system supports flow cell and cuvette mode, close system on request.
● Wavelengths: 340, 405, 500, 546, 578, 620, 670nm, 1 more filter optional.
● Analytical modes include kinetic, fixed time, bichromatic end point with/without reagent blank or sample blank, linear or non-linear.
● calibration curves.
● Input: USB mouse and external keyboard.
● Build-in printer.
● Easy Windows operation system with mouse, large color LCD display.
● Powerful QC function: Westguard Multi-rule, Levey Jennings plot, 2 controls per test.
● Principle: Absorbance.
● self-check when power on.
Optional
● External printer.

Model

SACA-11904C

Principle

Absorbance

Photometric range

-0.500~3.000Abs

Resolution

0.001Abs (displayed), 0.0001Abs (calculated)

Light Source

Halogen lamp

Wavelengths

340, 405, 500, 546, 578, 620, 670nm,

1 more filter optional

Wavelength Accuracy

±1nm

Band Width

8nm

Aspirate Volume

100~300µL

Carryover

<0.1%

Memory

160 test protocols, minimum 500 test result

Interface

RS-232, USB, SD card interface

Flow Cell

25µL Metal-quartz flow cell

Cuvette Mode

12.5mm x 12.5mm cuvette optional

Temperature Control

25°C, 30°C, 37°C, ±0.1°C

Display

7'' color LCD

Input

USB mouse and external keyboard

Output

Build-in printer or external printer (optional)

Net Weight

8KG

Dimensions(mm)

L460 W330 H140

Power supply

AC 110-220V±10%, 50~60Hz
