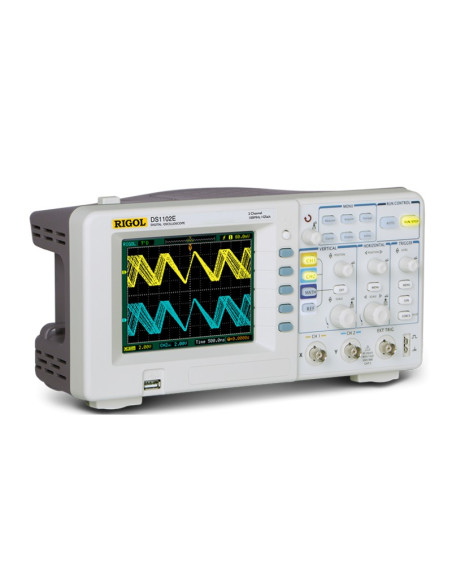

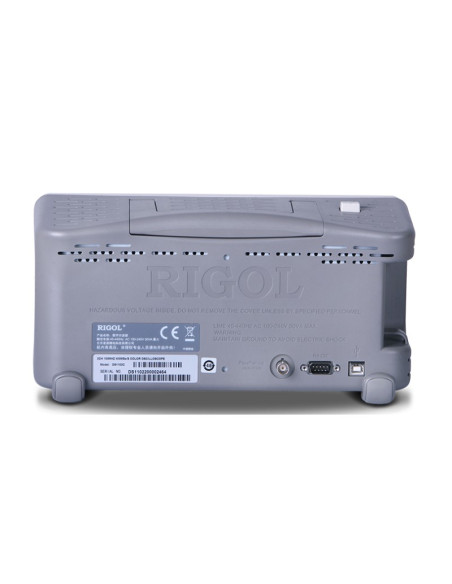

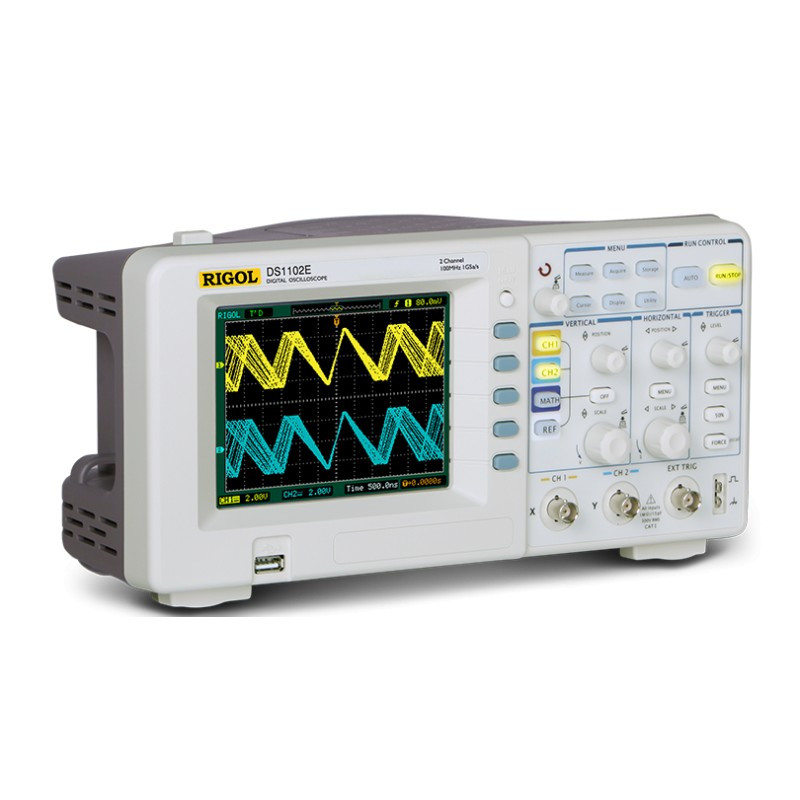

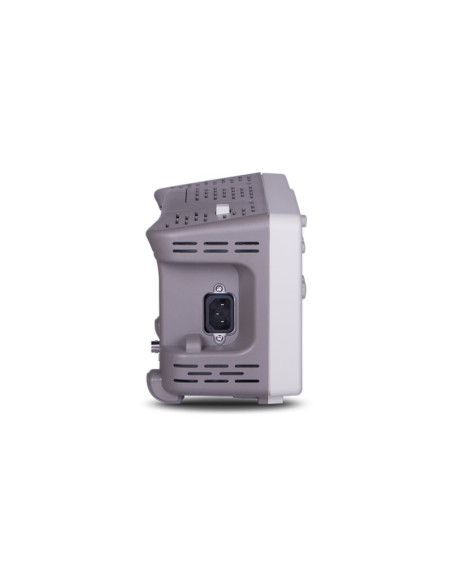

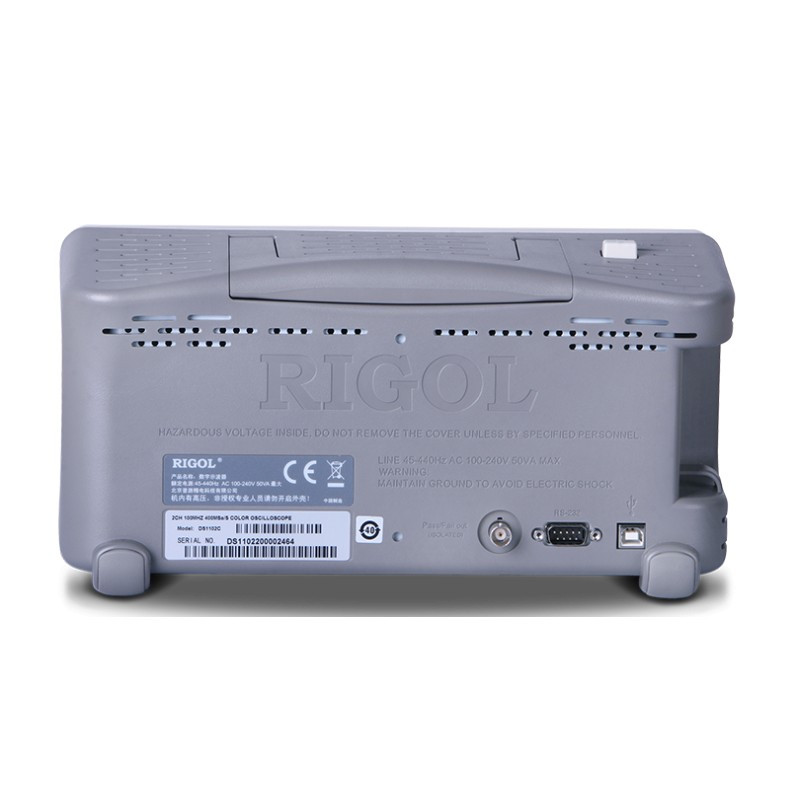

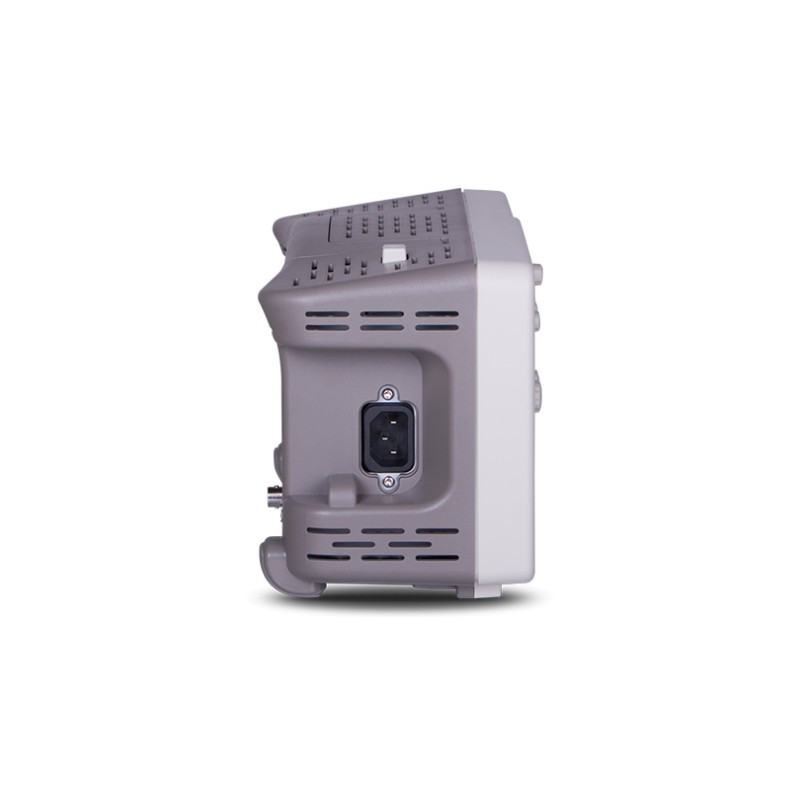

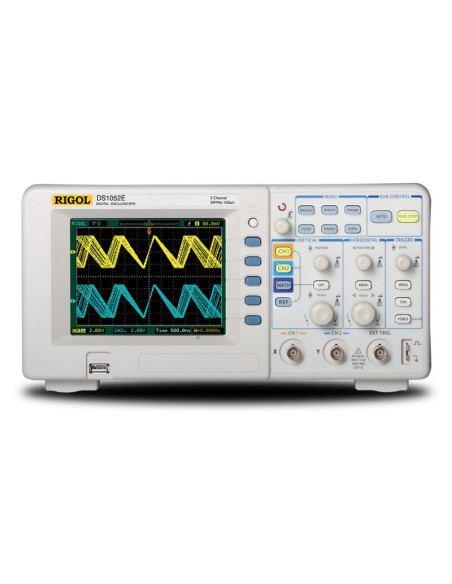

DS1052E Osciloscopio Digital

Bandwidth

DS1102E

DS1052E

DS1102D

DS1052D

100MHz

50MHZ

100MHz

50MHz

Acquisition

Sample Modes

Real-Time Sample

Equivalent Sample

Sample Rate

1GSa/s^[1], 500MSa/s

DS1102X

DS1052X

25GSa/s

10GSa/s

Averages

The waveform will be displayed one time when all the channels

finish N times sample. Wherein, N could be selectable from 2, 4, 8, 16, 32, 64, 128 and 256.

Inputs

Input Coupling

DC, AC, GND

Input Impedance

1MΩ±2%, the input capacity is 18pF±3pF

Probe Attenuation Factors

1X, 5X, 10X, 50X, 100X, 500X,1000X

Maximum Input Voltage

400V (DC＋AC Peak, 1MΩ input impedance)

40V (DC+AC Peak) ^[2]

Time Delay between Channels (typical)

500ps

Horizontal

Sample Rate Range

Real-Time: 13.65Sa/s-1GSa/s Equivalent: 13.65Sa/s-25GSa/s

erpolation

Sin(x)/x

Memory Depth

Mode

Sample rate

ory Depth (normal)

Memory Depth (long memory)

Single channel

1GSa/s

16kpts

N.A.

Single

channel

500MSa/s

or lower

16kpts

1Mpts

Dual channel

500MSa/s or lower

8kpts

N.A.

Dual channel

250MSa/s or lower

8kpts

512kpts

Scanning Speed Range (Sec/div)

2ns/div~50s/div, DS1102X 5ns/div~50s/div, DS1052X

1-2-5 Sequence

Sample Rate and Delay Time Accuracy

±50ppm (any interval ≥1ms)
