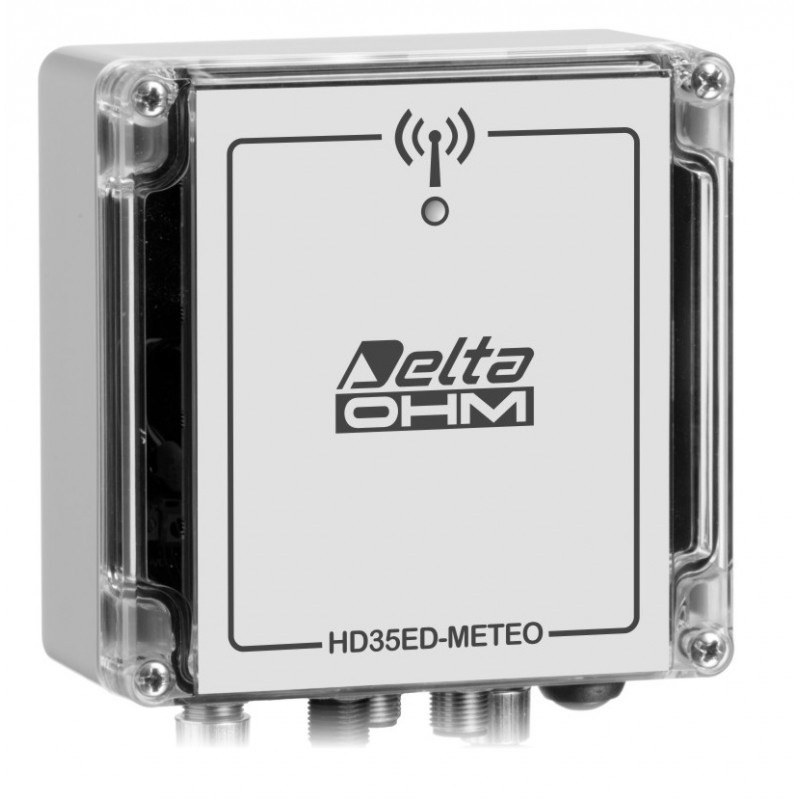

HD 35EDM TC Wireless Data Logger in IP 67 Waterproof Housing

Reference HD 35EDM TC

Manufacturer: Delta Ohm

Condition: New

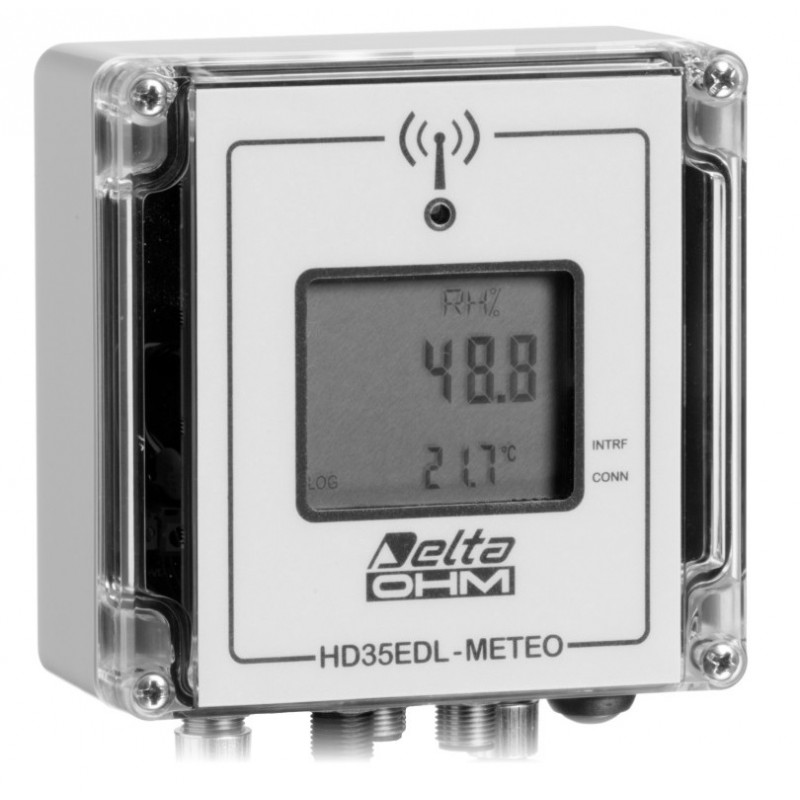

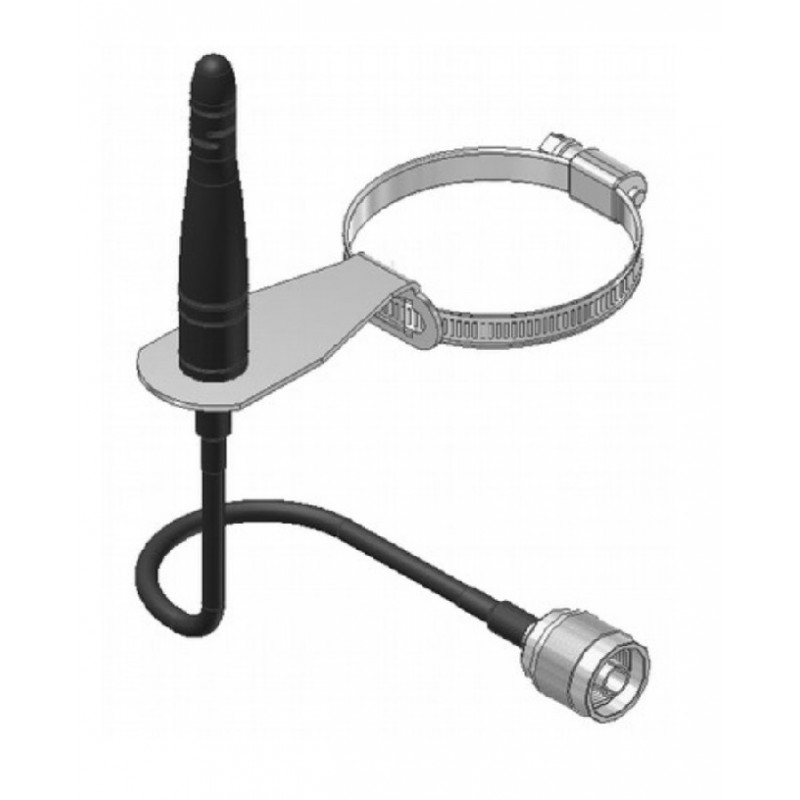

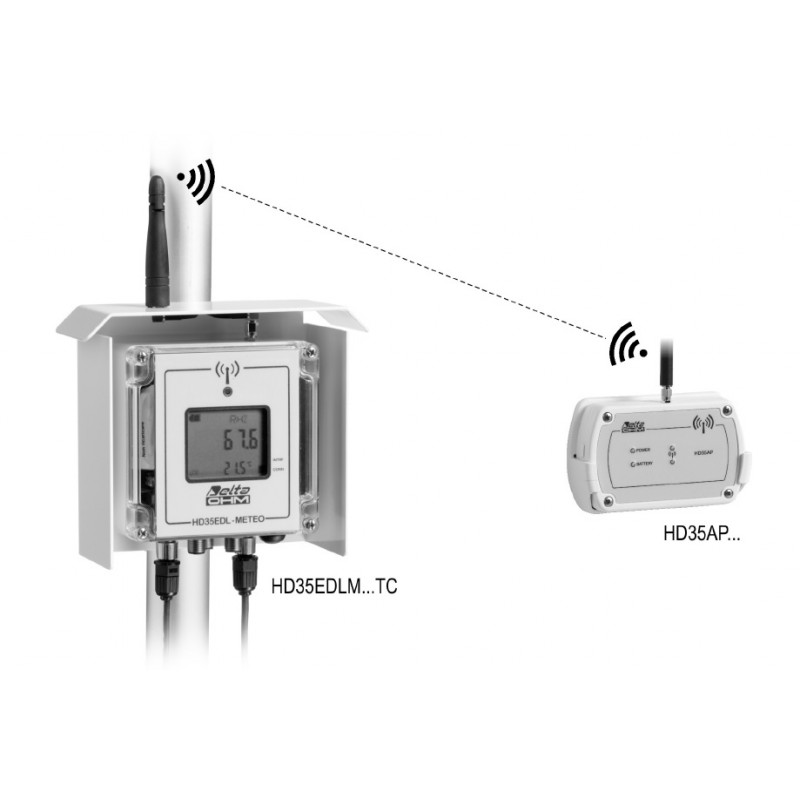

Front dimensions 120x122 mm. It can measure temperature, humidity, atmospheric pressure, solar radiation, rainfall quantity, wind speed and direction. It stores the measures in its internal memory (from 28,000 to 58,000 samples depending on the number of detected quantities) and transmits the logged data to the base unit at regular intervals or upon request. Optional custom LCD display (option L). Transmitting range in open field: 300 m (E) / 180 m (U) with internal antenna,> 500 m (E, U) with external antenna. Acoustic alarm with internal buzzer. Powered by the internal battery.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW

Five inputs With M12 connector: one for the HP3517TC2 temperature and relative humidity combined probe (in AISI 304, with NTC10KΩ temperature sensor) or alternatively for the temperature only probe, one for the pyranometer, one for the rain gauge, one for the HD54. 3 cup anemometer and one for the HD54.D wind vane. It is also possible to connect only some of the probes. Internal barometric sensor.
Sensors measuring ranges:
- temperature: -40 ... + 105 ° C
- relative humidity: 0 ... 100% UR
- atmospheric pressure: 300 ... 1100 hPa
- solar radiation: 0 ... 2000 W / m2
- wind speed: 1 ... 65 m / s
- wind direction: 0 ... 359.9 °
- rainfall: counting of the rain gauge (the resolution depends on the type of rain gauge)
RH. sensor operating temperature: -20 ... + 80 ° C
Instrument operating temperature / humidity: -20 ... + 70 ° C / 0 ... 100% RH.
Calculated quantities (Depending on the probes connected): dew point, daily solar radiation in Wh / m2 (Wh = Watt hour), rainfall rate in mm / h, Wind Chill, Wind Gust.

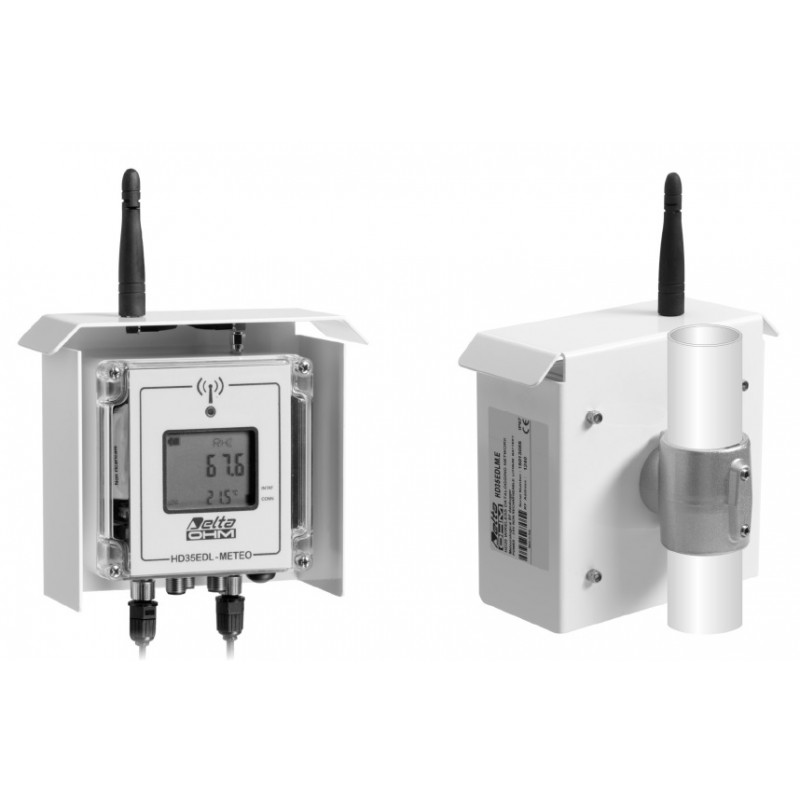

It can be wall mounted or fixed on to 40 mm diameter mast by means of the HD2003.77 / 40 clamping (optional).
Optional HD32MT4.6 protection shield from solar radiations.
Supplied with BAT-2013DB 3.6V non-rechargeable Li-SOCl2 battery (4 years typical life with 30 seconds logging interval and without repeaters).
The probes have to be ordered separately.
